Holybro H-RTK F9P Ultralight High-Precision GPS Compass

£324.90 Inc. VAT

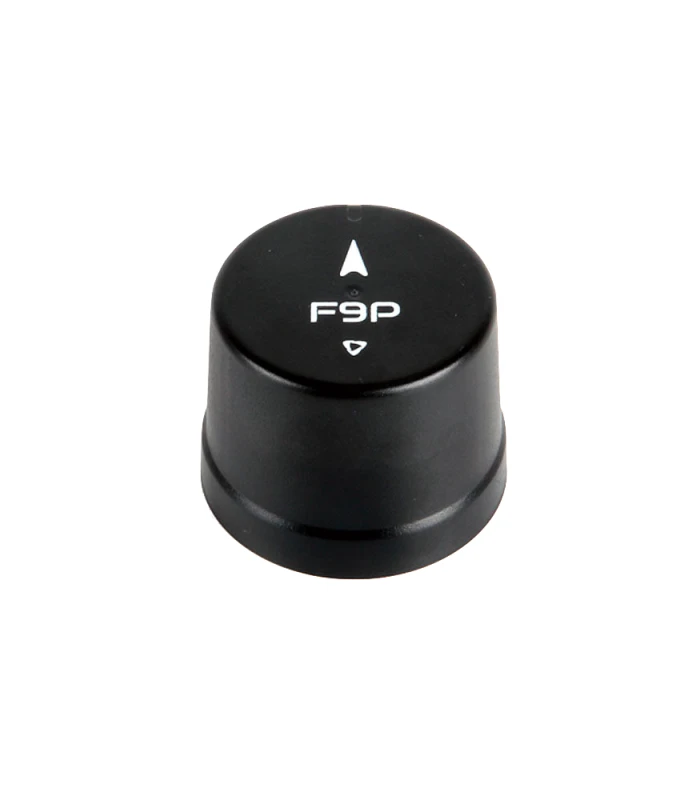

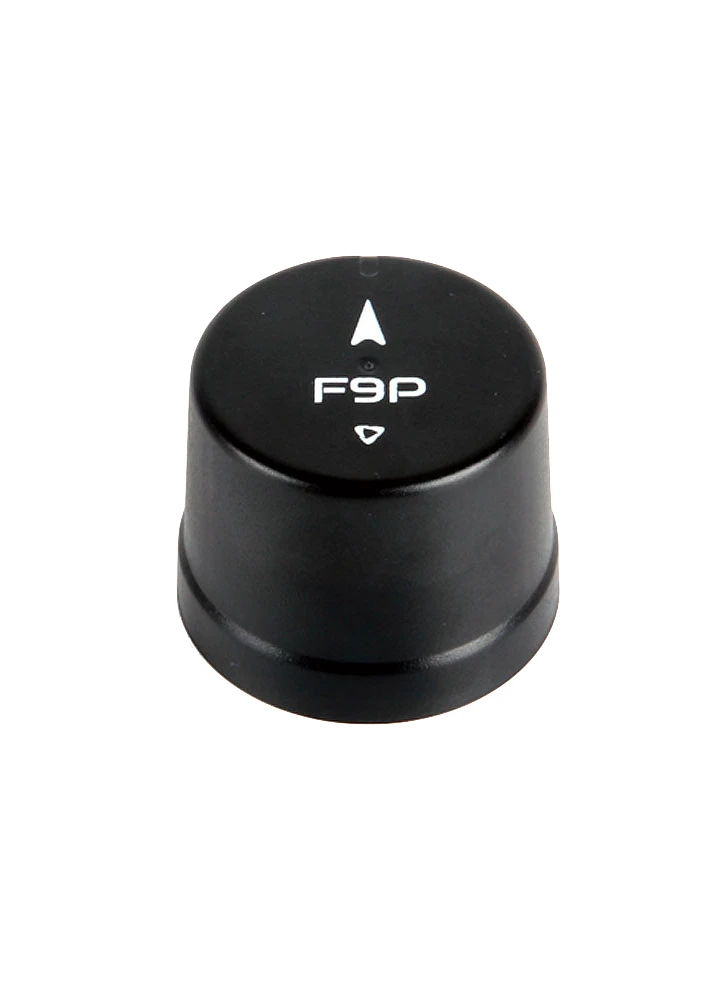

An ultra-lightweight RTK GNSS module with integrated helical antenna.

In stock

0 People watching this product now!
SKU: GPS-HB-12053 Categories: , , Tags: , , , ,
Description

H-RTK F9P Ultralightย is an ultra-lightweight RTK GNSS module with U-blox ZED-F9P, an IST8310 compass, and an integrated helical antenna. It is designed specifically for weight-conscious applications where every gram counts.

The H-RTK F9P Ultralight can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations (GPS, GLONASS, Galileo, and BDS) can be received concurrently. All satellites in view can be processed to provide an RTK navigation solution when used with correction data.

It can be configured for concurrent GPS, GLONASS, Galileo, BDS, QZSS, and SBAS reception to provide a high-performance position reporting and navigation solution. It provides exceptional sensitivity and acquisition times, and interference suppression measures enable reliable positioning even in difficult signal conditions.

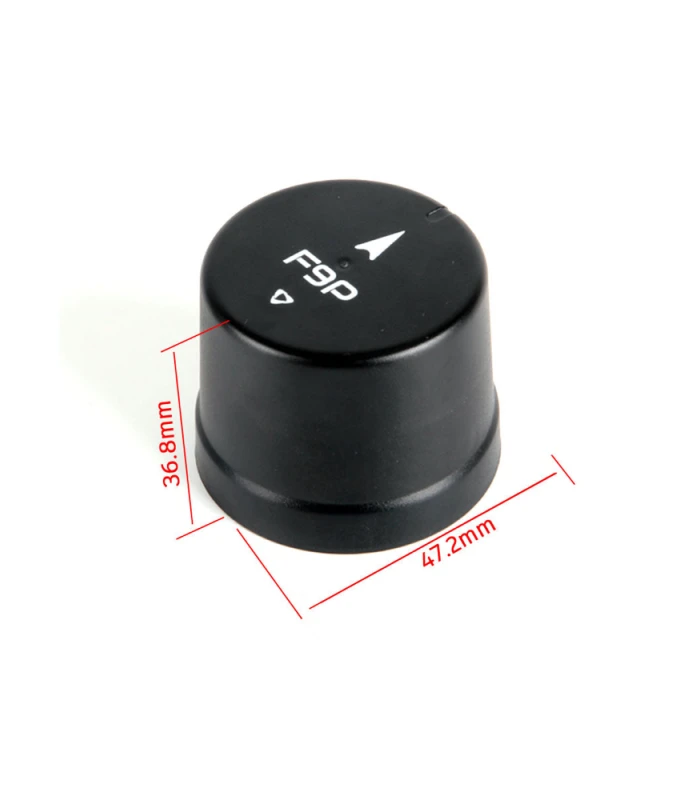

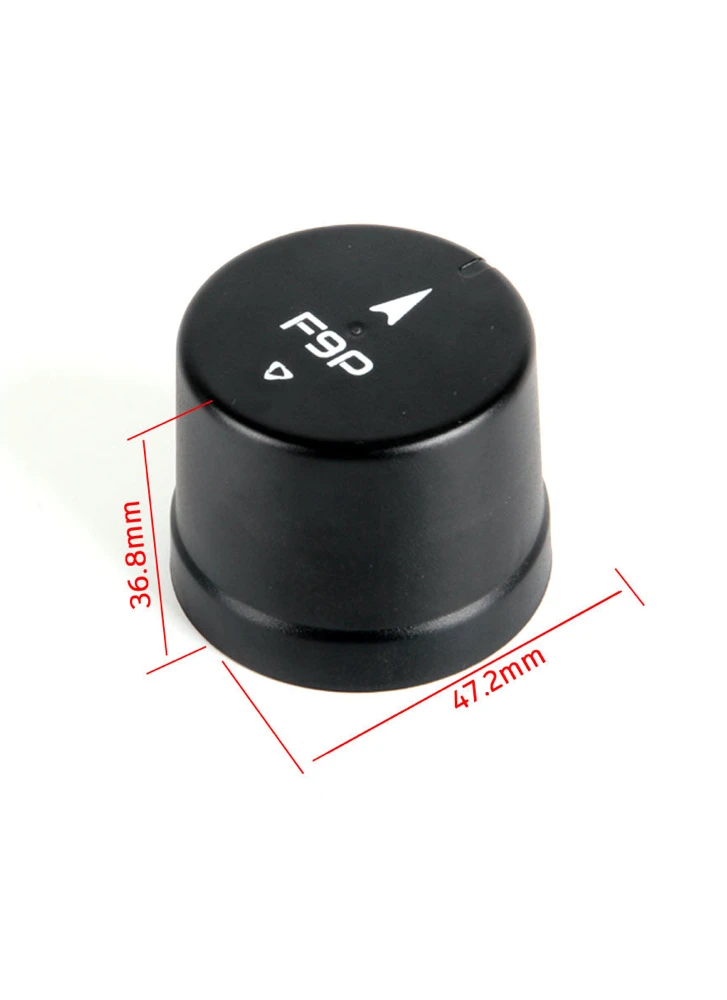

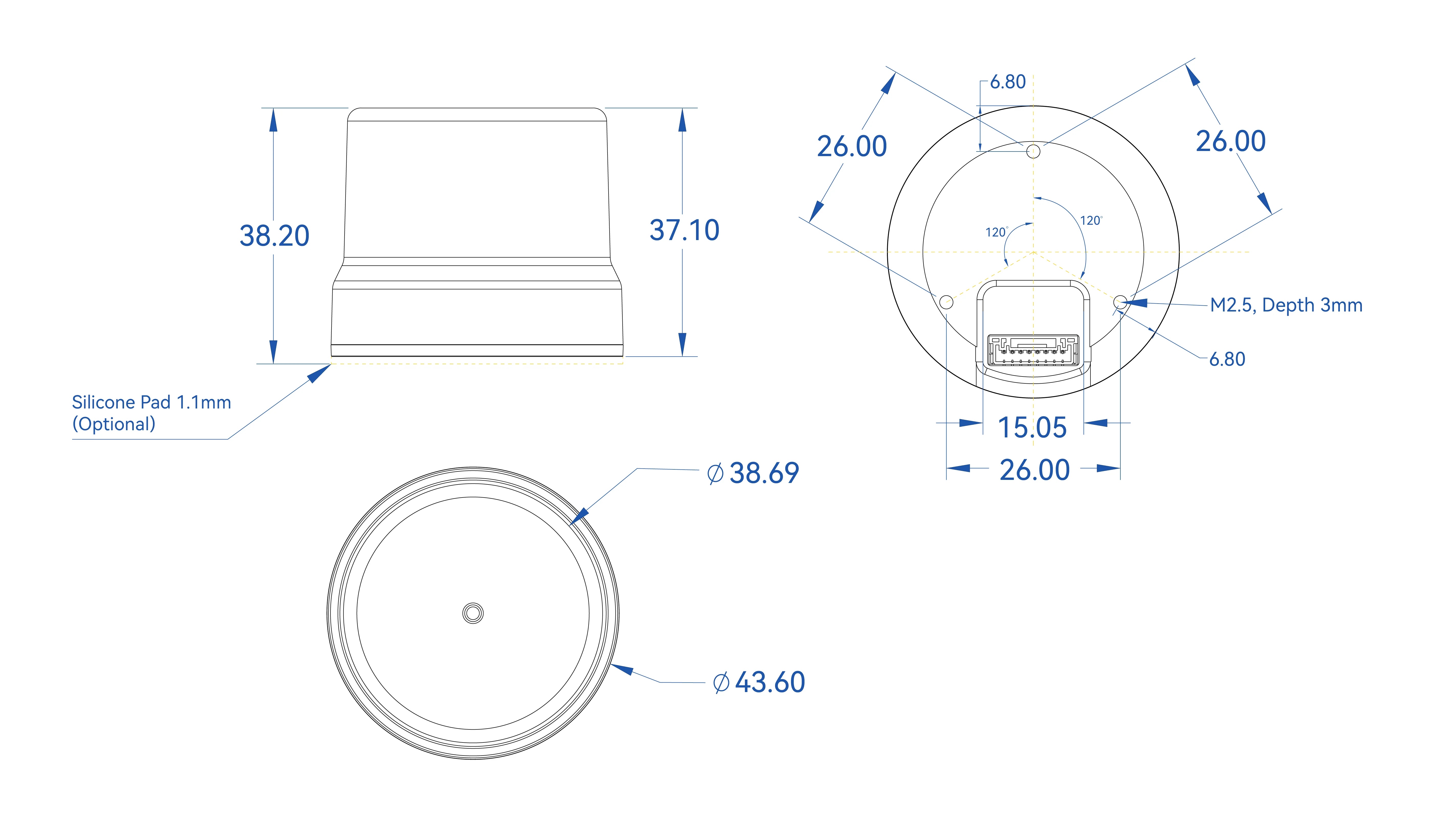

F9P Ultralight Dimension

Specification
  • GNSS module:ย u-bloxย ZED-F9P
  • Compass:ย IST8310

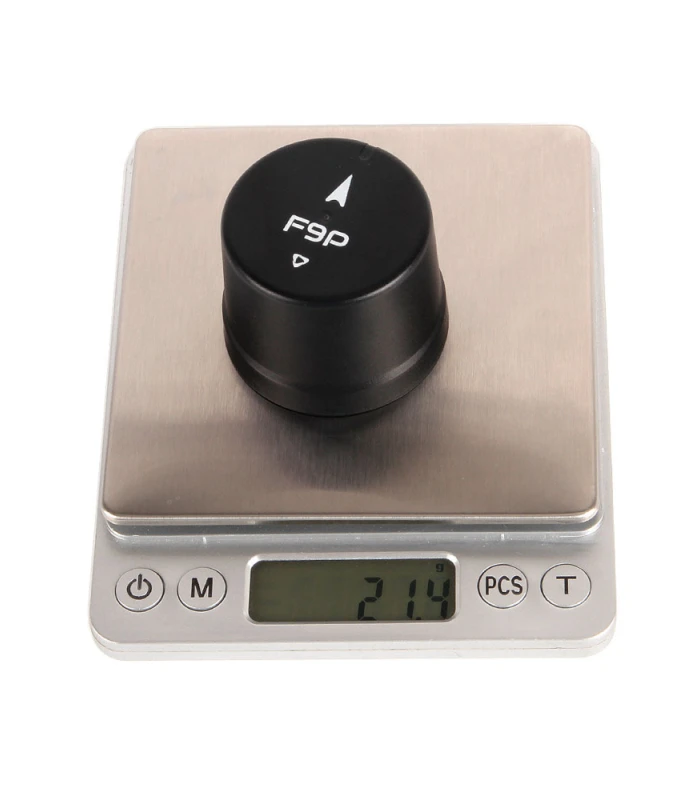

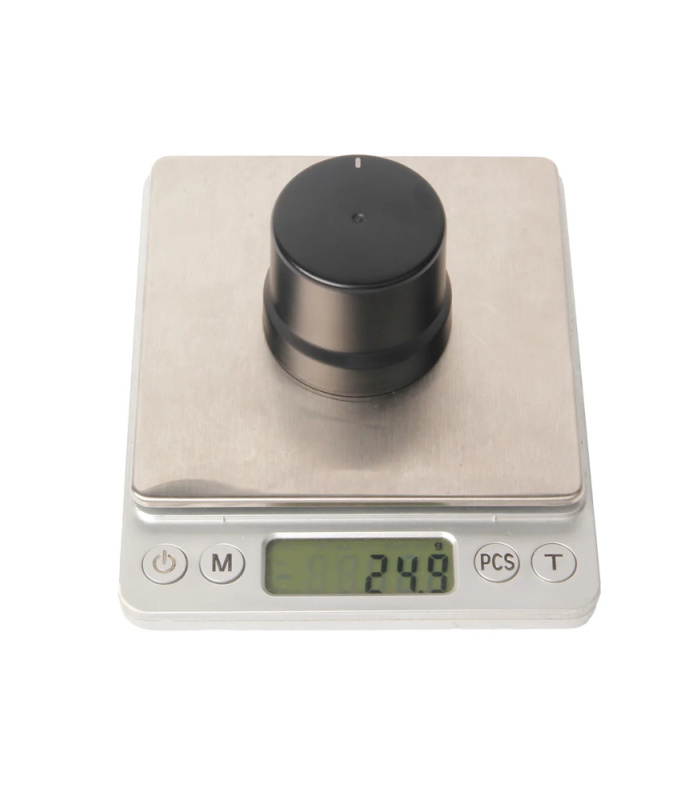

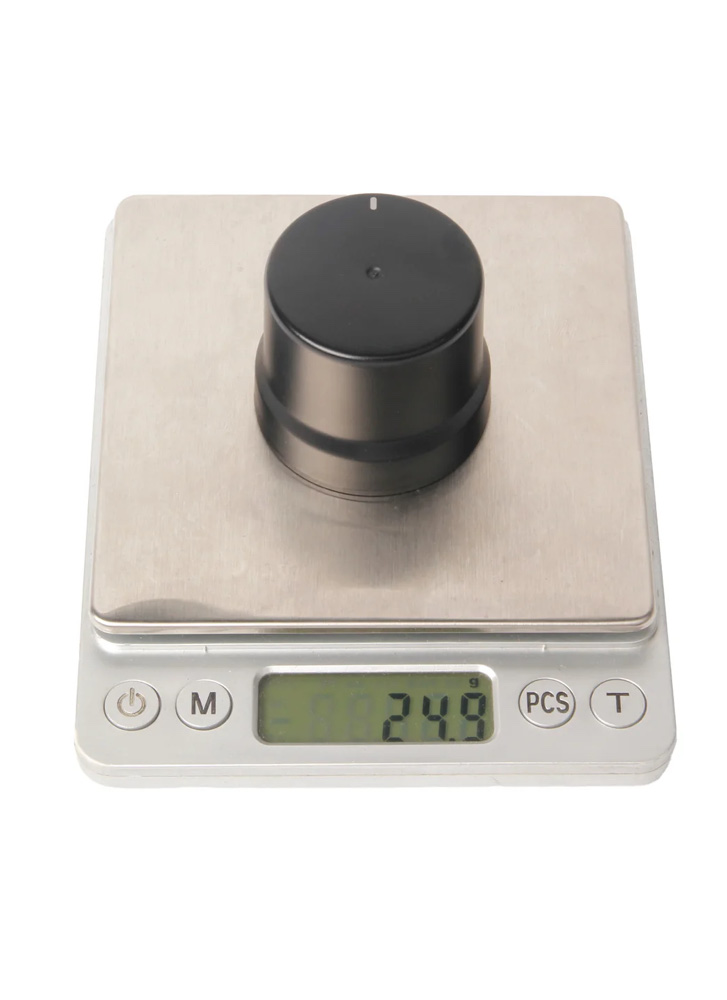

  • Weight: 21.4g
  • Application: Rover (Aircraft)
  • Receiver type: GPS ย L1C/A L2C /ย Galileoย  E1 E5b /ย GLONASS ย G2 G1 /ย BDSย  B1l B2l
  • Sensitivity:
    • Tracking:ย -163dBm
    • Reacquisition:ย -147dBm
  • Time-To-First-Fixยน:
    • Cold Start:ย โ‰ค35 s
    • Warm Start:ย 20s
    • Hot Start:ย 1 s
  • Position accuracyยฒ:
    • Autonomous:ย 2.0 m CEP
    • DGNSS:ย 0.5m CEP
    • RTK:ย 1cm+1ppm (Horizontal)3
  • Accuracy of time pulse signal:
    • RMS:ย 30ns
  • Velocity accuracy:
    • GNSS:ย 0.1 m/s
    • D-GNSS:ย 0.05 m/s
  • Operational limits4:
    • Dynamics:ย โ‰คย 4 g
    • Altitude:ย 18000 m
    • Velocity:ย 515 m/s
  • Baud Rate:ย 38400-230400 bps๏ผˆDefault 38400 bps)
  • Max navigation update rate:ย 10Hz (If you need a greater navigation update rate, please contact us)

1. All satellites at โ‰ฅ-130dBm

2. CEP, 50%, 24 hours static, โ‰ฅ-130dBm, > 8SVs

3. Based on 30km, the accuracy error increases by 1cm every 10km from the base station

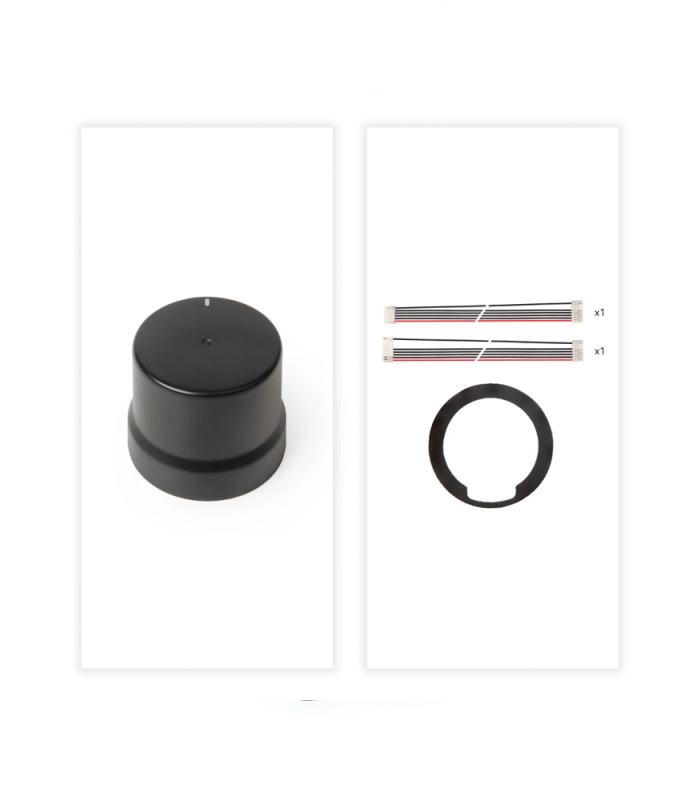

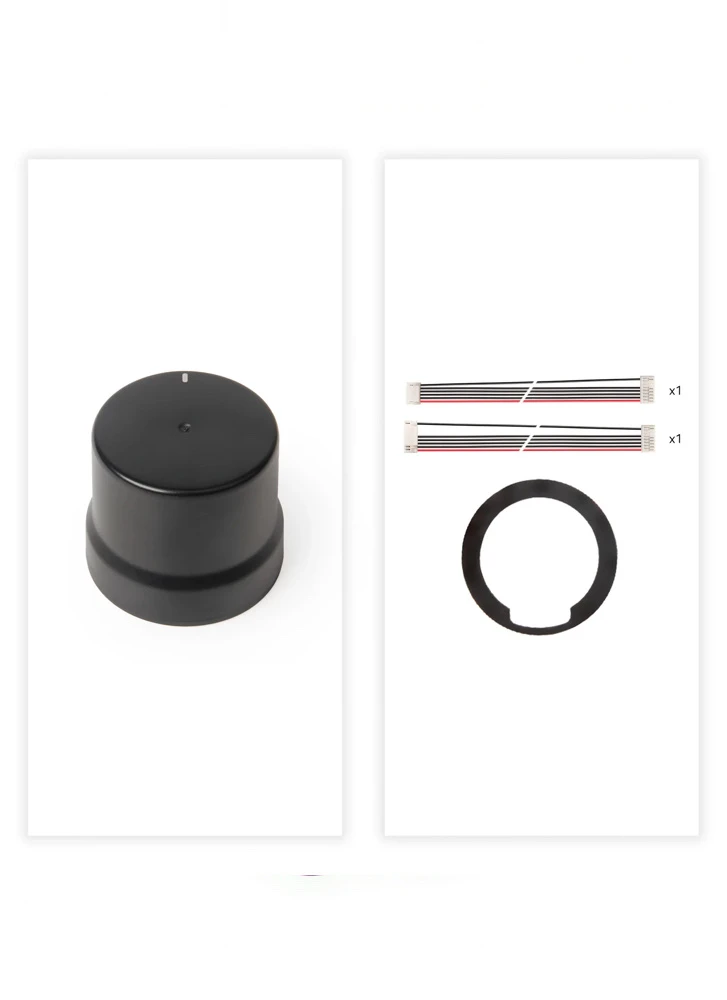

4. Assuming Airborne < 4 g platform Included:

  • H-RTK F9P Ultralight x1
  • GH 10P cable 200mm x1
  • GH 6P cable 200mm x1
Downloads
Dimensions (jpg, 17KB)
