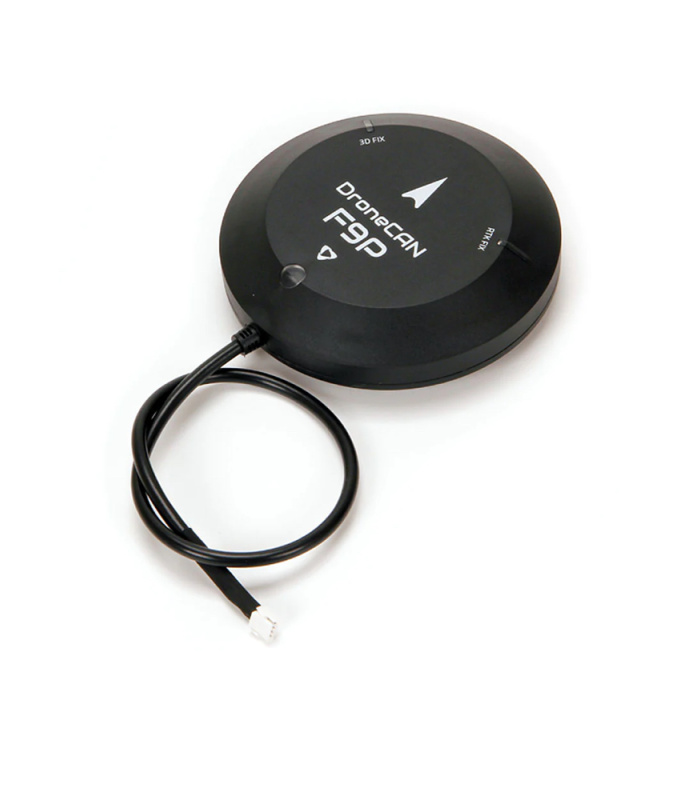

Holybro DroneCAN H-RTK F9P Rover GPS Compass Module
Price range: £299.99 through £309.99 Inc. VAT
One of the most capable GPS systems on the market. It utilises the u-blox F9P, RTK technology & DroneCAN protocol.
The DroneCAN H-RTK F9P is the latest differential high-precision GNSS positioning system from Holybro. It has adopted the DroneCAN protocol for communication. It provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo and BeiDou, and a fast update rate for highly dynamic and high volume applications with centimeter-accuracy.
With the adoption of the DroneCAN Protocol, it has up to an 8 Hz navigation update rate, upgradeability, noise immunity, real-time features, and is more robust than UART due to its increased resistance to electromagnetic interference. It does not occupy any serial port of the flight controller, and multiple CAN devices can be connected to the same CAN bus via a hub.
The DroneCAN-F9P uses a u-blox F9P module, a BMM150 compass, and a tri-colored LED indicator, and is equipped with the STM32G4 processor running at 170 MHz with 512 KByte Flash and 96KByte RAM. It supports DroneCAN firmware upgrade via the DroneCAN GUI Tool. It is compatible with the open source Pixhawk series flight controller.
Features
We have designed two models of DroneCAN H-RTK F9P for you to choose, each with different size and antenna design to meet different customer needs:
 |
DroneCAN F9P Rover The Rover model has a flatter profile and stronger water resistance. It uses a dual band patch antenna and comes with an integrated cable to connect to the CAN bus. It excels in spaces where there are few obstructions.You can find purchase link for this product here |
 |
DroneCAN F9P Helical This model uses a helical antenna, which has slightly better performance in space with obstructions than the Rover version. The antenna of this module can either be attached to the module directly or connected via a SMA cable, giving you the ultimate flexibility. It also has a UART2 port exposed, allowing you to do YAW/Heading (aka moving baseline).You can find the purchase link of this product hereThis model can be used either on the rover (aircraft) or as a base station. However, when used as Base Station, RTK communicate with the Ground Control Station via USB, so the DroneCAN protocol is not used. You can consider using the standard H-RTK F9P Helical or Base for your Base Station. |
Sample Wiring Diagram
For other technical details and user guide, please see the documentation Page here.
- Intended Application: Rover (aircraft) only
- GNSS Receiver: U-blox ZED-F9P high precision GNSS module
- Antenna: Ceramic Patch Antenna with 20dB LNA
- Processor: STM32G473
- Magnetometer: BMM150
- GNSS: BeiDou, Galileo, GLONASS, GPS / QZSS
- GNSS Band: B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF
- Positioning accuracy: 3D FIX: 1.5 m / RTK: 0.01 m
- Communication Protocol: DroneCAN 1Mbit/s
- Antennas Peak Gain (MAX): L1: 4.0dBi / L2:1.0 dBi
- Time-TO-First Fix: Cold start: ≤29s / Hot start: ≤1s
- Navigation Update Rate: RAW: 20Hz Max RTK: 8Hz Max
- Cable Length: 27cm or 42cm
- Antenna Connection Type: N/A
- Working voltage: 4.75V~5.25V
- Current Consumption: ~250mA
- Dimensions: Diameter: 80mm Height: 20mm
- Weight: 123g
- Operating Temperature: -20℃ to 85℃

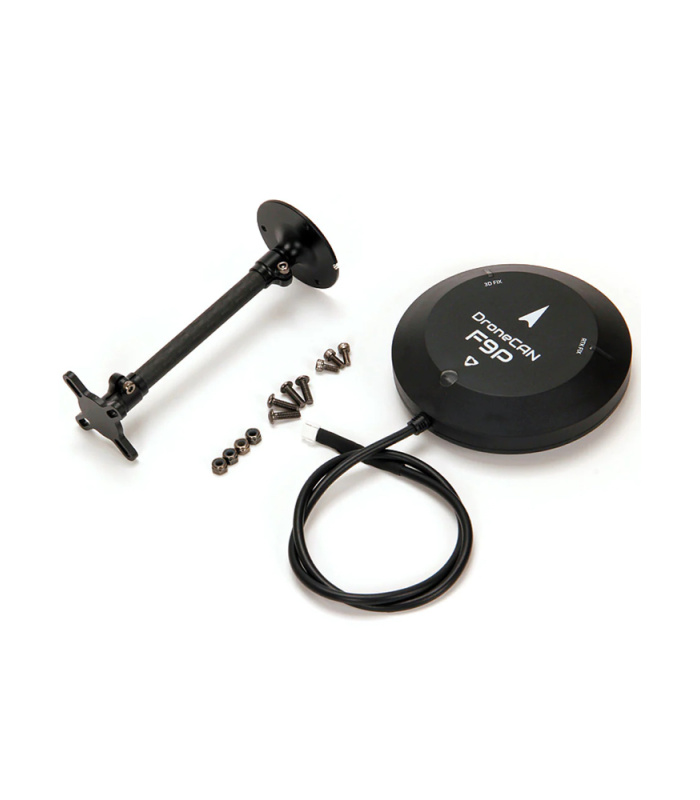

Included:
- 1x DroneCAN F9P Rover

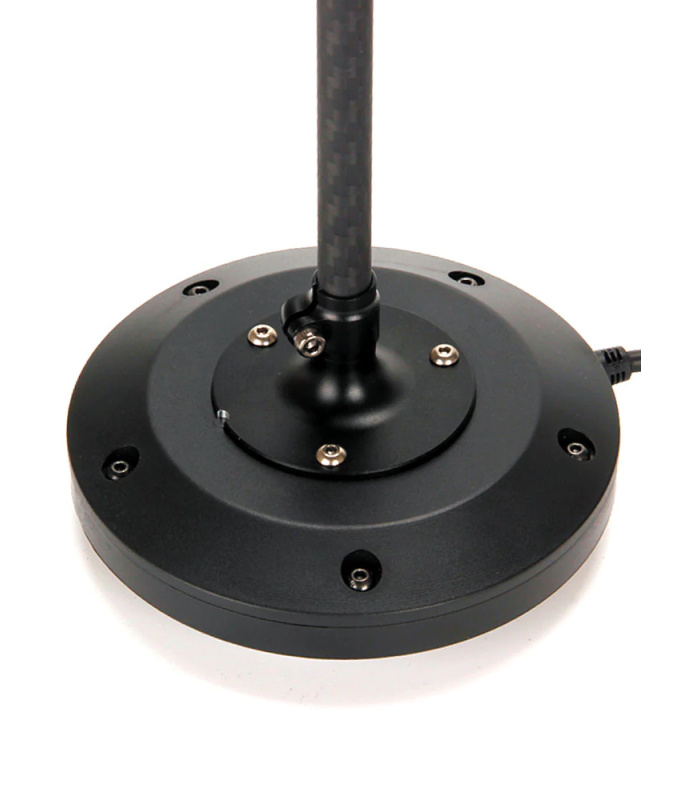

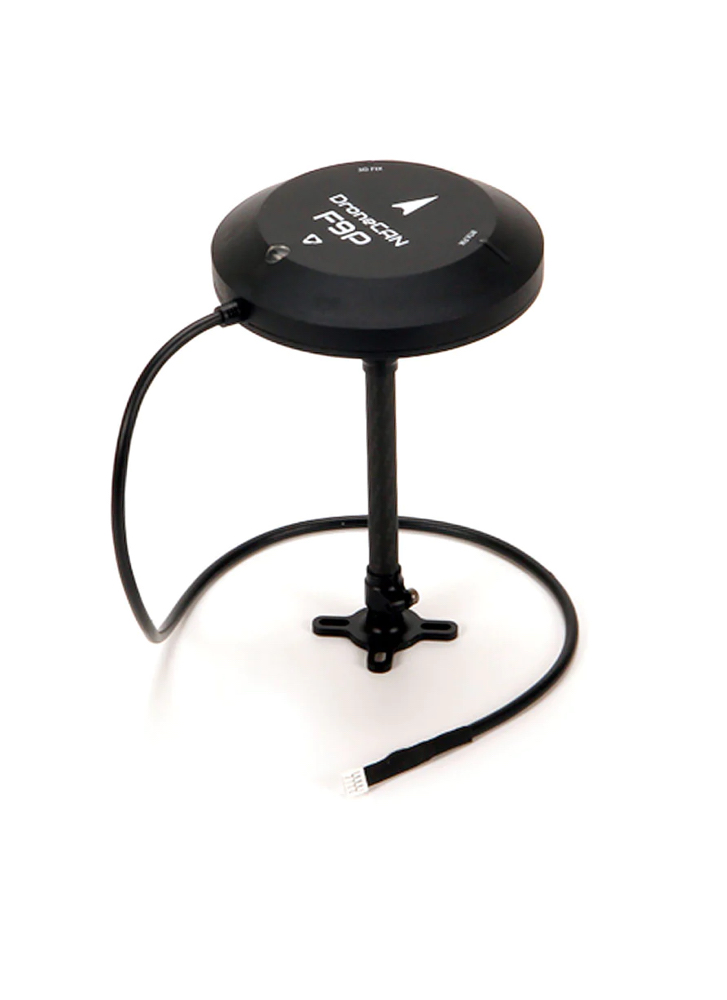

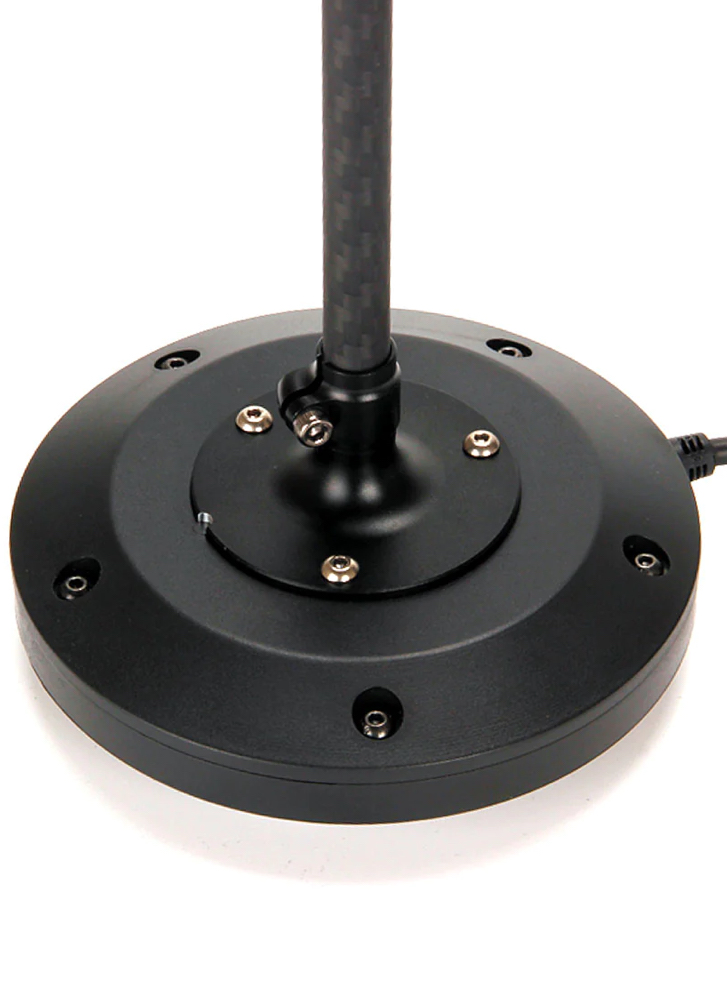

- 1x Fixed Carbon Fiber GPS mount
