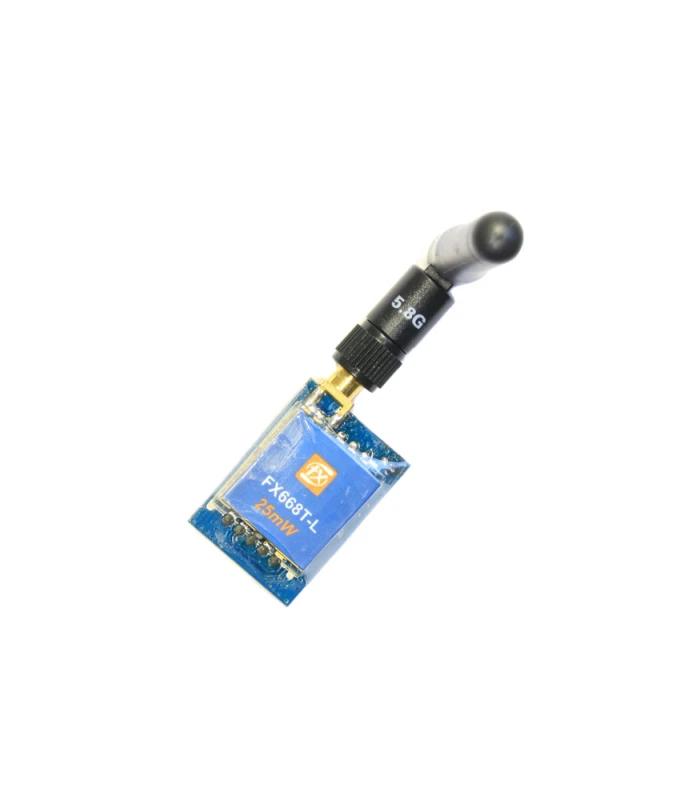

FXT FX668T 5.8Ghz 40CH FPV VTX Pit Mode 25/200/600mW

£26.99£37.99 Inc. VAT

There are three transmitters within the FX668Tย series range, each with a different power output.

0 People watching this product now!
Description

The FX668T is a VTX for those who race drones. It’s small and light,ย but most importantly supports RaceBand frequncies and has a Pit Mode. Theย Pit Mode letsย you disable the RF output on the transmitter at the push of a button.ย That way you do not interfere with other pilots when working on your racer out in the field. Theย FX668Tย has 40 channels including the new Raceband frequencies, which allows more racers to fly together on the same band.

With the FX668T wiring couldn’t be easier, it isย directly compatible with 3-4S LiPO and features aย handy 5volt regulator for powering a FPV camera, so no regulator required. Furthermore it utilises a locking cable, so there’s no chance of it coming out of place in flight.

Last but not least in terms of features, theย FX668Tย also hasย an onboard microphone. This might sound like a pointless feature to many, but there are benefits to be had from being able to hear what the motors are doing (check out thisย blog post), indeed some of the top racers areย using mics to go even faster.

Models

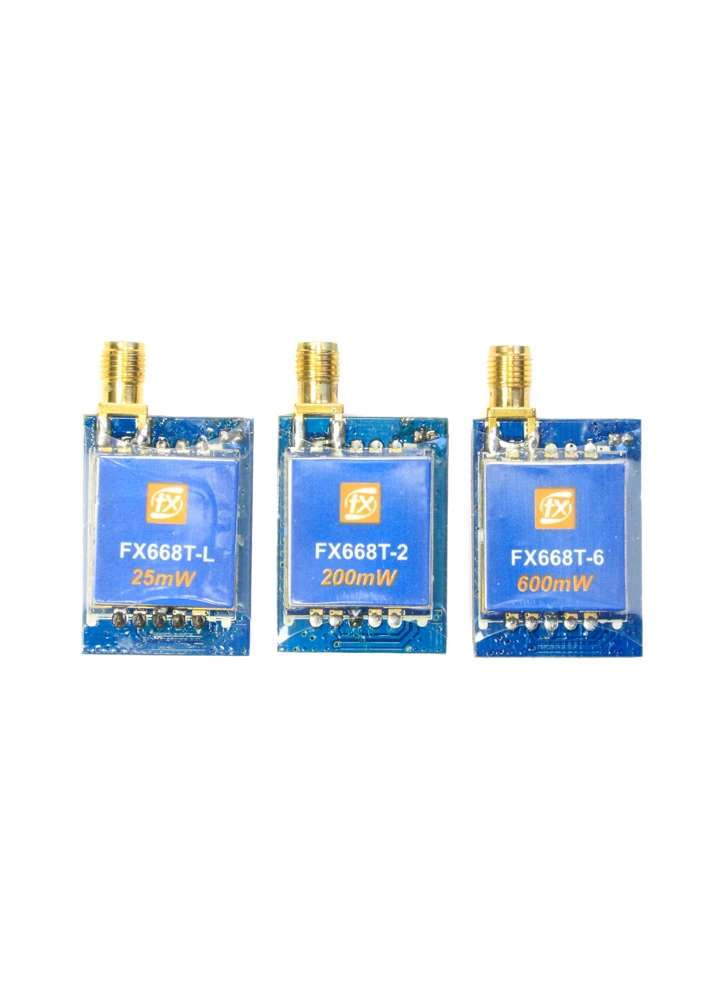

There are three transmitters within the FX668Tย series range, each with a different power output:

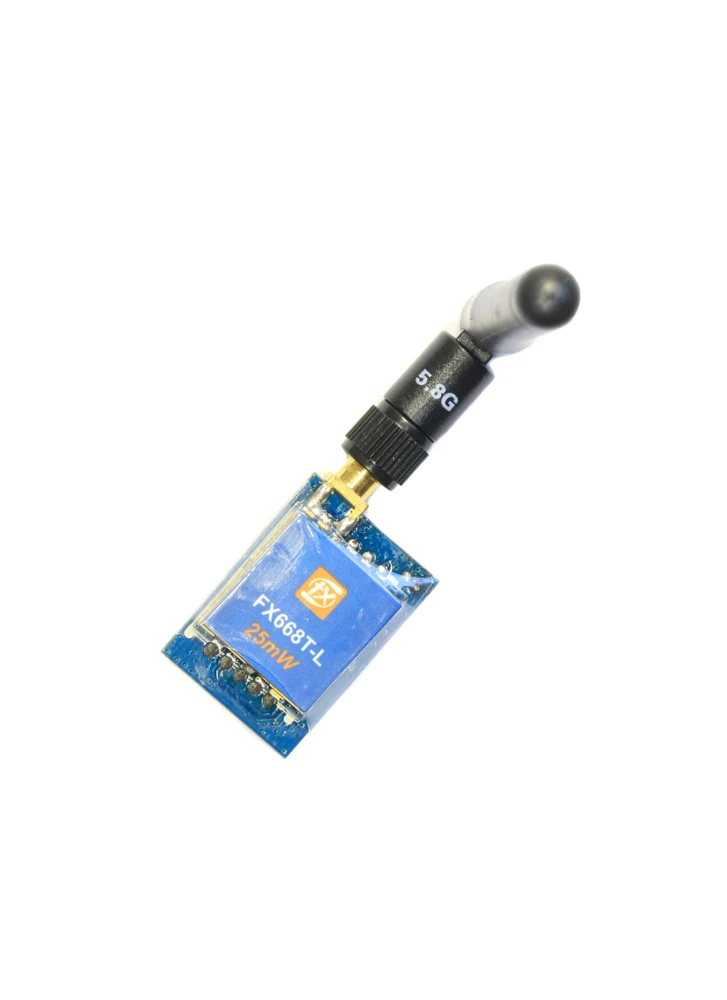

25mW FX668T:ย This is a UK legal transmitter, itโ€™s 25mW power output and 27 channels are free to use in the UK without a license. Although you have probably seen more powerful FPV transmitters, don’t think it has a poor range because of its low power rating. With the stock antenna you can get 200m in open space. However, if you are using some circular polarised antennas, you can easily get >300m. Low power FPV transmitters are also really good for indoor environments, where high-powered transmitter often cause multipathing (poor signal quality caused by the signal being reflected by obstacles).

200mW FX668T:ย 200mW is a power output used by a lot of FPVย mini quad racers. It’s enough to provide a decent range and reception and equally won’t kibosh everyone elseโ€™s fun, or eat into your battery life.

600mW FX668T:ย This transmitter certainly packs the power; 600mW is enough for 1km+ LOS long-range flights.

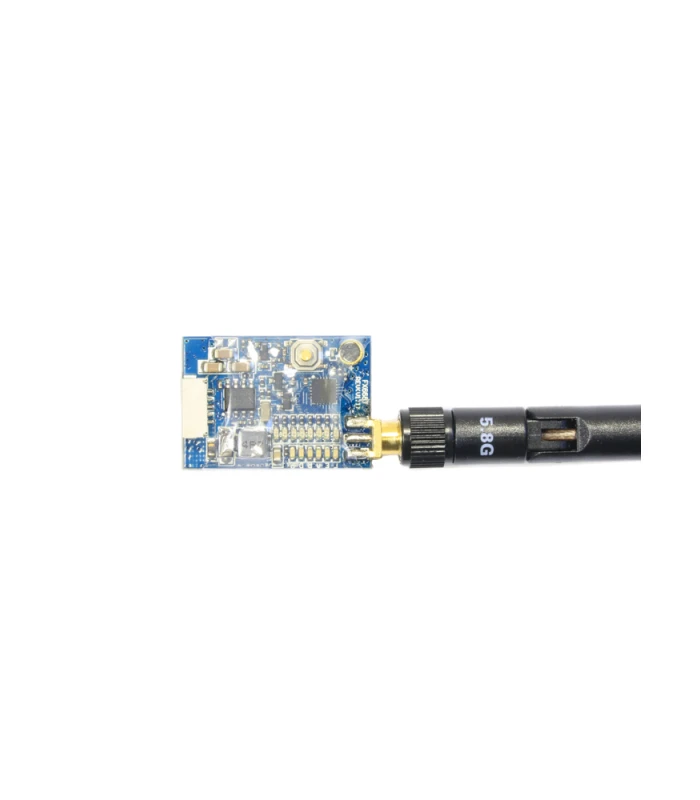

All of the transmitters operate across multiple frequencies and channel bands, including the newer ‘RaceBand’, making them compatible with most FPV gear on the market. Best still, thereโ€™s not a dipswitch in sight, it has a channel selection button and LED light display that makes changing channels a painless experience. The RED LED indicates the Channel frequency selection, the Blue LED indicates the Band selection.

  • Frequency Selection:ย Single push to change CH, push and hold for 2 seconds to change FR
  • RF Power Output: Press the button for 5 or more seconds until the LED indicates the VTX is on/off

All ofย the models come with a dipoleย antenna, butย we recommend using theย Skyzoneย circular polarised FPVย antennaย for better recption and increased range.

Replacmentย VTX Cable

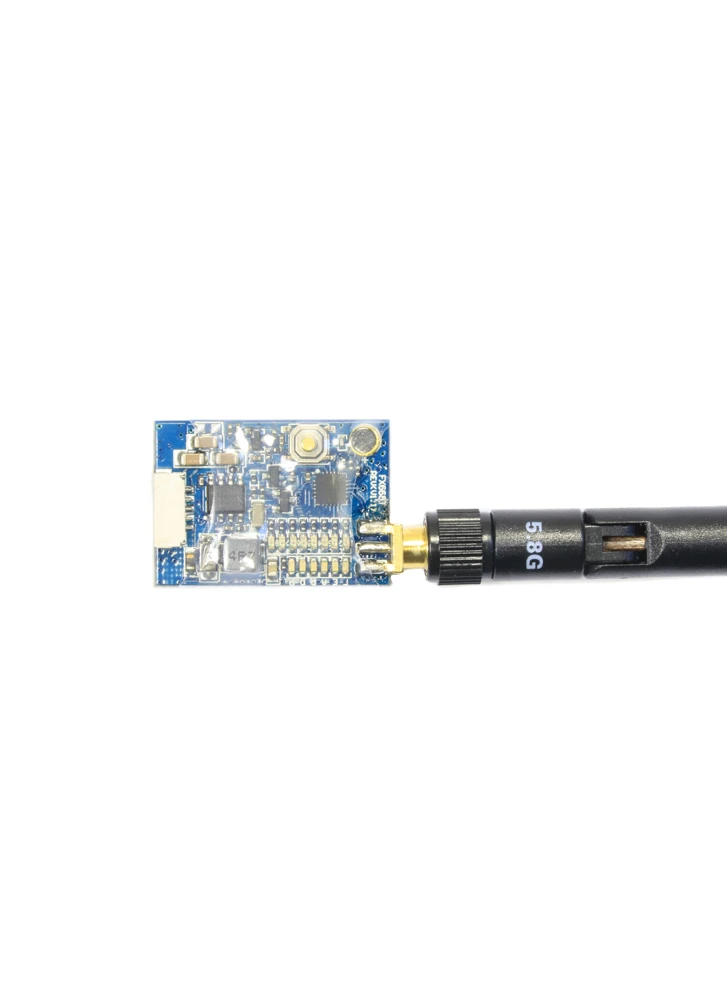

FXT FX668T Controls

Frequency Table:

ย
ย  ย CH1 ย  ย CH2 ย  ย CH3 ย  ย CH4 ย  ย CH5 ย  ย CH6 ย  ย  CH7 ย  ย CH8
ย  FR1(F) ย  5740 ย  ย 5760 ย  ย 5780 ย  ย 5800 ย  ย 5820 ย  ย 5840 ย  ย 5860 ย  5880
ย  FR2(E) ย  5705 ย  ย 5685 ย  ย 5665 ย  ย 5645 ย  ย 5885 ย  ย 5905 ย  ย 5925 ย  5945
ย  FR3(A) ย  5865 ย  ย 5845 ย  ย 5825 ย  ย 5805 ย  ย 5785 ย  ย 5765 ย  ย 5745 ย  5725
ย  FR4(R) ย  5658 ย  ย 5695 ย  ย 5732 ย  ย 5769 ย  ย 5806 ย  ย 5843 ย  ย 5880 ย  5917
ย  FR5(B) ย  5733 ย  ย 5752 ย  ย 5771 ย  ย 5790 ย  ย 5809 ย  ย 5828 ย  ย 5847 ย  5866

Features:

  • Unique on/off feature allows the VTX to be switched off while selectingย frequencies or working in the pits (Pit Mode)
  • Micro size and very light weight
  • 25 / 200 / 600 mWย power options
  • Standard SMAย antenna connector compatible withย ImmersionRC/Fatshark
  • 40 Channels with RaceBand – Perfect for FPV racers
  • 5V output for powering aย FPV camera
  • Flexible power inputย 7-20v (2s-4s input)
  • Includes on board microphone
  • Easy push-button channel selection with LED indicator

IMPORTANT: Do not turn the transmitter on before attaching the antenna,ย doing so will permanentlyย damage the board!

Legal Notice:ย Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licensesโ€™ to operate vary from region to region.

Specification
  • Antenna connector:ย SMA
  • Video Format: NTSC/PAL
  • Frequency Selection: Button
  • Output Impedance:ย 50 Ohm
  • Output Power: 12~14ย dBM
  • Frequency Range: 5645 ~ 5945 Mhz
  • Channel:ย 40CH (Including Raceband)
  • Video Band Width: 5-6 MHzย (except R Band, that is 37mhz apart)
  • Audio carrier Frequency: 6.5 MHz
  • Video Input Level: 0.8,1.0,1.2 Vp-p
  • Video Input Impedance: 70ย Ohm
  • Audio Input Level: 0.8 ,2.0 Vp-p
  • Audio Input Impedance: 10K Ohm
  • Operating Voltage: 7 – 20V
  • Supply Current: 70mA
  • Output Voltage (VOUT): 5V
  • Operating Temperature: -10~85 degrees

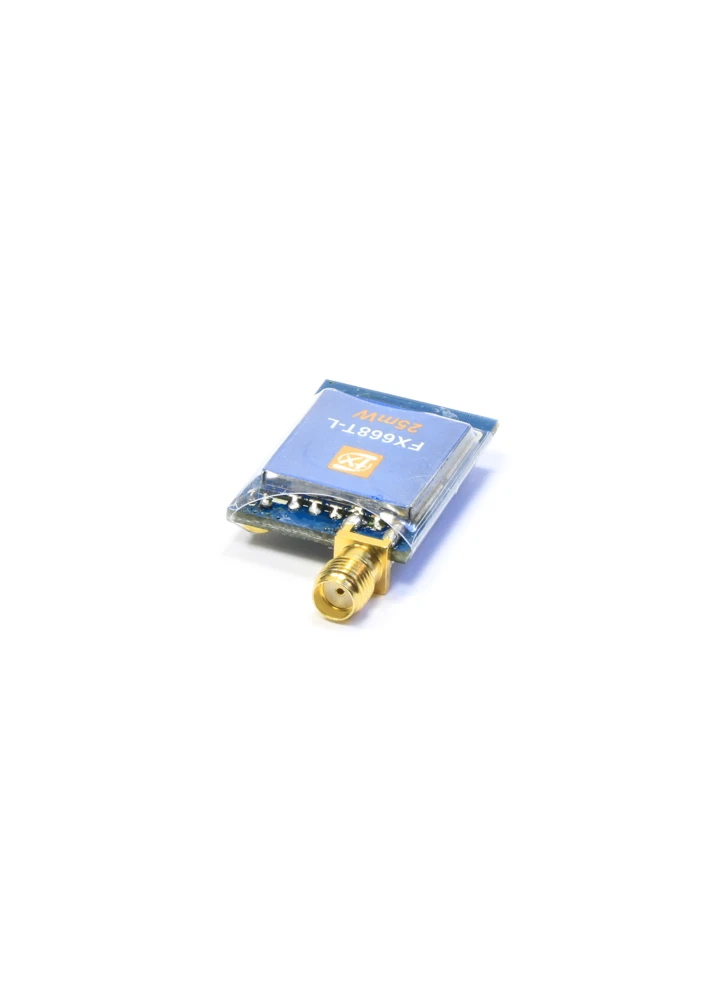

  • Dimension:ย 31mm x 20mm x 8mm
  • Weight: 7.5g (without antenna)

Included:

  • 1xย 25mW FX668T
  • 1 x Antenna
  • 1x Video Cable
