BETAFPV ExpressLRS ELRS FTDI Recovery Dongle

£9.90 Inc. VAT

This ELRS recovery dongle allows you to update/unbrick ELRS receiver firmware via UART instead of WIFI.

In stock

0 People watching this product now!
Description

This small ELRS recovery dongle allows you to unbrick and recover anย ELRS receiverย and also to flash firmware to it by using the UART port instead of WIFI.ย

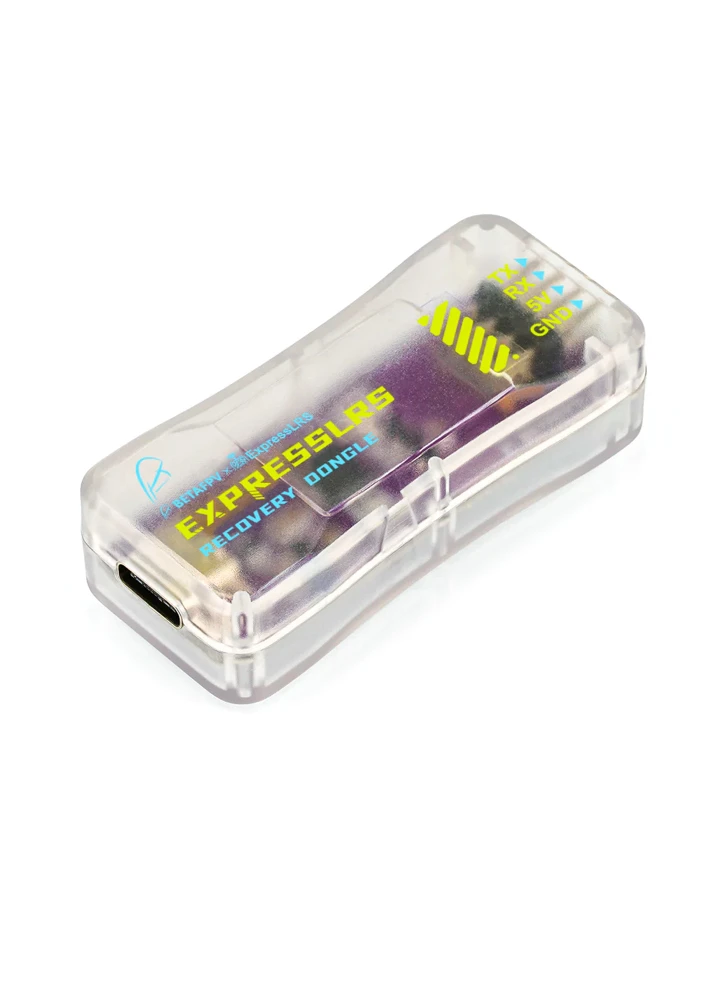

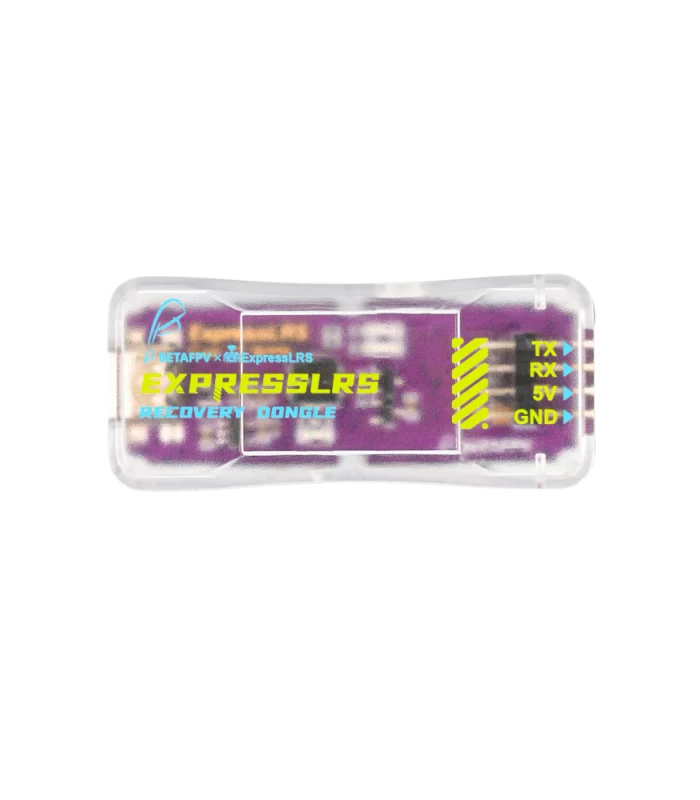

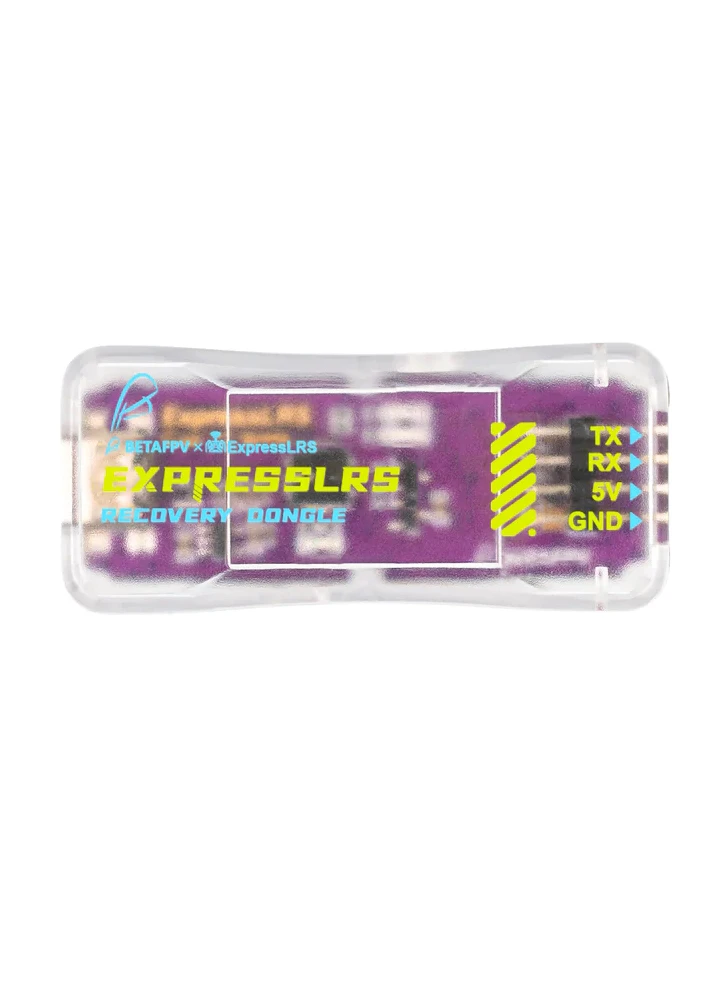

The BetaFPV ExpressLRS Recovery Dongle is an FTDI USB to TTL adapterย based on the CP2102 bridge controller.ย Theย ExpressLRS Recovery Dongle is compatible withย most ELRS receivers based on ESP32 and ESP8XX chips including BetaFPV ELRS Lite, Nano, and Micro receiversย and FPV goggles backpack. Its ingenious design with spring probe pins allows a solder-free solution connection to unbrick your ELRS RXย or flash firmware by UART.

BETAFPV Dongle

Bullet Point

  • Unbrick and recover the ELRS receiver when having a failed update such as the missing bootloader.

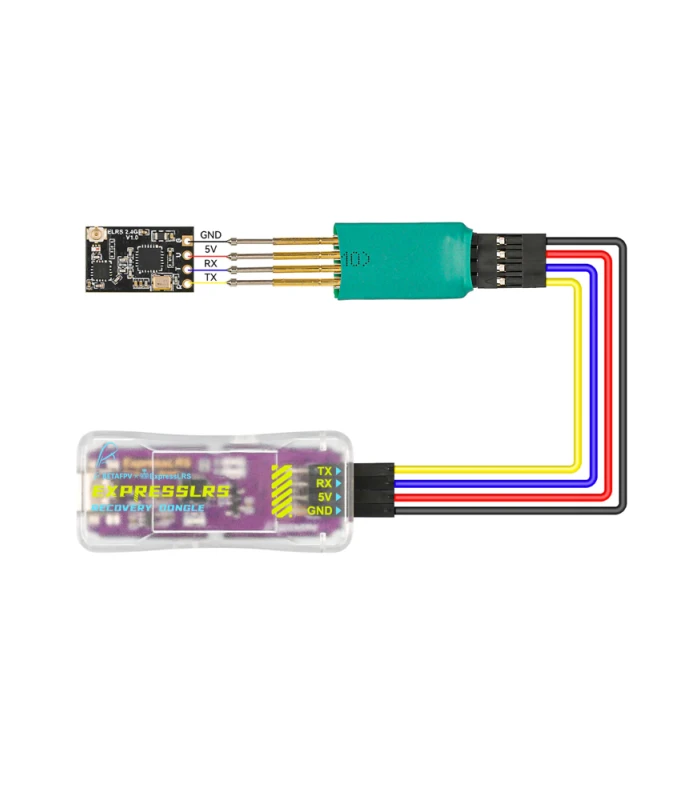

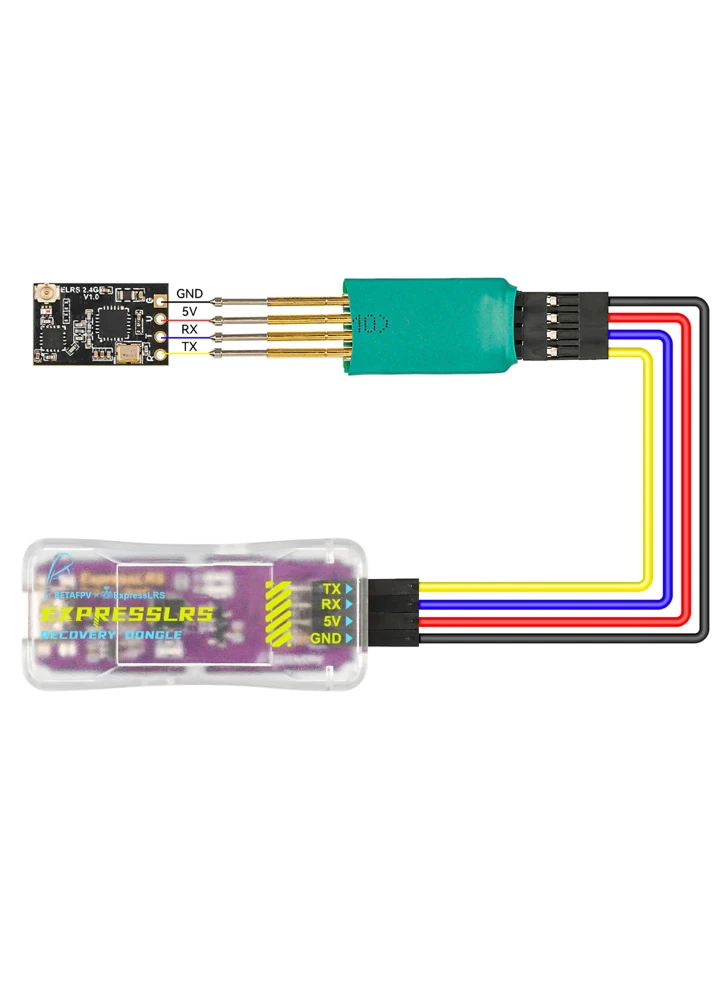

  • Soldering Free! Itย features spring probe pins for more convenient use. Connecting it with the ELRS receiver directly does not need to solder.
  • ExpressLRS Recovery Dongleย FTDI USB to TTL module is covered by the case and is more durable and portable compared with the naked board version on the market.
  • Support many computer systems in the market like Windows, MAC, and Linux. This module uses a Type-C USB port for connecting the computer.

Know More About FTDI Module

ExpressLRS Recovery Dongle (FTDI Module) is mainly used to unbrick the ELRS receiver when having a failed update by Wifi upgrading or passthrough but also provides theย UART wayย to upgrade the ELRS receiver or backpack. This FTDI module featuresย spring probe pins and a connector for non-soldering use, which is more convenient for users. Besides, it is very durable and portable with a shell.

ELRSDongleAdapter

Note: The package does not include the Type-C USB cable. Please make sure you have available one.

BETAFPV Dongle2

FAQ

Please click the below link to know how to use theย ExpressLRS Recovery Dongle. This module requires the driver for the Windows system and there is no need if you are using MAC or Linux.

How to use the ExpressLRS Recovery Dongle

Driver for Windows

This video will help you to know how to flash firmware via FTDI.

Specification
  • USB Interface: Type-C USB male connector
  • Operating Voltage: 5V.
  • Logic Voltage: 5V.
  • 3.3V power supply output current: 400mA
  • Pins output method: 2*4P-2.54mm pin header
  • Serial baud rate: Up to 921600bps.
  • Support USB1.1, USB2.0
  • USB to Serial chip (CP2102) supports XP, win7 / win8 32bits, 64bits, win10 / 11 32bits, 64bits, Linux, MAC

Included:

  • 1 xย ExpressLRS Recovery Dongle
  • 1 xย 4 Pin Cable
  • 1 xย Probe Converter Board
