TBS Lucid DroneCAN Airspeed Sensor Pro
£79.90 Inc. VAT
A digital airspeed sensor that is plug & play with any of the TBS Lucid DroneCAN flight controller boards. Also works with I2C
In stock
The TBS Lucid DroneCAN Airspeed Sensor PRO is a high-precision airspeed sensor designed for demanding fixed-wing and VTOL platforms where accurate and stable airspeed data is critical. It supports DroneCAN via a CAN JST-GH connector and direct I2C output, and is supplied complete with a stainless steel pitot tube and silicone tubing for immediate installation.

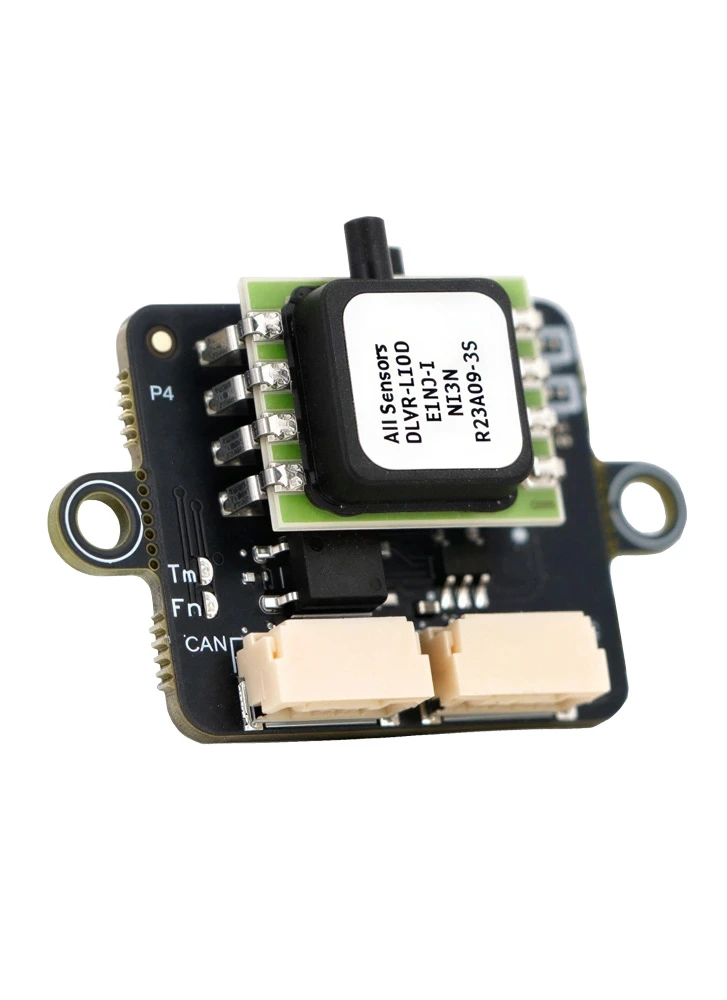

This PRO version uses the DLVR-L10D pressure sensor, delivering significantly higher accuracy and resolution than standard airspeed sensors. With ±0.30% accuracy and 14-bit output, it provides clean, low-noise airspeed data that is particularly beneficial for TECS, energy management, and advanced autopilot tuning. Firmware is based on ArduPilot AP_Periph and can be updated via the DroneCAN GUI tool.
If you require a wider maximum airspeed range and a more cost-effective solution, the standard TBS Lucid DroneCAN Airspeed Sensor remains a solid option for general fixed-wing use.
SETUP
DRONECAN MODE
- Verify the following parameters are set on your autopilot via your ground station.
- CAN_P1_DRIVER = 1 (assuming its on the first CAN bus of the autopilot)
- ARSPD_TYPE = 8 (DroneCAN)
I2C MODE
- ARSPD_TYPE = 9 (DLVR-10)
- ARSPD_USE = 1 to enable using the sensor on autopilots external I2C bus

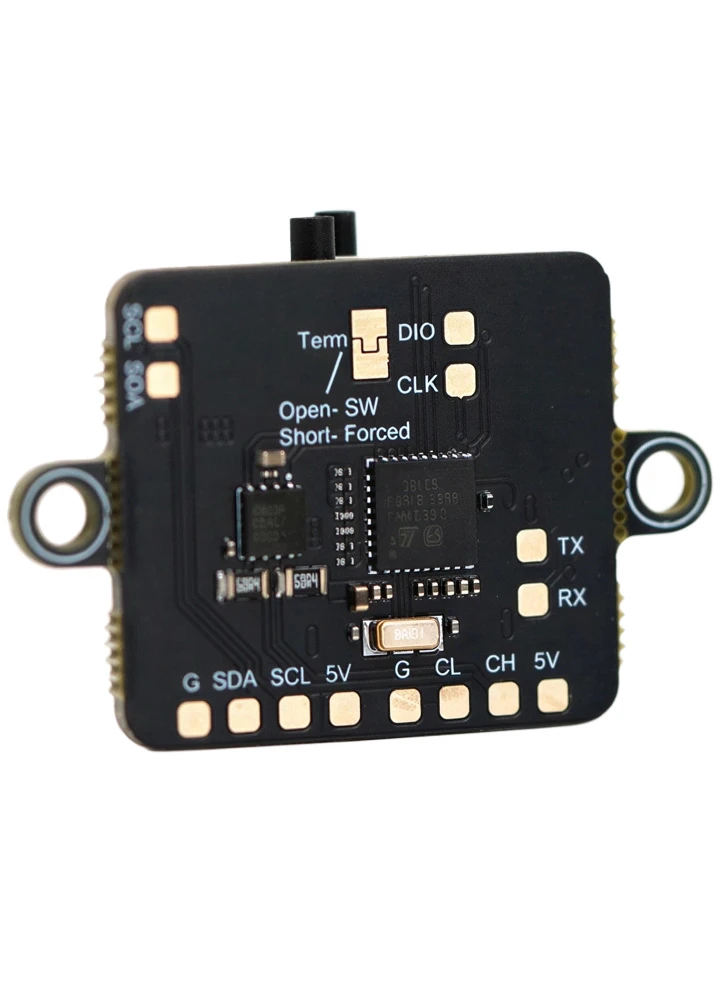

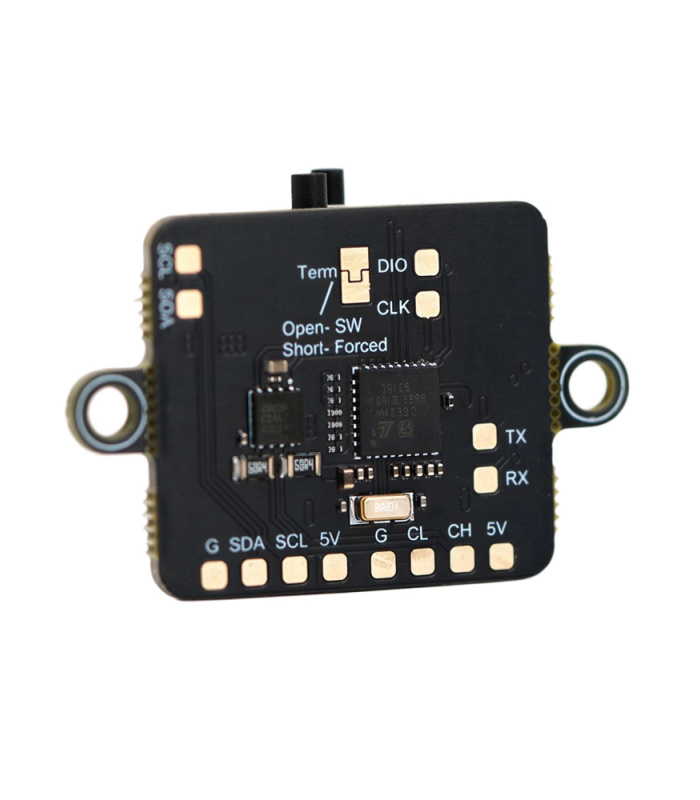

- CAN & I2C Interface
- CAN JST-GH connector, DroneCAN Protocol
- I2C JST-GH connector, DLVR-L10D I2C mode
- Firmware: ArduPilot AP_Periph TBS-L431-Airspeed (Update via DroneCAN GUI Tool)
- CAN status LED, Orange
- Fast blinking, No communication between CAN node and Flight Controllers
- Slow blinking, Communicating between CAN node and Flight Controllers
- 3.3V Power LED, Orange
- Input voltage range: 4~6V
- Power consumption: 60mA
- Operating Temperatures: -20°C to 85°C
- Pressure range: 362psi/2500kPa
- Airspeed range: ±250 km/h
- Accuracy: ±0.30%
- Output Signal Type: 14bit
- Dimensions: 35mm*22mm*12mm
- Weight: 4g

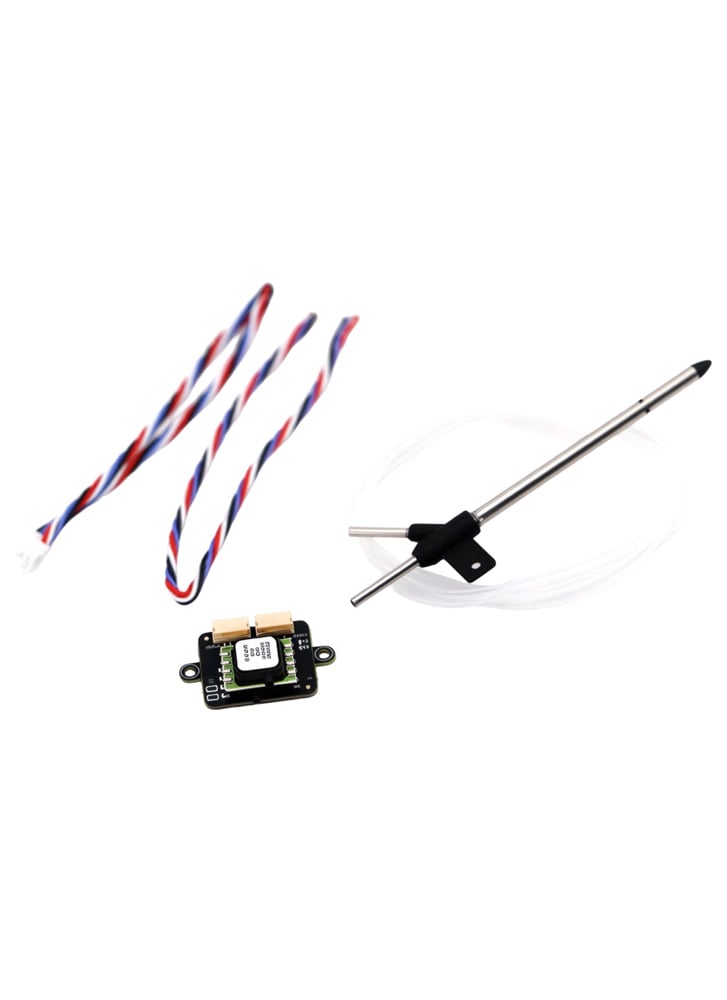

Included:
- 1x TBS Lucid DroneCAN Airspeed Sensor Pro
- 1x Airspeed Sensor Pitot Tube w/ silicone tube
- 2x CANBUS cable (4pins 20cm)
