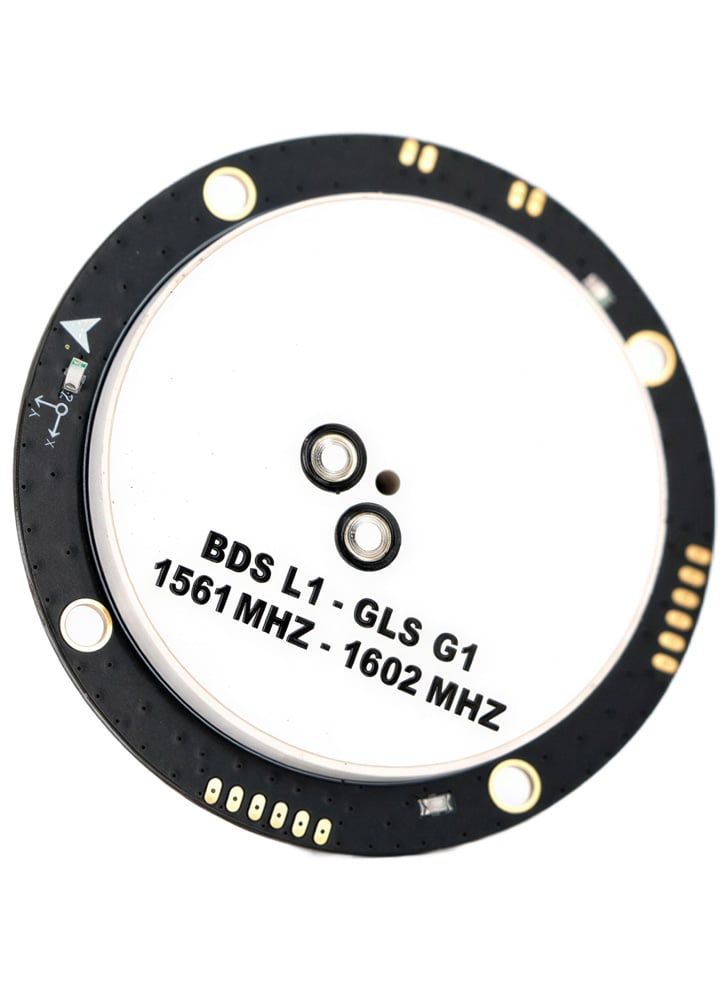

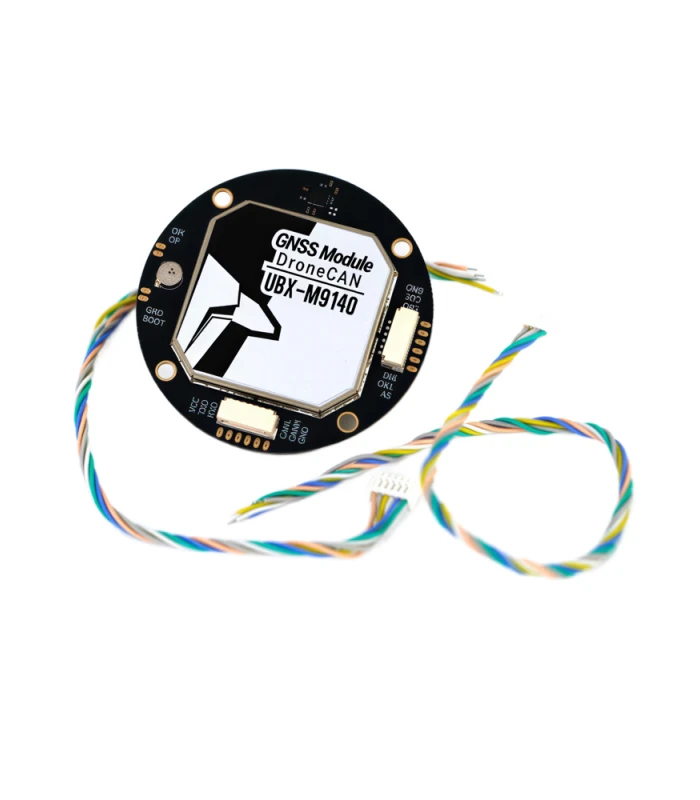

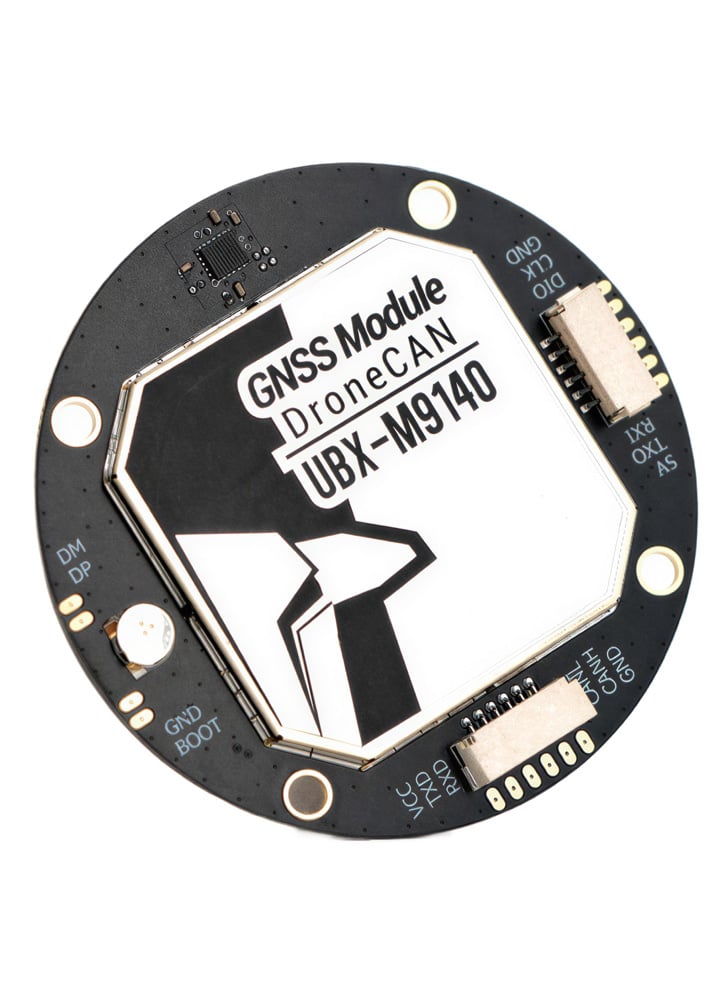

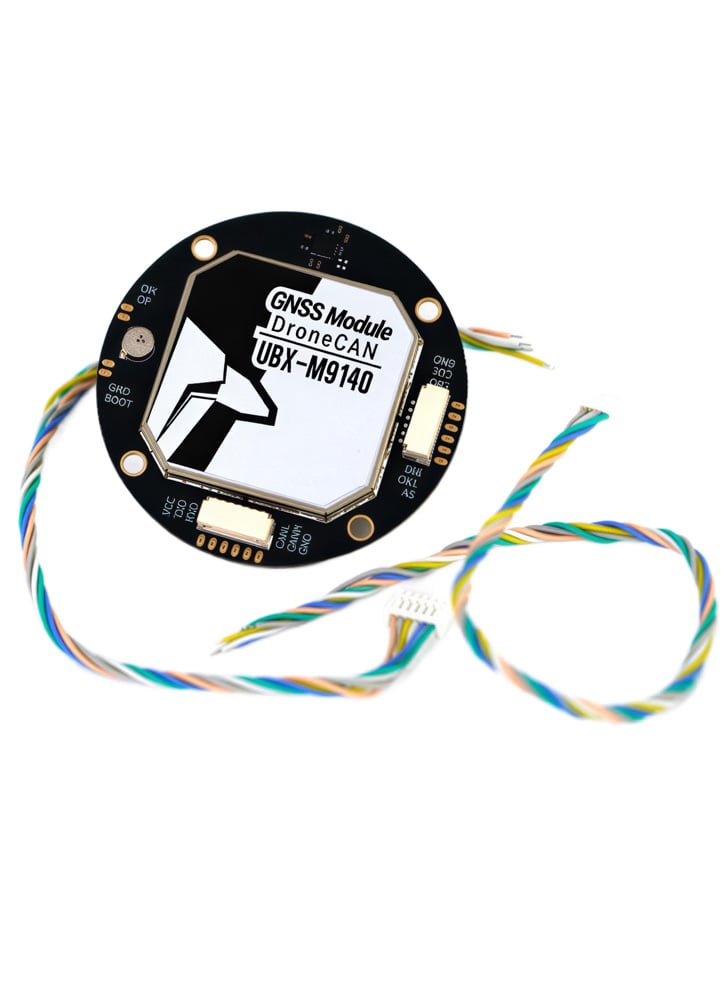

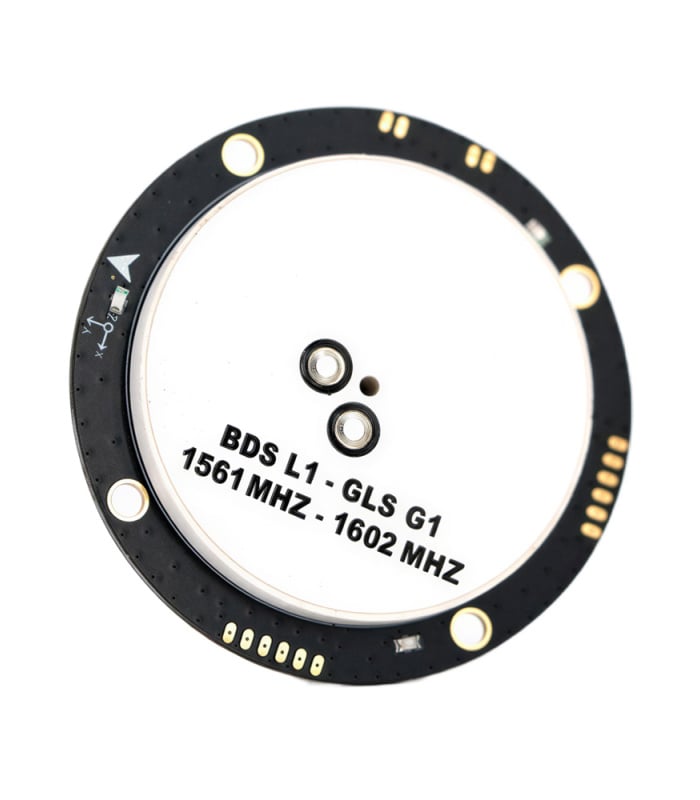

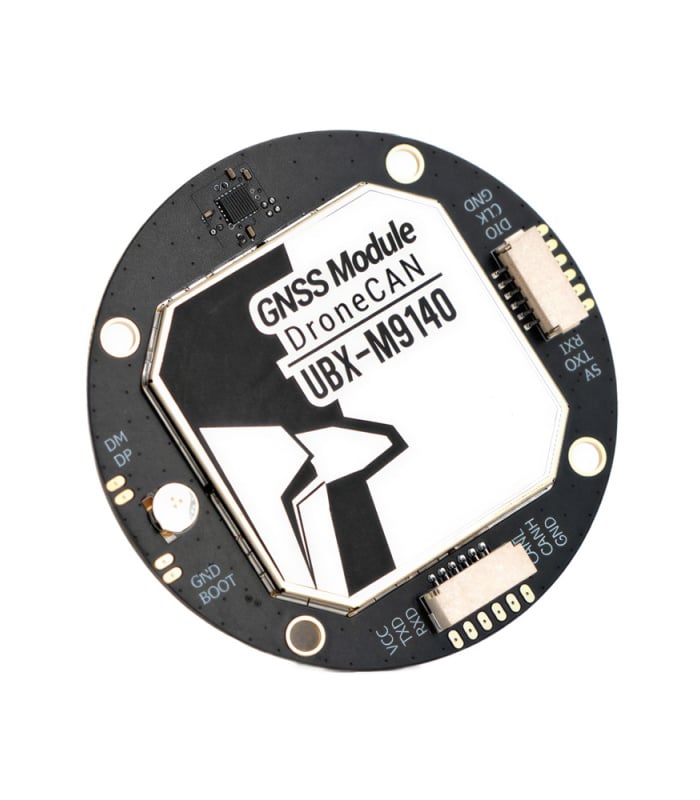

TBS DroneCAN GPS Module UBX-M9140
£79.90 Inc. VAT
DroneCAN compatible GPS module, plug and play with any DroneCAN compatible flight controller
In stock|Next shipping: 16/03/2026
The TBS DroneCAN GPS Module combines high-precision positioning with DroneCAN connectivity for modern flight controllers. Powered by the u-blox M9140 GNSS chip, it supports GPS, GLONASS, BeiDou, and Galileo constellations with SBAS and QZSS augmentation for enhanced reliability. Offering up to 25 Hz update rate and 92 tracking channels, it delivers exceptional accuracy with horizontal precision down to 1.5 m CEP and velocity accuracy of 0.05 m/s. Integrated 1 PPS output ensures precise timing for navigation and synchronisation tasks.
Built around an ARM Cortex-M3 MCU with CAN 2.0 A/B interface, the module transmits NMEA or UBX data at baud rates from 4800 to 921600 bps. The built-in QMC5883 compass adds heading data for complete navigation capability. LED indicators provide visual feedback for CAN communication, PPS status, and data output, making setup and diagnostics straightforward.
ELECTRICAL CHARACTERISTIC
- Chip: M9140
- Receiver type: GPS，GLONASS，BDS，GALILEO
- Auxiliary system: SBAS，QZSS
- Channel: 92
SENSITIVITY
- Track: -167dBm
- Recapture: -160dBm
- Cold start: -148dBm
- Hot start: -159dBm
- Accuracy
- Horizontal accuracy: 1.5m CEP
- Speed accuracy: 0.05m/s
- 1PPS time accuracy: RMS30ns 99%60ns
START TIME
- Cold start: 24s
- Aided start: 2s
- Hot start: 2s
DATA OUTPUT
- Baud rate (bbs): 4800bps-921600bps，default 9600bps
- Output level: TTL level
- Output protocol: NMEA，UBX
- Update frequency: 0.25Hz-25Hz，default 1Hz
MCU
- MCU: Arm Cortex-M3 MCU, 72MHz, 128Kbytes Flash, 20Kbytes SRAM;
- Peripherals: CAN 2.0 A/B
LED
- FIX led: N/A
- CAN led: Green light, slow blinking after successful CAN communication
- SAFETY led: N/A
- RGB led: N/A
- PPS led: Red light is steady on after powering on, and flashes after positioning
- Red led: N/A
- Yellow led: N/A
- TX led: Blue light flashes when there is an output
INTERFACE
- N/A
COMPASS
- QMC5883
