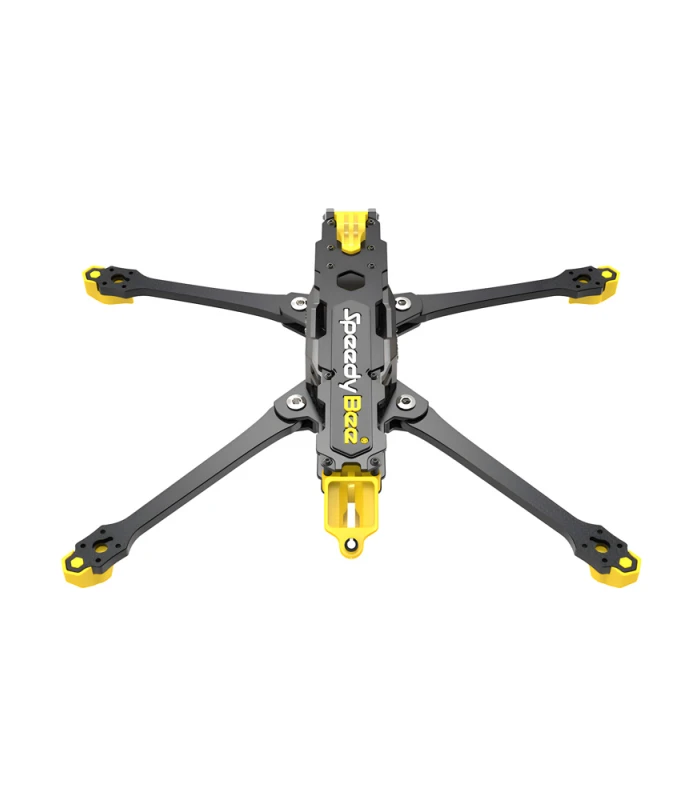

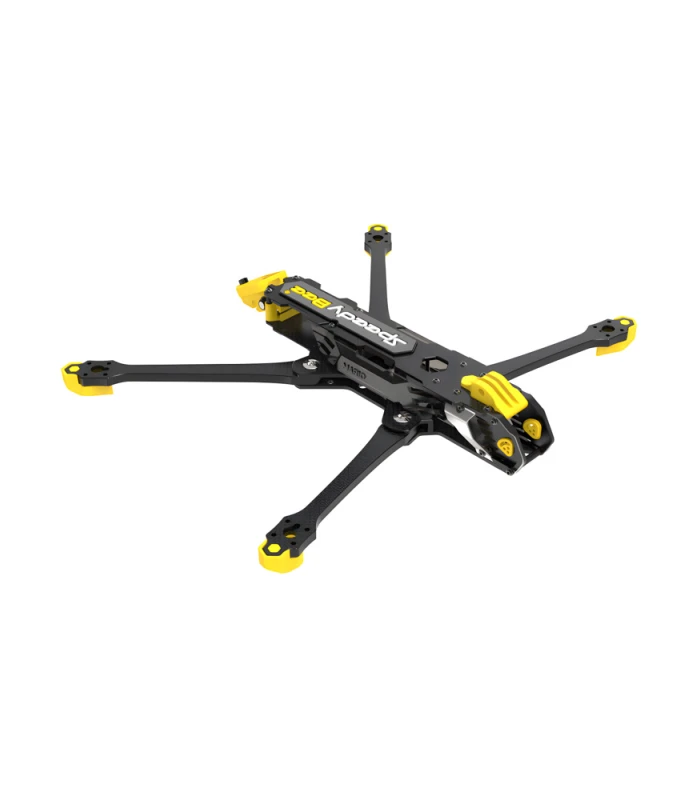

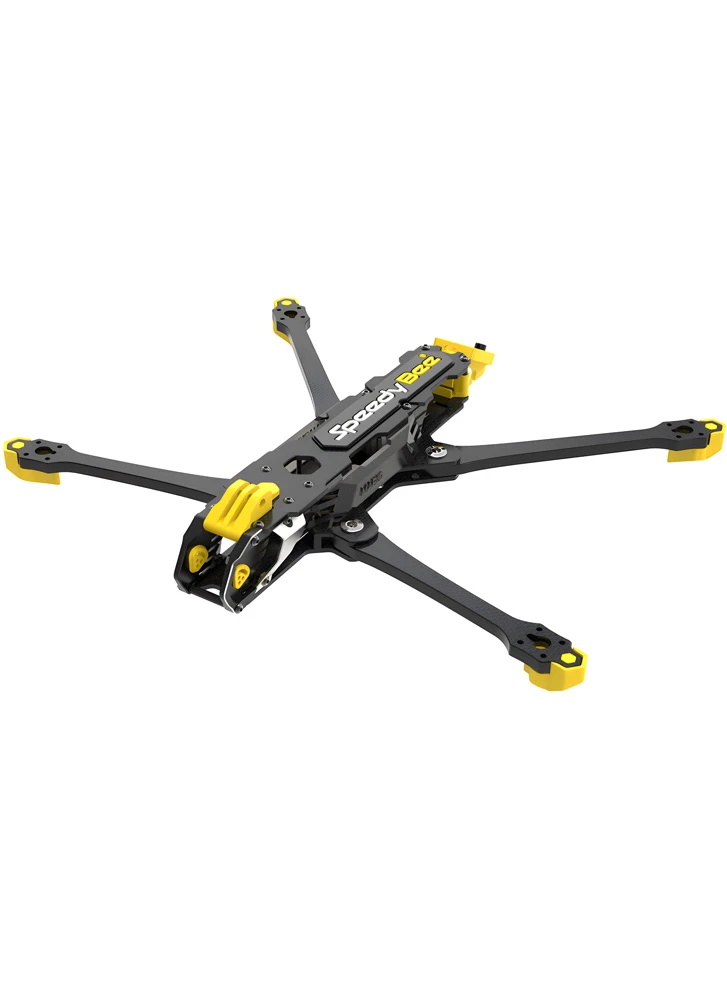

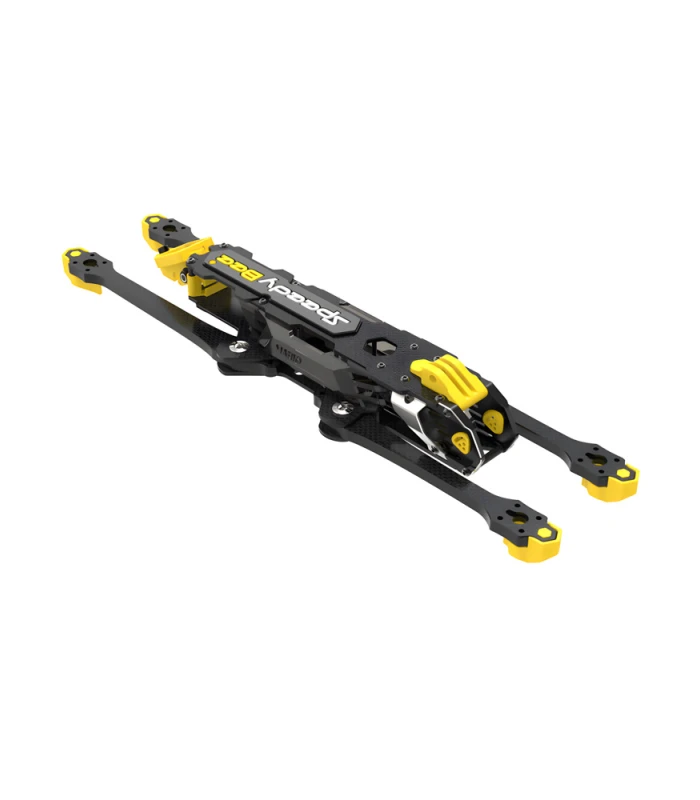

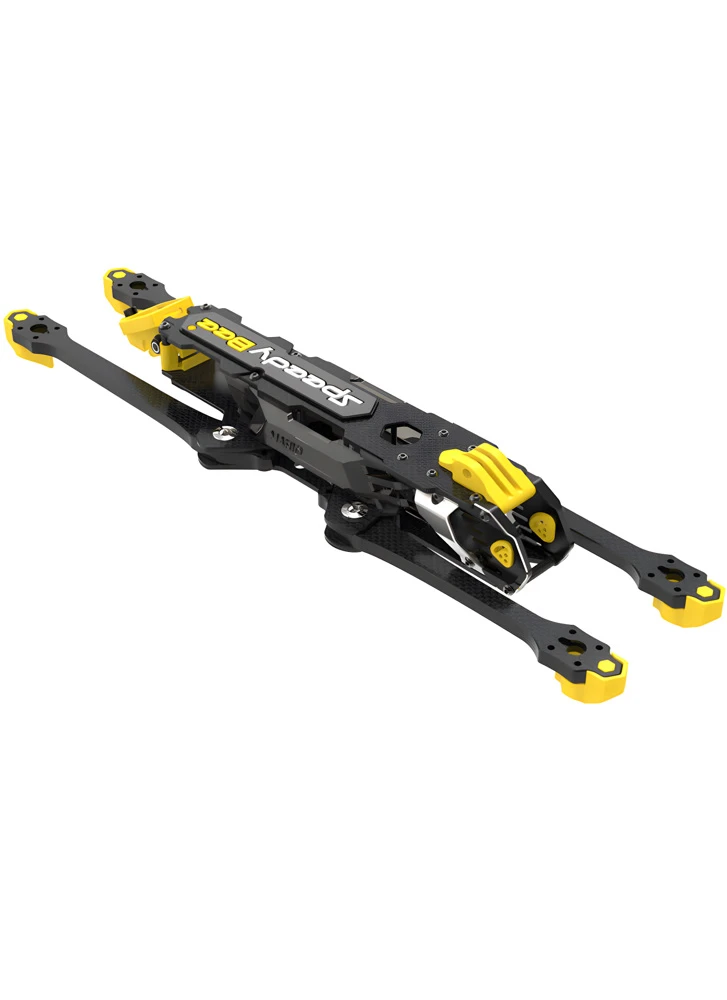

SpeedyBee Mario Fold 8-Inch Foldable Long Range Drone Frame Kit

The SpeedyBee Mario 8 Foldable Frame is a premium choice for long-range FPV drone enthusiasts.

Constructed from high-quality T300 4K carbon fibre and 7075 CNC aluminium alloy, this frame provides exceptional strength while maintaining a lightweight profile, making it ideal for extended flight times.

Designed to accommodate 8-inch propellers, you’ll benefit from improve flight stability and range in comparison to using a 6-7inch frame, making it an excellent choice for long-range missions. The Mario 8’s Deadcat-style layout is specifically engineered to eliminate propellers from obstructing the camera’s view, providing clear and unobstructed footage.

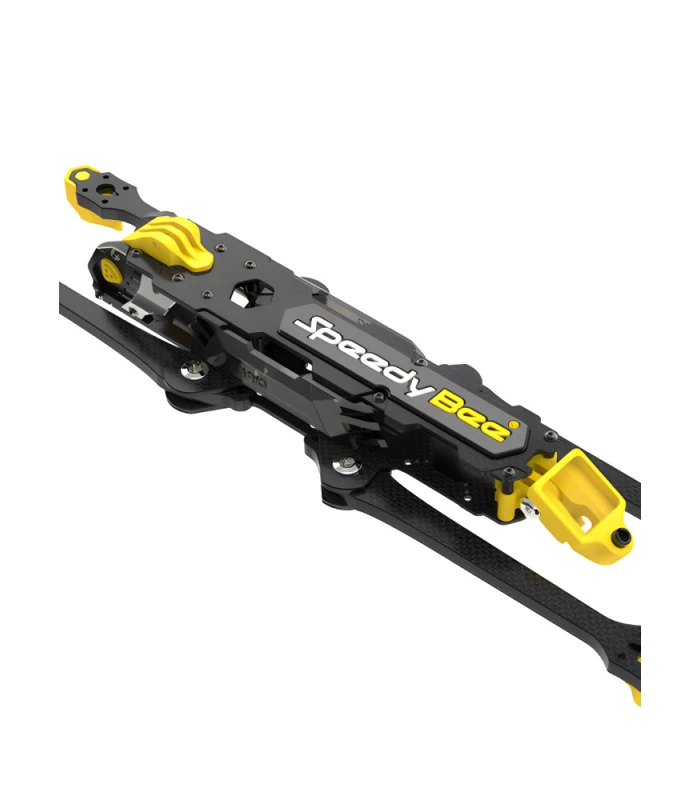

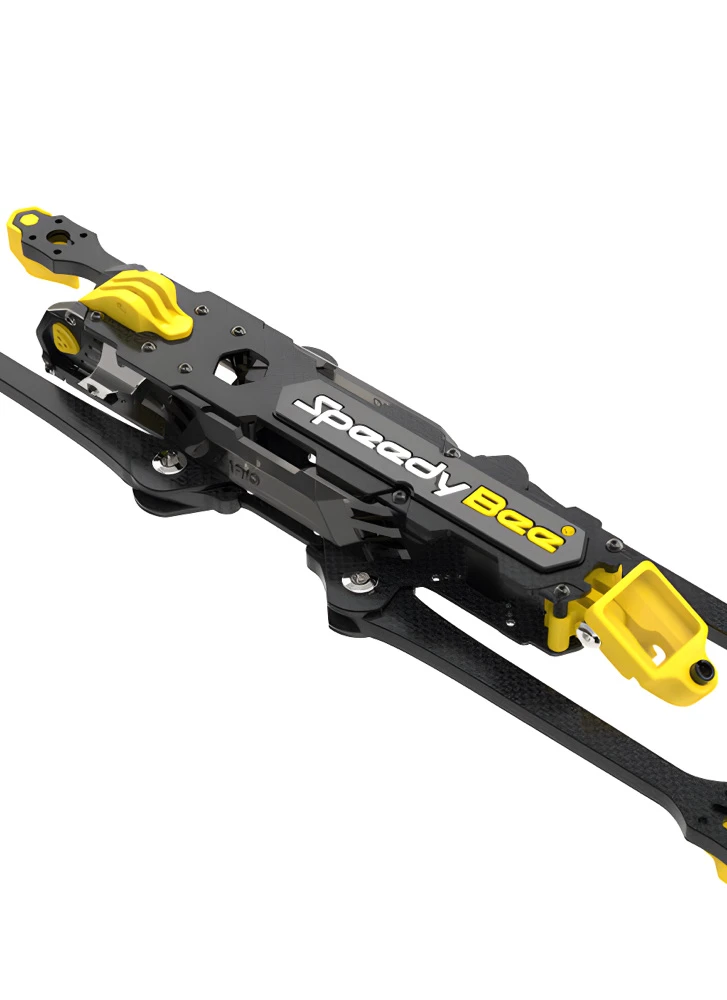

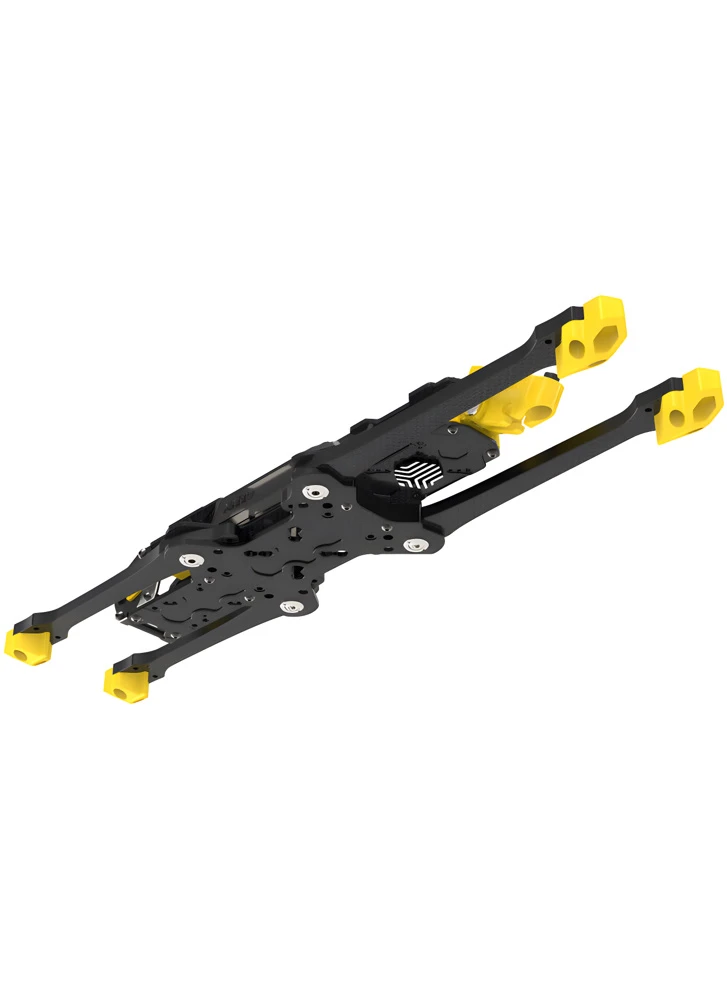

One of the standout features of the Mario 8 is its innovative folding mechanism. Equipped with a spring-loaded ball lock pin system, it allows for easy folding and quick setup when needed. For those who prefer a fixed configuration, SpeedyBee includes an option to permanently lock the arms in place with bolts.

Versatility is a key feature of this frame, offering multiple mounting options for flight controllers, ESCs, VTXs, receivers, capacitors, and GPS modules. The frame supports a range of flight controller mounts (30x30mm, 25x25mm, and 20x20mm) and is compatible with leading VTX systems such as DJI O3, HDZero Freestyle, Walksnail, Vista, and analog VTXs. Additionally, its camera mounting system is designed to fit a variety of camera sizes, including 19x19mm and 20x20mm micro cameras, as well as the DJI O3 camera.

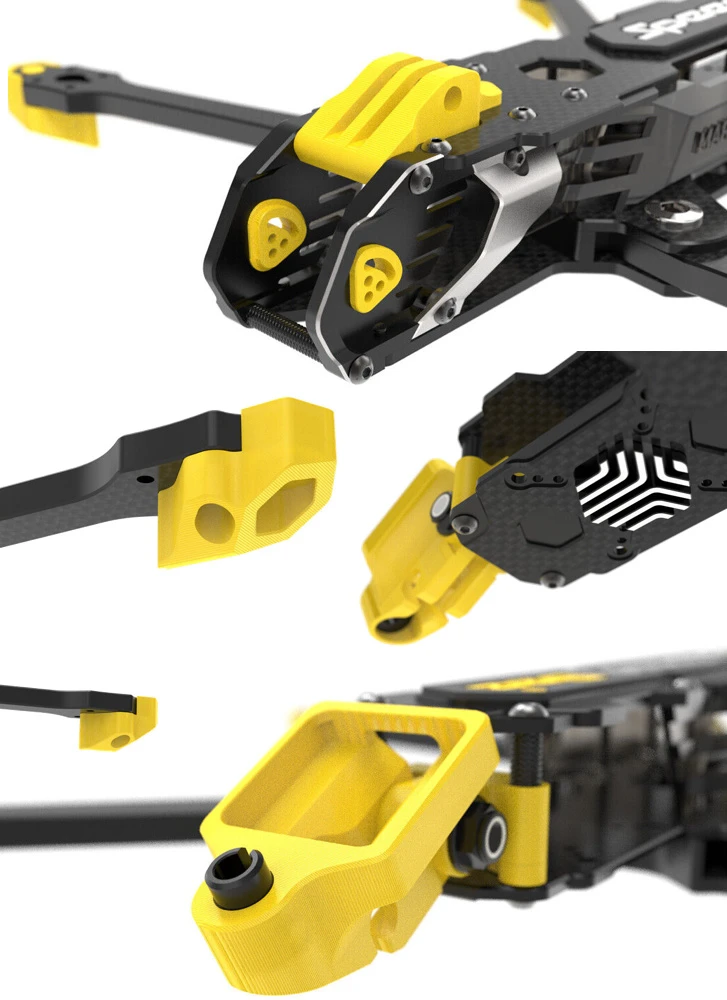

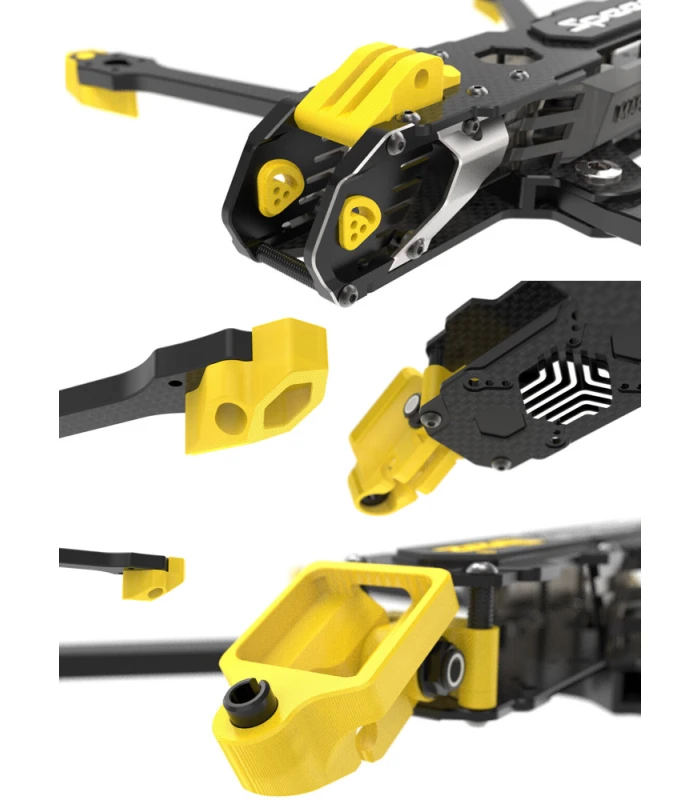

The SpeedyBee Mario 8 Foldable Frame comes equipped with high-quality TPU 3D-printed parts, including landing skids, GPS mounts, and a GoPro adapter, adding both functionality and convenience. The package also includes sturdy battery straps designed to accommodate typical battery sizes for 7-inch and 8-inch drones.

Optimised for long-range FPV flight, the SpeedyBee Mario 8 combines portability, durability, and high performance in a versatile frame. Its thoughtful design and premium materials make it a standout choice for drone pilots seeking extended flight range, stability, and portability.

Suggested Parts

• Flight Stack: SpeedyBee F7 V3 Flight Controller / Stack with 50A ESC
• Motors: SpeedyBee 2807 1050KV Motor
• Props: Gemfan 8046 3-Blade
• FPV System: DJI O3 Air Unit
• Antenna: RunCam Compatible DJI O3 Antenna
• GPS Module: SpeedyBee BZ-251 GPS with 5883 Compass

NOTE: Frame Kit does not include any electronics, motors, ESC, fpv gear, etc. It is just the frame, plastic parts, and bolts/standoffs/screws.
