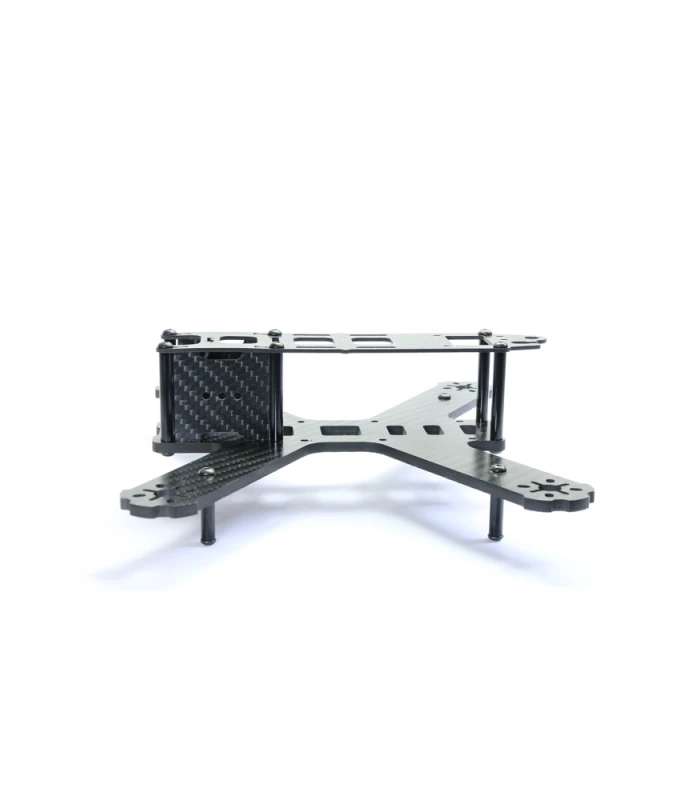

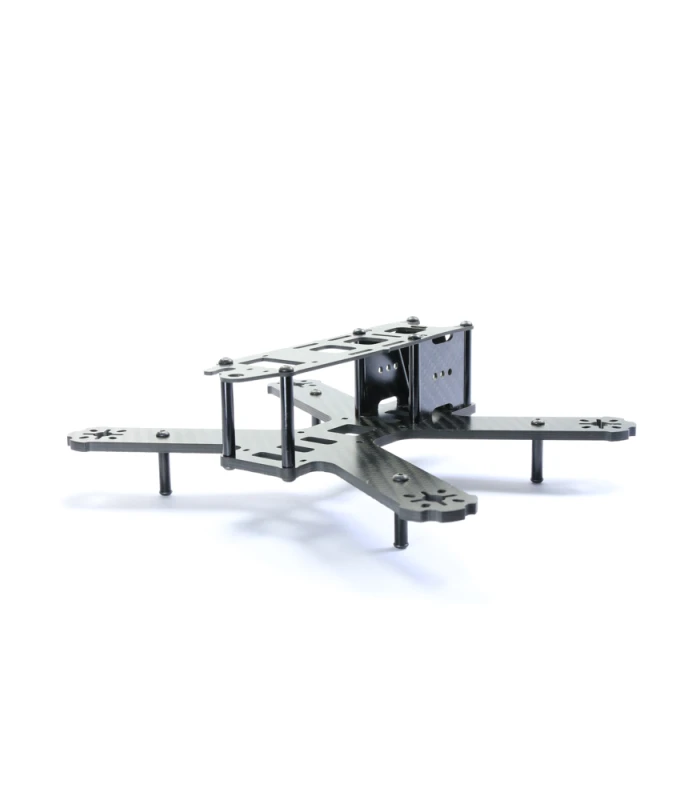

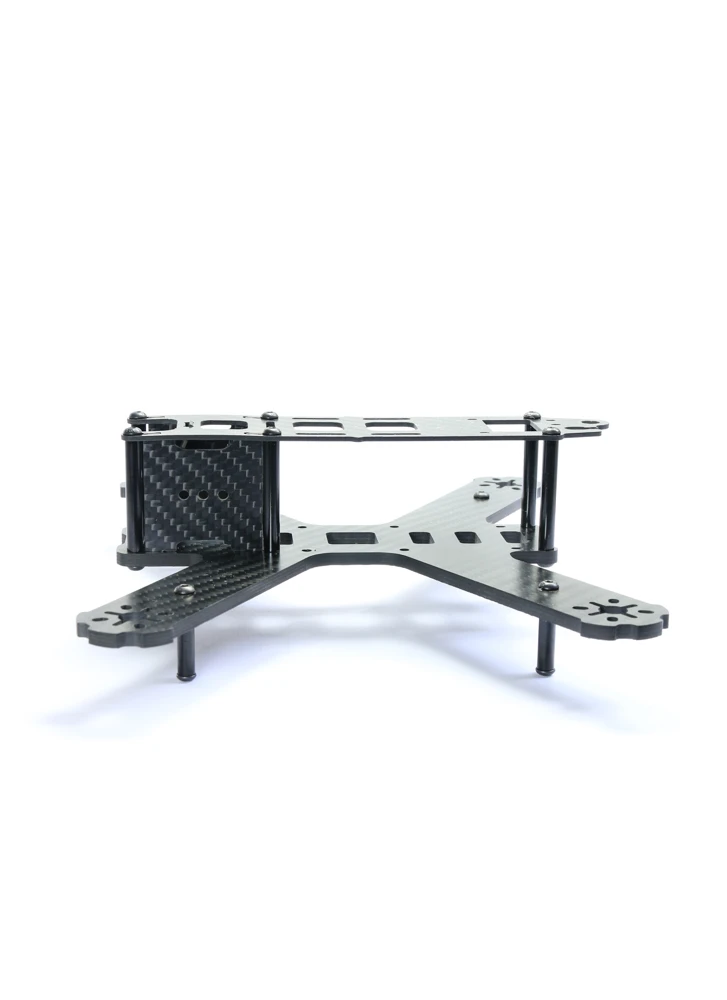

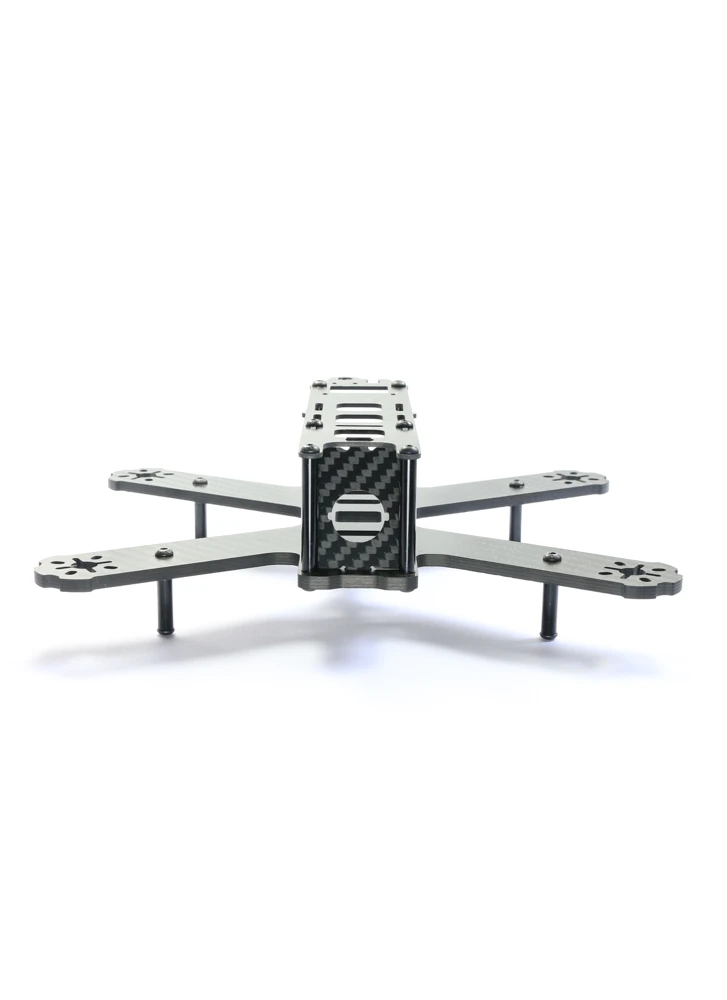

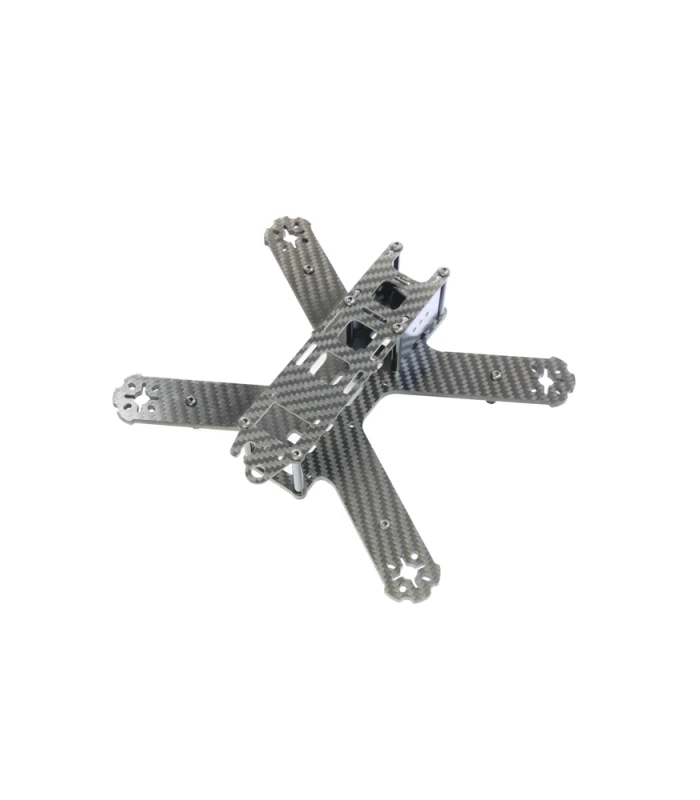

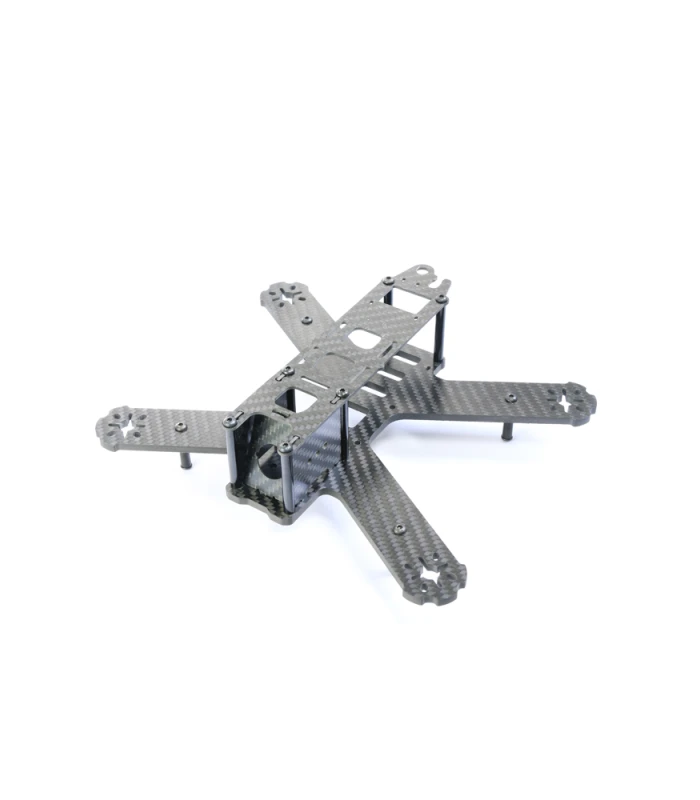

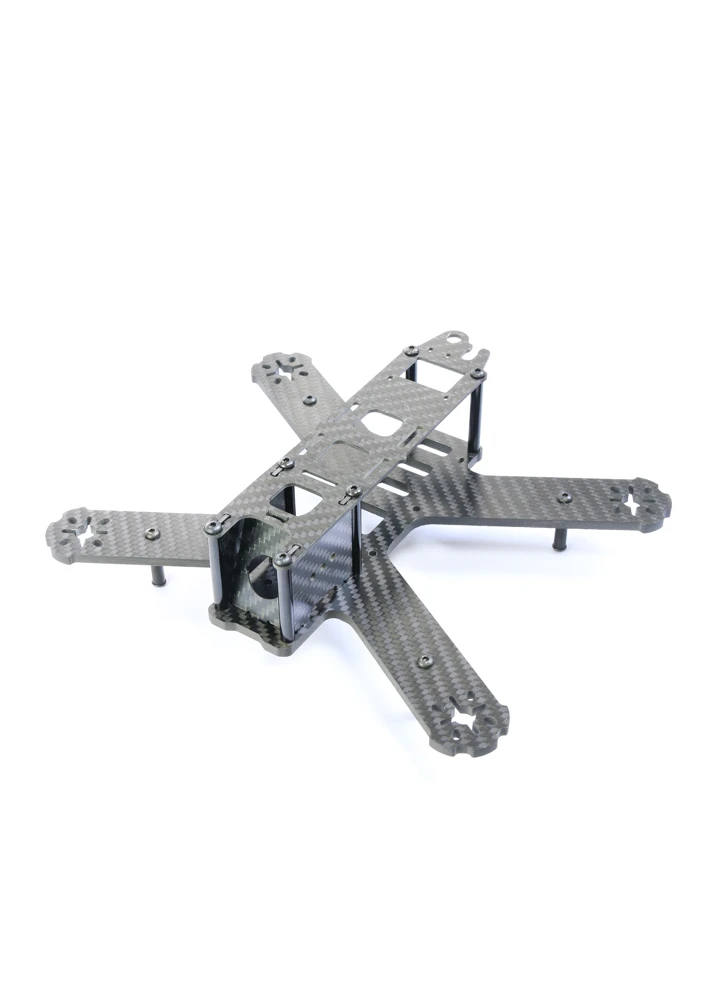

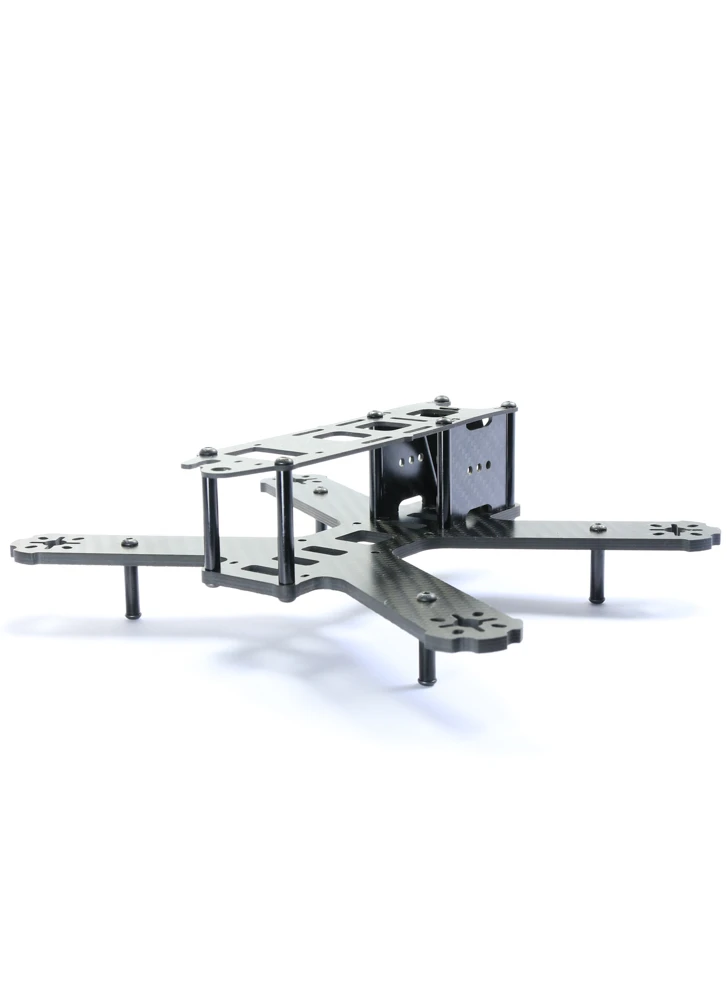

QAV 210mm Carbon Fibre Racing Drone Quad Frame

The QAV 210 is one of those classic frames, used by many and still going strong. The frame has a unibody design which gives it unbeatable stiffness and strength. The 210mm airframe has been designed to be as small as possible while still being able to carry 5″ props and 220X size motors. Finally, the frame incorporates a camera mount, which is compatible with RunCam Swift type cameras, and also a 20 degree angled tilt mount for regular 32mm board cameras.

Features:

• Ultra stiff 3mm “unibody” carbon fibre main plate (4mm also available).
• Multiple motor mounting holes to fit a variety of motors 1806-2205.
• Frame cutouts for VTX SMA connector and LiPo power pigtail.
• “Bumpers” on the end of the arms to protect the motor during a crash.
• Compatible with FPV cameras such as the HS1177 at a range of angles, or CCD board camera using the fixed angled mount.

QAV 210 Frame Parts

QAV Camera Mounts

Some of the recommended components for the QAV 210

Suggested Parts:

• Flight Controller Naze32 Acro
• 2205 2300KV Motor
• 20A BLHeli ESC
• PDB with integrated XT60
• Transmiter / Receier
• Cased FPV Transmitter
• FPV Antenna / SMA Extension
• FPV Camera – RunCam Swift
