SpeedyBee F7 Mini 20×20 Flight Controller / Stack with 35A ESC

Price range: £43.99 through £94.60 Inc. VAT

A powerful 20×20 F7 flight controller, suited to 2-4inch quads. Available in Stack format with a 4-in-1 35A ESC.

Version

Clear

Add to compare

0 People watching this product now!

SKU: N/A Categories: FC / ESC Flight Stacks, Electronics, Flight Controllers / Autopilots, Racing Drone Flight Controllers Tags: 20x20, Bluetooth, F7, FC, Flight Controller, Flight Stack, Stack, WiFi

Description

Here is a new FC / Flight Stack suited to 2-4inch quads from SpeedyBee. Like their other flight controllers, this one works with their fantastic SpeedyBee App (iOS App Store/Google Play); allowing you to configure your newly built quad, fine-tune PID’s, and configure other parameters without a laptop, simply via your phone or tablet wirelessly.

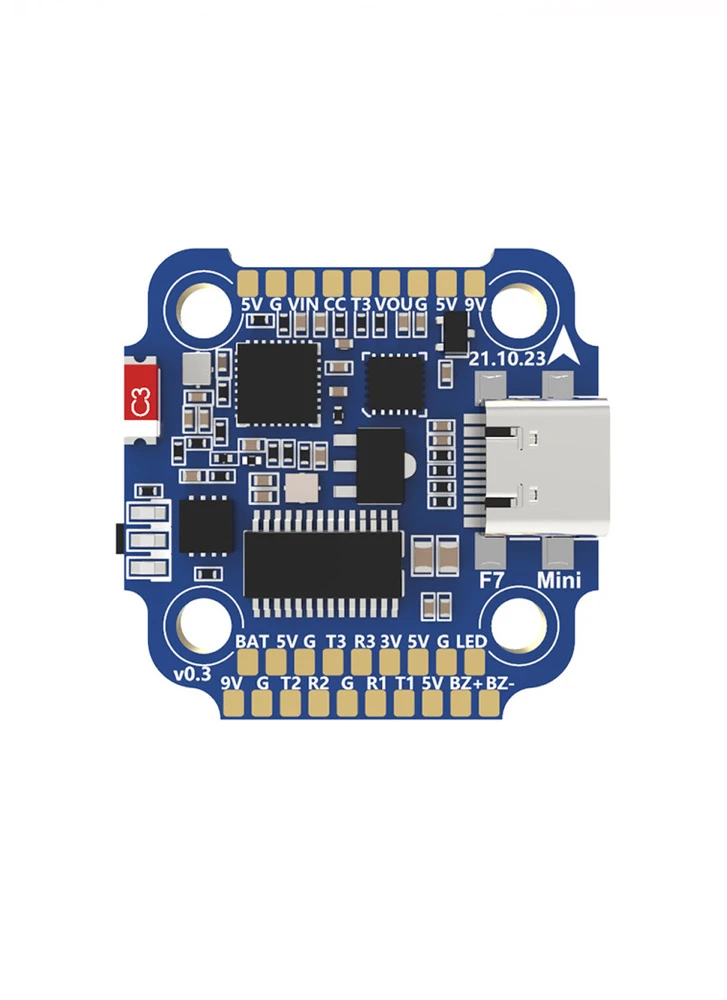

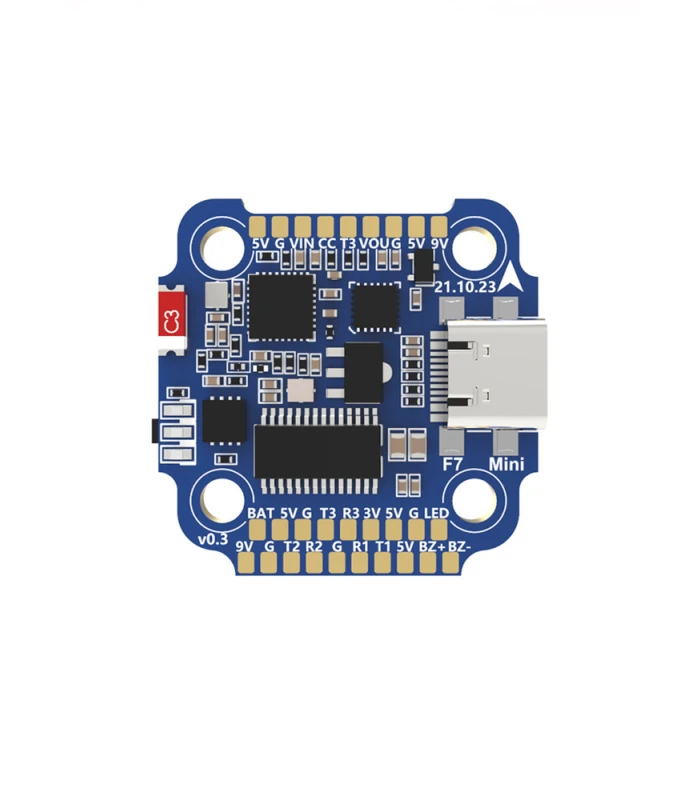

The FC is compatible with a standard 20×20 mounting pattern, using either M2 or M3 fixings, which are included. Considering the board’s small size, the size of the solder pads is generous and well labelled making for an easier installation. The spec of the FC is typical for a current flight controller, so it uses a F7 CPU, the MPU6000 gyro, includes OSD and on board blackbox. It also has two independent voltage regulators. A 9V 2A output and 5V 2A output, making it compatible with DJI FPV air units and standard analog FPV.

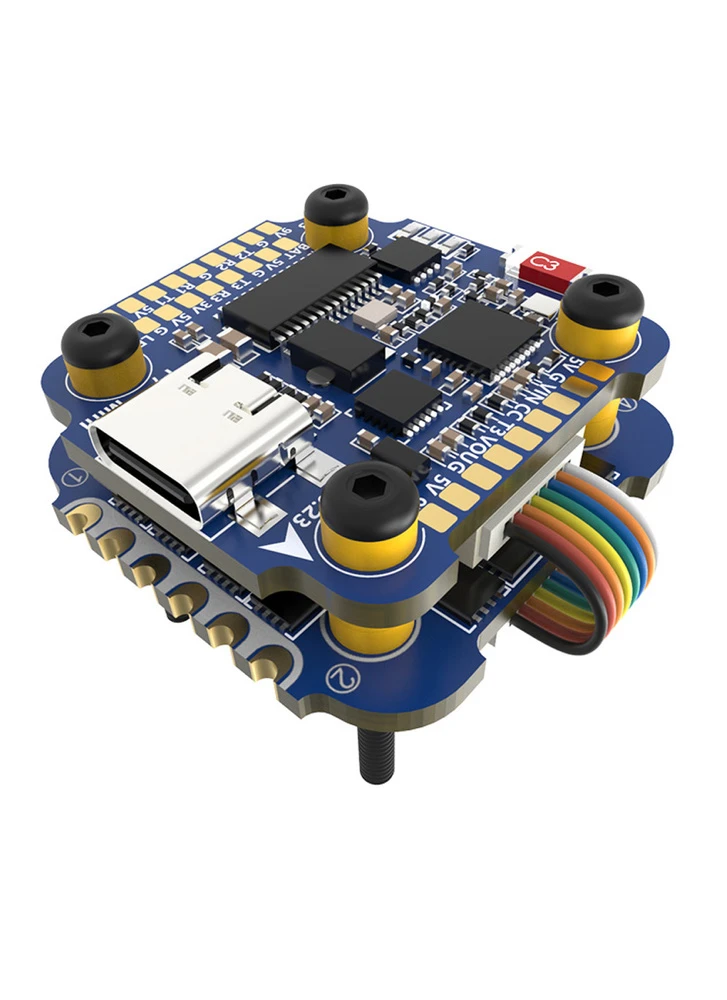

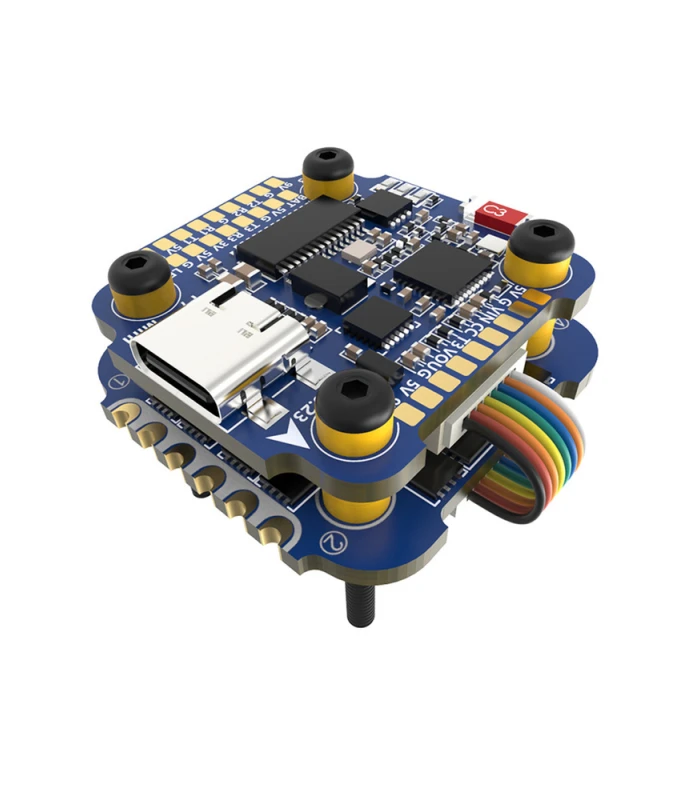

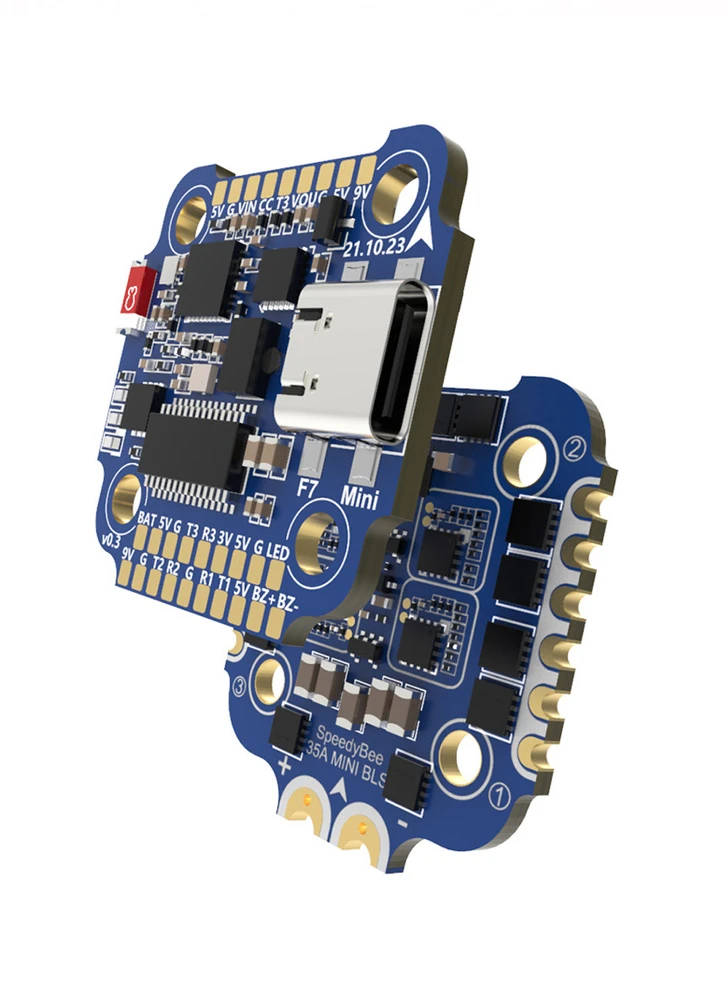

Speaking of the ESC, in stack form it comes with a 4-in-1 35A ESC with on board current sensor (it supports a 45A burst current). The ESC comes pre-flashed with Blue Jay firmware, which supports 48k/96k PWM frequency and Bidirectional Dshot. Via the SpeedyBee App, you can even configure the ESC settings wirelessly as well.

Features

High-performance F7 flight controller CPU
Real 35A BLHeli_S DSHOT600 ESC
Built-in Bluetooth 4.0 BLE chip
20x20mm mounting pattern with support for M2&M3 installation
SmartPort Use any TX pad of UART for the SmartPort feature
BLE Support, used for Flight Controller configuration
Support DJI Digital Video transmitter
LED pin Used for WS2812 LED
Bluetooth Capabilities

Specification

MCU: STM32F722IMU
(Gyro): MPU6000
USB Port Type: Type-C
Barometer: N/A
OSD Chip” AT7456E chip
BLE Bluetooth: Supported. Used for Flight Controller configuration
Flash FC Firmware Wirelessly: Not supported. Please update firmware for this FC on the PC
Download/Analyze Blackbox: Not supported. Please download and analyze Blackbox data on the PC
DJI Air Unit Soldering Pads: Supported
Flash(for BlackBox): 8MB
Current Sensor: Supported Scale=250 Offset=-500
BetaFlight Camera Control Pad: Yes(CC pad)
Power Input: 3S – 6S Lipo
5V Output: 6 groups of 5V output, five +5V pads and 1 BZ+ pad( used for Buzzer). The total current load is 2.5A.
9V Output: 2 groups of 9V output, the total current load is 2A.
3.3V Output: Supported. Up to 500mA current load.
ESC Signal Pads: M1 – M4
UART: Full UART * 3(UART1, UART2, UART3)
ESC Telemetry: UARTR4(UART4)
I2C: Not supported
LED Pad: Used for WS2812 LED
Buzzer:BZ+ and BZ- pad used for 5V Buzzer
BOOT ButtonUsed to enter DFU mode
RSSI Input: Not supported
SmartPort: Use any TX pad of UART for the SmartPort feature.
Supported Flight Controller Firmware: BetaFlight(Default), EMUFlight, INAV
Firmware Target: NameSPEEDYBEEF7MINI
Mounting: 20 x 20mm, 3.5mm hole diameter
Dimension: 30 x 30 x 7.5mm
Weight: 5.7g
