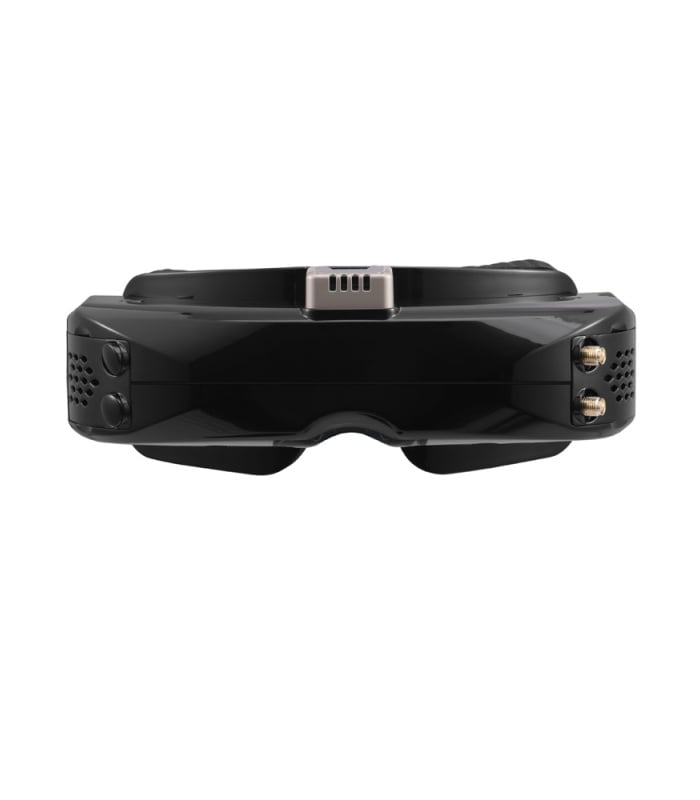

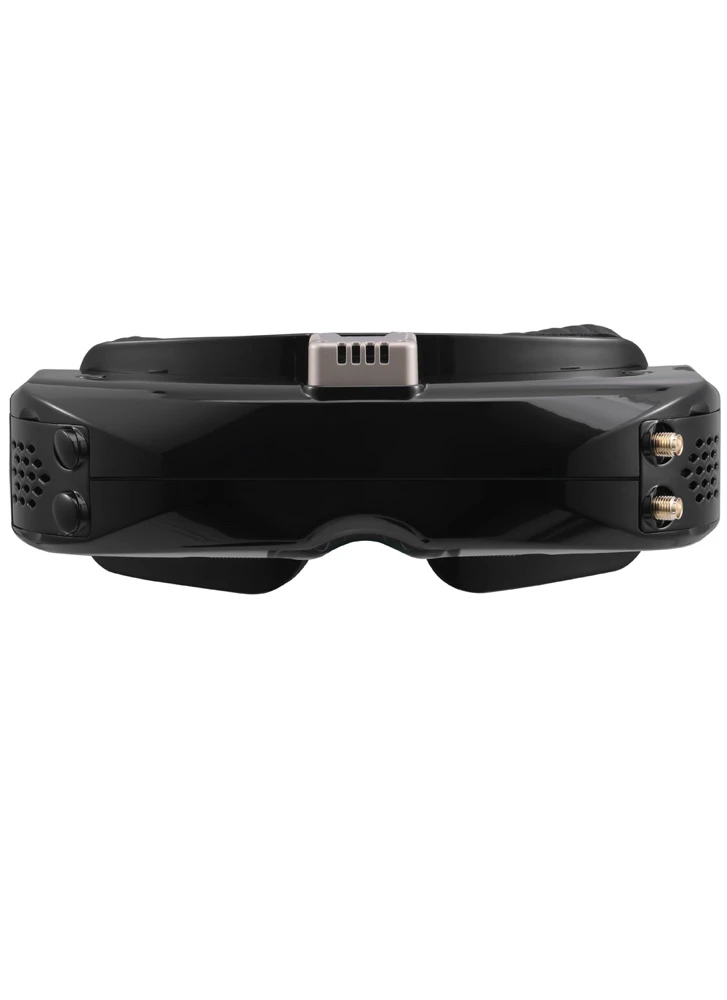

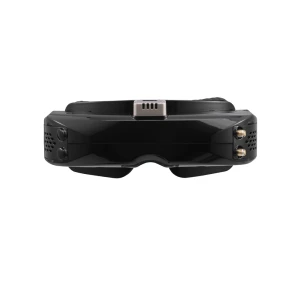

Skyzone SKY04X V2 OLED 5.8GHz 48CH FPV Goggle DVR & HDMI – Discontinued

The SKY04X has a valid claim ofย being one of the best analogue FPV goggles on the market currently.

This product is currently out of stock and unavailable.

0 People watching this product now!
Description

Product Discontinued – for an alternative please see SKY04X Pro

The V2 version of theย SKY04Xย has an improved DVR –ย it now records atย 60FPS, up from 30FPS.

The SKY04Xย is Skyzone’s top of the range FPV goggle and has a valid claim ofย being one of the best analogue FPV goggles on the market currently. It builds on the success of the SKY03Oย headset,ย which was Skyzoneโ€™s first goggle to feature an OLED display. The SKY04X has one too, but with itsย resolution is higher, 1280X960 vs.ย 1024×768. The optics are improved also. Itsย field of view is now a massiveย 46 degrees (previously 35 degrees) – it’s truly immersive! It’s also a goggle that will suit a lot more users; for the first time is has an adjustable focal distanceย (-6~+6) – so diopter lenses aren’t required.

Another huge step forward with this goggle is the introduction of a brand new receiver module. It’s called SteadyView and works like other leading receiver modules in that it merges two videoย signals into one image to produce the strongest possible reception and clearest image. Like a regular receiver module, it’s compatible with all 5.8Ghz analogue video transmitters.

More good news, the complicate multifunction menu buttons that have been used on previous Skyzone goggles are gone and have been replaced by intuitive scrolling menu wheels – they really are so much easier to use.

As with all Skyzone goggles, the SKY04X is features packed.ย There’s a DVR for recording flight footage, which is alsoย useful if you crash as you can play back footage to help find your model.ย Also support for head tracking which can make FPV even more immersive. Connectivity is good too; there is a AV input and output, also a HDMI input so you could use the goggles with HD FPV system like Fat Shark Shark Byte.

The goggles come with all the cables you’ll need to get going and usefully they can be powered by any 2S to 6S LiPo, and also for the first time a USB 5V power supply. Another new addition is a power button, a simple feature but something that is missing from so many FPV goggles.

Features:

  • Binocularย OLED displayย (1280X960) / aspect ratio: 4:3/16:9
  • New optics provideย large field of view (46 degree).
  • Optics have focus adjustment feature (-6~+6), doesn’t requireย diopter lenses.
  • Includes SteadyView 5.8Ghz receiver, supports 48 channels in 6 bands including Race Band
  • Features heading tracking function
  • Built-in fan for defogging and cooling, adjustable fan speed
  • Advance Screen Settings –ย switchableย aspect ratio, 4 preset screen setting and 3 customised settings
  • Module bay, goggles have more capability to upgrade.
  • New shuttle wheel control makes navigatingย the menus so much easier than using the old styleย multi function buttons
  • Support HDMI, DVR, AV IN/OUT
  • Built-in DVR
  • Input voltage: 2S to 6S LiPo battery orย USB5V input
  • Included a choice ofย face-plates of different curvature to suit different face shapes

BAND/CHANNEL table:

table

SKY04X ASKY04X BSKY04X CSKY04X DSKY04X ESKY04X FSKY04X H

Specification
  • Screen: OLED
  • Resolution: 1280X960
  • FOV (Diagonal): 46ยฐ
  • Aspect Ratio: 4:3/16:9
  • Focus: -6~+6 adjustable
  • Interpupillary distance(IPD): 58-71mm
  • Receiver: 5.8Ghz 48CH Steadyview Receiver
  • Language: 10 Language
  • Power Supply: DC6.5-25.2V/USB5V
  • Power Consumption: 720mAat12V
  • DVR: H264, 60fps, MOV6Mbps, SD Card support up to128Gb
  • Head Tracker: 3-axis Accelerometer, 3-axisgyroscope
  • Dimensions: 185x75x67mm
  • Weight: 267g

Included:

  • 1x SKY04X Goggles
  • 1x Steadyview Receiver Module
  • 2x Faceplate (wide and narrow)
  • 1x Sponge with velcr0
  • 1x Zipper case
  • 1x Power cable
  • 1x Headtracker cable
  • 2x 5.8GHz 2dB antennas
  • 1x Video/Audio Cable
  • 1x USB-C Cable
  • 1x Uer Manual
Downloads
Manual (pdf, 1375KB)
