Here’s a useful product for anyone with the new Digitial DJI FPV Goggles. It’s an adapter plate that is designed to fit on the side of the DJI FPV Goggles and allow you to connect with it a traditional Fat Shark style FPV module receiver. So now your DJI goggles can be compatible with both digital and analogue FPV systems like the RapidFire, Furious True-D or Crossfire Fusion, giving you the best of both worlds. With the latest DJI firmware update, you’ll even be able to record analogue footage directly onto the DJI goggles.

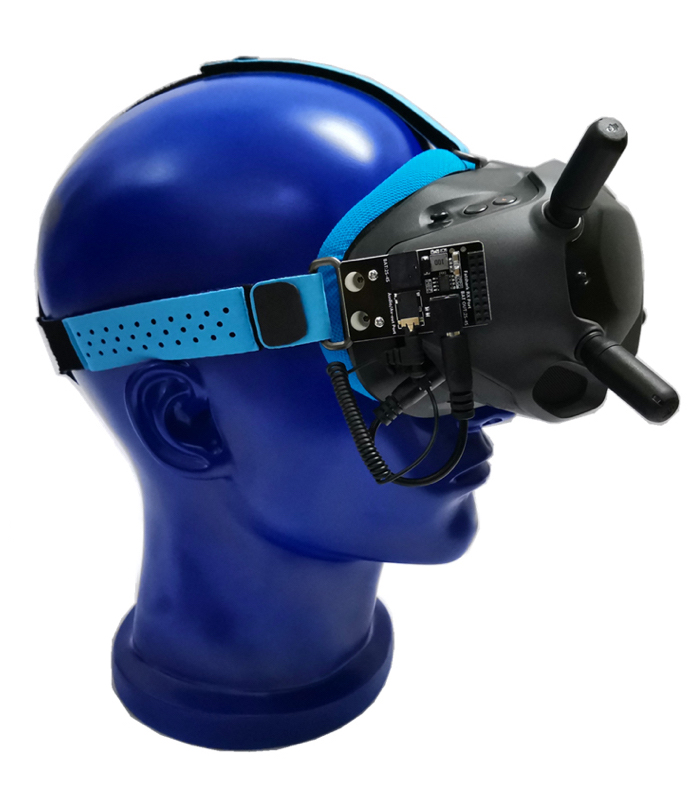

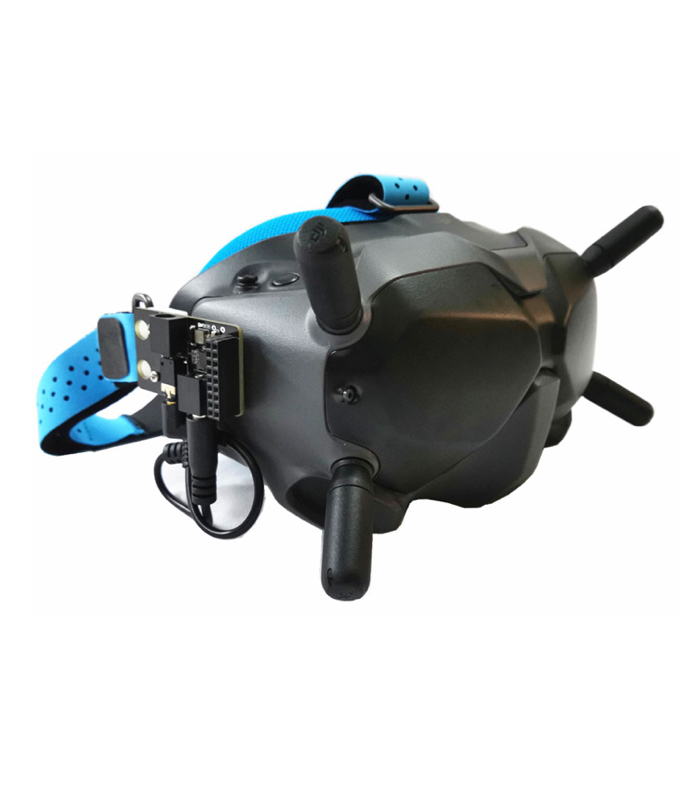

The absolute best part is, installing the adapter does not invalidate your DJI warranty unlike the other solutions, which require you to dismantle the headset to install them. The installation of the adapter can be completed in a few minutes and doesn’t require any drilling or re-wiring. It comes with an mounting plate which can be secured to the DJI goggles using the existing head strap attachment screws and it includes leads to power it directly from the DJI goggles and input the video signal. The adapter can also be used with any other headsets that have a 3.5mm AV input socket.
We are selling the V3 Version with Power Switch.
Updates*
Adds a power switch and adds a standard DVR interface (the interface of the recording module). The 2.0 version now can record DVR but cannot record sound. We have reserved a standard DVR interface to record images and sound.
Support AV IN analog video transmitter recording. Users need to restore the factory settings to ensure the normal use of the AV IN interface functions.
Fixed the boundary display problem of AV IN analog video transmitter.
Optimize the AV IN analog video transmitter to improve the real-time performance of the transmission.
Support user-defined selection of the OSD display content of FPV Goggles, support 24 OSD information definition displays of Betaflight.
When the video transmission distance is greater than 1km, the video transmitter can adjust the frame rate and code rate adaptively according to the distance and channel bandwidth.
Support remote control to connect to PC via USD cable and control the simulator.
5.8G RX PORT3.0-PLUS has added a digital tube, which can display the battery voltage in real-time and can set the low voltage alarm
Specification
Input Voltage: 2S-4S (DC5.5×2.1mm)
Internal Voltage: 5V 3A (with pad output)
Output Voltage: 2S-4S (DC 5.5×2.1mm)
Signal Input: Standard Fat Shark Receiver Port
Including third-party receivers: Realacc, Furious, etc.
Signal output: standard audio / video
Dimension: 48x28x12mm
Weight: 10g (without extension cable)

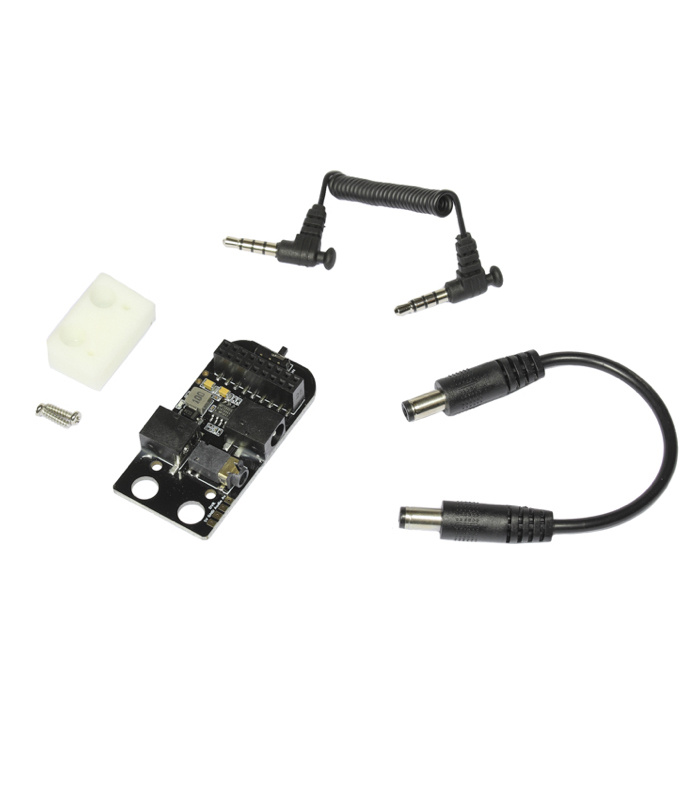

Included:
1x Analogue Receiver Module Adapter Board
1x Mounting Board and Screws
1x A/V Cable
1x Power Cable
Q&A
Questions and answers of the customers
Is it compatible with dji goggles v3? If no do you know which one are compatible?
0 votes
QIs it compatible with dji goggles v3? If no do you know which one are compatible?answer now
A
Hi, as far as I know the new goggles 3 (is this what you mean by V3?) don’t have a AV input connection, so unfortunately you wouldn’t be able to use this product or other analog video adapters.
