Radiomaster Ranger Nano 2.4GHz ELRS Module / Starter Combo

£43.90£63.90 Inc. VAT

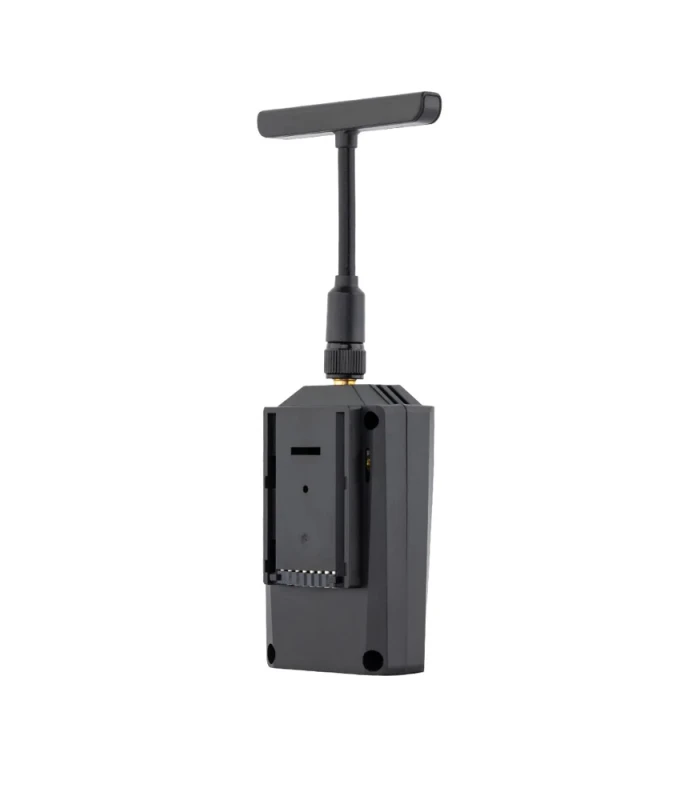

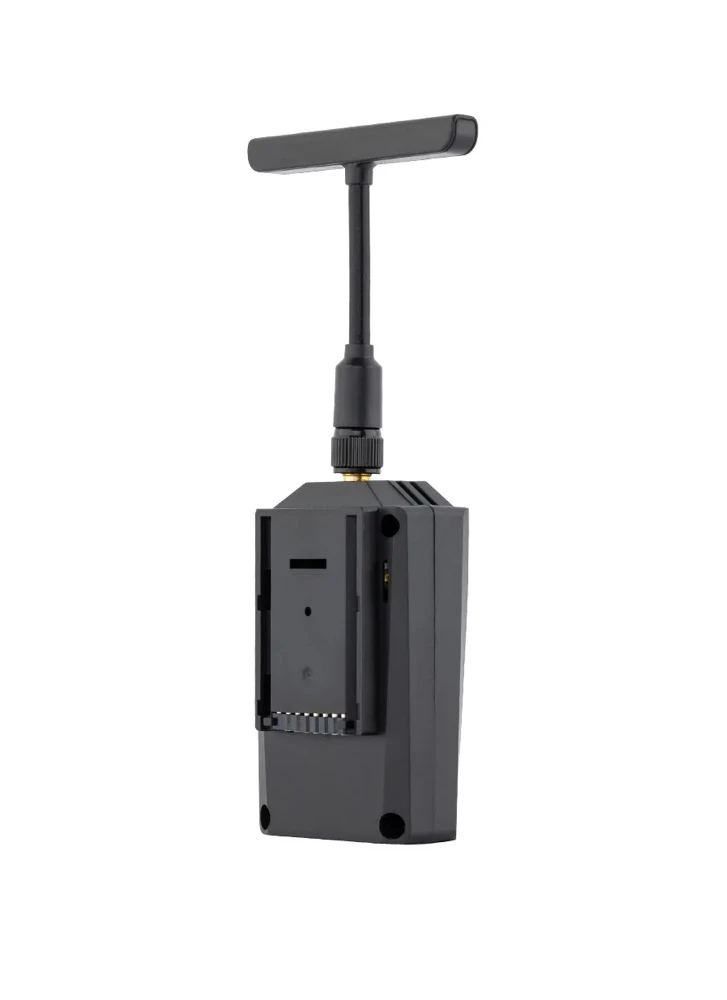

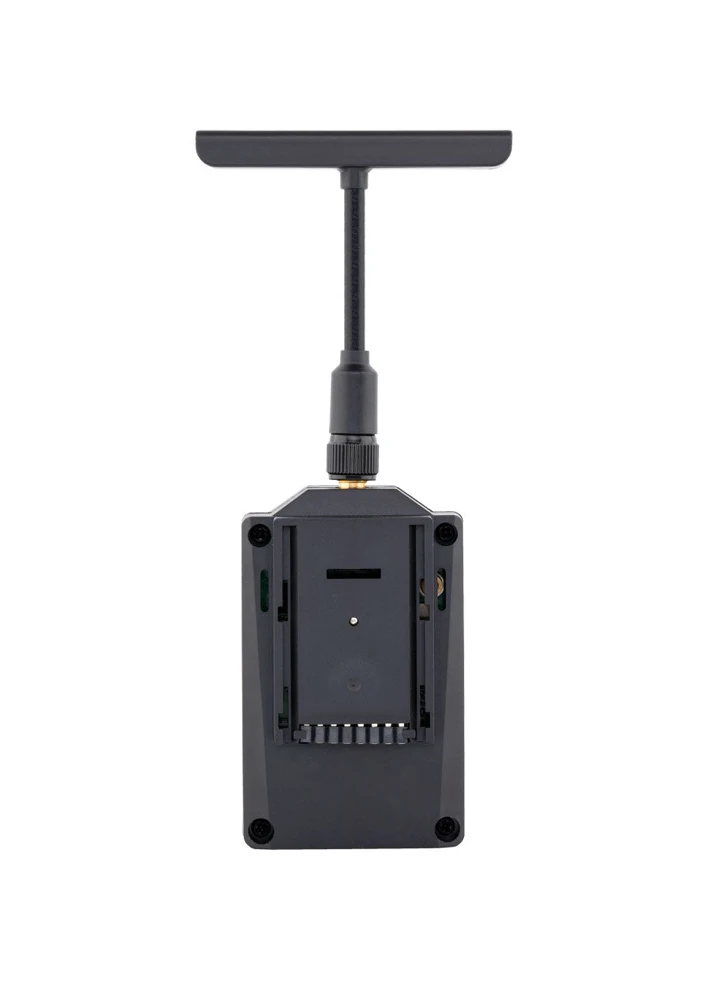

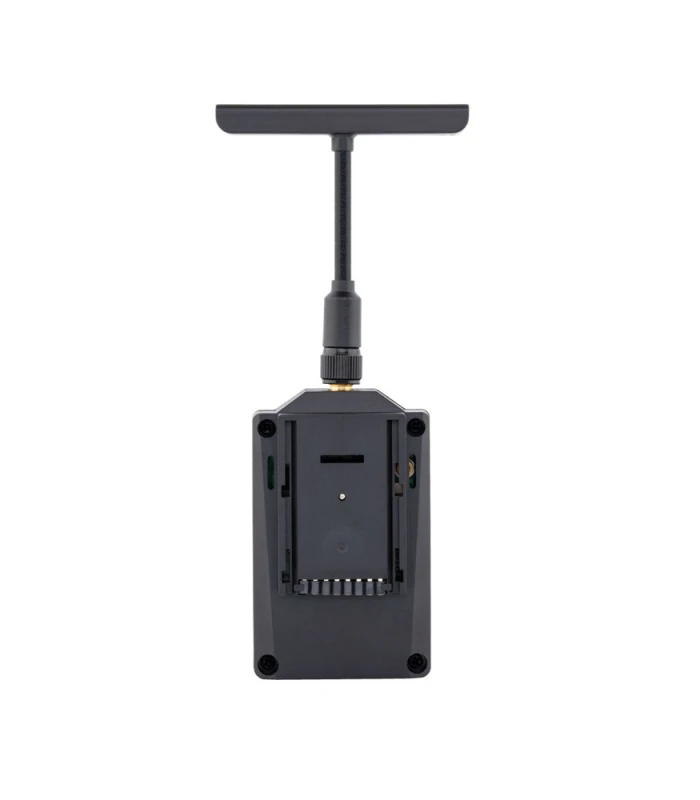

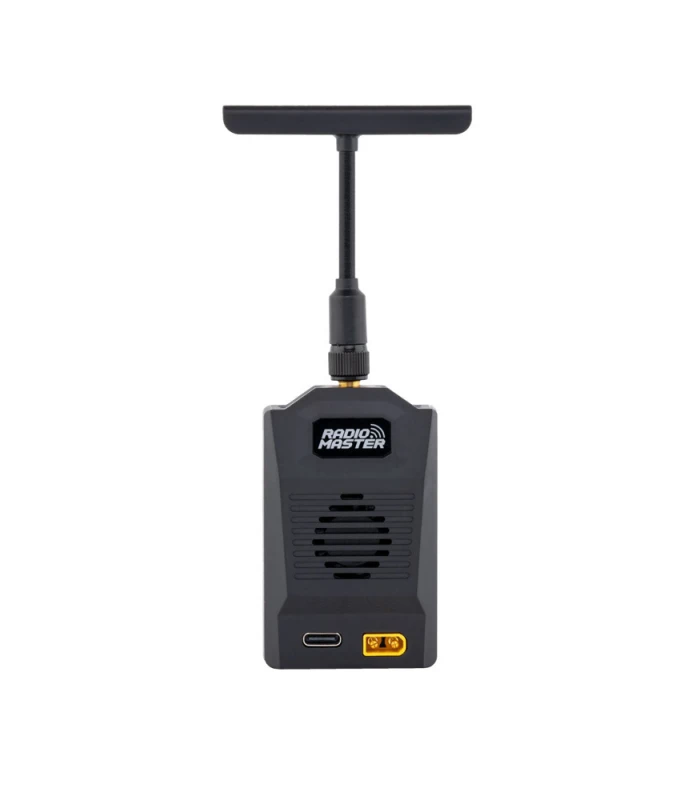

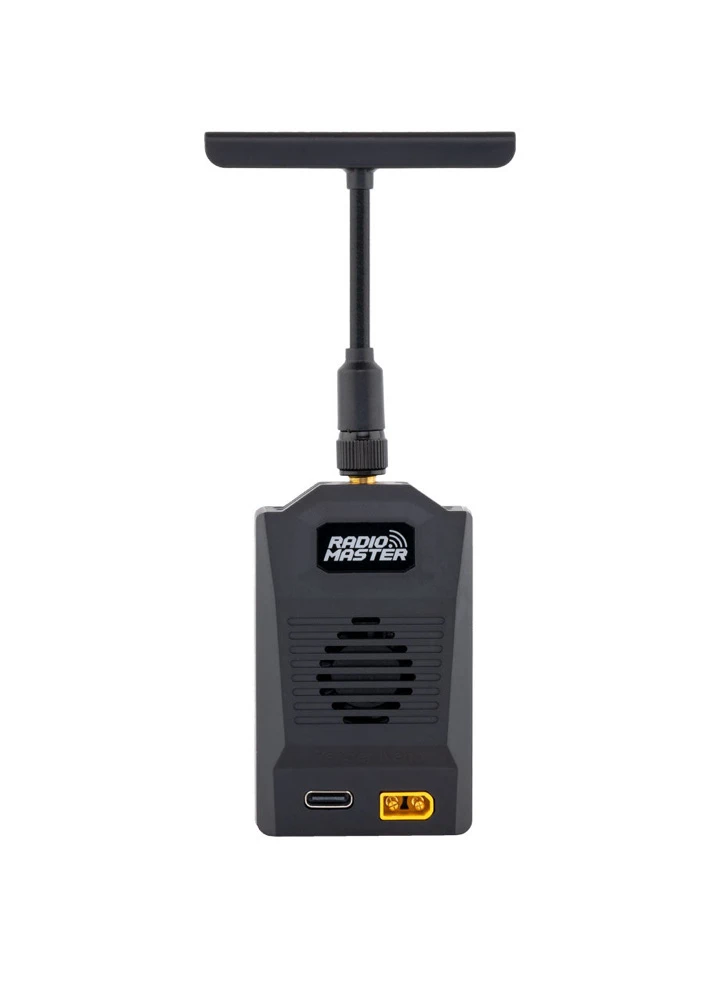

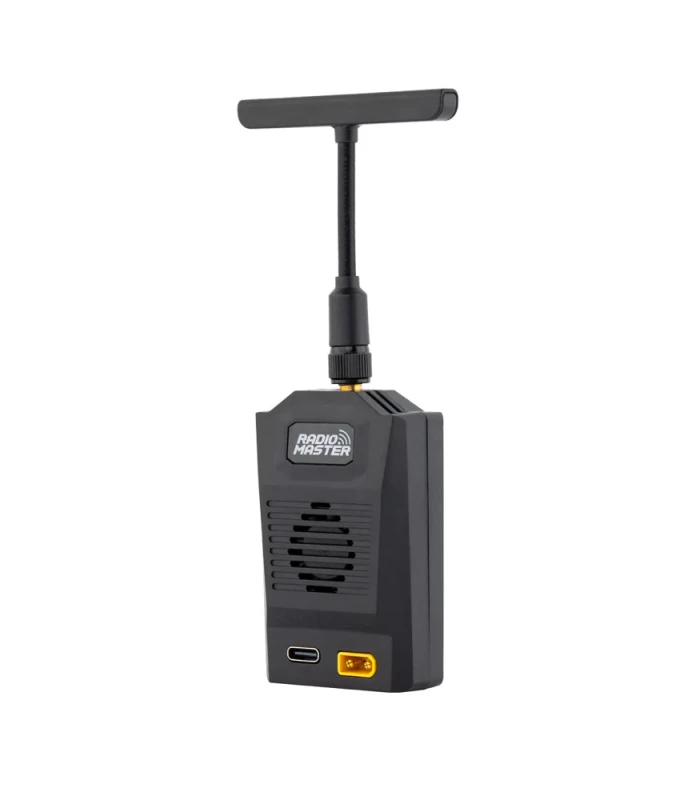

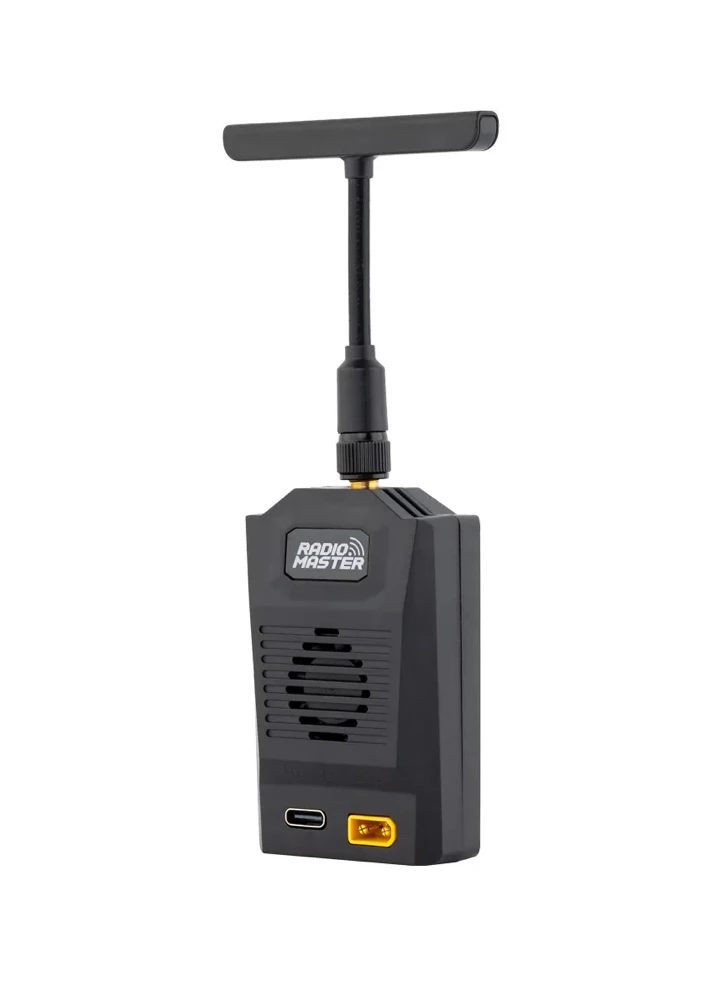

The Ranger Nano 2.4GHz ELRS Module fits Nano / Lite style module bays.

Firmware Flashing Service

If you would like this ELRS product re-flashing with a different firmware to factory stock (EU LBT) then we can do this for an additional fee. Please note this service adds a 1 day lead-time.

(+£1.99)
0 People watching this product now!
Description

Our stock is the latest version using theย V1.6 PCB,ย whichย has resolved the external power issue.

Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMasterย Zorroย and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optionalย MOXON antennaย is available for directional applications.

Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider theย Rangerย and theย Ranger Micro modules.

Firmware Versions –ย FCC and EU LBT:ย  Radios can be reflashed to EU LBT or FCC, the hardware itself is not restricted.

  • FCC:ย ELRS (FCC) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependant)
  • LBT:ย ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Features

  • High-efficiencyย coolingย system
  • Wifiย andย Bluetoothย support
  • Packetย ratesย upย to F-1000Hz
  • Upย toย 1Wattย Powerย output
  • T-antenna included
  • With the Nano connector, support Zorro radio

The Radiomaster Ranger Nano is also availableย as aย starter set comboย whichย includesย twoย RP1ย receivers and oneย RP2ย receiver – please select as required.

RangerNano Banner

Specification
  • Regulatoryย Domain:ย ISM2400
  • MCU:ย ESP32(main),ย ESP8285(aux,as ESPย backpack)
  • RFย chip:ย SX1281IMLTRT
  • Frequencyย Range:ย 2400ย MHzย – 2480ย MHz
  • Maximumย packetย rate:ย 500Hz/F-1000Hzย (F-1000Hz mode requires EgdeTX 2.7.1 or later)
  • Minimumย receiverย refreshย rate:ย 25Hz
  • RFย Outputย Power:ย 30dBmย forย FCC,ย 20dBmย forย CEย (Adjustableย byย LUA)
  • Wifiย Support:ย Yes
  • Bluetoothย support:ย Yes
  • XT30ย Powerย supplyย voltage:ย DCย 6Vย –ย 16.8V
  • Weight: 48g (with antenna) / 39g (without antenna)
  • Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)

Included:

  • 1xย Rangerย Nano Module
  • 1xย Tย Antenna

Need receivers too?ย Purchase the Ranger Micro Combo, which includes the following items:
