Jumper AION 2.4GHz Nano ELRS TX Module

£29.99 Inc. VAT

This ELRS module has a display and joystick control so you don’t need to rely on LUA scripts for setup.

In stock

0 People watching this product now!
Description

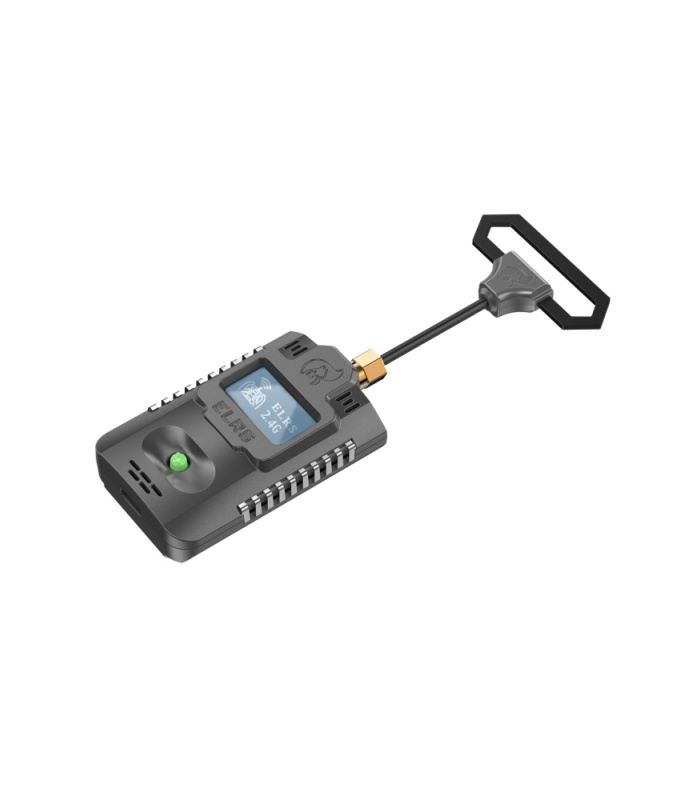

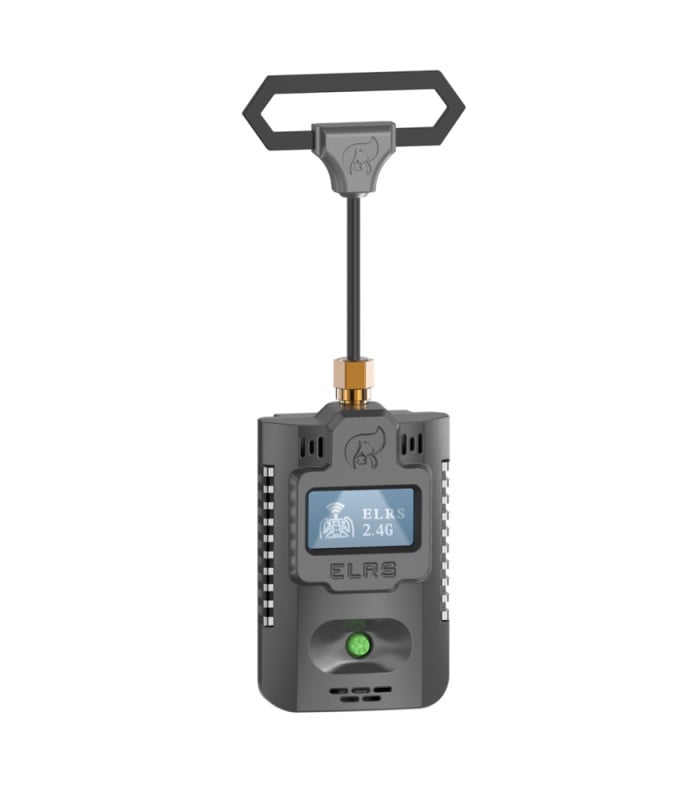

The Jumper AION Nano ELRS Tx Moduleย is based on the ExpressLRS project, an open-source RC link for RC applications. ELSR is currently one of the most advanced RC transmissions.ย It offers a reliable long-distance link, a high refresh rate of up to 500Hz, adjustable power, update via wifi and more.ย ELRS on 2.4G outperforms classic RC systems on the same frequency in all respects while maintaining short antennas.

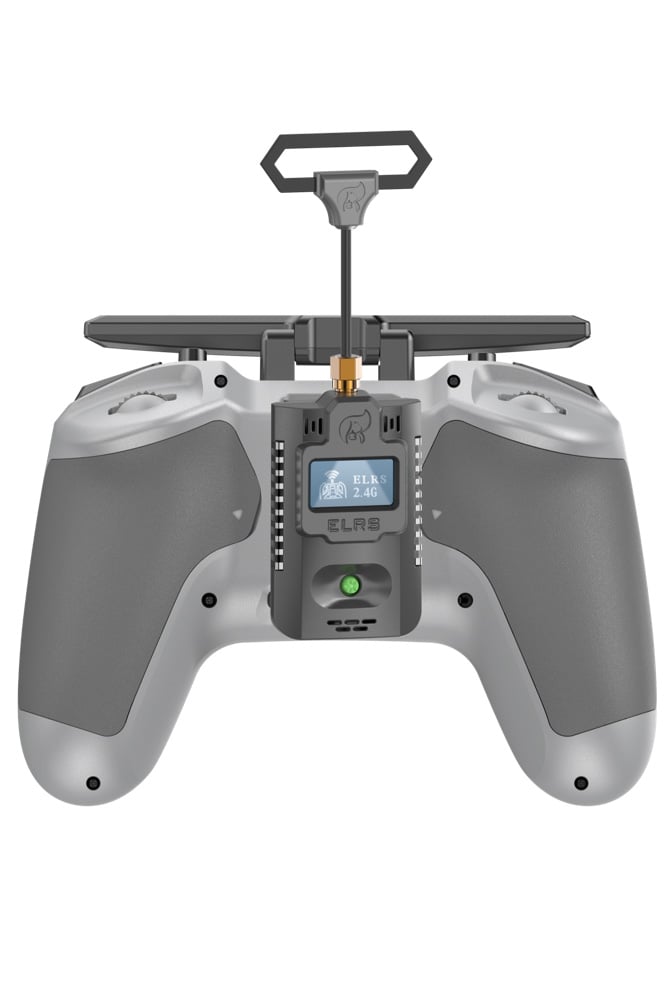

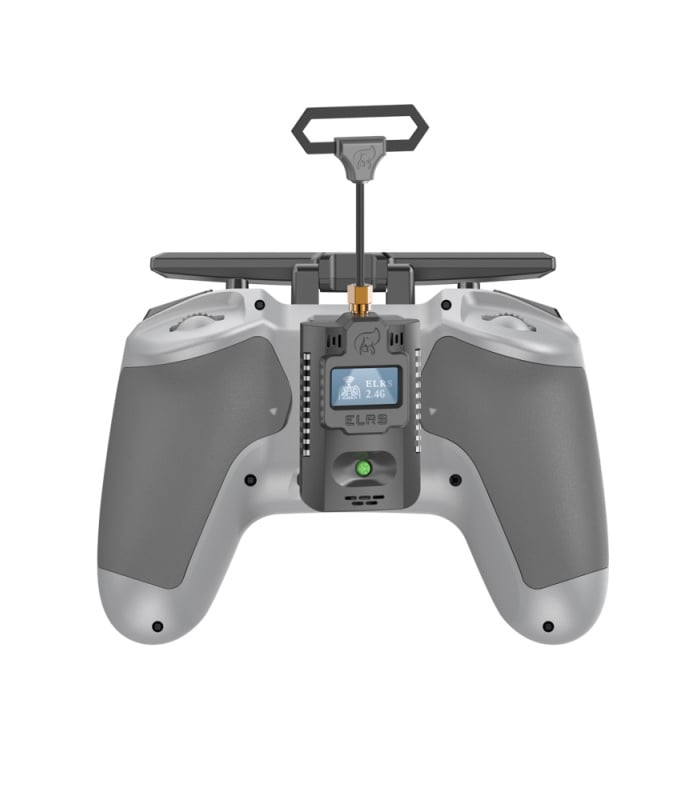

This ELRS module operates onย 2.4G andย supports aย 500Hz refresh rate. The module is already pre-loaded with ExpressLRS firmware and can be easily updated via its USB-C connection. The module is easierย to use than some others,ย thanks to its display screen and joystick for menu navigation. Theย module is compatible with radio transmitters which haveย the nano module bay,ย AKA lite module bay, e.g. Frsky Taranis X-Lite/X-Lite Pro, Frsky Taranis X9D Lite, TBS Tango 2 or Jumper T-Pro.

The moduleย is compatible with radios that have a ‘Lite’ size module bay, such asย Frsky X-lite/X-lite pro/X9 Lite, TBS Tango2 or Jumper T-Pro

Notes:

  • TX module and receiver have to be in the same ELRS version, otherwise, the binding will fail.
Specification
  • Screen: OLED
  • MCU: ESP32
  • RF Output Power: 10-500mw
  • Frequency Range: 2.4GHz-2.5GHz
  • Firmware: ExpressLRS
  • Antenna: Directionality Diamond antenna for best signal penetration
  • Working Voltage๏ผš DC5-8.4v
  • Maximum receive refresh rate: 500Hz
  • Menu button: 5 directions button
  • Voltage: DC6-8.4V
  • Current: ๏ผœ400mA
  • Port: S.port
  • Firmware update: via Wifi, UBC-C, or Blue tooth

Included

  • 1x Jumper ELRS 2.4G TX ExpressLRS Module
  • 1x Antenna
