Radiomaster Ranger 2.4GHz ExpressLRS ELRS Module

Name: Radiomaster Ranger 2.4GHz ExpressLRS ELRS Module - Flying Tech
Brand: RadioMaster
SKU: RC-RMRANGETX
Price: 99.00 GBP
Availability: InStock

£99.00 Inc. VAT

The Ranger is the pinnacle of ExpressLRS module design, up to 1 Watt power & supports F-1000Hz packet rates.

Only 5 left in stock

Firmware Flashing Service

If you would like this ELRS product re-flashing with a different firmware to factory stock (EU LBT) then we can do this for an additional fee. Please note this service adds a 1 day lead-time.

EU LBT (Default)

FCC (+£1.99)

Compare

0 People watching this product now!

SKU: RC-RMRANGETX Categories: ELRS Transmitters, Radio Control, Transmitter Modules, Long Range RC, ExpressLRS Tags: ELRS, ExpressLRS, Module, Transmitter, TX

Description

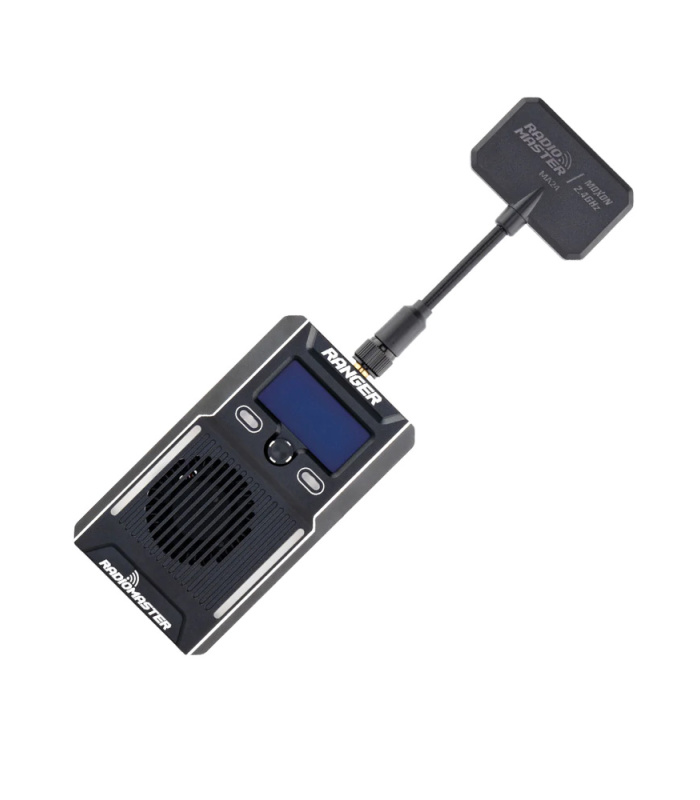

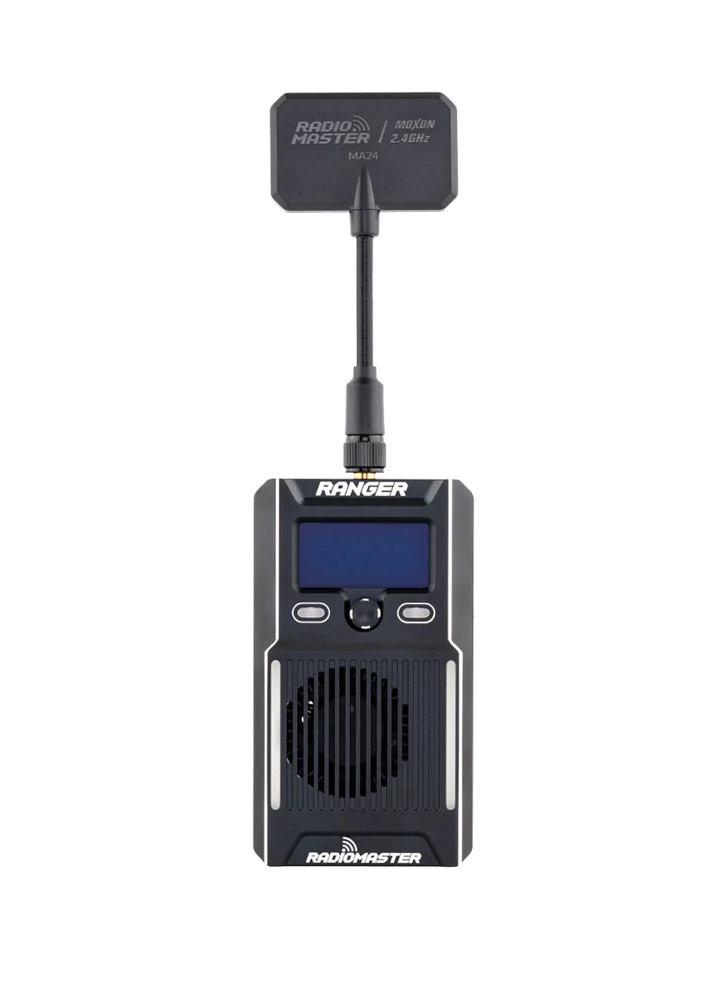

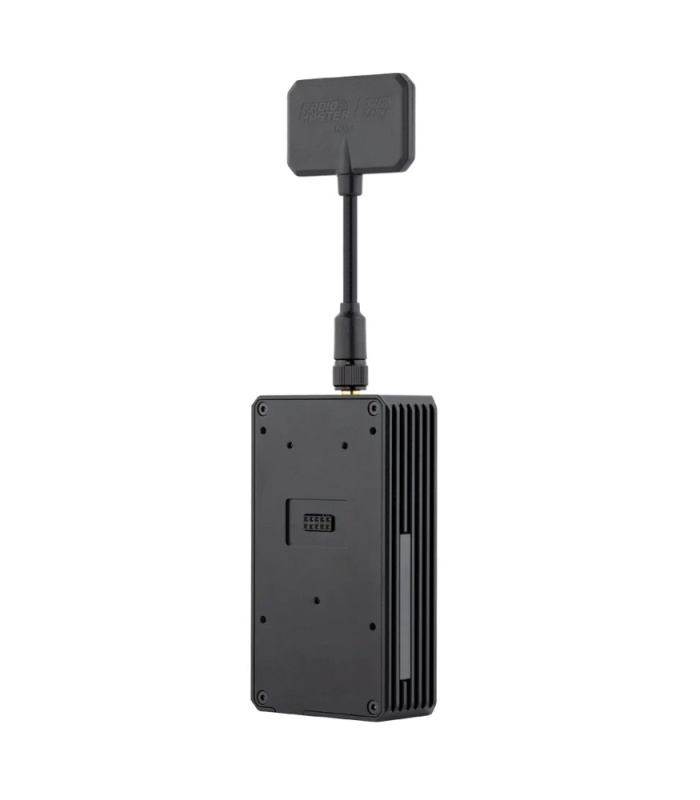

The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminium case that aids the high-efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

Featuring an OLED display, a directional menu key and two assignable shortcut keys the Ranger can be adjusted on the fly and personalised to your needs. Other standout features include built-in accelerometer, packet rates up to F-1000Hz, up to 1 Watt Power output.

The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

Features

OLED Display
Rugged CNC Case
Built-in Accelerometer
Packet rates up to F-1000Hz
Up to 1 Watt Power output
Wifi and Bluetooth support
High-efficiency cooling system
5 Direction Nav key and customizable shortcut buttons
Micro and Nano adapters included
Moxon and T-antenna included
CRSF cable for compatible Futaba radios included

The Radiomaster Ranger is also available as a starter set combo which includes two RP1 receivers and one RP2 receiver.

Specification

Item: Ranger 2.4GHz ELRS Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz – 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
Futaba CRSF socket cable: Included
OLED screen: 64x128px
Wifi Support: Yes
Bluetooth support: Yes
3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Built-in RGB light strip
XT30 Power supply voltage: DC 6V – 16.8V
Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
Dimension: 95x51x25mm (without antenna)

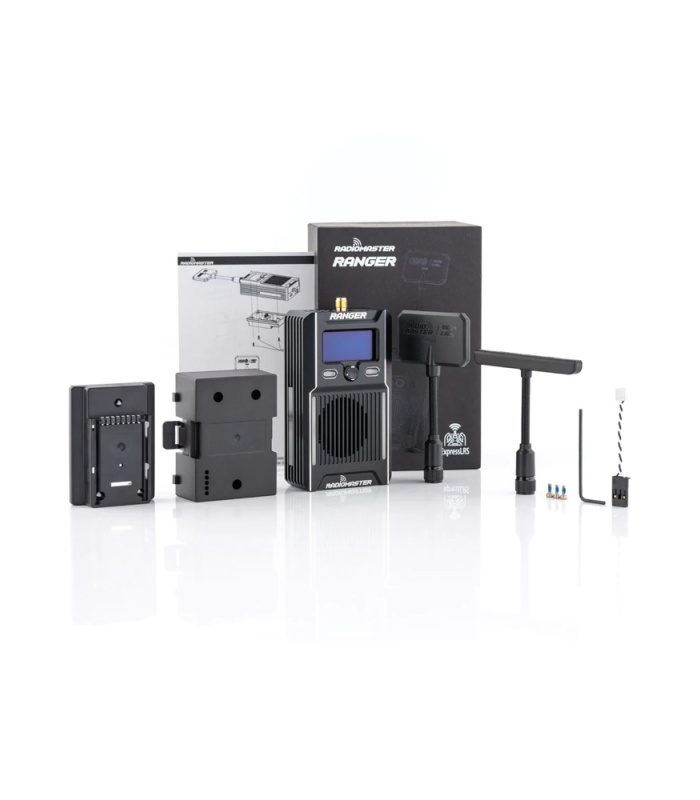

Included:

1 x RANGER Module
1 x Futaba CRSF socket cable
1 x JR Adapter
1 x Nano Adapter
1 x T Antenna
1 x Moxon Antenna
1 x Hexagon socket screwdriver
3 x M2*5 Screws
1 * Assembly Manual
