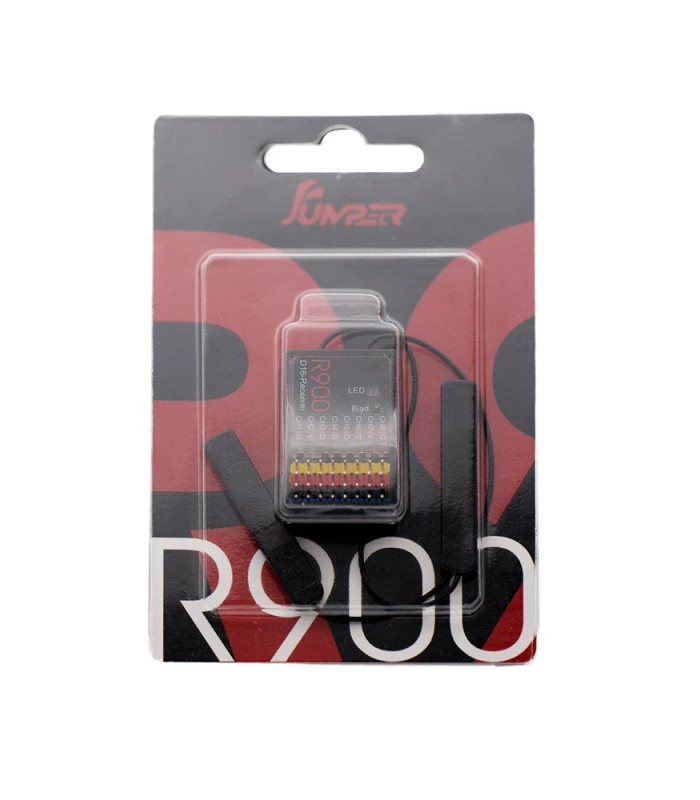

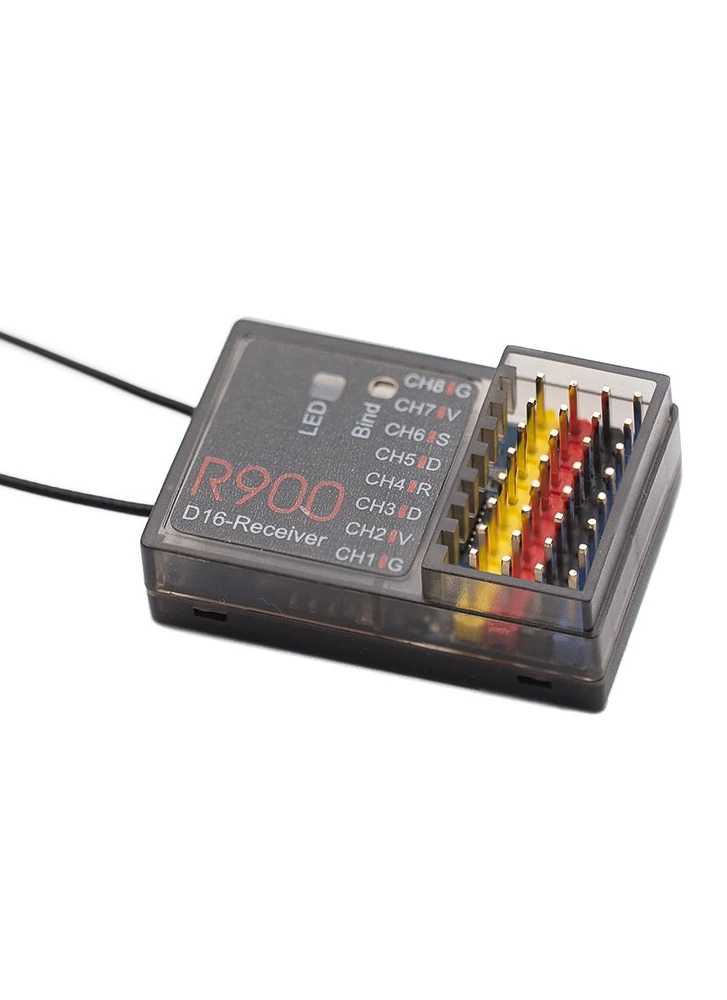

Jumper R900 Receiver 900MHz Long Range RX

Name: Jumper R900 Receiver 900MHz Long Range RX - Flying Tech
Brand: Jumper
SKU: RC-R900
Price: 14.40 GBP
Availability: InStock

Original price was: £18.90.Current price is: £14.40. Inc. VAT

The R900 has a unique feature, a TX/RX data connection for Pixhawk, enabling a telemetry display on a compatible RC.

In stock

Add to compare

0 People watching this product now!

SKU: RC-R900 Categories: FrSky Long Range RC, Long Range RC, Pixhawk & APM Accessories, Radio Control Tags: PWM, R9, SBUS, Telemetry, Yaapu

Description

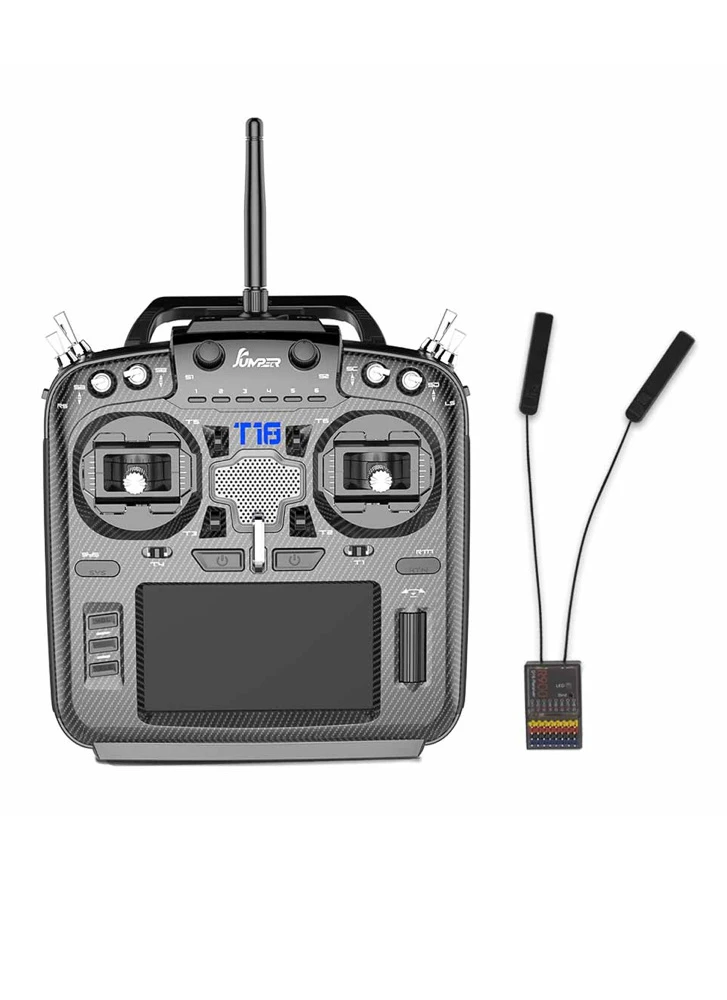

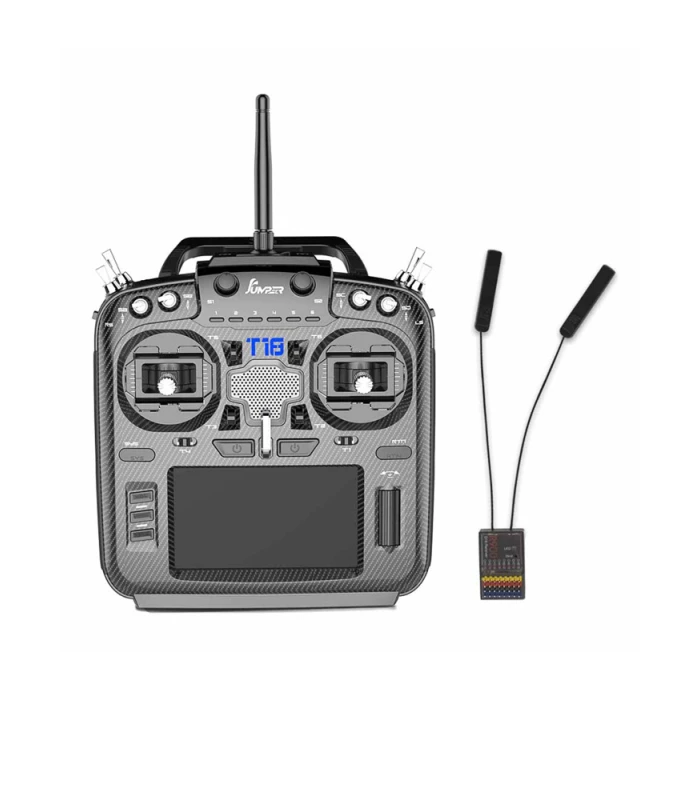

The R900 is a new long-range receiver designed to accompany Jumper’s T18 5-in1 Multi-Protocol Radio. The Rx is compatible with R9 systems on 900MHz. It offers 8 PWM channels or 16-channels on SBUS. Like it’s 2.4GHz brother the Jumper R8, the R900 has a useful TX/RX telemetry output, which allows you to connect it to a Pixhawk, PX4 or APM Flight Controller to receive a live telemetry on a compatible RC transmitter, for example the Jumper T18 or Taranis X9D. This is a super useful feature as it means you can get lots of useful information such as flight modes, battery level and error messages direct to your radio in real time without the need for a Mavlink Ground control station.

Yaapu Telemetry Script – Here

Arducopter Wiki Information – Here

Features:

8 PWM Channels / 16CH SBUS
Compatible with the T18 5in1 / FRSKY R9 series (ACCST) RF module
Operates on 915MHZ frequency, suitable for long range flight
Strong signal penetration and good anti-interference ability
TX/RX Pins support Pixhawk telemetry without an adapter

Specification

Output: SBus RSSI TX/RX (For PIX) PWM (1-8CH)
Channels: 16CH
Operating Voltage: 3.5V – 7.4V
Operating Range: Full Range
Compatibility: 915 Mode (Jumper T18 / R9M (ACCST))
Weight: <10g
Dimensions: 35.8×23.7×12.6mm

Included:

1x Jumper R900 900MHz Long Range Receiver

Downloads

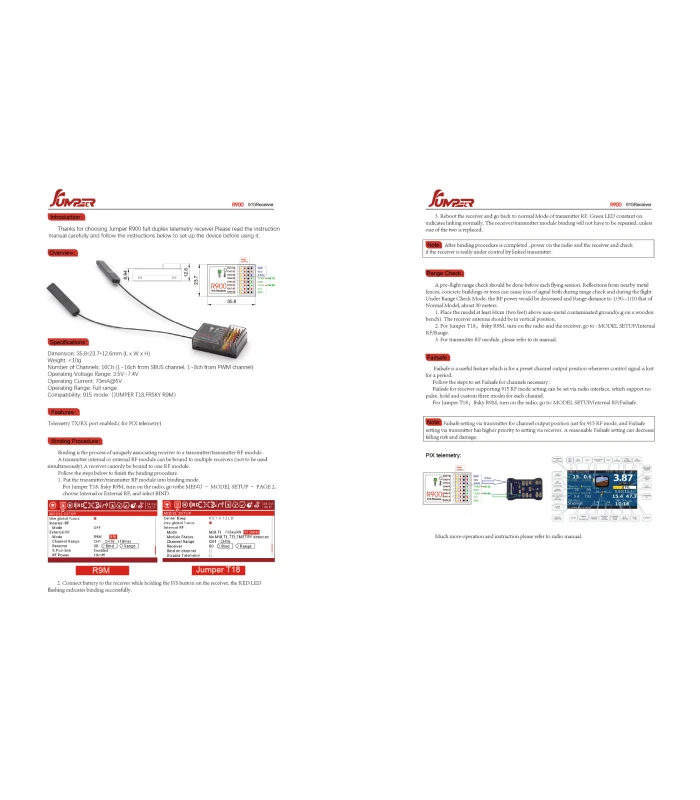

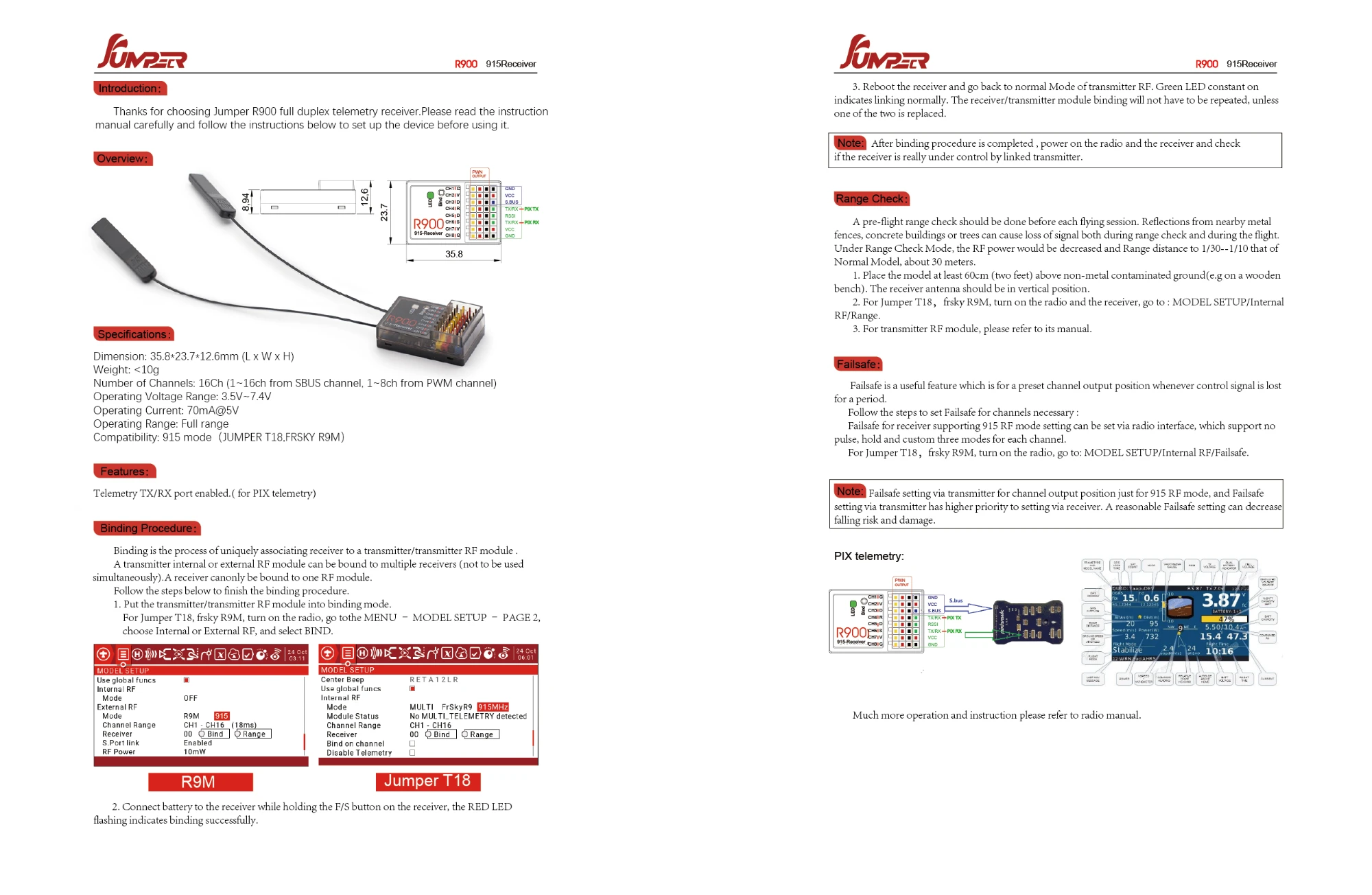

Manual (png, 836KB)

Download

Q&A

Questions and answers of the customers

Can this RX give flight battery telemetry on the Jumper T18? If so - is it necessary to buy a battery telemetry module as you would on an Fr Sky 2A receiver?

0 votes

Q Can this RX give flight battery telemetry on the Jumper T18? If so - is it necessary to buy a bat...... Read more answer now

A
Hi, the receiver itself doesn't provide battery voltage telemetry. It has support for a Tx/Rx telemetry input, this data would be provided from a flight controller and its sensors, for example the Pixhawk and Power Module. The data could then be displayed on the T18 radio by running a telemetry script, a popular one is Yaapu Telemetry Script.
