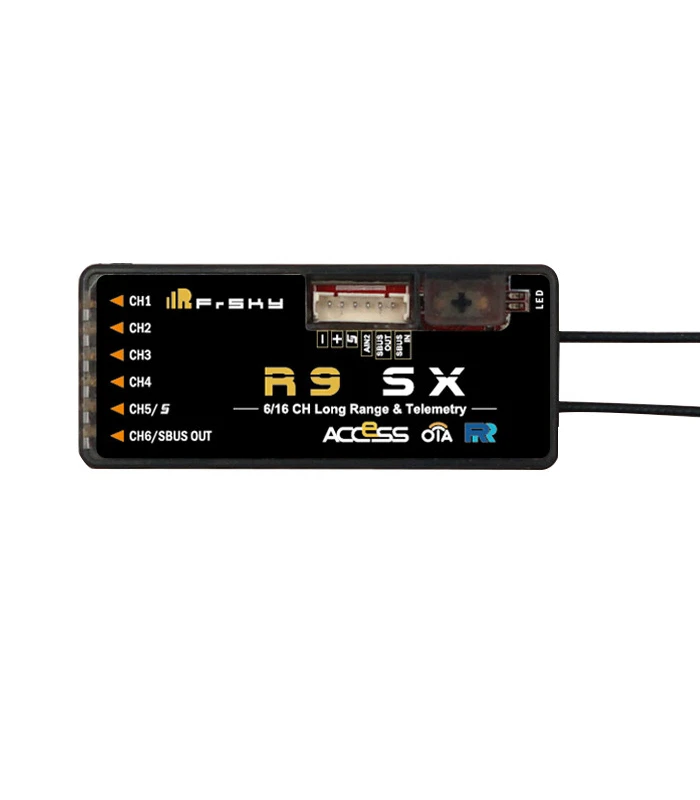

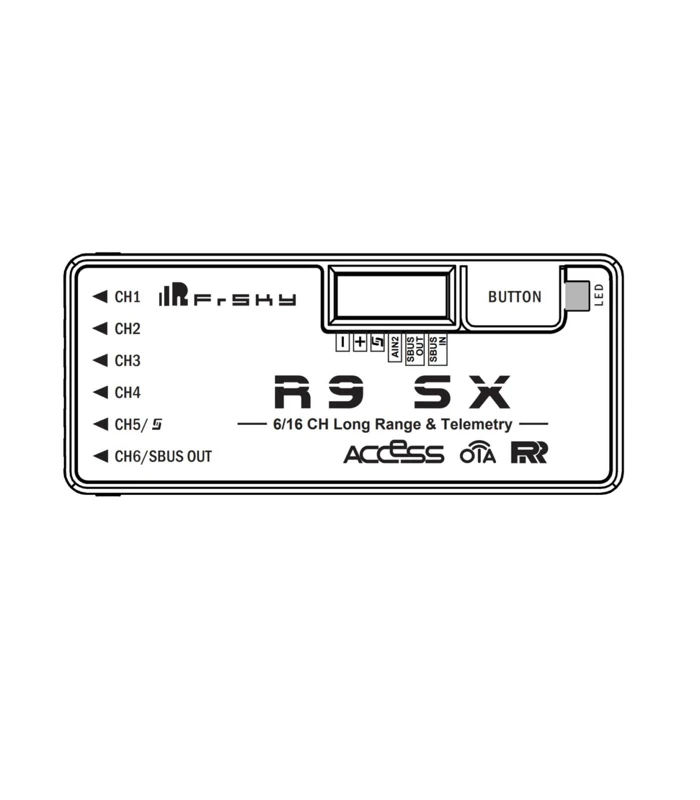

Frsky R9 SX 868MHz 6/16CH PWM/SBUS Long Range Receiver

Name: Frsky R9 SX 868MHz 6/16CH PWM/SBUS Long Range Receiver - Flying Tech
Brand: FrSky
SKU: RC-FRSKY-R9SX-ACCESS
Price: 32.90 GBP
Availability: InStock

£32.90 Inc. VAT

A 6CH PWM receiver compatible with FrSky’s R9 Long Range System (ACCESS).

In stock

Compare

0 People watching this product now!

SKU: RC-FRSKY-R9SX-ACCESS Categories: FrSky Long Range RC, Long Range RC, Radio Control Tags: ACCESS, Long range, OTA, PWM, R9, Receiver, RX

Description

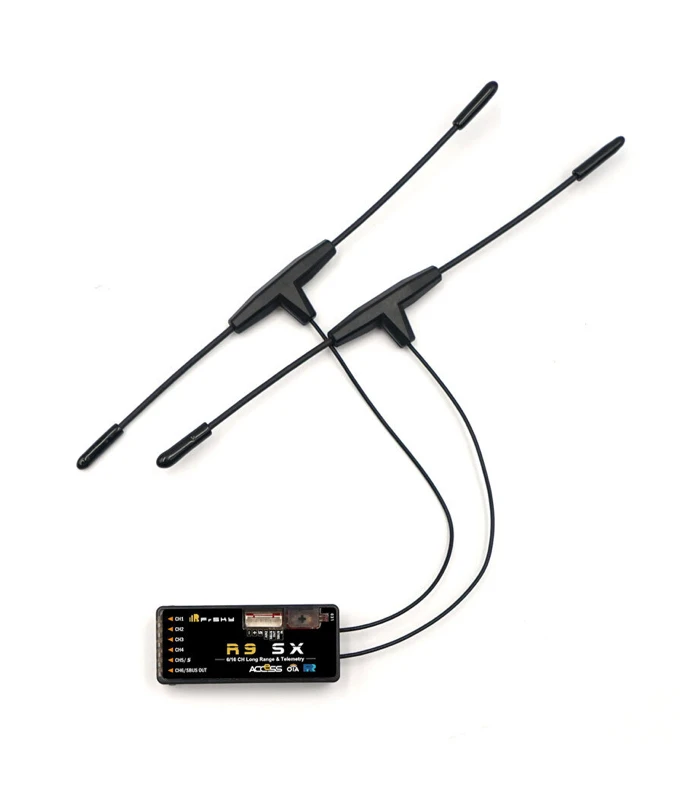

The R9 SX is the enhanced version of the R9 Slim series of long-range capable receivers. It adds 3-pin servo connectors with 6 full PWM channels and utilizes the dual-antenna design. The light-weight protective shell has a Multi-use 6-pin plug to bring you additional functions like signal redundancy, telemetry feedback, external battery detection and more.

Flexibility is a key feature of this receiver. The 6 PWM channels can be converted to 4 PWM channels with the additional Ch5 and Ch6 can be configured as an alternative S.Port and SBUS outputs to the 6-pin port. The enhanced design proves to be more durable, and in conjunction with the latest ACCESS firmware, the two are now synchronized and we are able to unlock the true potential of the ACCESS protocol.

Features

ACCESS protocol and supports OTA functions
868MHz long-range with low latency
Enhanced and durable design
6 standard servo connectors (default PWM channel)
Switchable CH5/CH6 into S.Port/SBUS Output channels
Support S.Port / F.Port (Configurable in OpenTX / FrOS menu)
Signal redundancy function
External battery detection
Detachable Ipex1 connector antenna

The new R9 SX works only with the ACCESS compatible radios and R9M modules only (R9M 2019, R9M Lite, R9M Lite Pro).

Specification

Frequency: 868MHz
Dimension: 36x17x7mm / 47.5×20.5x11mm (including case and pins)
Weight: 8.8g / 13g (including case and pins)
Numbers of Channel: 6 PWM / 16 SBUS (CH16 outputs RSSI)
Operating Voltage: DC 3.5V~12.6V (3S Li-Battery)
Operating Current: <100mA@5V
Compatibility: R9M Lite/ R9M Lite Pro / R9M 2019 with ACCESS firmware

Included:

1x FrSky R9 SX OTA Receiver EU LBT
