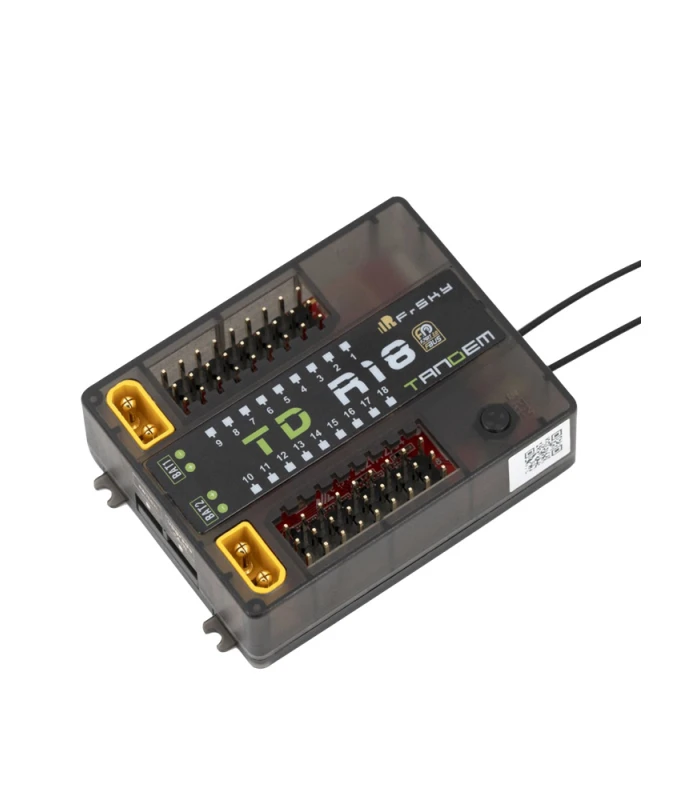

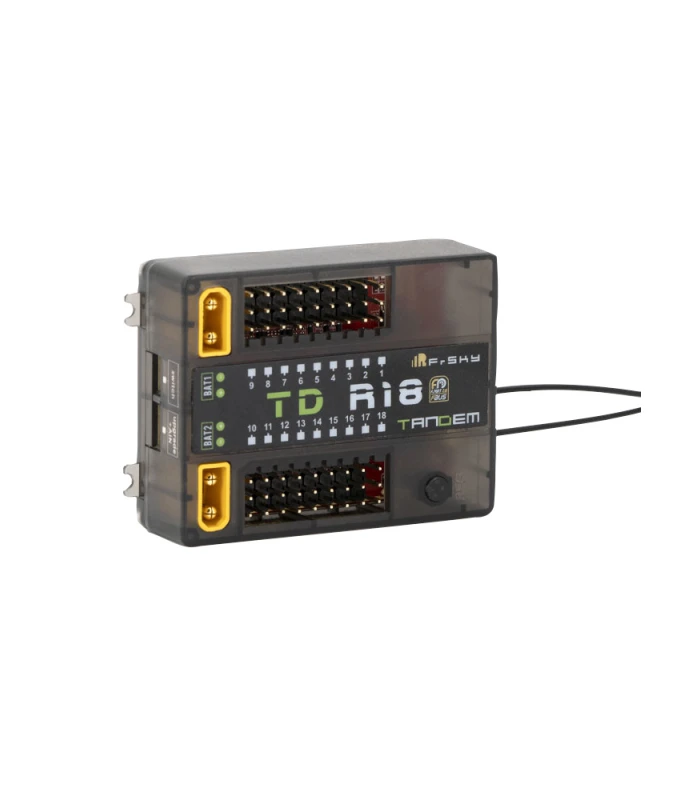

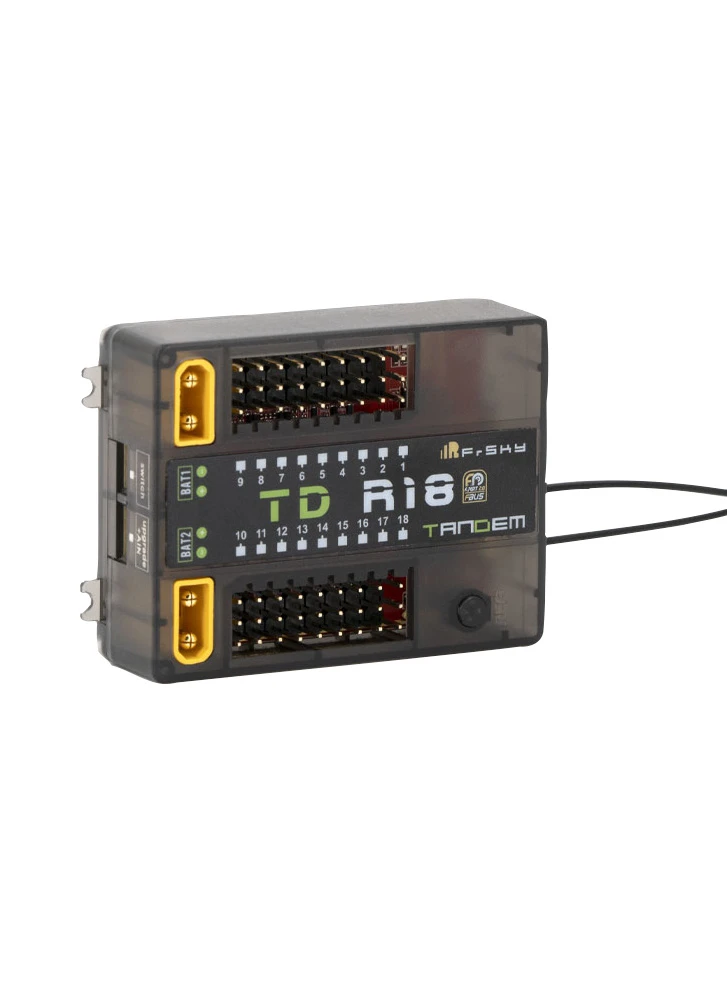

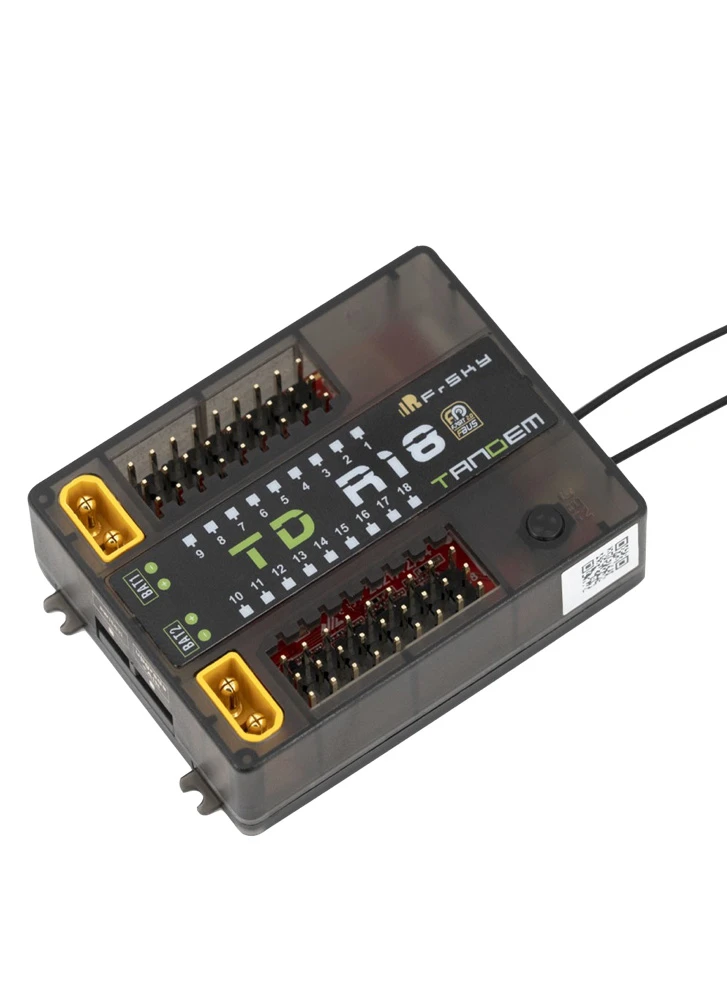

The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 868Mhz/900Mhz receivers, instead they work simultaneously at both 868Mhz and 2.4Ghz frequencies. That means Tandem receivers provide not only the low latency signal control, but long range with an enhanced level of high reliability and anti-interference performance as well.

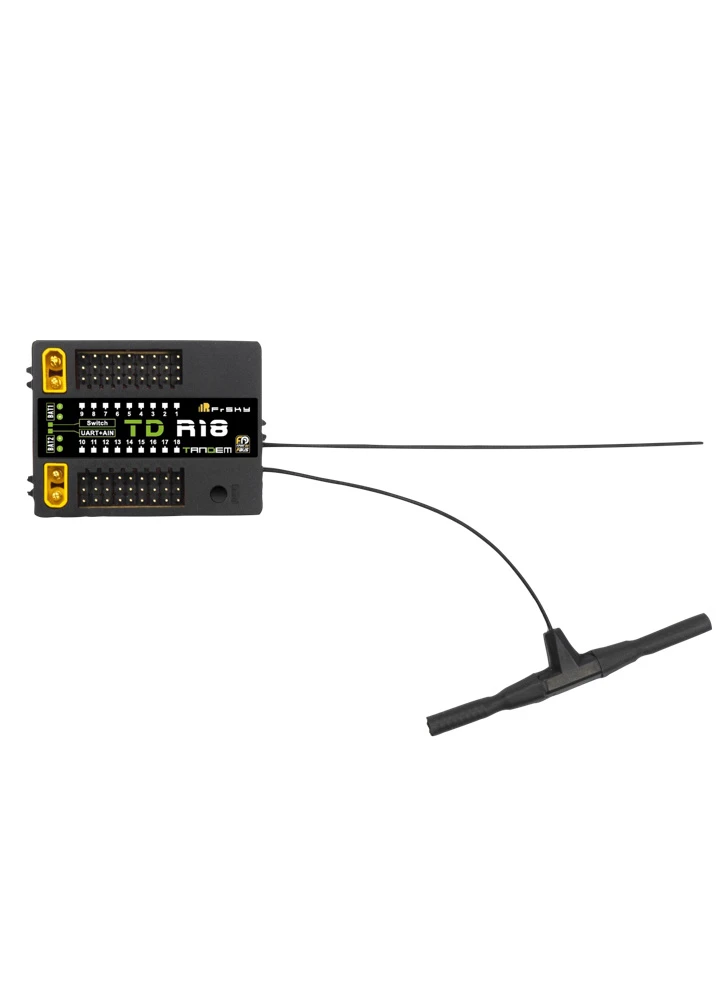

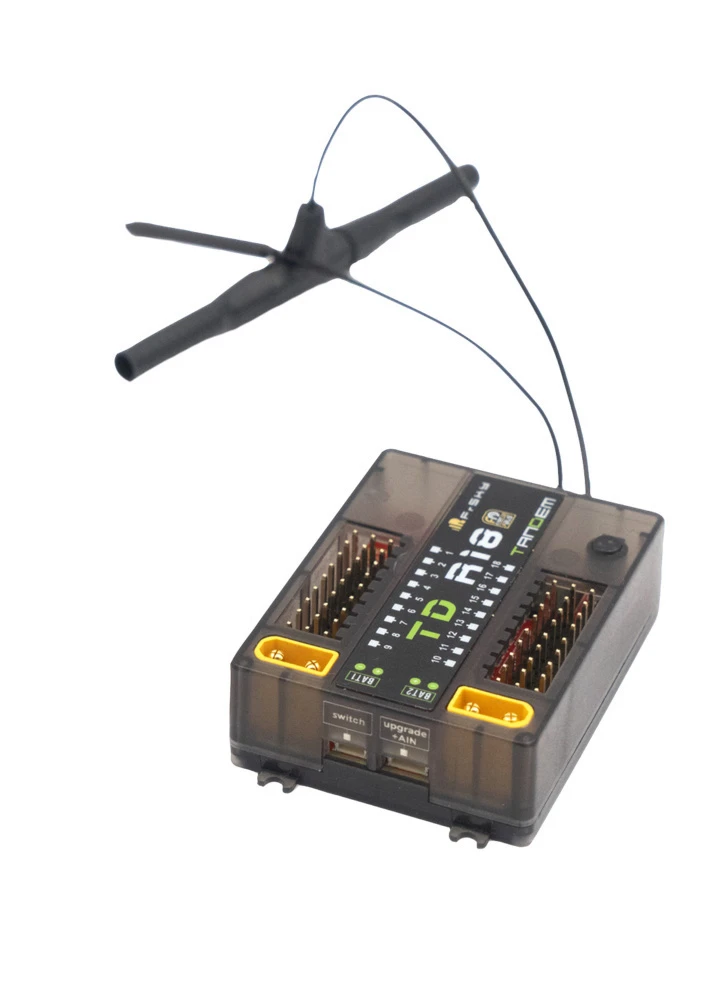

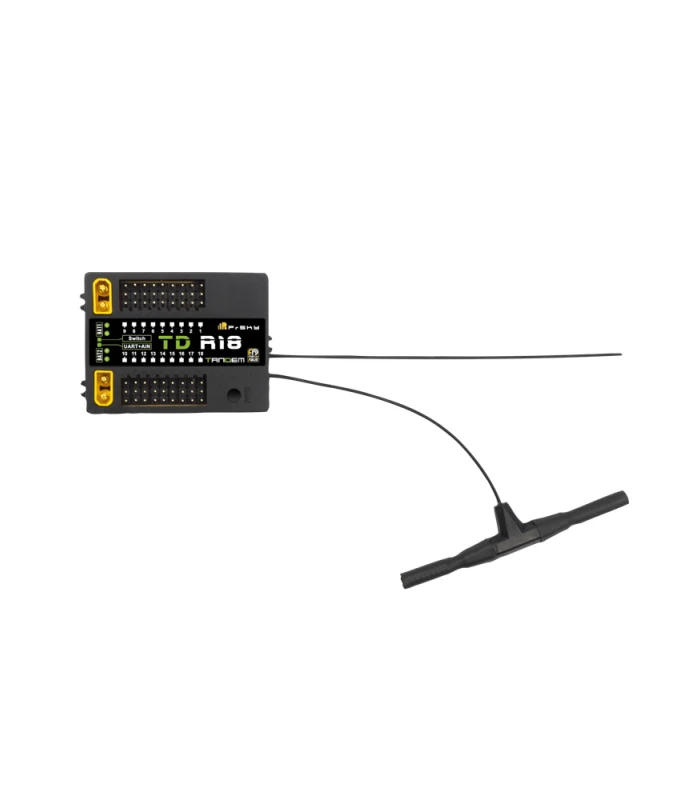

The Tandem series receivers adopt a triple antenna design that provides multi-directional wide coverage for the remote signal. The 868Mhz antenna is a newly designed small form factor, but has the equivalent high-performance as with previous 868mhz antennas.

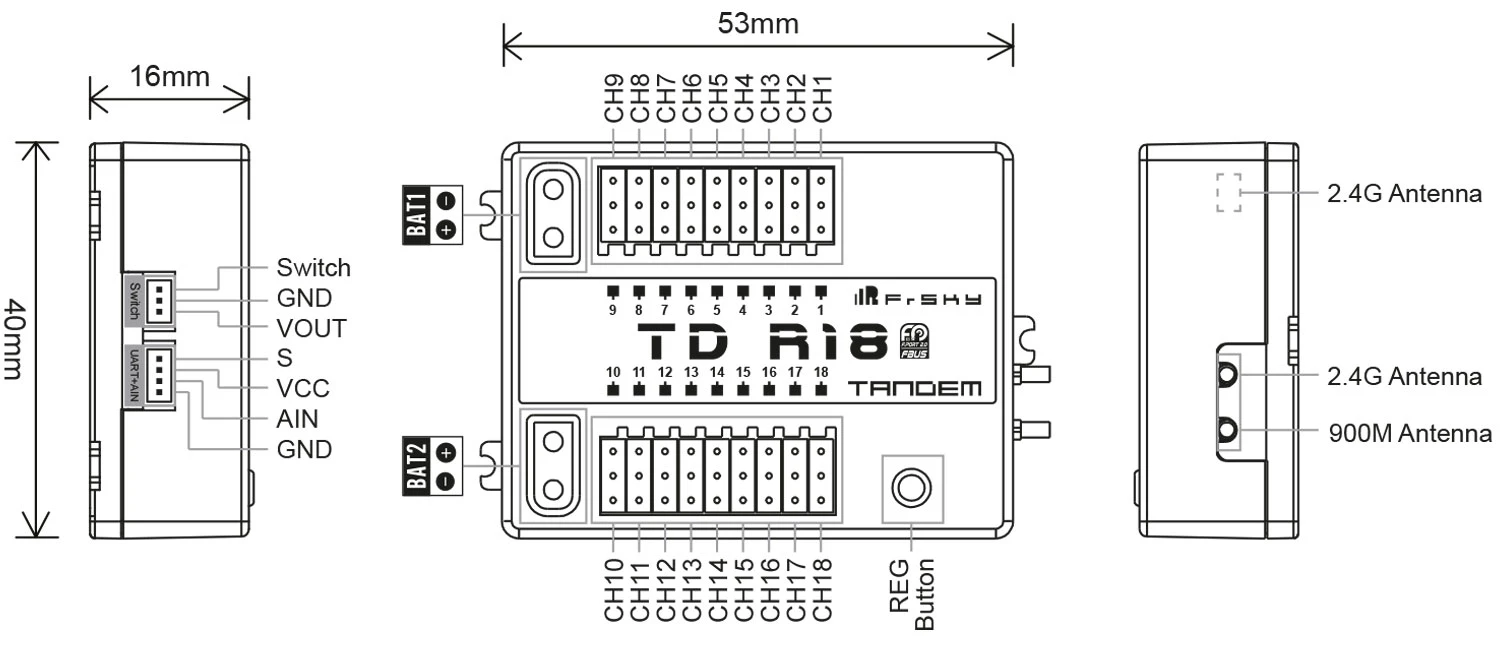

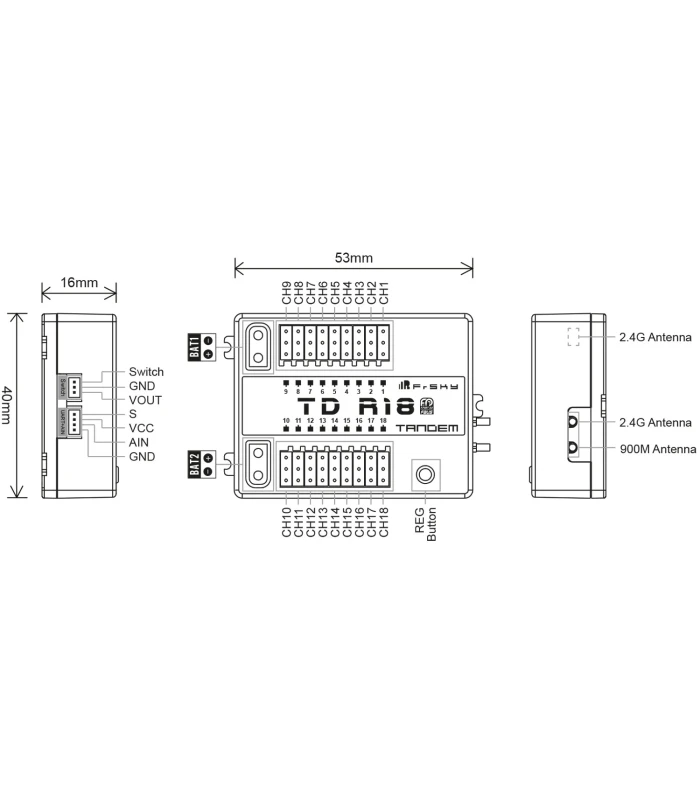

The configurable 18 channel ports are a big feature of TD R18, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the Tandem series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the builds setup. In addition, the receiver has a built in black-box function that can record unusal power and signal status related data. The TD R18 can additionally save the complete and long-term data (Control & Flight Attitude data log, etc.) by SD card through an external module.
TD R18 also provides a socket that can be used to connect the switch panel/NFC Switch panel to enable the built-in Power Switch function.
Please Note: This receiver is only compatible with the Tandem series transmitters with dual-band transmitter module.
Features:
- Simultaneous working dual-band TD mode
- Triple antenna design for multi-directional coverage
- Black Box function
- Built-in Power Switch
- Built-in current and voltage sensors
- Race Mode with Telemetry
- Long control range (up to 50KM – 100KM)
- Over-The-Air (OTA) FW update
- 18 Configurable Channel Ports
