Holybro Tekko32 F4 Mini 4-in-1 50A ESC AM32

Name: Holybro Tekko32 F4 Mini 4-in-1 50A ESC AM32 - Flying Tech
Brand: Holybro
SKU: ESC-HB-31246
Price: 67.90 GBP
Availability: InStock

£67.90 Inc. VAT

The Tekko32 F3 Mini is a 50A ESC with 20x20mm mounting holes from Holybro.

In stock

Add to compare

0 People watching this product now!

SKU: ESC-HB-31246 Categories: 4 in 1 ESCs, Electronics, Speed Controllers (ESCs) Tags: 4-in-1, Dshot 1200, ESC, Speed Controller, Tekko32

Description

Latest edition, now with AM32 Firmware (The BLHeli32 Version is sold here, note support for BLHeli32 has ended).

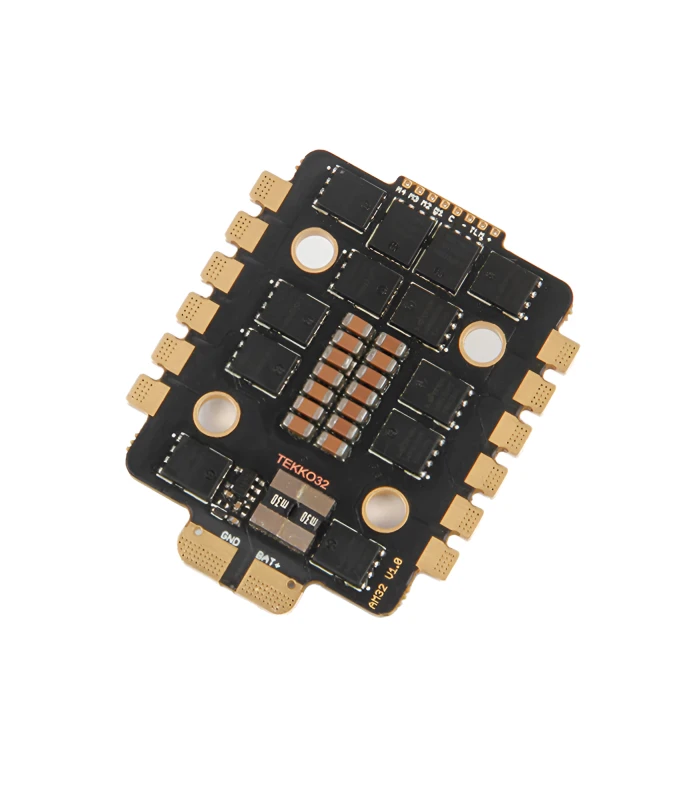

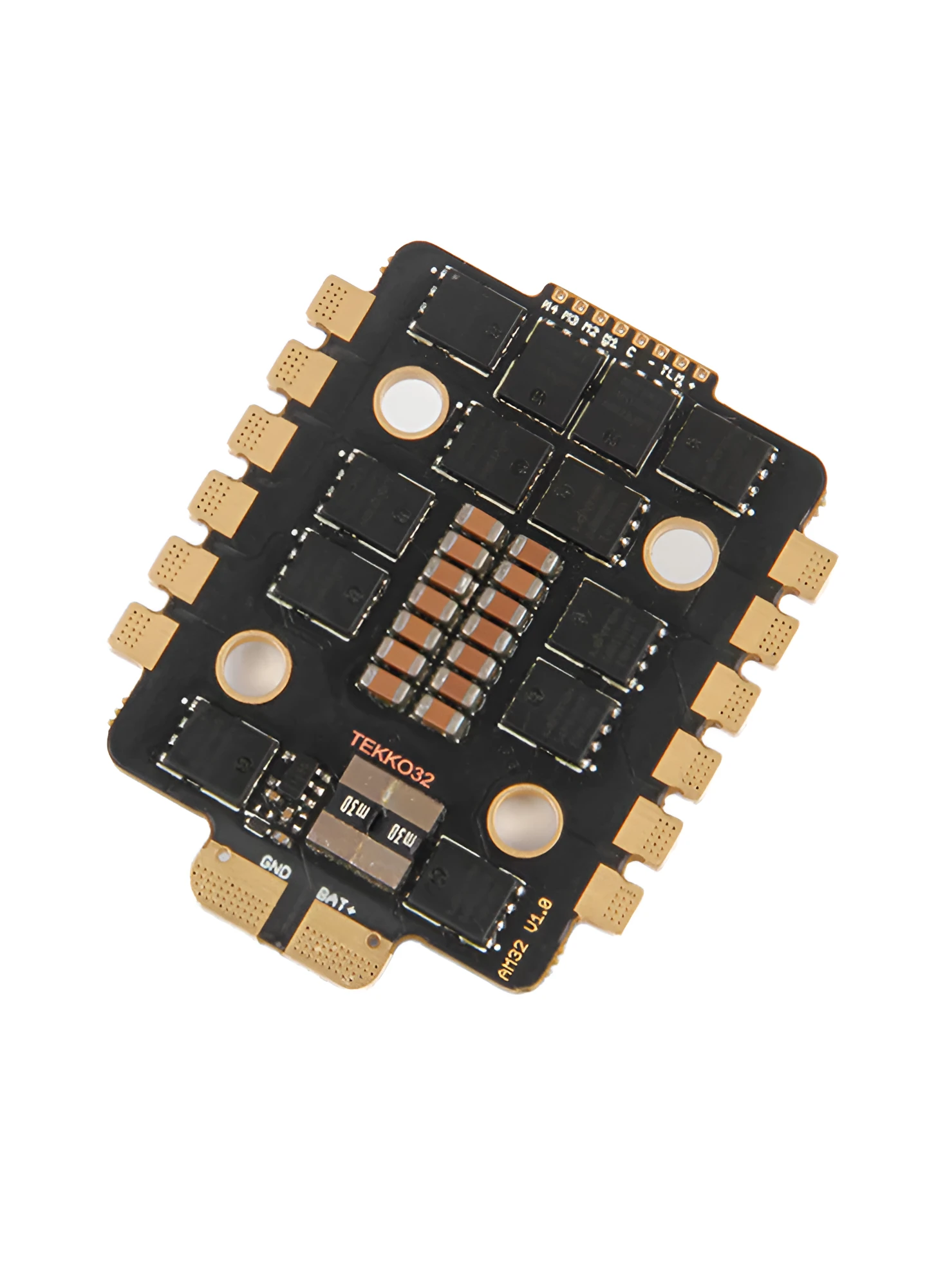

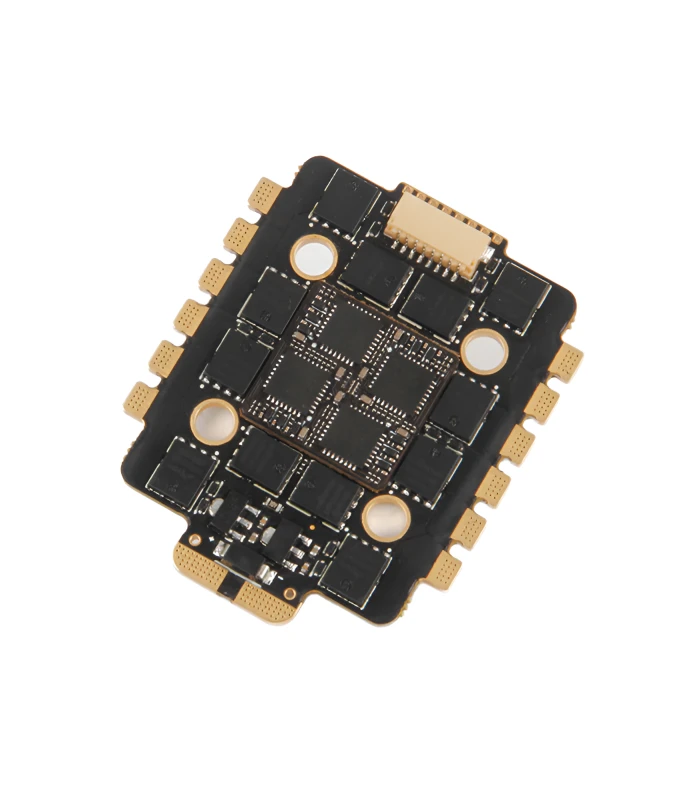

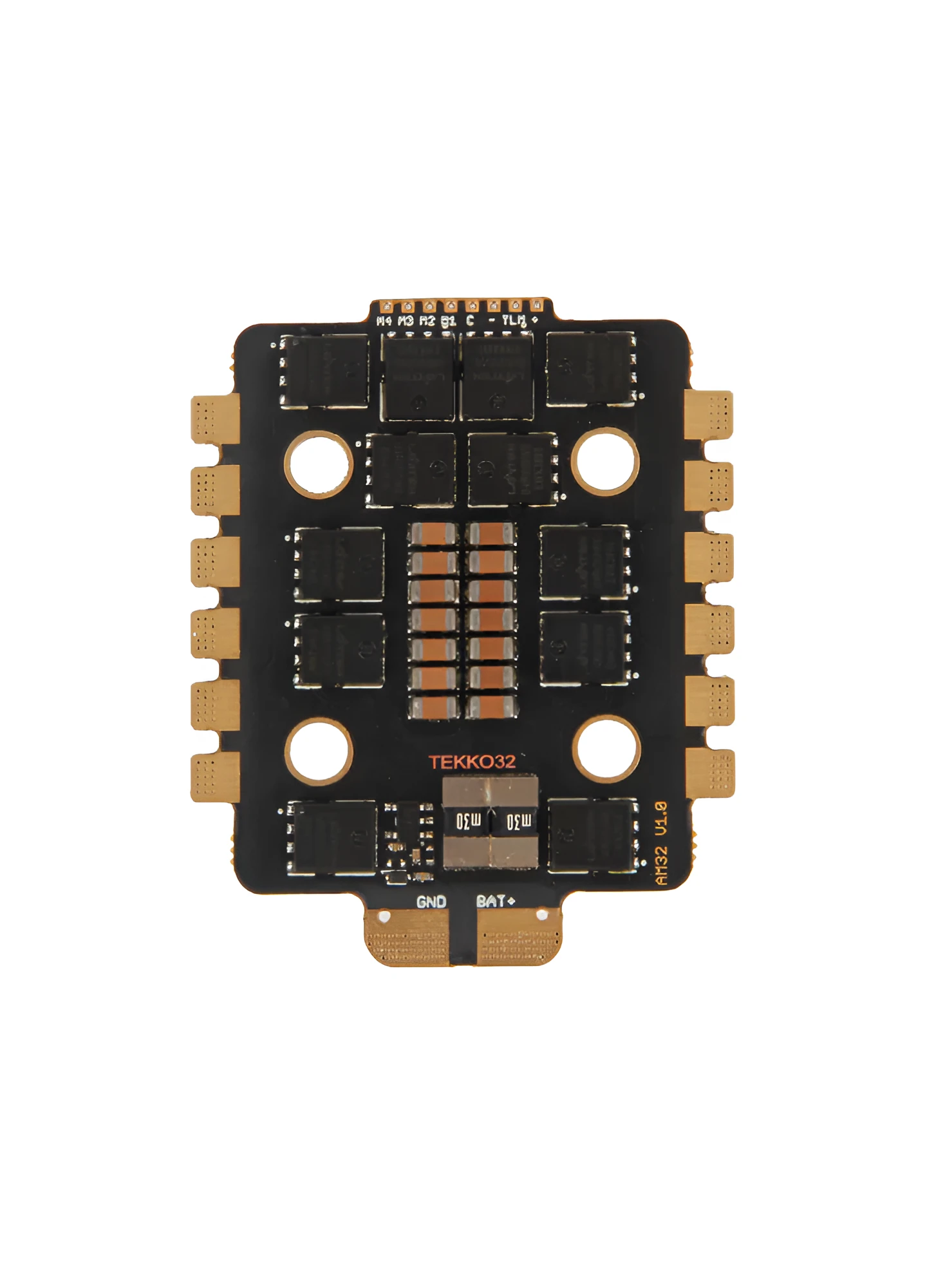

The Tekko32 F3 Mini is a 50A ESC with 20x20mm mounting holes from Holybro. It’s designed for smaller builds, but delivers big on performance. It’s AM-32 based ESC with a F4 MCU that delivers a smooth and fast response. It also boasts a true 50A per channel / 60A burst current rating and it is compatible with 4-6S LiPo; so who’s now planning a giant killing 6S micro drone build then? Being a Holybro ESC you can be confident of excellent reliability and low noise for a trouble free experience.

Summary specification: 4x 50A F4 AM32 ESC in a 20×20 mounting pattern. Compatible with 4-6S LiPo.

Included with the ESC is an 8 pin JST-SH 1.0 connector which allows you to hook this ESC up to your FC, like for example the Kakute F7 Mini, for a very easily setup and neat stack.

Features:

All new High-quality MOSFETs with low internal resistance & heat generation. Also individual metal heatsink
New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
Separate drive & control circuit, reducing the electrical interference to the control circuit

Specification

Continuous current: 50A x4
Burst current: 60A x4
Battery support: 4-6S
PWM frequency: 8k to 96k
Support DShot 150/300/600/1200
Support MultiShot/OneShot/Proshot/PWM, etc.
ESC telemetry Support
Onboard analog current sensor
AM32 Firmware
1000uf 35v capacitor included
Mounting holes: 3.8mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)

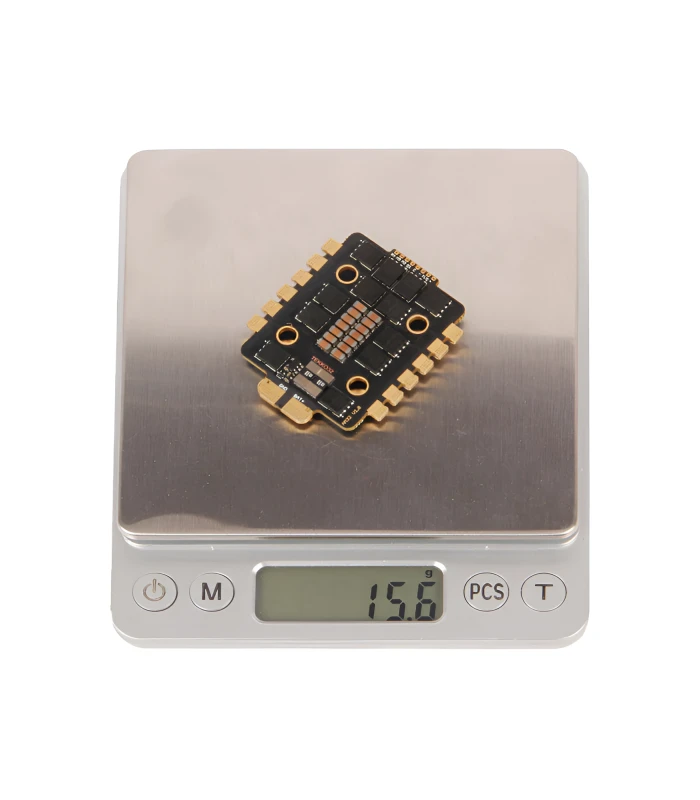

Dimensions: 46.6x38x6mm / Weight: 15.6g

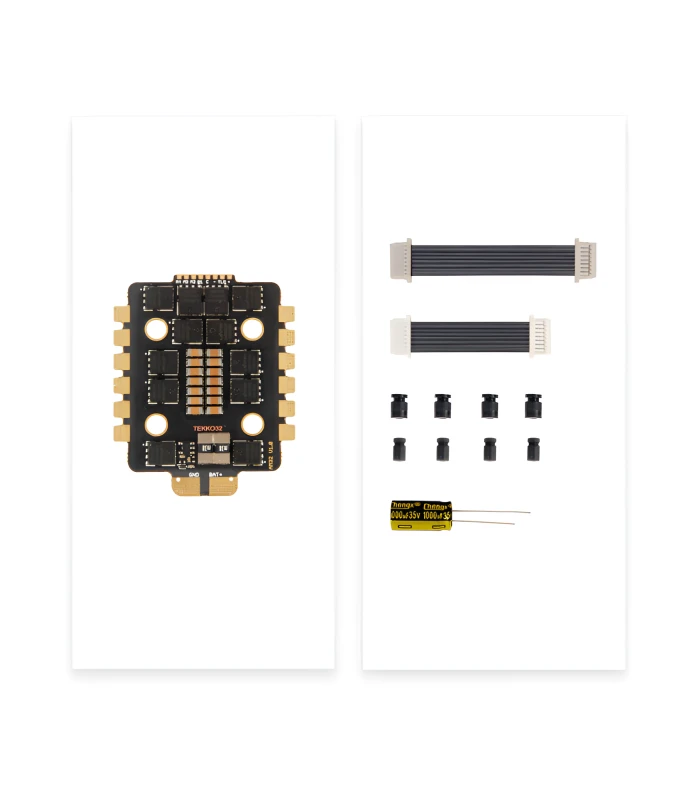

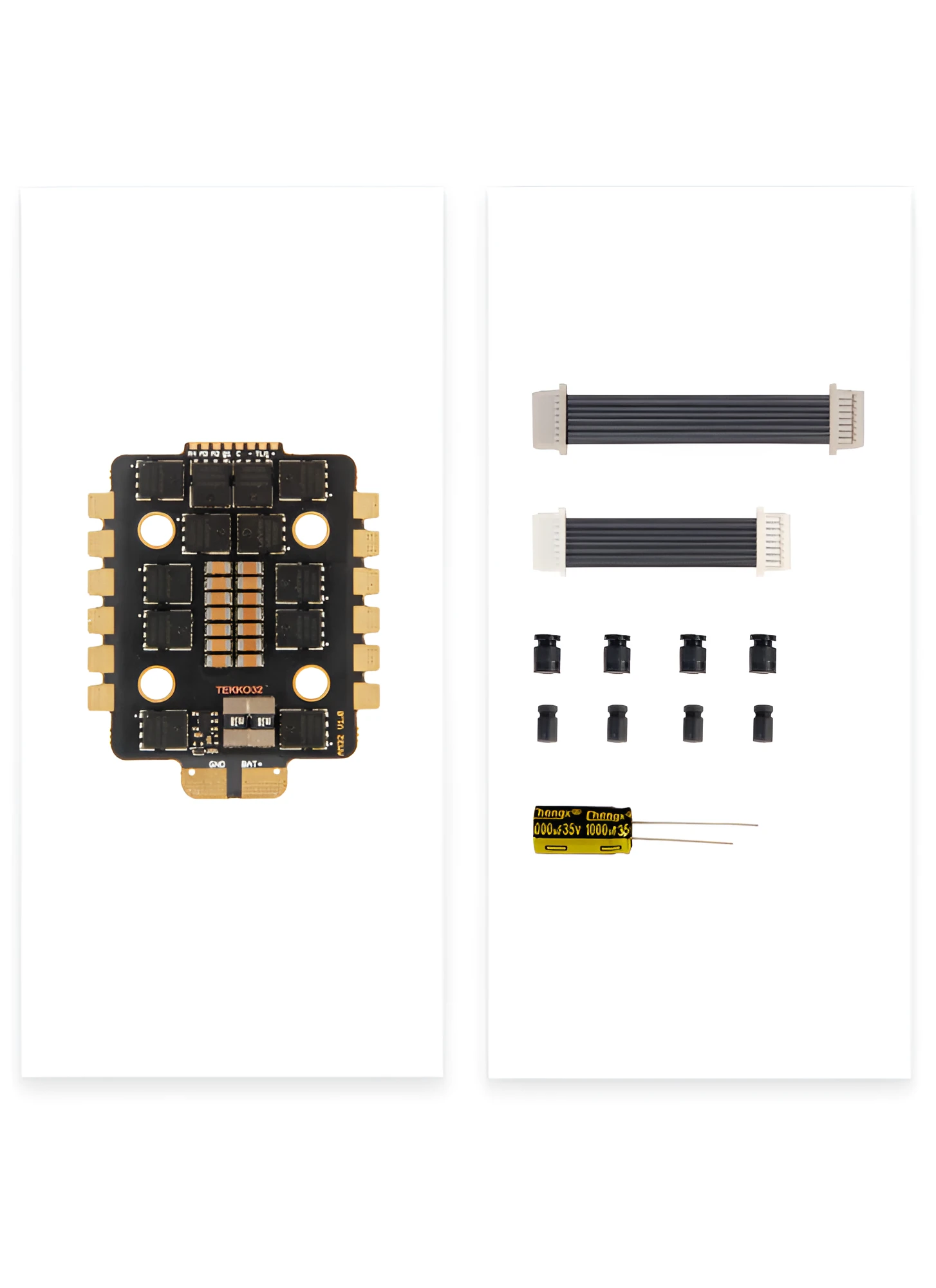

Included:

Tekko32 F4 4 in 1 mini 50A ESC *1
M2 Anti-Vibration Silicone Grommet Insert *4
M3 Anti-Vibration Silicone Grommet Insert *4
Electrolytic capacitor: 1000uF 35v *1
8pin to 8pin 1mm pitch 65mm cable*1
8pin to 8pin 1mm spacing 25mm cable*1
