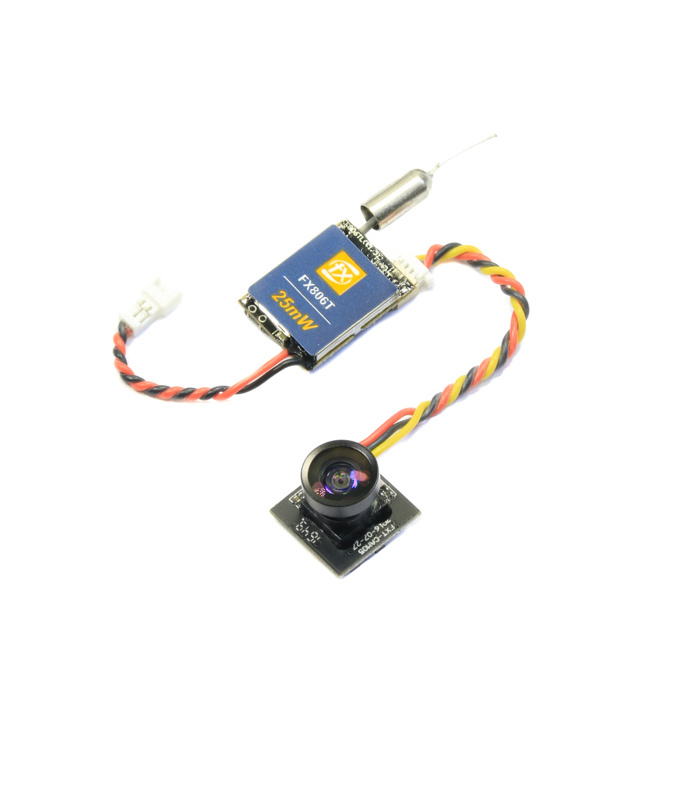

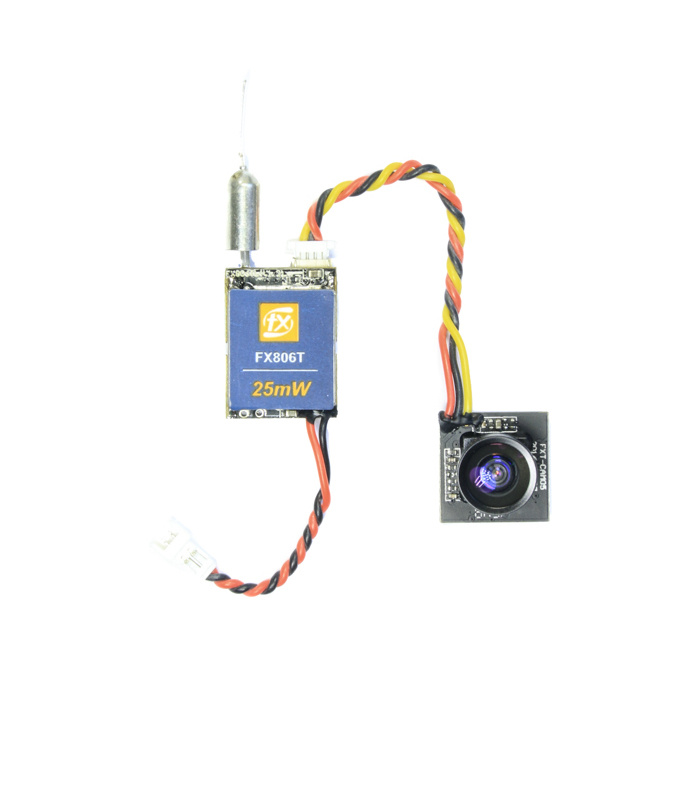

Discontinued: FXT FX806TC 5.8GHz 25mW Race Band Detachable VTX/Camera
An all-in-one Whoop camera, but with a difference. This combo splits the camera and VTX into individual units.
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Discontinued, for an alternative please see LST-S2 AIO Camera / VTX

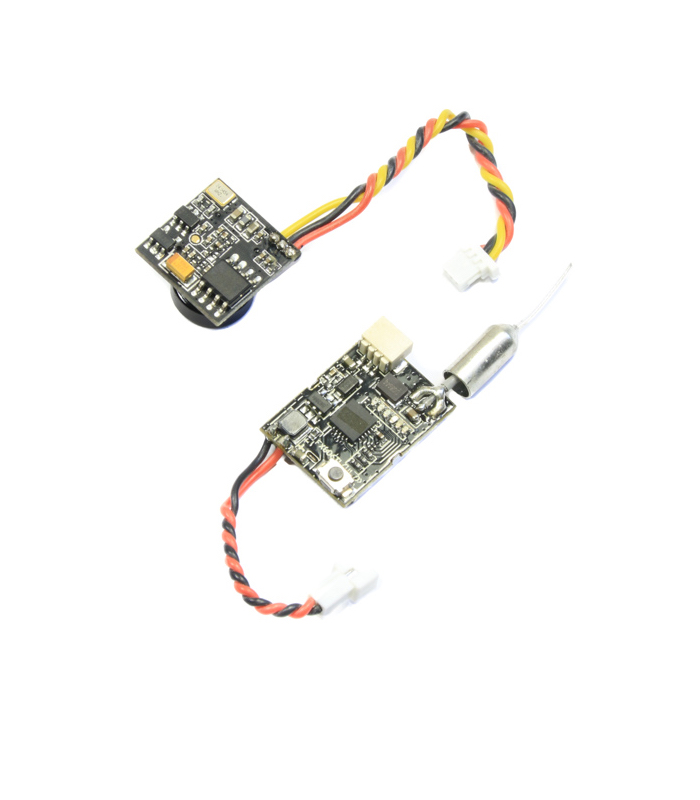

Here we have another Tiny Whoop FPV camera, but with a difference. Rather than it being a single unit like the FX798T camera/VTX, FXT have have split the micro camera and tiny VTX into individual units. This can be an advantage on certain builds where space for a combined unit is tight. It also allows you to position the VTX where there’s better crash protection.
The FX806TV makes adding FPV to your RC model, be it a drone, car, boat or robot super easy! It can be powered from the balance port of a 1S LiPo battery or any 5V power supply, and because it’s extremely small and lightweight, it could be installed on almost anything. To attach it you could use something as simple as Velcro or you could 3D print one of the mounts for it found on Thingiverse.
Given the size of the camera, its picture quality is surprisingly good, while its 25mW 40CH UK Legal transmitter has a range of 100m, which is more than enough for most micro quads. To view the image, we recommend using something like the Hawkeye FPV monitor.
Specifications
- Easy to install, plug and play
- Super small and lightweight
- Detachable camera vtx design with dipole whip antenna
- Power by 1S lipo battery
- Power off memory function, restart as the very last channel kept before power off
How to change channel:
Red LED indiciates channel, blue LEDs indicate frequency/band
1. Single press channel/band button to change channel, channel LED always keeps red for 1st channel of any band, for other channels, channel LED OFF.
2. Press and hold channel/band button for 2 seconds to change frequency/bandBand CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Channels:
Band(1) 5740 5760 5780 5800 5820 5840 5860 5880
Band(2) 5705 5685 5665 5645 5885 5905 5925 5945
Band(3) 5865 5845 5825 5805 5785 5765 5745 5725
Band(4) 5658 5695 5732 5769 5806 5843 5880 5917
Band(5) 5733 5752 5771 5790 5809 5828 5847 5866
Camera
- Power supply: 3.7-5V (1S)
- Current consumption: 60mA
- Resolution: 600TVL
- FOV: 120 degree
- Video format: NTSC
- Mini illumination: 1.0 lux

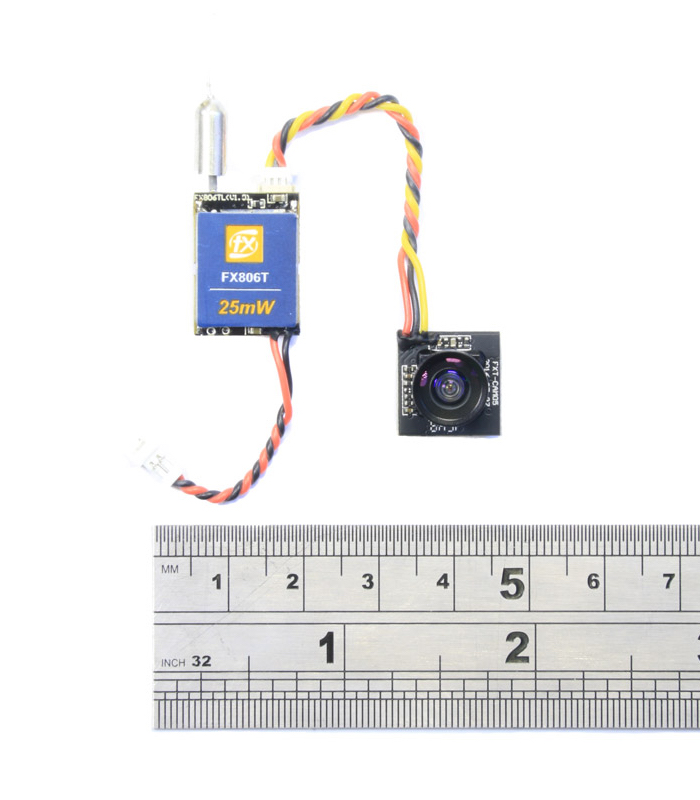

- Size: 14x14mm
- Weight: 2g
VTX
- Power supply: 2.5-5V (1S)
- Current consumption: 150mA 3.7V; 110mA5V
- Working frequency: 5.8GHz
- Output power: 25mW
- Channel: 40 channels with raceband
- Video band width: 6.0MHz
- Antenna: dipole whip antenna
- Size: 19x14mm
- Weight: 2.2g
Included:
1x FXT FX806TC VTX/Camera Combo
