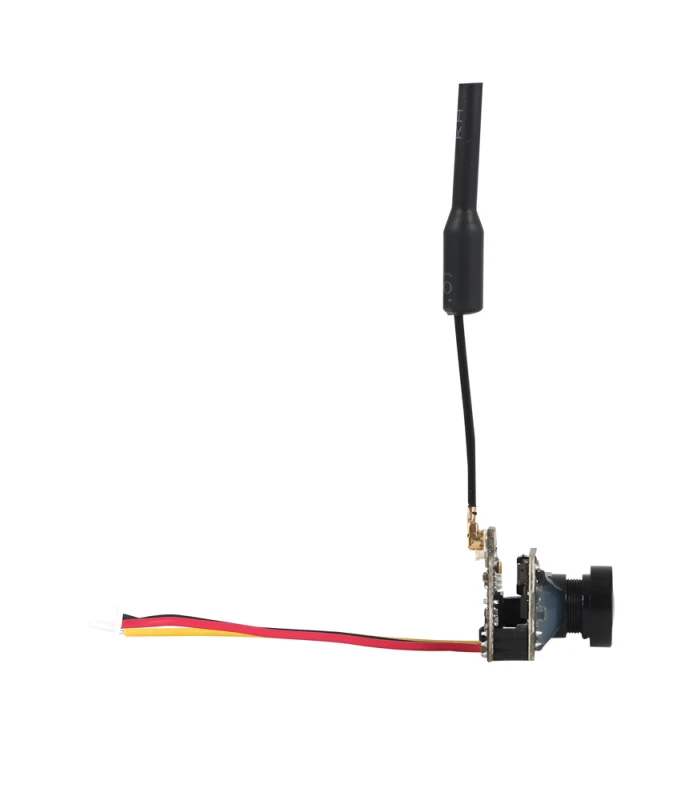

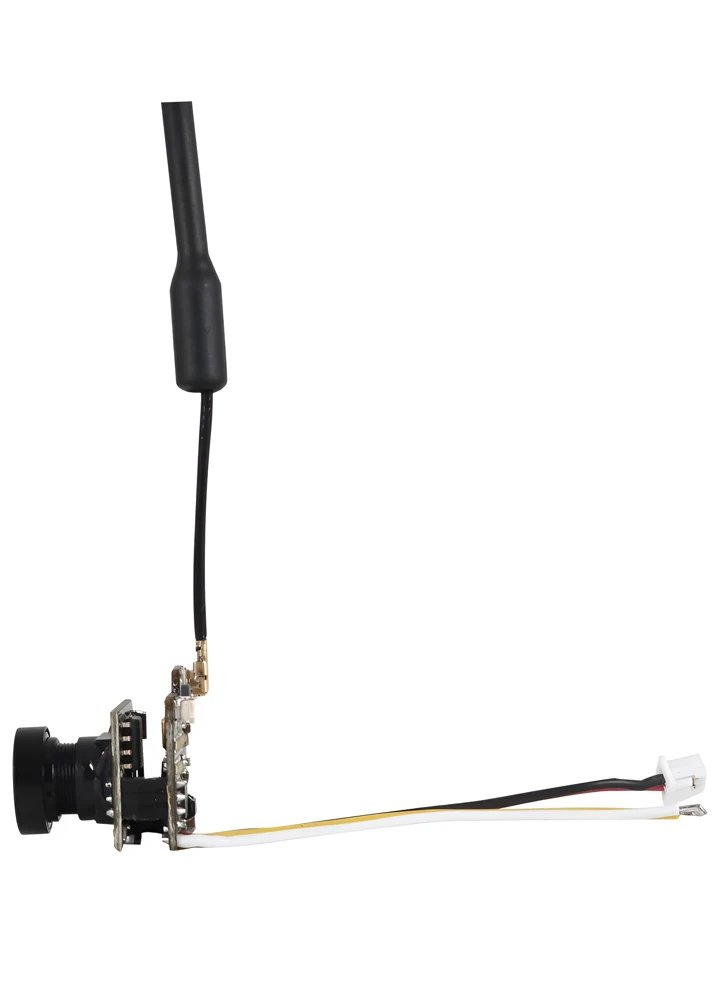

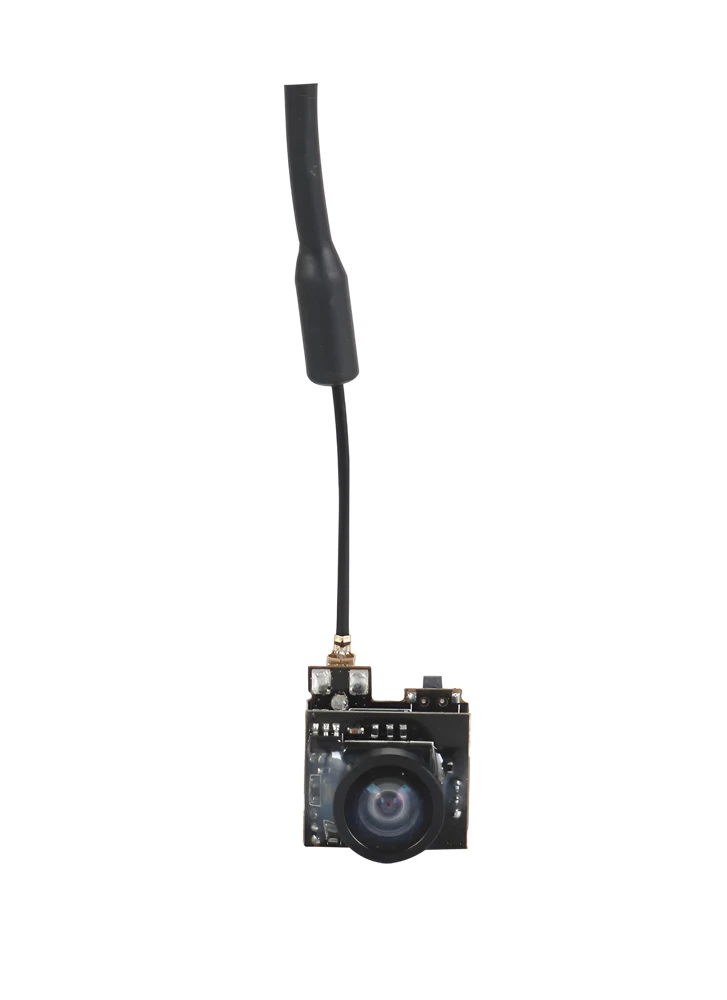

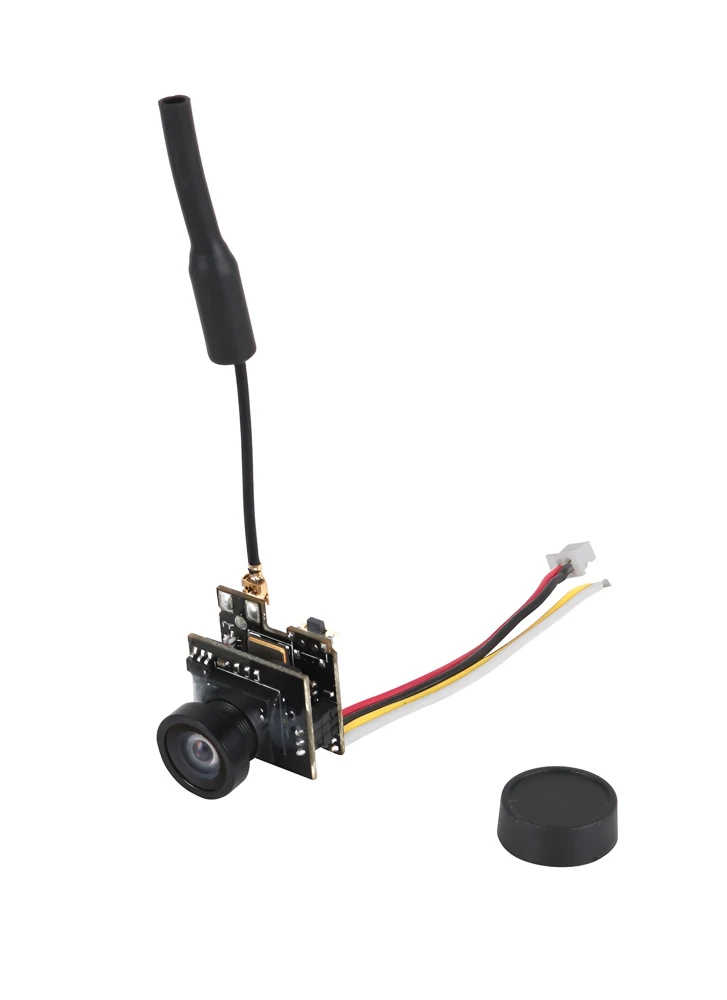

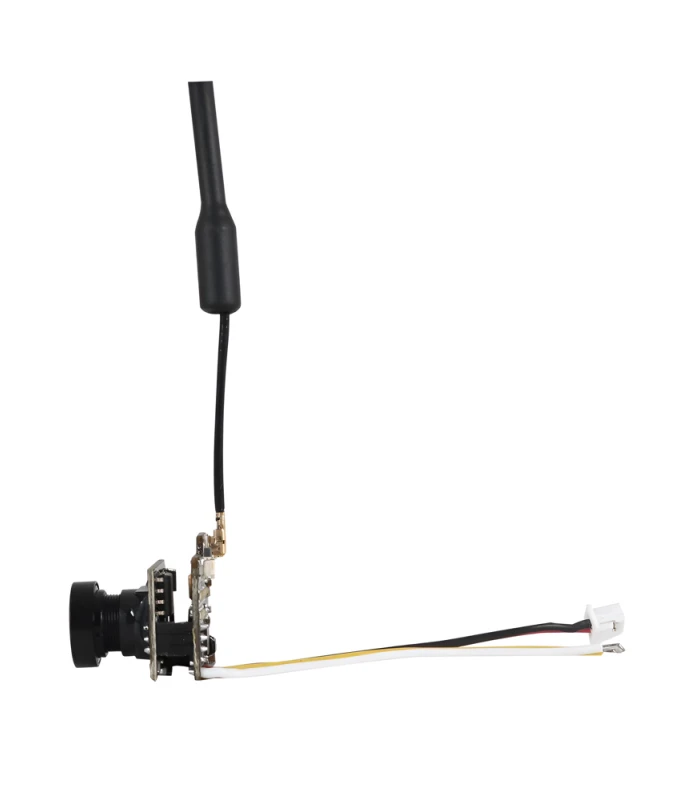

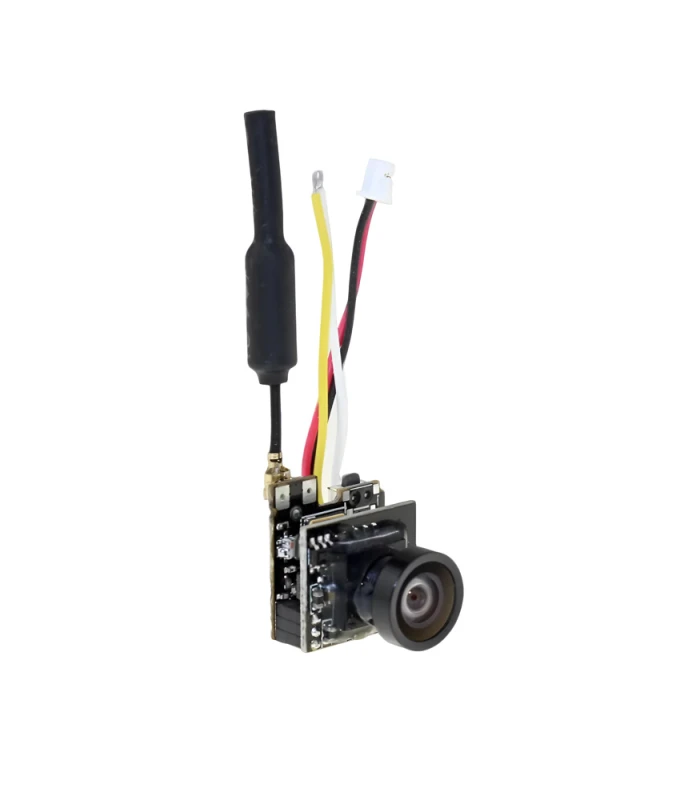

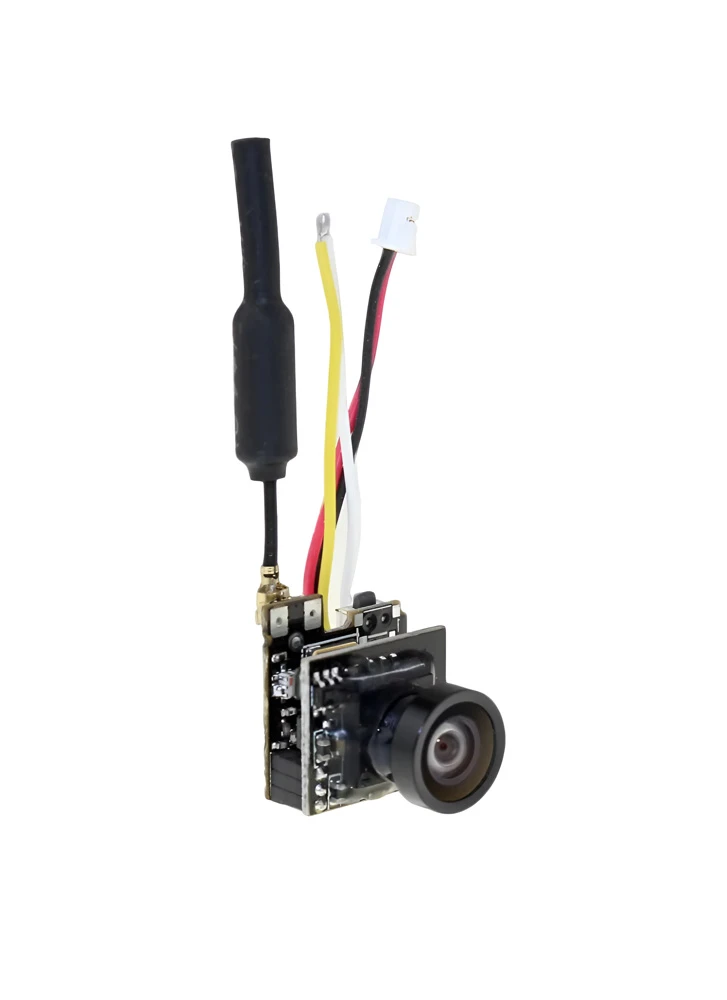

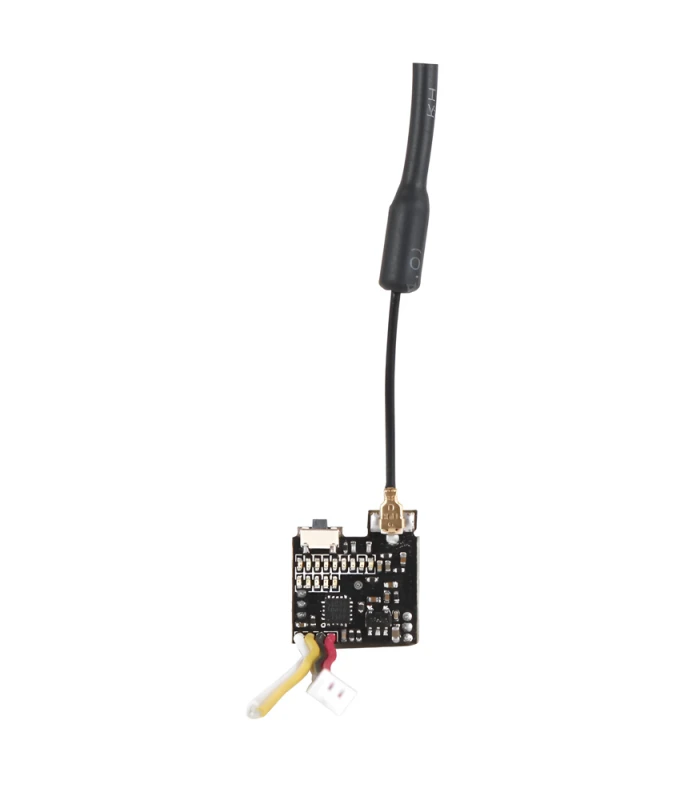

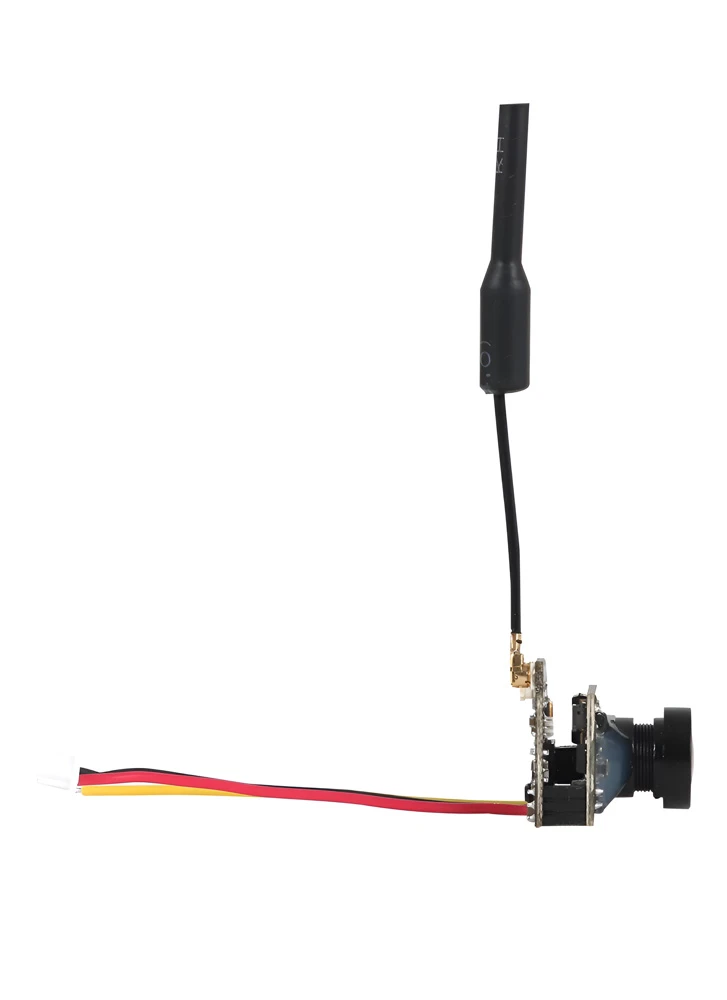

The LST-S2 combines a 800TVL mini camera with a 40CH 25mW VTX into a single unit. With this camera VTX combo, adding FPV to your model couldn’t be simpler; it’s truly plug and play.
To get up and running, you just need to provide power. That can be a 1S Lipo battery or any 5V power supply. It also compatible with flight controllers that have FPV OSDs. The LST-S2 has a video input and video output connection. By default these wires are soldered together, but then can be split to pass the video through an OSD.
Given the size of the camera, its picture quality is surprisingly good, while its 25mW UK Legal transmitter has a range of 100m, which is more than enough for most micro quads.
Features:
- Micro sized and lightweight (3.6g)
- 40 channel 25mw VTX w/ Raceband
- Easy install, plug and play
- Can be used with flight controller OSDs
- Push button control channel selection
- Can be powered by 1S LiPo battery
Channels:
Band F: 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880
Band E: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
Band A: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725
Band R: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917
Band B: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866
Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)
