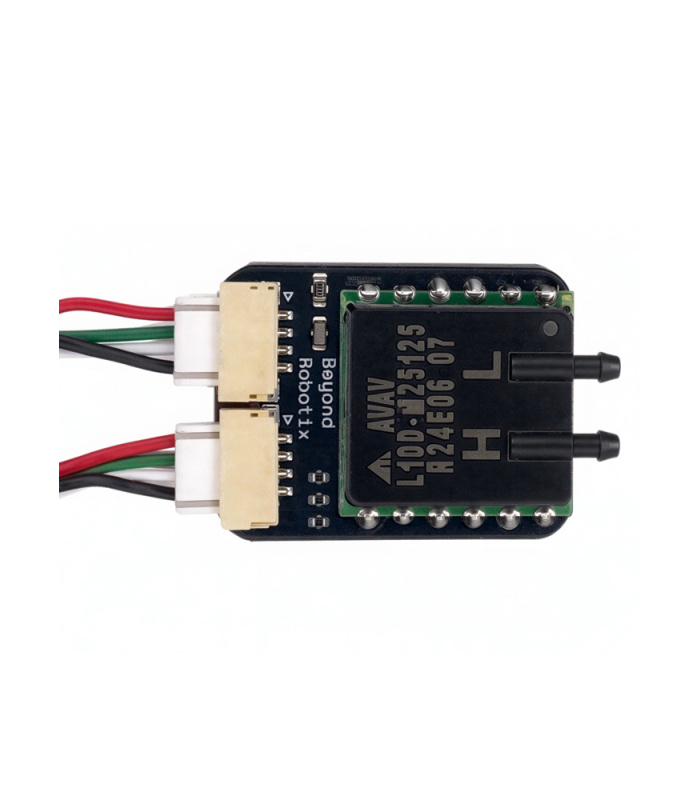

Beyond Robotix Air Data Module – Precision DroneCAN Airspeed Sensor and Barometer

£126.00 Inc. VAT

A digital airspeed sensor that is plug & play with any of the TBS Lucid DroneCAN flight controller boards. Also works with I2C

Version

Clear

Add to compare

0 People watching this product now!

SKU: N/A Categories: Airspeed Sensors, Electronics, Flight Controller Accessories, Sensors, Planes & Wings, Plane Electronics Tags: Airspeed, Barometer, DroneCAN, Sensor, UAVCAN

Description

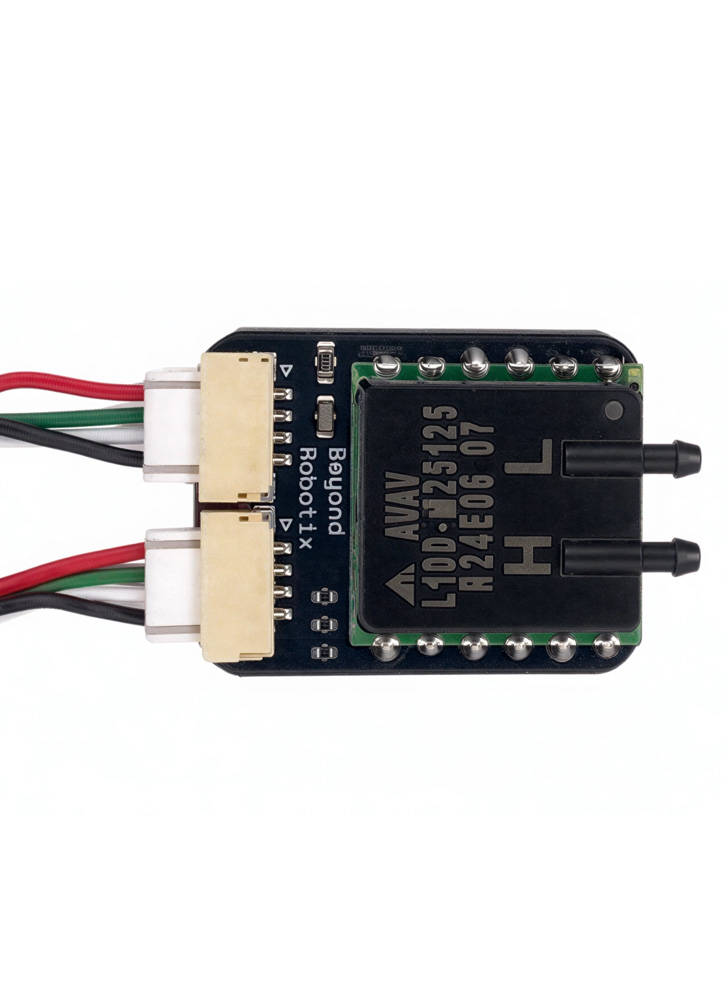

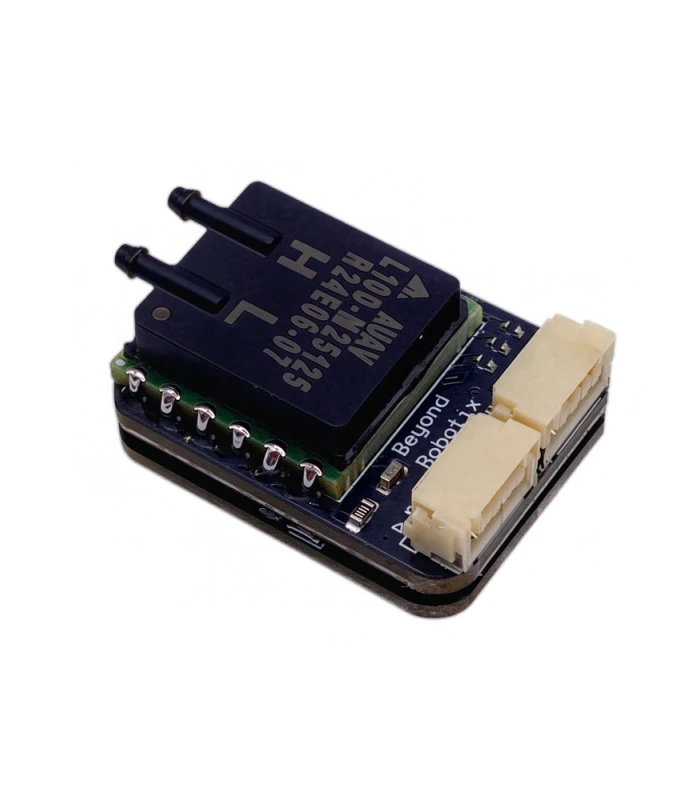

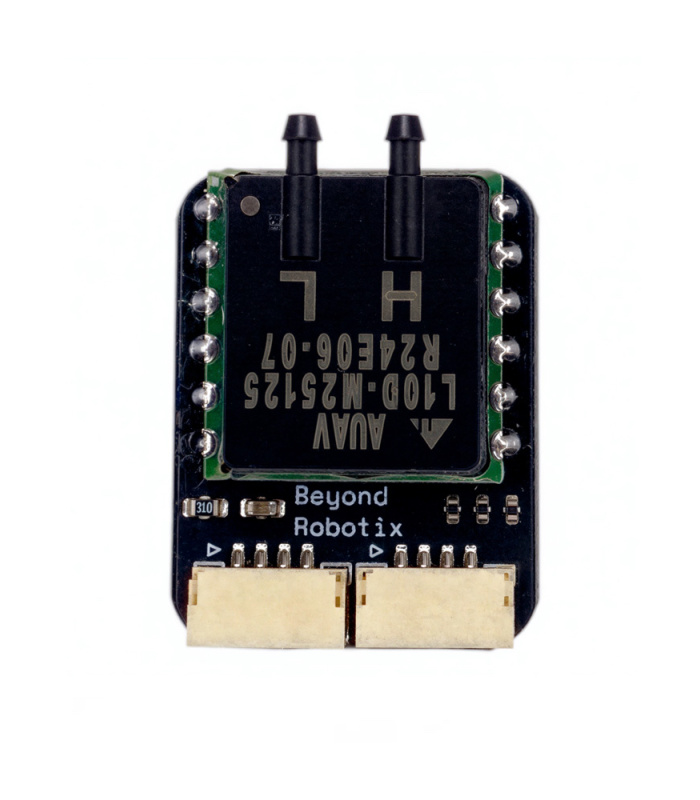

Meet the Beyond Robotix Air Data Module, your essential sensor for acquiring accurate airspeed and barometric altitude data for demanding drone applications. Engineered for reliability and ease of integration, this module provides the critical information needed for stable flight, autonomous navigation, and performance analysis, making it ideal for researchers, commercial operators, and advanced hobbyists.

Why You’ll Love It

The Air Data Module delivers high-precision barometer and airspeed outputs with a minimal error band, ensuring trustworthy data for your flight controller. Its robust case features integrated tube locking for secure pitot connections, while the dual CAN ports simplify wiring and allow for easy daisy-chaining within your DroneCAN network. Integrate essential air data seamlessly and confidently into your next drone build.

Features:

Compatibility: Works seamlessly with Ardupilot and PX4
Connectors: Pixhawk and Cube compatible JST-GH connectors
Sensors: Available with the best in class All Sensors AUAV L05D, L10D, L30D, L60D or L100D

Resources

Air Data Module Documentation

All Sensors AUAV Series Datasheet

Specification

Mass: 4g
Dimensions: 30x20mm
Input Voltage: 5V
Operating Temperature: -40°C – 80°C
Absolute Pressure Operating Range: 25kPa – 125kPa
Connectors: 2x JST-GH 4 Pin (compatible with Pixhawk and Cube CAN port)

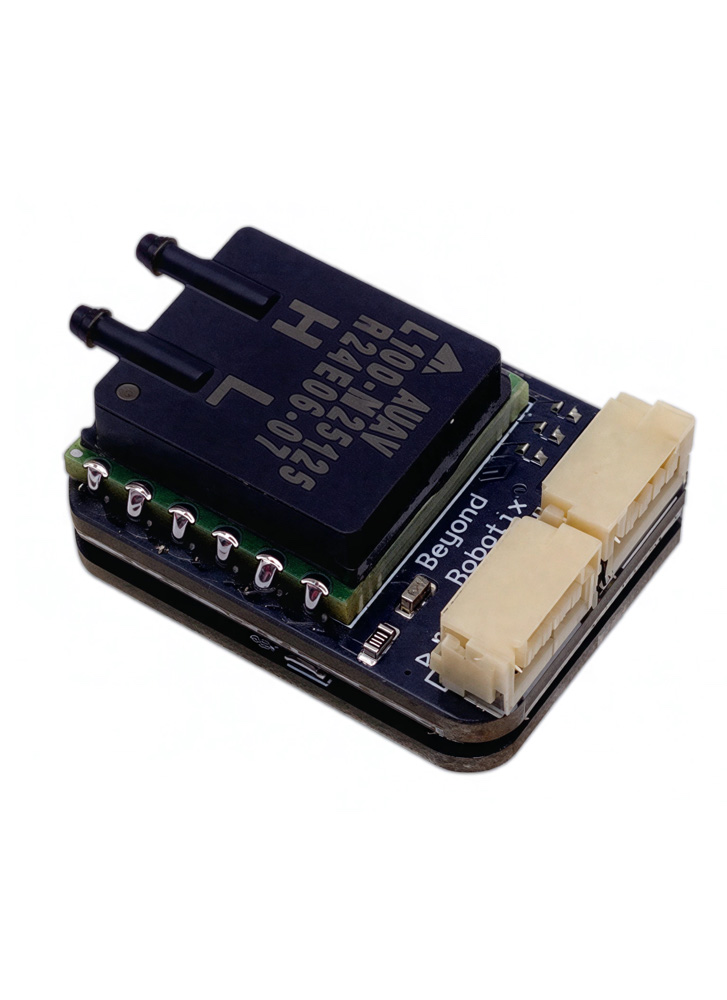

L05D

Sensor: All Sensors AUAV L05D
Differential Pressure Operating Range: ±1.2kPa (5inH20)

L10D

Sensor: All Sensors AUAV L10D
Differential Pressure Operating Range: ±2.5kPa (10inH20)

L30D

Sensor: All Sensors AUAV L30D
Differential Pressure Operating Range: ±7.5kPa (30inH20)

L60D

Sensor: All Sensors AUAV L60D
Differential Pressure Operating Range: ±14.9kPa (60inH20)

L100D

Sensor: All Sensors AUAV L100D
Differential Pressure Operating Range: ±24.9kPa (100inH20)

See the resources section for our GitBooks documentation!

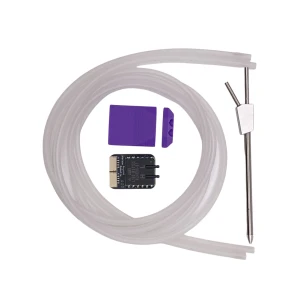

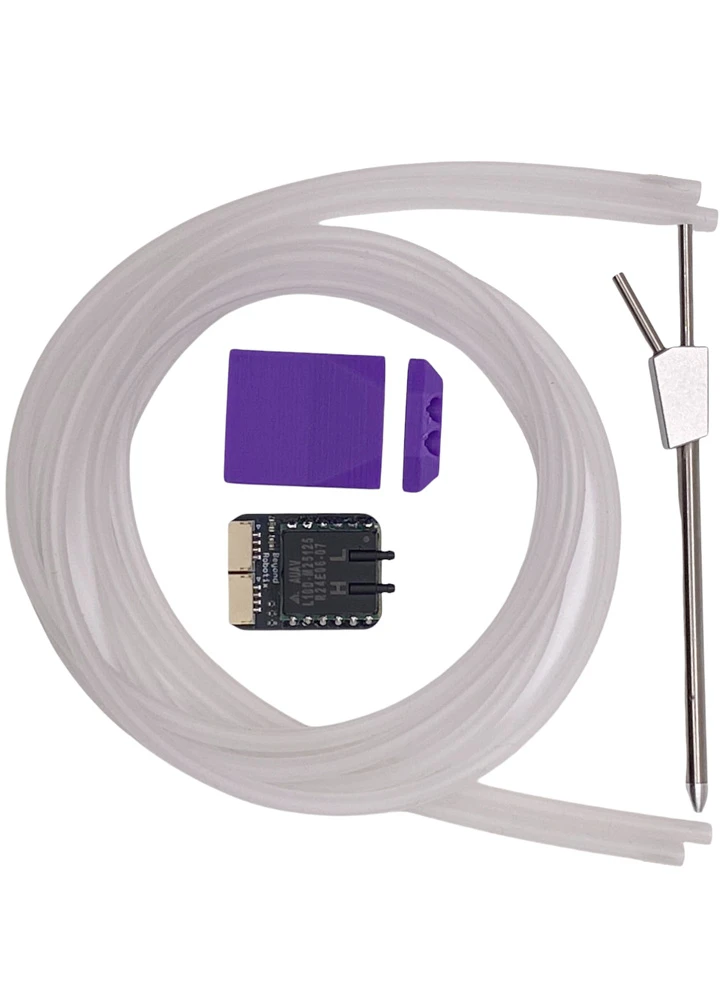

Included:

Air Data Module
Pitot tube
Clear tubing
Protective case
JST-GH CAN cable
Quick start guide
1 year warranty

FAQ

What is the Beyond Robotix Air Data Module?

The Beyond Robotix Air Data Module is a precision airspeed sensor and barometer designed for demanding drone applications. It provides accurate airspeed and barometric altitude data, crucial for stable flight, autonomous navigation, and performance analysis for UAVs (Unmanned Aerial Vehicles).

Who is the Air Data Module For?

This module is ideal for researchers, commercial drone operators, and advanced hobbyists who require reliable and high-precision air data for their flight controller.

What are the key benefits of using the Air Data Module?

Key benefits include high-precision barometer and airspeed outputs with a minimal error band, a robust case with integrated tube locking for secure pitot connections, and dual CAN ports for simplified wiring and easy daisy-chaining within your DroneCAN network.

What makes the airspeed and altitude measurements reliable?

The Air Data Module utilizes the market-leading All Sensors AUAV series, known for providing airspeed and altitude measurements with best-in-class total error bands, ensuring trustworthy data. You can find more information about the All Sensors AUAV Series here: https://428059.fs1.hubspotusercontent-na1.net/hubfs/428059/Product%20Data%20Sheets/DS-432%20Rev%20A.pdf

How does the Air Data Module integrate with my drone?

The module offers flexible integration through its dual CAN ports and Pixhawk and Cube compatible JST-GH connectors, making it easy to daisy-chain with other nodes in your DroneCAN network.

What operating speeds does the Air Data Module support?

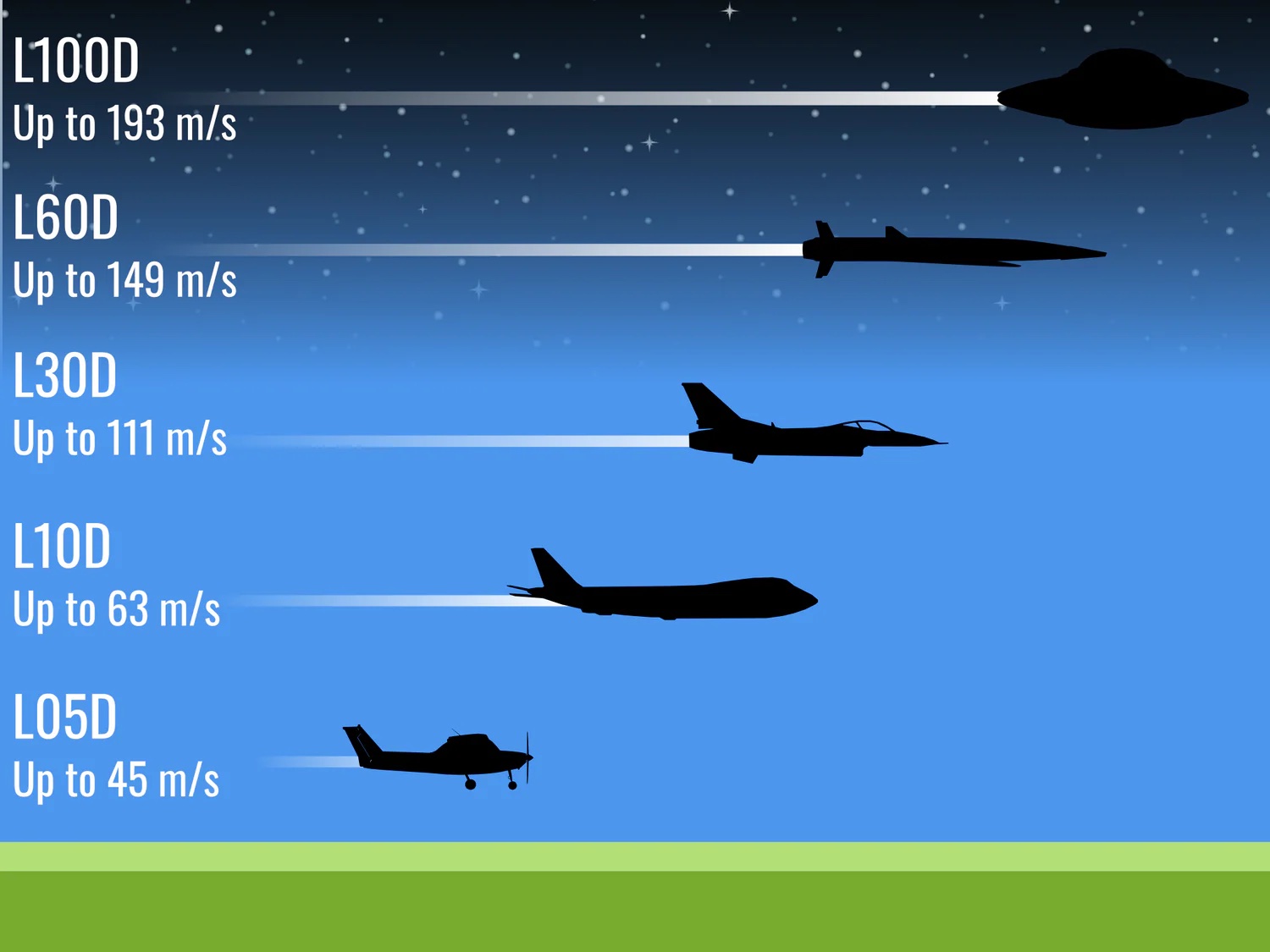

The Beyond Robotix Air Data Module is available in 5 variants to cover all speeds: L05D: up to 45m/s (88 kts) L10D: up to 63 m/s (122 kts) L30D: up to 111 m/s (216 kts) L60D: up to 149 m/s (290 kts) L100D: up to 193 m/s (375 kts) Choose the version that best suits your aircraft's operational envelope, from slow flying to high-speed UAVs.

Is the Air Data Module compatible with Pixhawk and Cube flight controllers?

Yes, the module features Pixhawk and Cube compatible JST-GH connectors, ensuring straightforward integration with popular flight controller platforms.

How do I set up the Air Data Module with Ardupilot or PX4?

A quick start guide and full information on using the Air Data Module is available in our Air Data Module Documentation. https://beyond-robotix.gitbook.io/docs/auav-air-data-module

Where can I use the Beyond Robotix Air Data Module?

It's perfect for a wide range of UAV applications, including aerial surveying, agricultural drones, delivery drones, research aircraft, and any drone requiring precise airspeed and altitude data for optimal performance and autonomous navigation.
