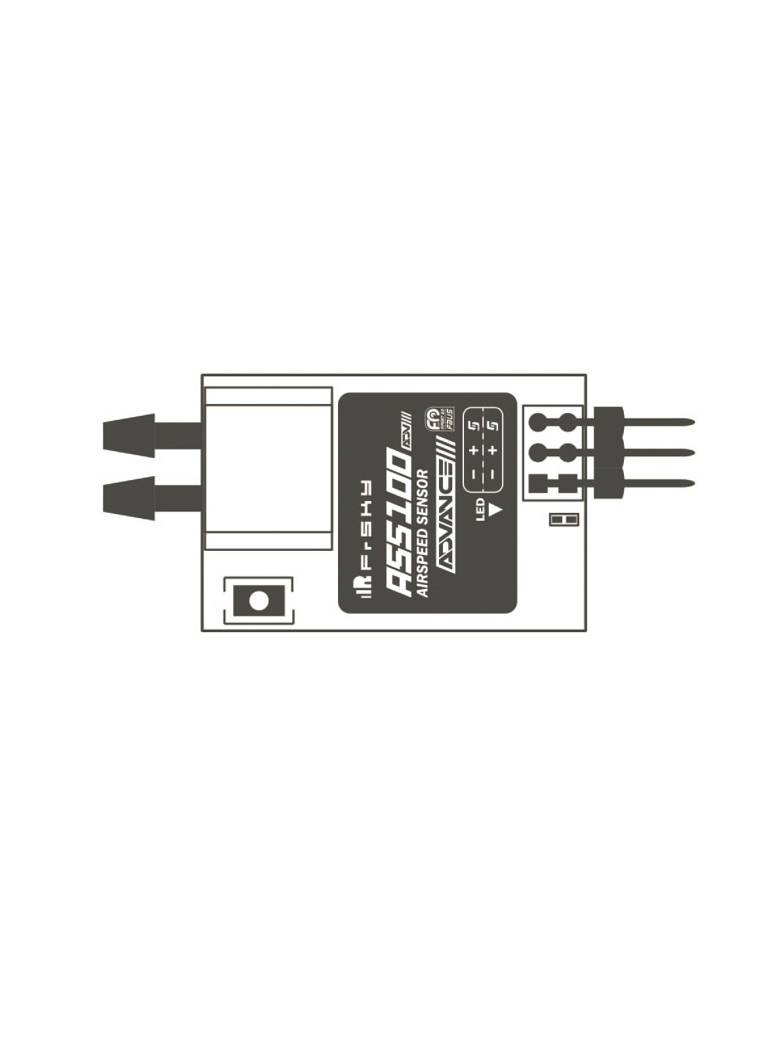

FrSky ASS100 ADV High Precision Airspeed Sensor

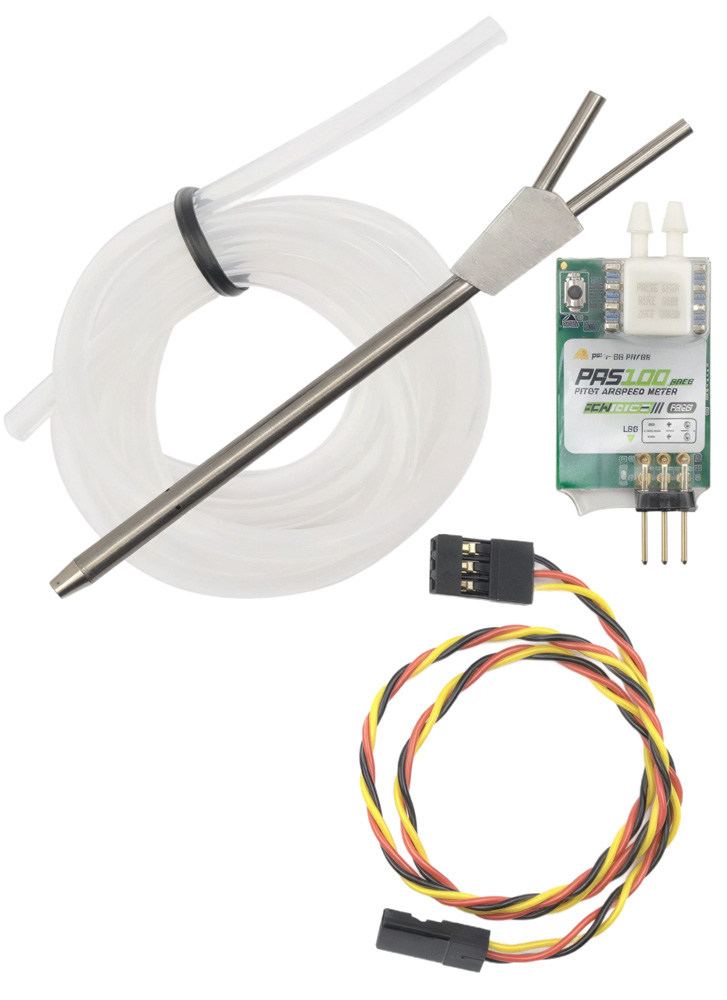

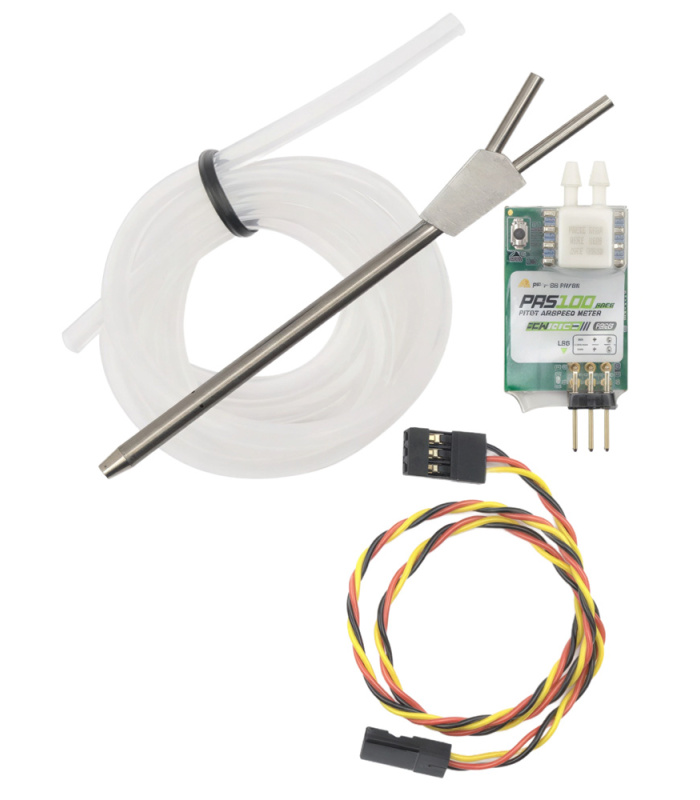

Supplied as a simple, plug and play system, the sensor takes air pressure data from the alloy pitot tube via 2 flexible silicone tubes (one from the pressure port and the other from the static port) and sends the data to your FrSky transmitter via your FBUS / S.Port equipped X-series receiver. Aside from using it to simply display airspeed data, if you utilise the power of your Taranis radio it’s possible to configure audible warnings for low airspeed, record top speed and even program your radio to automatically deploy the landing gear at a pre-set airspeed etc.

For accurate airspeed measurement the pitot tube should be located in clean airflow, well away from propeller wash and exhaust residue. The sensor unit itself can be installed within the fuselage being connected to the pitot tube via the provided silicon tubes.

The ASS100 ADV Sensor can be used to measure airspeed at the speed range of 0~360km/h (0~223.7 mile/h).

FrSky ADVANCE (ADV) series has comprehensive sensor types and enhanced the performance and capability of the original sensor line, all ADV sensors fully support FBUS protocol and they are also S.Port compatible. With the FBUS protocol, the ADV sensors can be seamlessly paired with the FBUS capable receiver further simplifying the builds setup. Sensor can be “daisy-chained” together with other FrSky telemetry sensors such as battery voltage, current, RPM, variometer and GPS to provide a complete data package.
