Zeez F7 2020 Controller V2 Lite Compatible with DJI HD FPV

£53.50 Inc. VAT

Theย ZEEZ F7 V2 2020 has pretty much the same specs as itsย bigger brother, the 3030 version, aside from the barometer.

Only 5 left in stock

0 People watching this product now!
SKU: FC-ZEEZF72020LT Categories: , Tags: , , , ,
Description

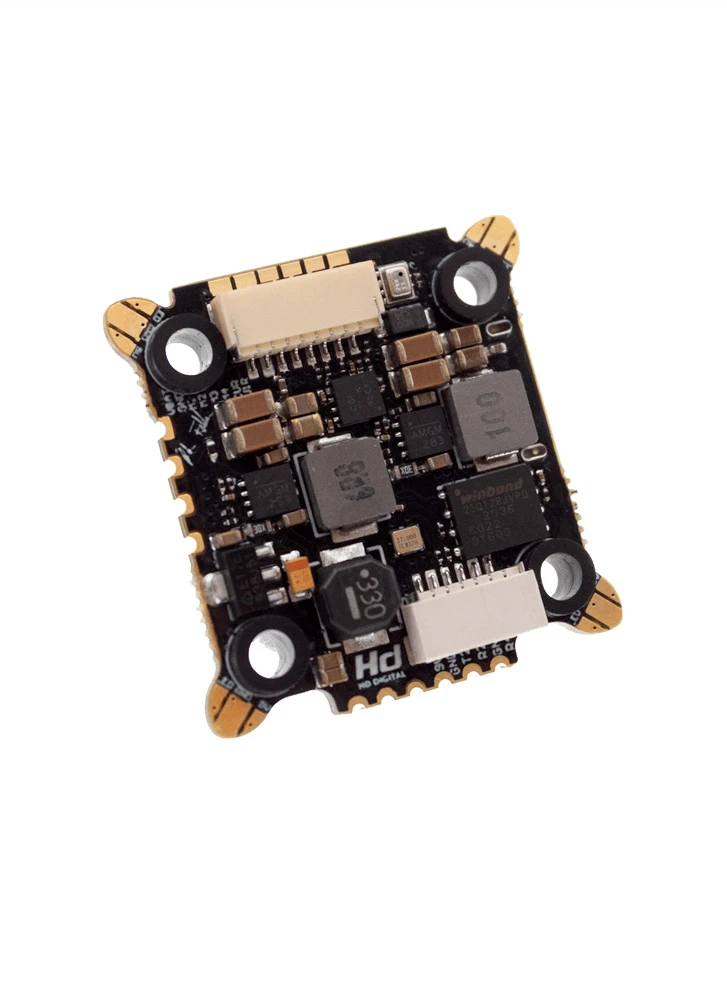

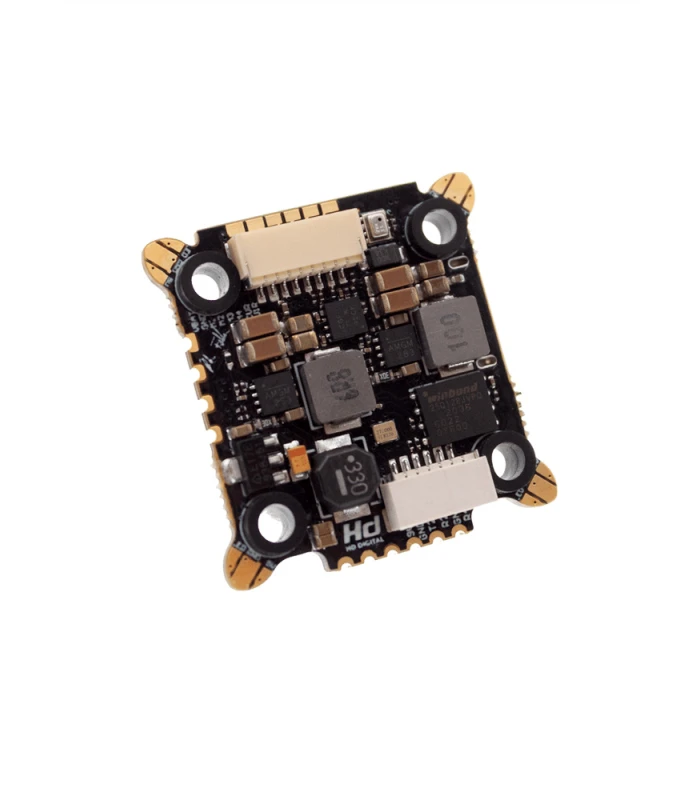

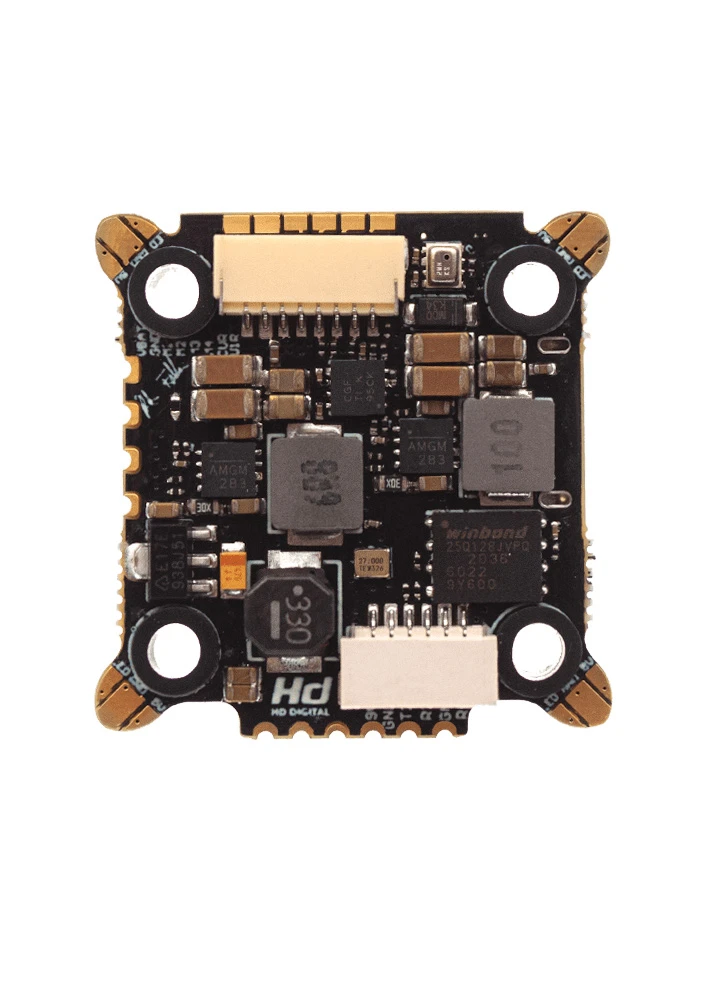

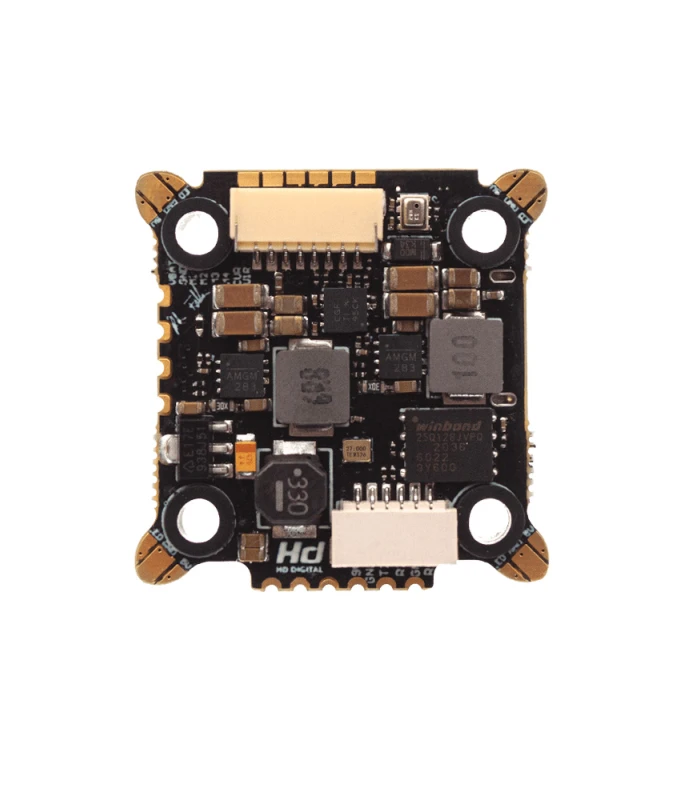

Theย ZEEZ F7 V2 2020ย is anย 8 Motor Output, DJI HD Systemย Readyย Flight Controller with an on-boardย 9V@3Aย regulator to power the DJI Air Unit and aย 5V@3Aย regulator to power all the peripheral.ย It has almost the specs and features of its big brother, the 3030 version, but without a barometerย and in a more compact format.

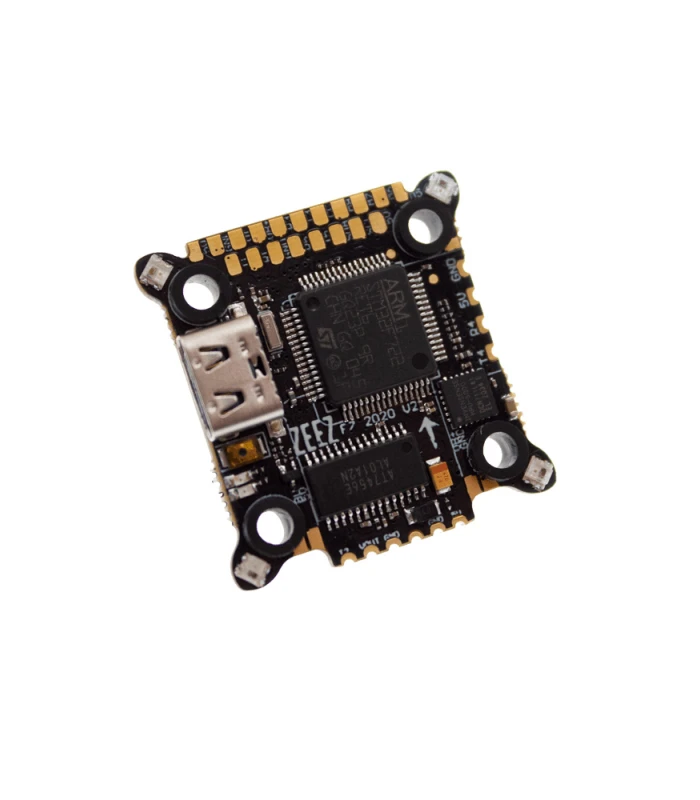

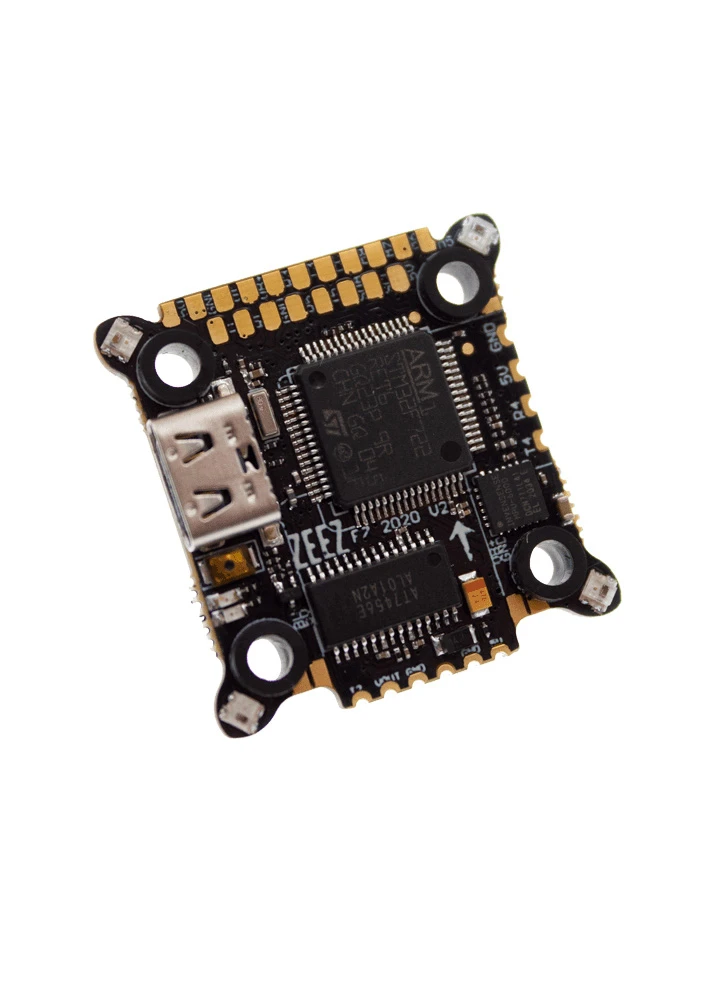

It uses a powerfulย F7 processorย along with top-of-the-line hardware with aย MPU6000 Gyro.ย ZEEZ F7 V2-Lite 2020ย comes in a standardย 20ร—20 form factor. It comes with spaces and pads forย TBS Crossfire and TBS Unify Nano32ย for a very clean and low-profile assembly. It hasย 4 onboard RGB LEDโ€™sย andย easy to solder LED pads on each corner. There areย 5 UARTSย available as well as,ย I2C port,ย 16MB Flash memoryย for Blackbox data record, anย OSD chipย for analog video andย LC Filterย to power the Analog camera and VTX

We took all the feedback given to us from the previous version and have improved the overall stability and power supply cleaning. We were able to reduce the size of the FC, thanks to itsย 6 layer design. Along withย easier to solder padsย andย improved the strength of all the solder pads, adding additional copper around the pads.

F7 V2 Black

20 X 20

MOUNTING HOLES

3S-6S

BATTERY INPUT

5V-9V

BEC 3A CONTINUOUS

STM32F722

MICRO CONTROLLER

MPU6000

GYRO/ACC

NO

BAROMETER

HD PLUG

DJI AND CADDX VISTA COMPATIBLE

X8

8 MOTOR COMPATIBLE

USB-C

WHO STILL USES MICRO-USB?

5 UARTS

AVAILABLE

16MB

ONBOARD FLASH

TBS

PAD’S FOR NANO RX & UNIFY PRO 32

Zeez 2020 0

Specification
  • Mounting holes: 20x20mm
  • LiPo Power input: 3S-6S
  • BECย 5V-3A / 9V-3A
  • 8 Motorย output
  • STM32F722 MCUย (216MHz max frequency)
  • MPU6000 Gyro/ACC for smooth performance
  • Barometer – NO
  • OSDย chip Onboard
  • 5 x UARTs
  • 1 x I2C bus
  • 16MBย Onboard flash
  • LC Filterย for 5V VTX and CAM
  • HD Plugย for DJI AirUnit or CaddxVista
  • USB Type Cย connector
  • Onboard RGB LEDย distribution for clean wiring to the
  • LED on the arm of the quad.
  • Onboardย 4 WS2812Bย RBG LED
  • Direct solder connection and board space forย TBS
  • Nano RX and TBS Unify Pro32 Nano
  • Logic Sideย andย USB currentย protection

Included:

  • (1X) Zeez F7 V2 2020 Flight Controller
  • (4X) Aluminum Standoff
  • (4X) Aluminum Nut
  • (1X) ESC to Flight Controller 8 Pin to 8 Pin JST SH 1.00mm connector
  • (1X) ESC to Flight Controller 8 Pin to Free wires (with JST SH crimp)
  • JST SH 1.00mm connector โ€ข (1X) JST SH 8 Pin Plastic Housing
  • (1X) JST SH 10 Pin Plastic Housing
  • (2X) 2.00mm Header Pin for VTX connection
  • (2X) 2.54mm Header Pin for Receiver connection
  • (1X) JST 6 pin to AirUnit Connector
