FlySky FS-iA10B 10CH 2.4Ghz AFHDS Receiver (Rx) with PPM & Telemetry

£19.90 Inc. VAT

Theย FS-iA10B is like theย FlySky iA6B but with four additional PWM channels.

In stock

0 People watching this product now!
SKU: RX-IA10B-6CH Categories: , , Tags: , , , , ,
Description

Building on the FlySky iA6B, FlySky are now providing a 10 channel version of the receiver called the FS-iA10B. Like the FS-iA6B, theย iA10Bย is capable of iBUS, SBUS, PPM and PWM for enhanced control.ย The advantage of PPM / SBUSย over traditional PWM channels is that you only need to use one signal wire, rather than one for each PWM channel – hence for PPM compatible flight controllers such as the Naze32,ย the wiring is greatly simplified. Furthermore, with the optional telemetry sensors, you can expand the receiver’s compatibility to monitor flight battery voltage and even things like motor RPM.

This full 10 channel receiver works for most models and is considered a “full range” so it can handle larger models as well as the smaller ones. Dual antennas give the FS-iA10B for unparalleled reception (reported at well over 1km)ย and interference rejection capability. For best results, makes sure the antennas are setย at aย 90 degree angle from each other.

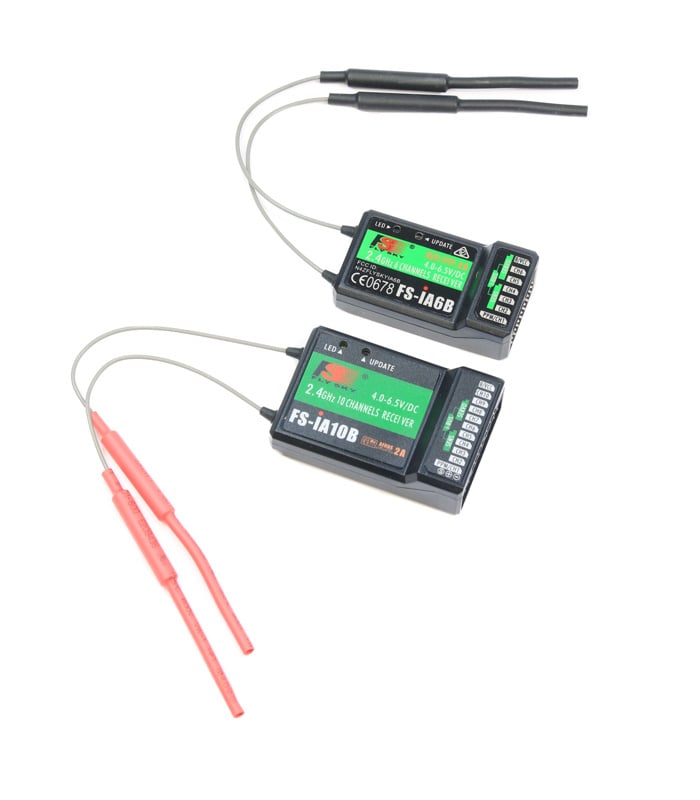

Theย FS-iA10B is slightly larger than theย FS-iA6B (see product pic), but it’s still compact andย it features end-on connectors to enable a neat installation in tight spaces.

Features:

  • Reliable, interference free 2.4GHz AFHDS 2A signal operation
  • Compact, lightweight design
  • Dual antennas for reliable, interference free operation
  • Connection ports for use with optional telemetry sensors

Compatible Radios:

  • Flysky i4
  • Flysky /ย Turnigyย i6
  • Flysky / Turnigyย i10
  • Flyskyย FS-i10
  • FS-GT2E
  • FS-GT2G

Sensors:

NOTE:ย This is identical to the Turnigy branded model of this receiver, the Turnigy IA10B V2. They are manufactured by Flysky and re-branded for Turnigy.

If you want to use PPM, remember to enable the setting on your transmitter.

Specification
  • Model:ย FS-iA10B
  • Channels: 10
  • Frequency range: 2.4-2.48GHz
  • Output data:ย PPM, i.BUS, S.BUS, PWM
  • Number of bands: 140
  • Transmitting power: Not more than 20dBm
  • Receiver sensitivity: -105dBm
  • Encoding: GFSK
  • 2.4G mode: the second generation of an enhanced version of the automatic FM digital system
  • Antenna length: 26 mm x 2 (dual antenna)
  • Input Power: 4.0-6.5V DC
  • Working Current:ย 82mA
  • Certification: CE0678, FCC
  • i-BUS interface: Yes
  • Telemetry: Yes
  • Weight: 19ย grams
  • Dimensions: 51ย x 35ย x 16ย mm

Comptaibility

  • FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G (also Turnigy i6 / i10)

โ€‹โ€‹Included:

  • 1x FlySkyย FS-iA10Bย Rx
  • 1x Bind Plug
