Triumph Vanguard Analog 1000TVL Starlight 19x19mm FPV Camera – NDAA
£66.95 Inc. VAT
NDAA-compliant 1000TVL micro FPV camera with ultra-sensitive starlight vision for crisp, high-contrast video in daylight, low light and challenging environments.
In stock|Next shipping: 30/09/2026
The Triumph Vanguard Analog FPV Camera is an NDAA-compliant micro FPV camera built for clear, dependable vision both day and night. Its 1/2.8″ 2MP back-illuminated sensor offers exceptional low-light sensitivity with starlight night vision capabilities, delivering crisp, high-contrast video in challenging environments such as abandoned structures, dense woodland, deep shadows and twilight flights. Rather than prioritising perfect colour reproduction, the Vanguard is tuned for visibility and contrast, helping you see obstacles and maintain a usable FPV image as available light fades. TMC Vanguard FPV Camera – NDAA

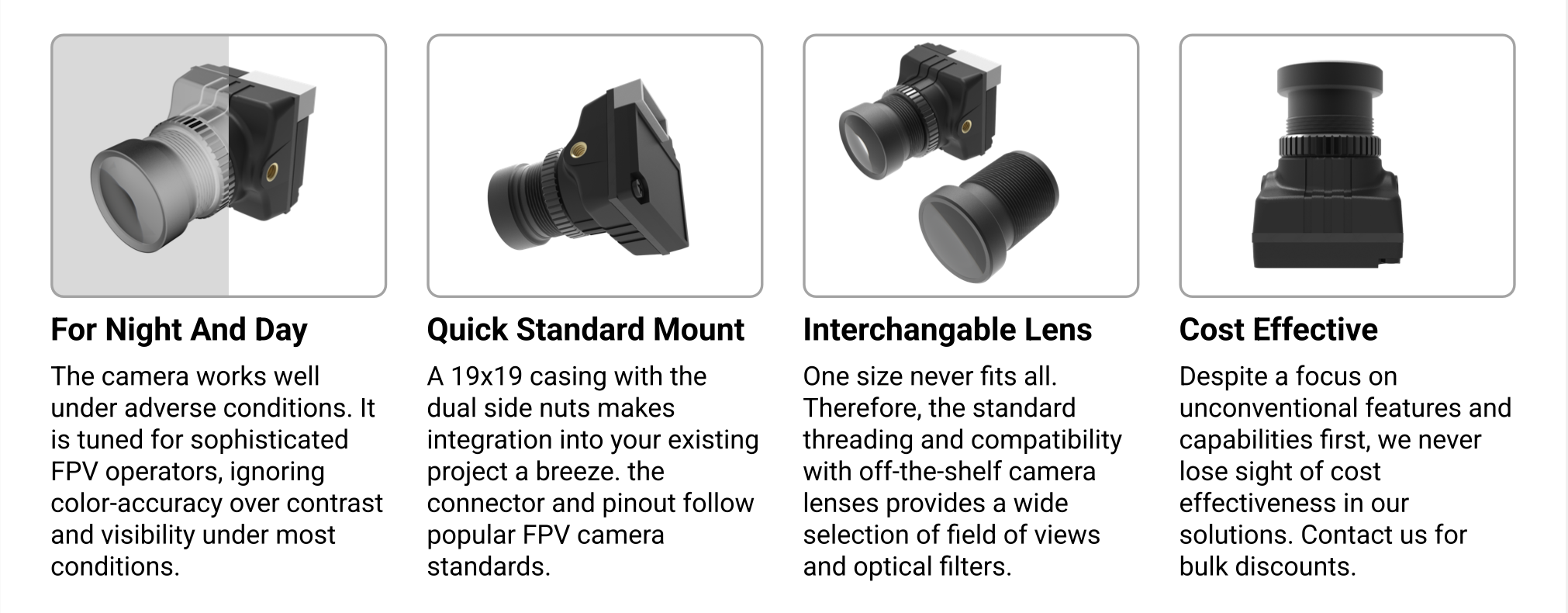

Despite its impressive low-light performance, the Vanguard retains the familiar 19x19mm micro FPV camera format, making it straightforward to integrate into existing drone builds. It provides a sharp 1000TVL+ analog video feed with switchable NTSC/PAL and 16:9/4:3 formats, while an interchangeable M12 lens system gives you the option to tailor the field of view or use different optical filters. TMC Vanguard FPV Camera – NDAA
An integrated OSD with joystick menu control, wide 5-28V input range, standard M2 mounting and lightweight 8.5g construction complete a versatile camera well suited to FPV, commercial and sUAS applications where NDAA compliance and excellent low-light visibility are important.
NDAA-compliant and made in the USA.
Features
Features- Back-illuminated starlight sensor maintains image contrast in near-total darkness
- 1000TVL analog video resolution in a micro 19x19mm form factor
- Interchangeable M12 optics fit standard M12 camera lenses and filters for custom FOV requirements
- Built to handle a wide range of 5V-28V input power range
Field Tip: In extreme low-light environments, access the camera’s OSD menu using the included inline configuration cable to switch the image mode to Black & White. This bypasses color noise processing and maximizes sensor gain to reveal hidden obstacles in near-total darkness.
- Brand/Manufacturer: Triumph Manufacturing Corporation
- Model Name: Vanguard Analog FPV Camera
- Compliance: NDAA Compliant
- Image Sensor: 1/2.8″ 2MP Back-Illuminated Sensor
- Resolution: 1000TVL+
- Light Sensitivity: 11,390 mV/Lux-Second (Starlight Night Vision Effect)
- Signal-to-Noise Ratio (SNR): >50 dB
- Field of View (FOV): 125° Diagonal / 107° Horizontal / 56° Vertical
- Screen Aspect Ratio: 16:9 | 4:3 Switchable
- Video Signal System: NTSC / PAL Switchable
- Lens System: Interchangeable M12 Lens with Tuning Gear
- Power Input Range: DC 5V-28V
- Current Draw: 90mA @ 12V, 250mA @ 5V
- Integrated OSD: Yes (Joystick Control Interface)
- Body/Casing Material: ABS Plastic
- Mounting Pattern: Standard Micro 19 mm x 19 mm (Dual M2 Side Threading)
- Dimensions: 19 mm x 19 mm x 27 mm
- Net Weight: 8.5 g
