CaddxFPV Curve Micro 16 HD Tiny Whoop Drone
£129.99 Inc. VAT
A pocket-sized HD powerhouse, combining Walksnail Ascent FPV, ELRS control and punchy brushless performance for big fun in a tiny package.
The CaddxFPV Curve Micro 16 is a compact 1S HD Tiny Whoop built around the Walksnail Ascent digital FPV system. Weighing just 32g without a battery, its one-piece injection-moulded frame combines low weight with the durability needed for indoor flying, garden sessions and tight freestyle lines.
At its heart is the AXON 1S AIO V2.0 flight controller, powered by an STM32G473 processor and paired with 12A ESCs. The built-in ELRS 2.4GHz receiver makes it compatible with mainstream ExpressLRS transmitters, while 1102 brushless motors and 40mm tri-blade props provide responsive power and agile handling.
FPV is provided by the Walksnail Ascent Lite+, offering up to 1080p/120fps HD video, a wide 147° field of view and up to 500mW transmission power. There’s even a built-in microphone for real-time audio, adding another level of immersion to the FPV experience.
The Curve Micro 16 uses readily available 1S 4.35V LiHV batteries with an A30 connector, with 580mAh and 680mAh packs providing approximately 5–7 minutes of flight time. Better still, Caddx includes a six-channel USB-C fast charger, allowing up to six compatible packs to be connected at once. Batteries are not included and must be purchased separately.

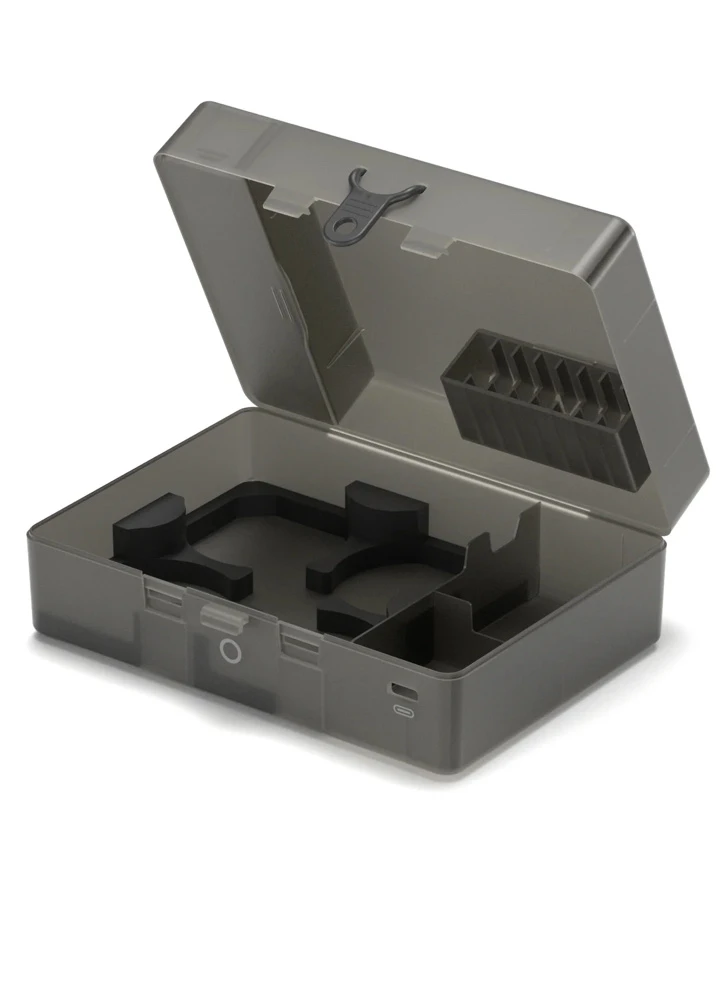

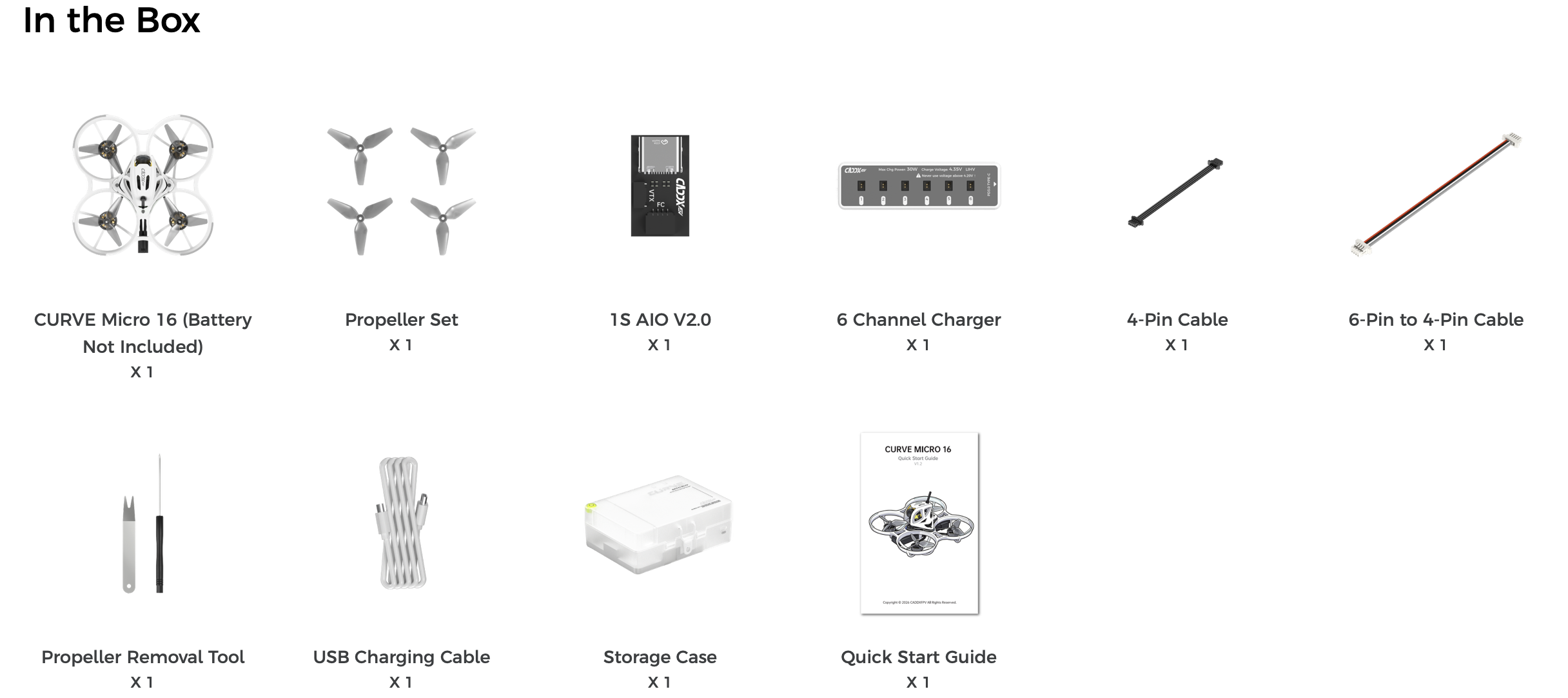

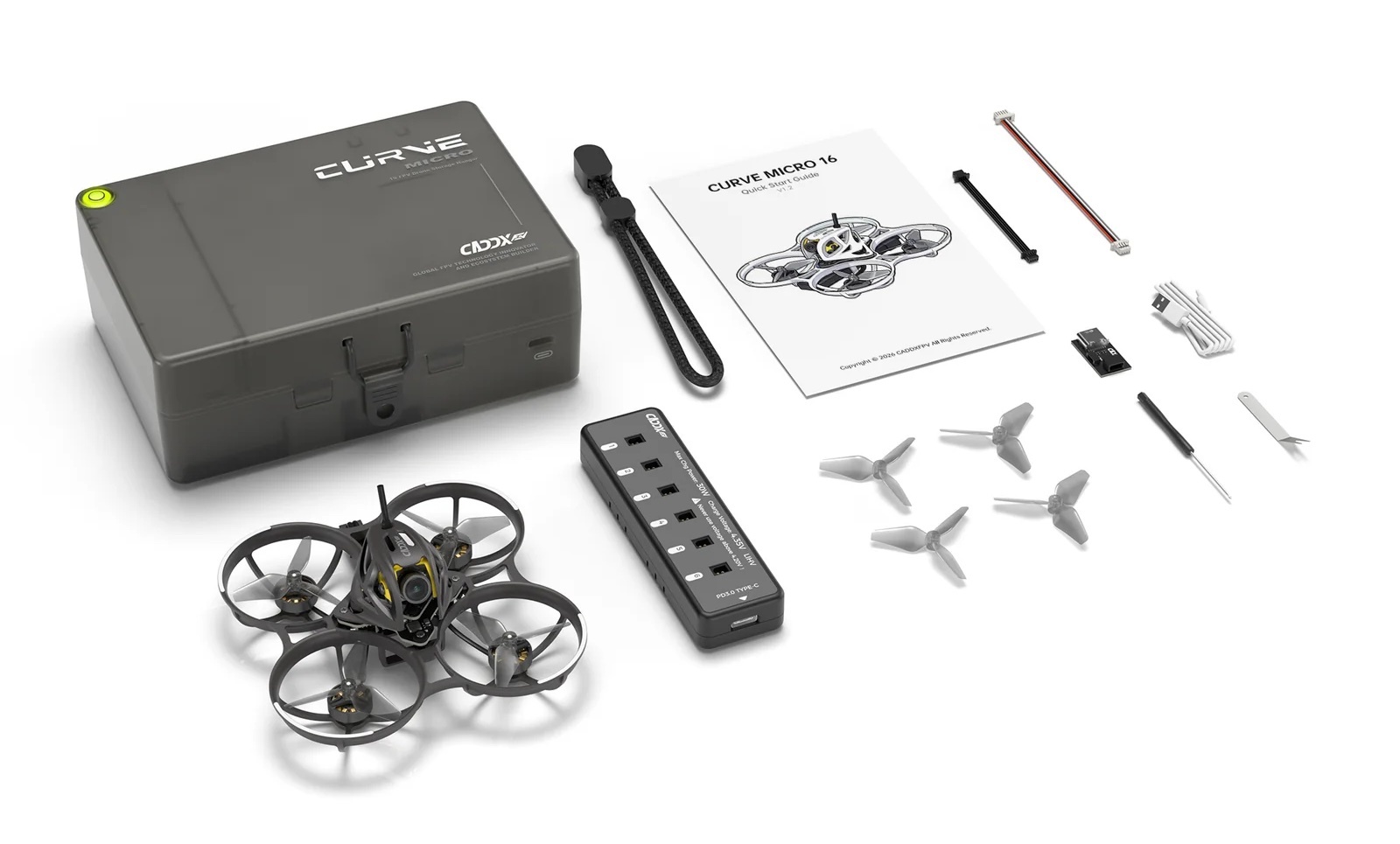

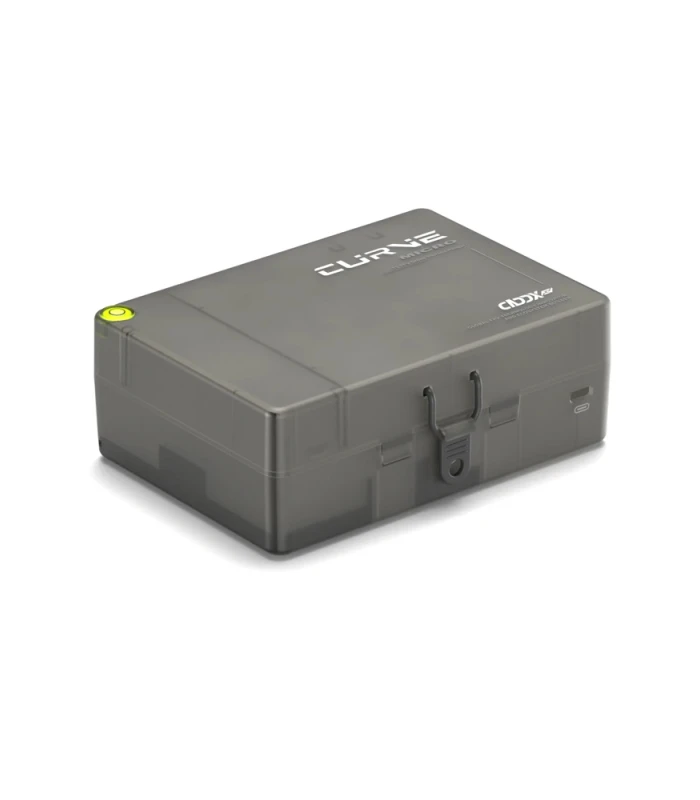

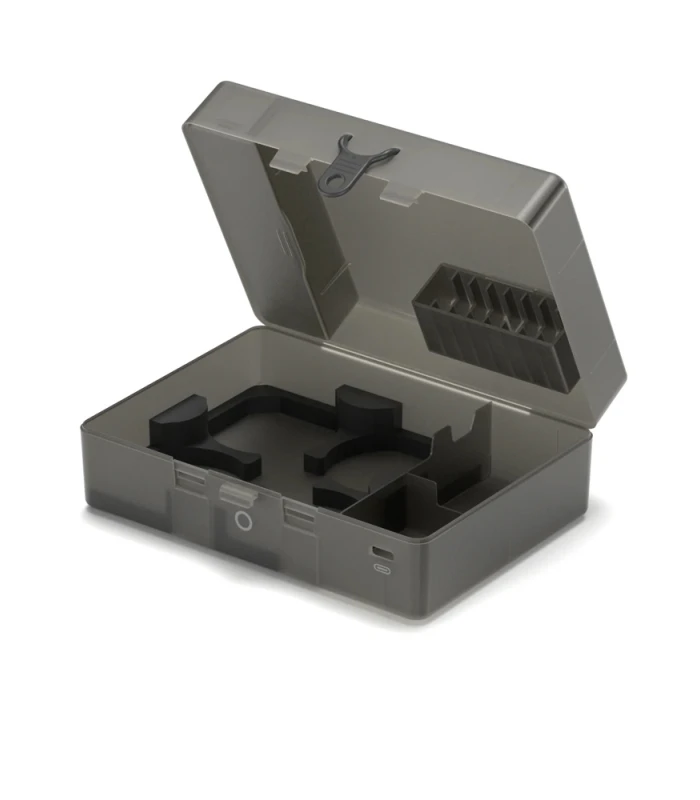

It’s also unusually well equipped straight out of the box. Alongside the drone and charger you get spare propellers, USB and connection cables, a prop removal tool and a proper hard storage case to keep everything together. The VTX can also be replaced or upgraded, with support for Ascent Lite, Ascent Lite+, Avatar 1S and compatible third-party systems.
Features:
- Lightweight and Durable Design: The 48g one-piece injection-molded frame combines everyday durability with agile handling for indoor practice, backyard freestyle, and tight FPV lines.
- Immersive HD FPV Video: Up to 1080p/120fps video, 35ms latency, 500mW digital video transmission, and a 147° ultra-wide field of view deliver a smooth, immersive FPV experience. Live audio transmission supports receiver-side video and audio recording in 60fps modes.
- Responsive Brushless Power: The 1102 24000KV brushless motors provide ample power and quick throttle response for fast climbs, sharp direction changes, and freestyle flying.
- Smooth and Stable Control: The AXON 1S AIO flight controller and high-precision ICM gyro provide smooth, predictable handling through tight spaces and technical FPV lines.
- Flexible Battery and Charging: The standard A30 connector supports common 1S 580mAh and 680mAh LiPo batteries for approximately 5–7 minutes of flight time. Batteries are sold separately . The included six-port USB-C fast charger supports DC power, power banks, and vehicle power sources.
Please note: This listing is for the drone, charger and carry case. Battery, radio transmitter, FPV goggles, and other accessories required for flight are not included.
Recommended Accessories:
- Battery: CADDXFPV CURVE 580mAh & 680mAh 1S 3.8V 95C FPV Lipo Battery with A30 connector
- Props: HQ 40mm 1.6X1X3
- Controller: CaddxFPV Alink Controller
- Goggle: CADDXFPV Walksnail Ascent HD FPV Goggles
- Model: Curve Micro 16
- VTX: Walksnail Ascent Lite+
- Flight Controller: AXON 1S AIO V2.0
- Processor: STM32G473
- Gyroscope: ICM42688 / BMI270
- Receiver: ELRS V3.5.0
- Motors: 1102
- Propellers: HQ 40mm 1.6×1×3
- Wheelbase: 75mm
- Battery Connector: A30
- Battery: 1S LiHV (4.35V)
- Flight Time: Approx. 6 minutes
- ESC: 12A continuous / 18A peak
- ESC Firmware: A-X-5
- Blackbox: 16MB
- BEC: 5V / 3A
- FC Input Voltage: 1S
- FC Firmware: CADDXG473-2026.6
- Tune Port: SH1.0-4P
- Motor Ports: JST1.25-3P

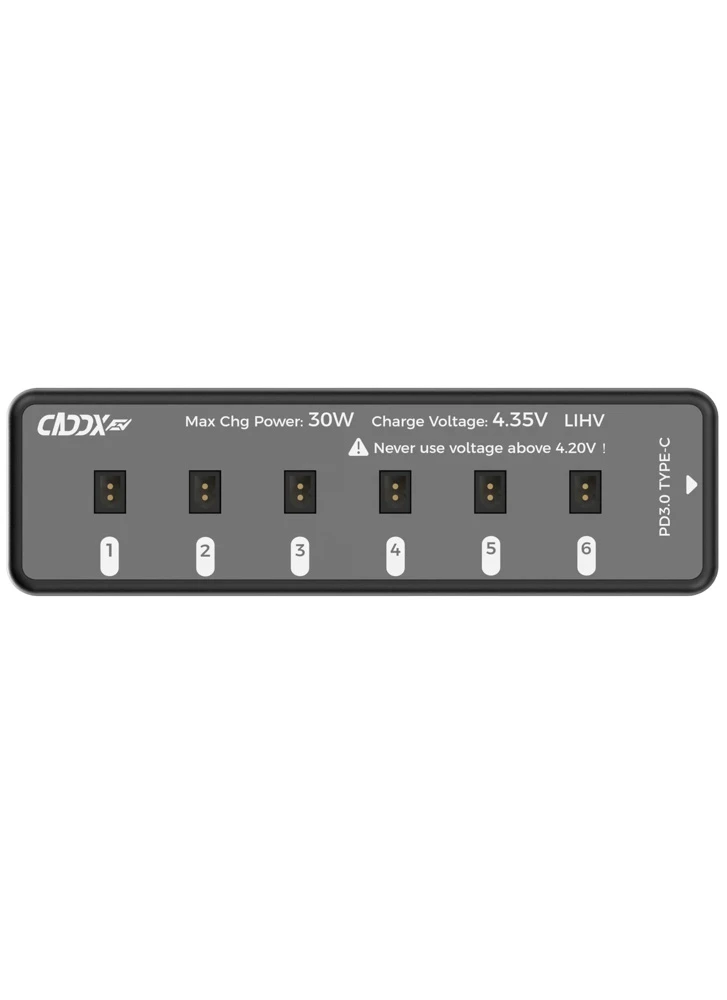

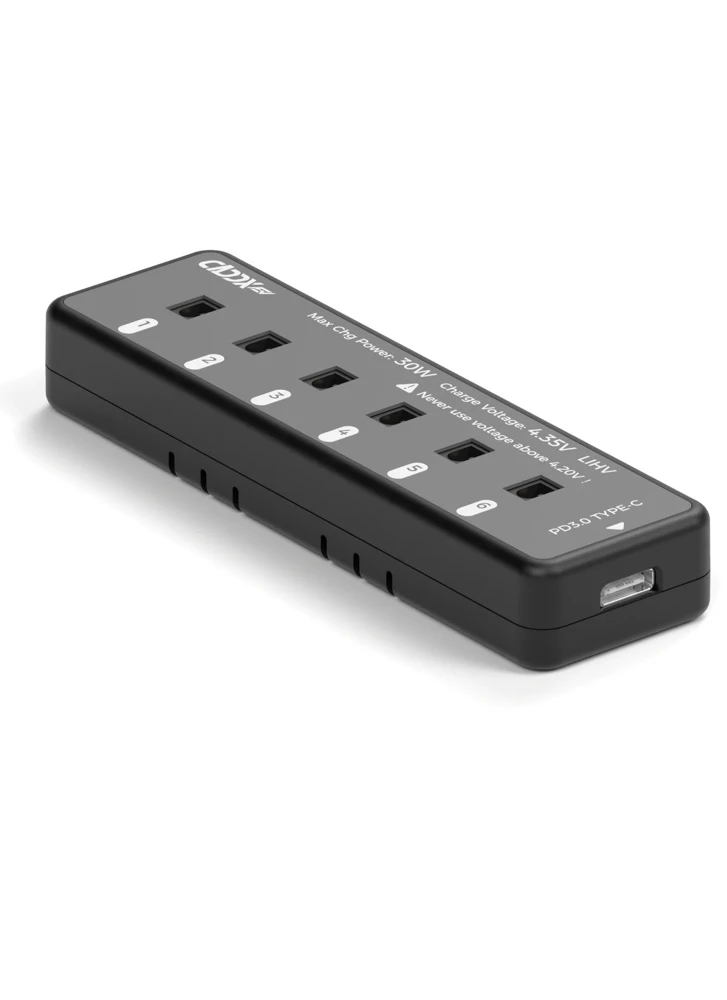

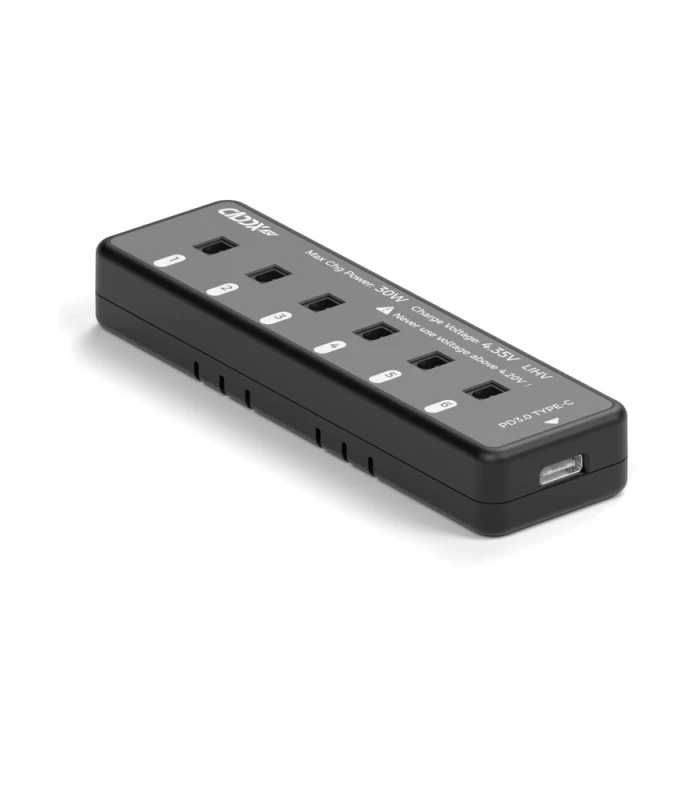

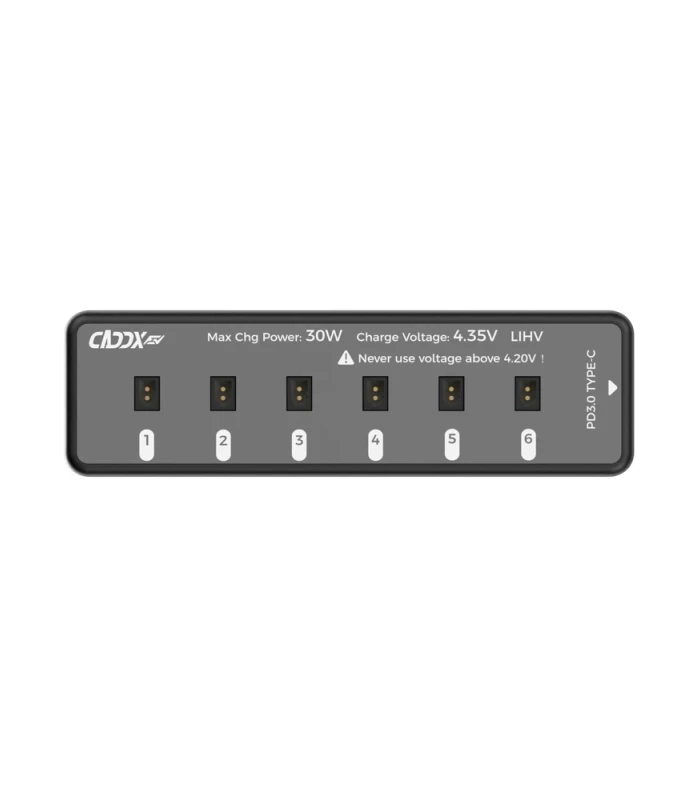

6-Channel Charger
- Input: 5–12V
- Input Port: USB Type-C
- Input Protocol: USB PD / BC1.2
- Battery Type: LiHV 4.35V
- Charging Channels: 6
- Max. Charging Current: 1A
- Max. Input Power: 30W
- Dimensions: 101.5 × 30 × 14.5mm
