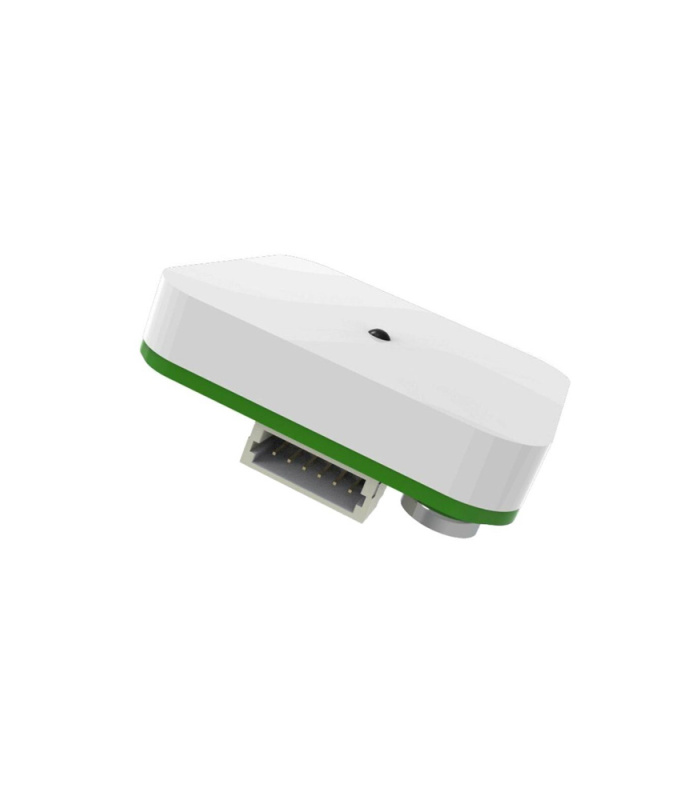

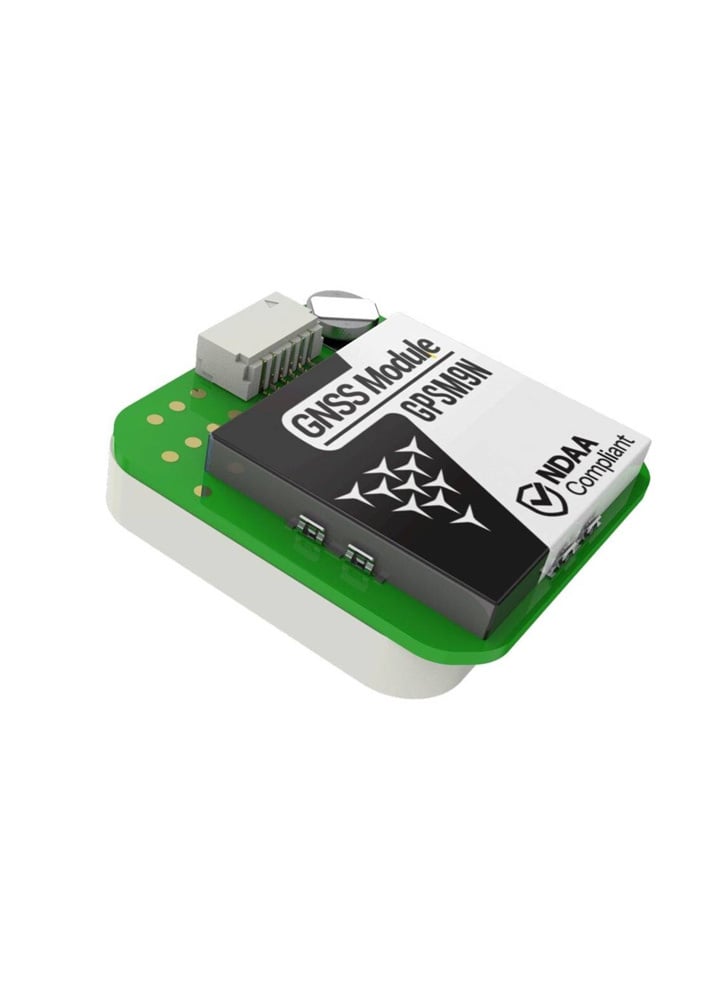

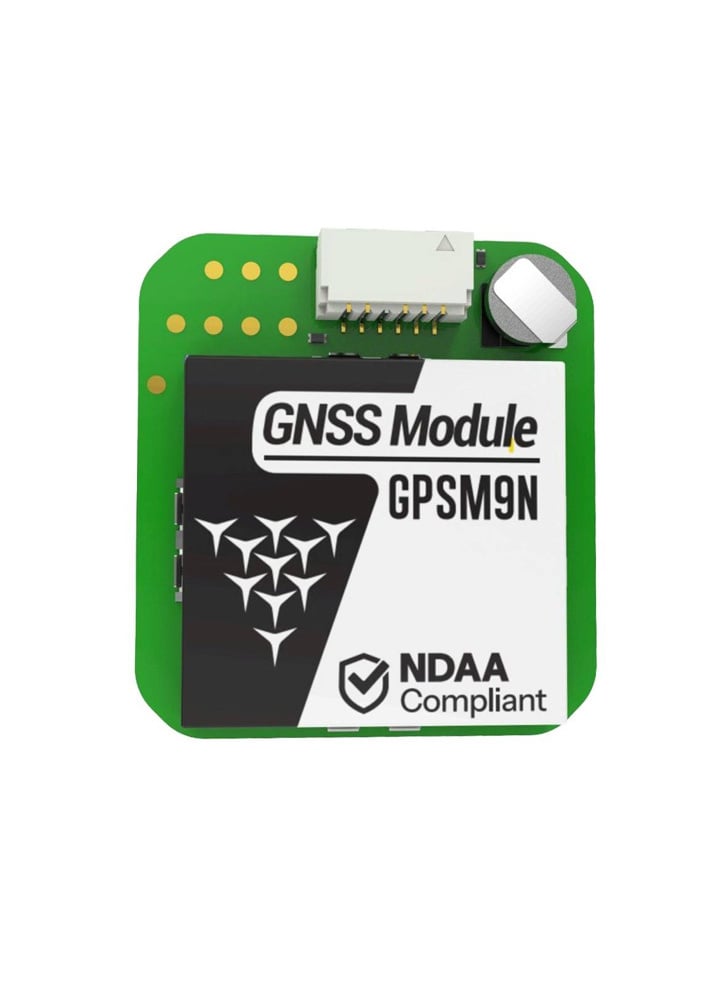

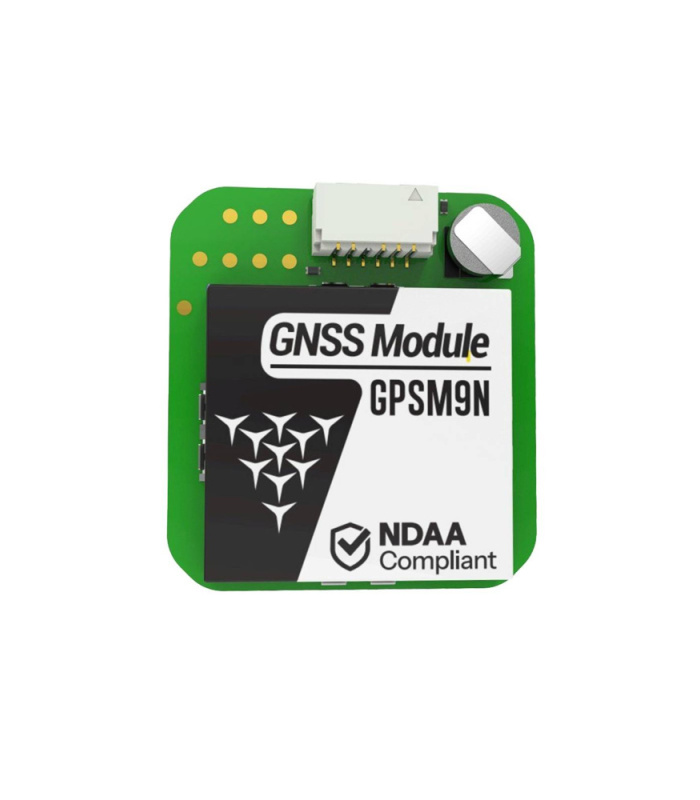

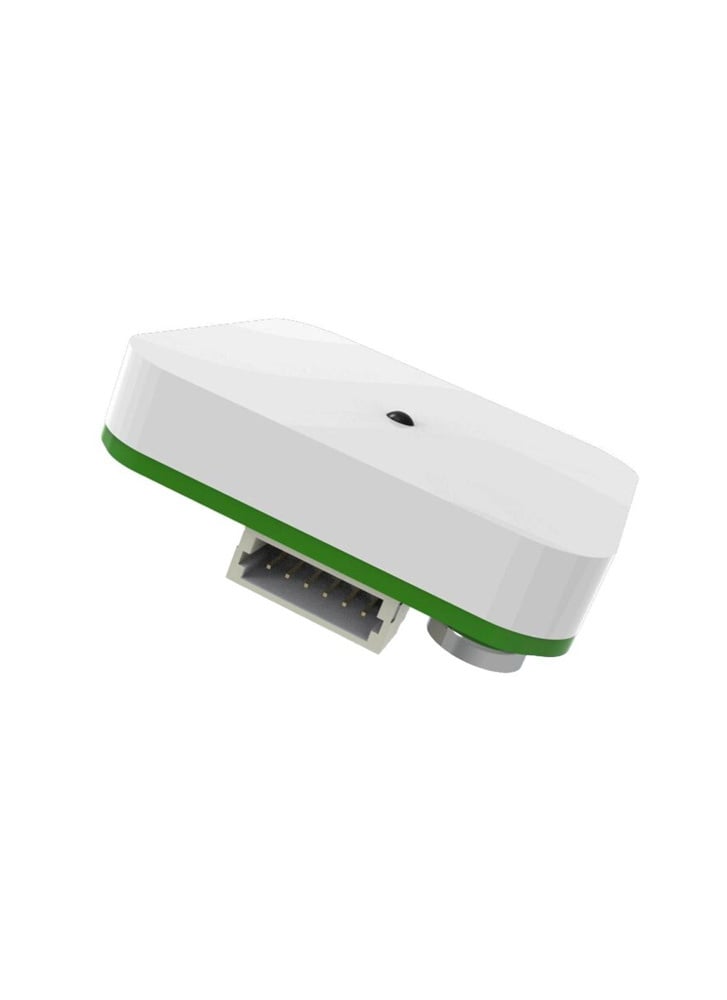

Triumph M9N GPS Module – NDAA
£64.90 Inc. VAT

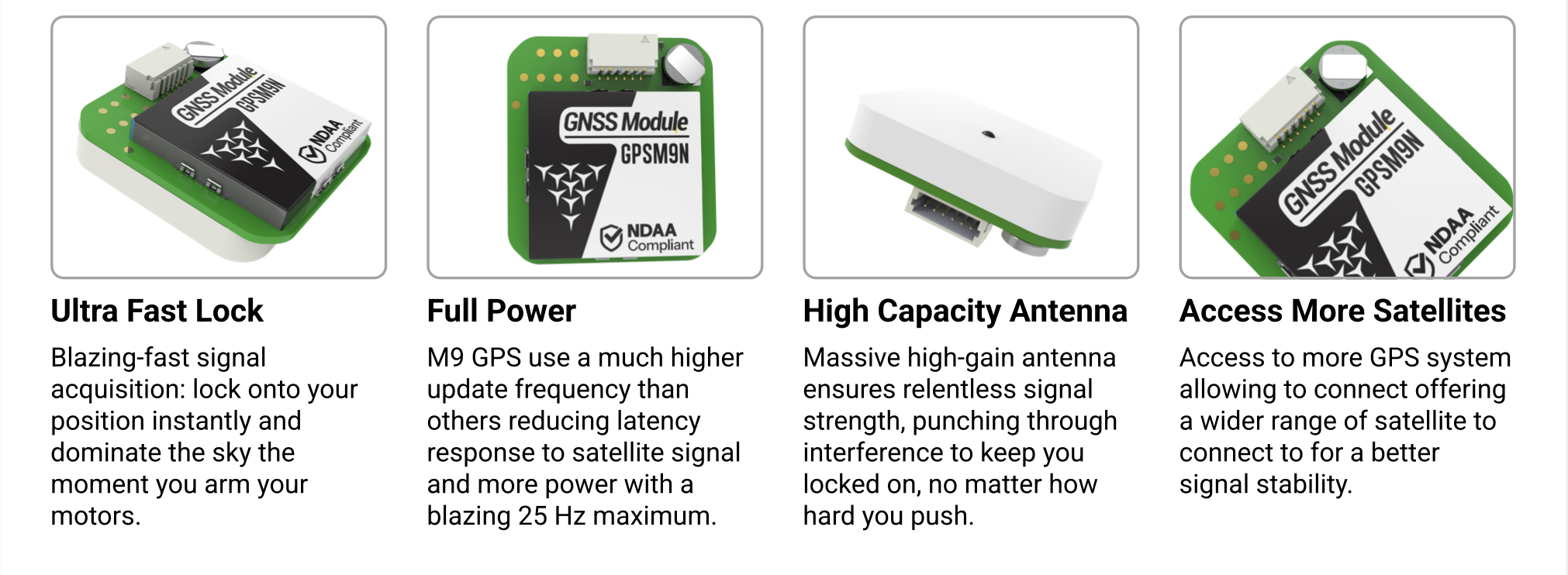

Ultra-fast, NDAA-compliant GPS/GNSS module with 25Hz updates, multi-constellation support and integrated compass.
In stock|Next shipping: 30/09/2026
The Triumph M9N is a fast, high-performance GPS/GNSS module designed for FPV, long-range drones and professional UAV applications. Powered by the u-blox NEO-M9N, it supports GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS, giving it access to a wide range of satellites for fast acquisition and reliable positioning. TMC GPS M9
With an impressive update rate of up to 25Hz, the M9N delivers rapid position updates with minimal latency – ideal for GPS Rescue, navigation and telemetry. A high-gain antenna helps maintain a strong satellite lock in challenging environments, while the built-in LIS3MDLTR/LIS2MDLTR compass adds accurate heading data via I²C. TMC GPS M9
Made in the USA and NDAA compliant, the Triumph M9N is also a great choice for commercial and professional drone builds requiring compliant hardware. Its wide 5–12V input, compact 27 × 25mm footprint and lightweight 7g design make integration straightforward.
Features
- NDAA compliant and manufactured in the USA
- u-blox NEO-M9N GNSS receiver
- GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS support
- GNSS update rate up to 25Hz
- High-gain antenna for reliable satellite reception
- Integrated LIS3MDLTR/LIS2MDLTR compass via I²C
- 1.5m CEP horizontal positioning accuracy
- 5–12V DC input
- Compact 27 × 25 × 9mm design
- Lightweight at just 7g
- Brand/Manufacturer: Triumph Manufacturing Corporation
- GNSS Chipset: u-blox NEO-M9N
- Supported Constellations: GPS L1 C/A, GLONASS L1OF, BeiDou B1I, Galileo E1B/C, QZSS, SBAS
- Update Frequency: Up to 25 Hz
- Horizontal Positioning Accuracy: 1.5 m CEP
- Speed Accuracy: 0.05 m/s
- 1PPS Time Accuracy: Sub-100 ns level
- Tracking Sensitivity: -167 dBm
- Cold Start/Hot Start Sensitivity: -148 dBm / -159 dBm
- Start Times:
- Cold Start: 31–43 s
- Aided Start: 2–5 s
- Hot Start: 2–5 s
- Onboard Compass: LIS3MDLTR / LIS2MDLTR via I²C
- Operating Voltage: 5.0V – 12.0V DC Input
- Communication Interface: UART (3.3V Logic, 4800 to 921600 bps Supported)
- Protocols Supported: NMEA 0183, UBX, RTCM
- Dimensions: 27mm x 25mm x 9mm
- Net Weight: 7g
- Operating Temperature: -40°C to +85°C
Included:
- 1x Triumph M9N GPS Module – NDAA
