AeroCogito Digital Flight Controller 3-6S 30×30 – NDAA Made in the USA
£109.90 Inc. VAT
STM32H743-based flight controller designed for professional UAS applications requiring high performance and secure, compliant firmware.
In stock (can be backordered)|Next shipping: 01/05/2026
Made in the USA, fully NDAA-compliant as part of the DCMA Blue UAS Framework.
The AeroCogito Digital Flight Controller is a high-performance 30×30 H7 board designed for advanced UAV applications where reliability, security, and integration matter. Manufactured in the USA and fully NDAA-compliant under the DCMA Blue UAS Framework, it’s well suited to both government and commercial deployments.
Built around a powerful STM32H743 processor, it delivers fast, stable flight performance while supporting modern digital FPV systems. A dedicated high-speed UART makes it ideal for companion computer setups, including Raspberry Pi and Nvidia Jetson, enabling onboard AI, autonomy, and advanced data processing.
The board uses premium, name-brand components throughout, including a high-quality IMU with isolated power and enhanced filtering, helping ensure clean sensor data and long-term reliability. It ships with vendor-signed ArduPilot firmware, supporting supply-chain security requirements for Blue UAS systems.
Designed for flexibility, it supports 3–6S input, includes dual BEC outputs for accessories and VTX, and offers full connectivity for GPS, receivers, digital VTX, and more. With 8 motor outputs, servo support, ESC telemetry, and onboard blackbox logging via SD card, it’s ready for complex builds straight out of the box.
Key specs include an STM32H743 processor (480MHz), ICM-42688-P IMU, DPS368 barometer, USB-C connectivity, and a standard 30.5×30.5mm mounting pattern. Digital OSD support is provided via systems such as DJI, HDZero, Walksnail, and OpenIPC (no analog OSD).
Features
Features- DCMA Blue UAS Framework / NDAA Compliant Design – Suitable for government and commercial applications
- Optimized for Companion Computers – Dedicated high-speed UART for Raspberry Pi, Nvidia Jetson integration
- Premium Components – high performance, name-brand components — engineered to last
- Hardened Firmware – Ships with vendor-signed ArduPilot for Blue UAS supply-chain security
Made in the USA: Hardware and firmware pipeline designed and maintained in the United States:
Full compliance details in SECURITY.md
- Processor: STM32H743, 480MHz, 1MB RAM, 2MB Flash
- IMU: ICM-42688-P 6-axis with isolated power rail and enhanced filtering
- Barometer: DPS368
- OSD: Digital HD only (OpenIPC, Walksnail, DJI, HDZero) Note: No on-board analog OSD
- Size: 41mm x 41mm (30.5mm mounting pattern)
Power System:
- Supports 3S to 6S batteries (11.1V – 25.2V)
- 5V/2A BEC for accessories
- 10V/2A BEC for VTX with software-selectable on/off control
PWM Outputs:
- 8 Motor Outputs with DShot support
- 2 Servo Outputs

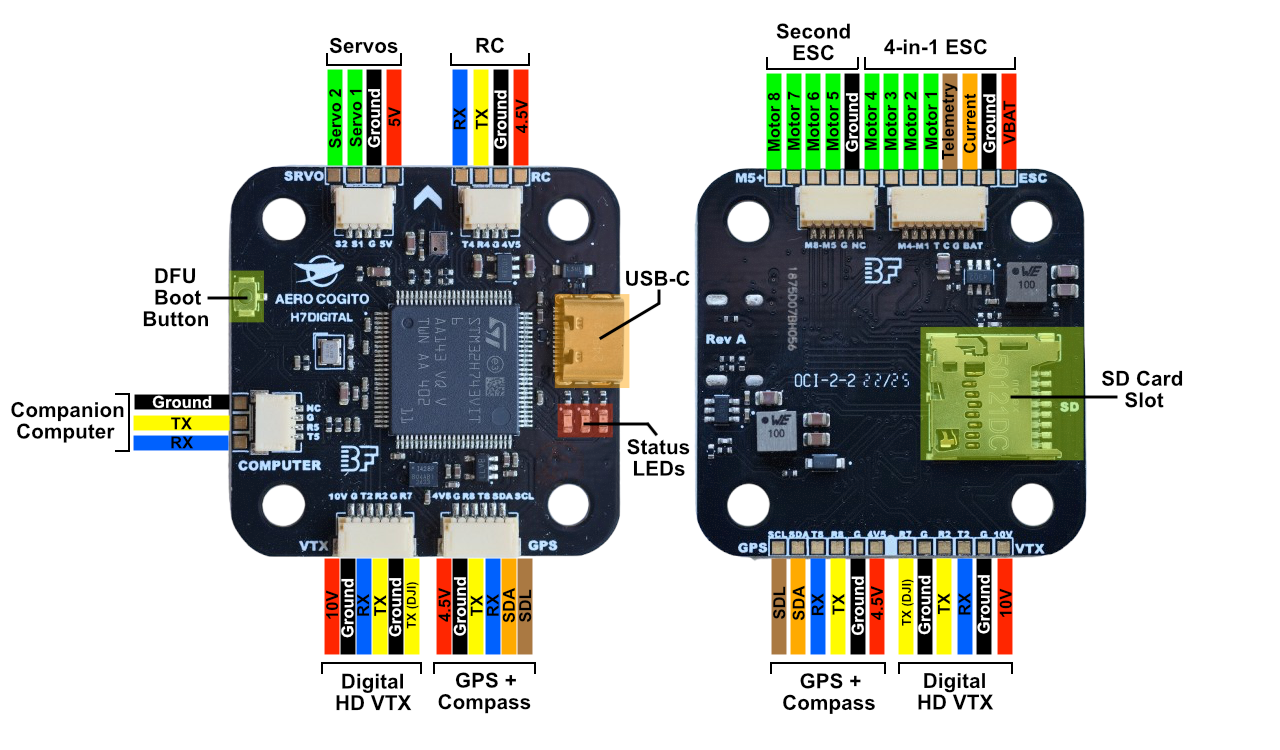

Connectivity
- BetaFlight Standard JST-SH Connectors
- Dedicated connections for:
-
GPS with compass support
-
Companion Flight Computers
-
RC receivers (SBUS/CRSF/ELRS)
-
Digital VTX systems
-
Servos
-
Additional Features
- SD card for blackbox logging and firmware updates
- ESC telemetry support with analog voltage/current sensing
- Three status LEDs (Blue, Green, Amber)
- USB Type-C connector
- Standard 30.5mm x 30.5mm mounting with M3 holes
- NDAA Section 848 / Blue UAS Framework secure firmware builds available for ArduPilot
Supported Firmware
- ArduPilot: (Board ID: AP_HW_AeroCogito-H7Digital)
- Betaflight: (Target: AEROH7DIGITAL)
