Tarot RFASB Micro 2.4Ghz 16CH Futaba FASST Compatible SBUS Receiver

Multirotor Full Range Futaba FASST Compatible SBUS Receiver

Click to enlarge

Tarot RFASB Micro 2.4Ghz 16CH Futaba FASST Compatible SBUS Receiver

Name: Tarot RFASB Micro 2.4Ghz 16CH Futaba FASST Compatible SBUS Receiver - Flying Tech
Brand: Tarot
SKU: RX-RFASB16CHSBUS
Price: 28.99 GBP
Availability: OutOfStock

£28.99 Inc. VAT

The Rx is compatible with 2.4Ghz FASST radios like the Futaba 14SG.

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Add to compare

0 People watching this product now!

SKU: RX-RFASB16CHSBUS Categories: 2.4GHz Radio Receivers, Radio Control, Electronics Tags: 2.4GHz, FASST, Futaba, Radio, Receiver, SBUS

Description

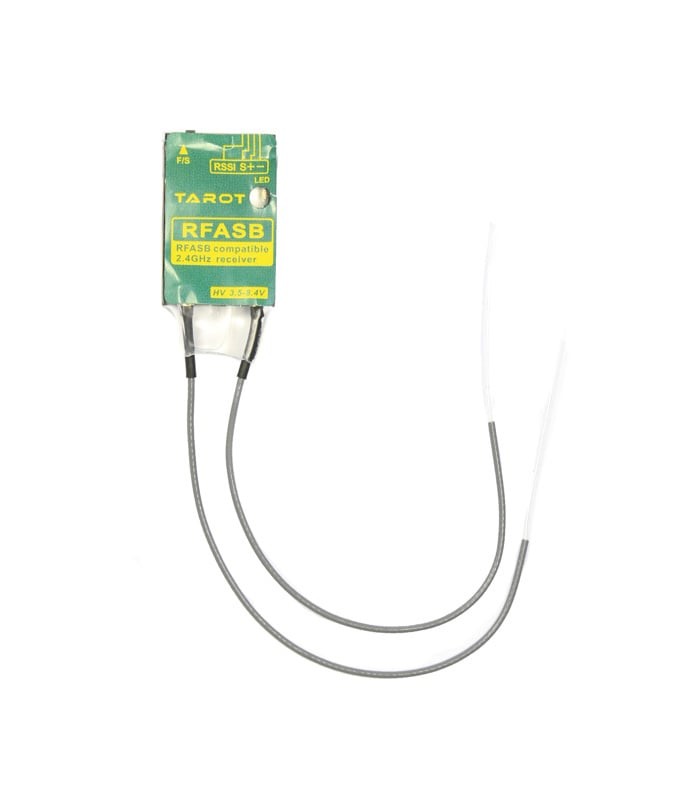

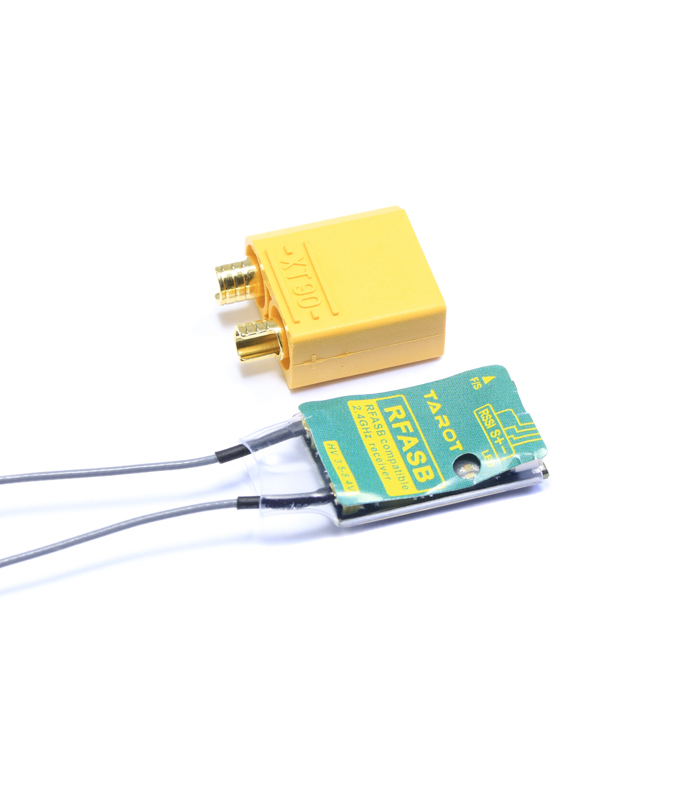

This is a 2.4Ghz 16-Channel receiver with S.Bus port and compatible with Futaba FASST protocol, so you can bind it with your Futaba T8FG / 10CG / 14SG transmitter and others. It’s very small and light (4.5g) making it ideally suited to FPV mini quad racers like the Tarot 130. Despite it’s tiny size, its still a full range receiver, boasting diversity antennas. It has an SBUS output which is compatible with the Naze32 Rev.6 and new F3 flight controllers like the SP F3.

Compatibility:

The Rx is compatible with 2.4Ghz FASST radios (7CH Mode / Multi Mode), like the Futaba 14SG. 8 Channel FHSS version available here.

Binding with a transmitter:

1. Turn on Transmitter.

2. Connect the battery to the receiver while pressing receiver is F/S button.

3. The LED on the receiver will change to solid green, it indicates the binding is completed and successful

How to switch between HS mode and FS Mode:

HS:High Speed
FS:Fast Speed

Turn the transmitter off, connect the battery to the receiver, press the F/S button of receiver for 6 seconds and then release. The red LED will flash fast in HS Mode and slow in FS Mode. Repeat to alternate modes.

WARNING: HS mode is only applied for high-speed digital servos. Other servos should select FS mode.

Specification

Output Channel: 16CH
Receiving mode: FASST
Output signal: RSSL & S.BUS (1CH~16CH)
Servo frame rate: 14ms(FS-normal speed mode) / 7ms(HS-high speed mode)
Suitable for: Futaba 6EX / 7C / TM-7 / TM-8 / T8FG / T10C / TM-10 / T10CG / T12Z / T12FG / TM-14 / T14MZ / 14SG transmitter
Input Voltage: 3.5V-8.4V
Working Temperature range: -10-80℃

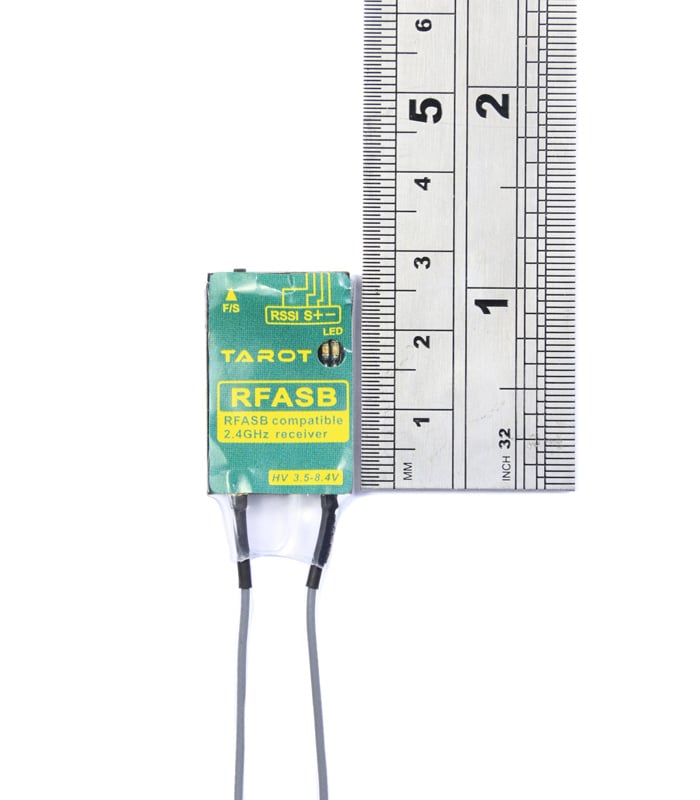

Dimension: 26x19x7mm
Weight 4.2g

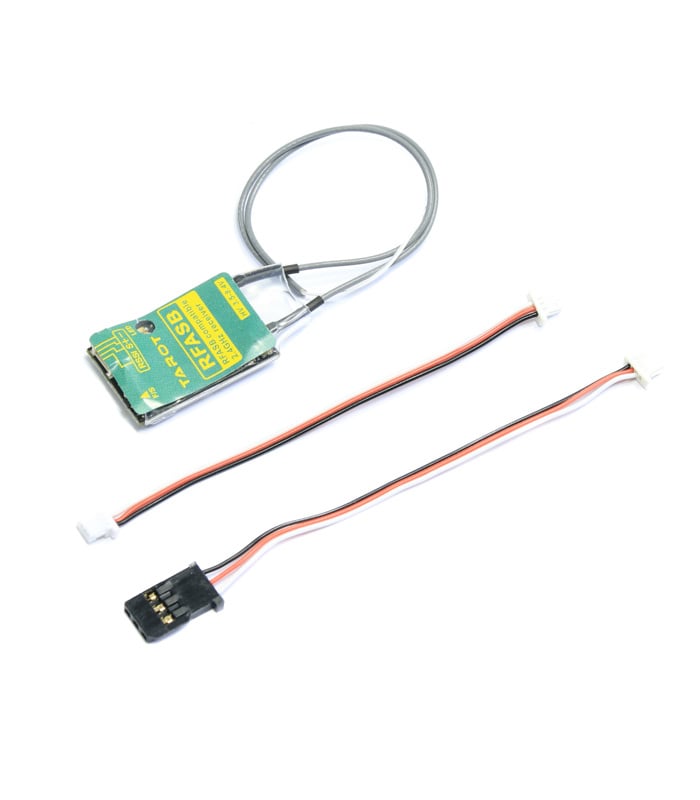

Included:

1x Tarot RFASB 2.4Ghz Rx (TL150F2)
1x Double SBUS plug connection cable
1x Single SBUS plug connection cable

Downloads

LED Indicator Light (png, 46KB)
