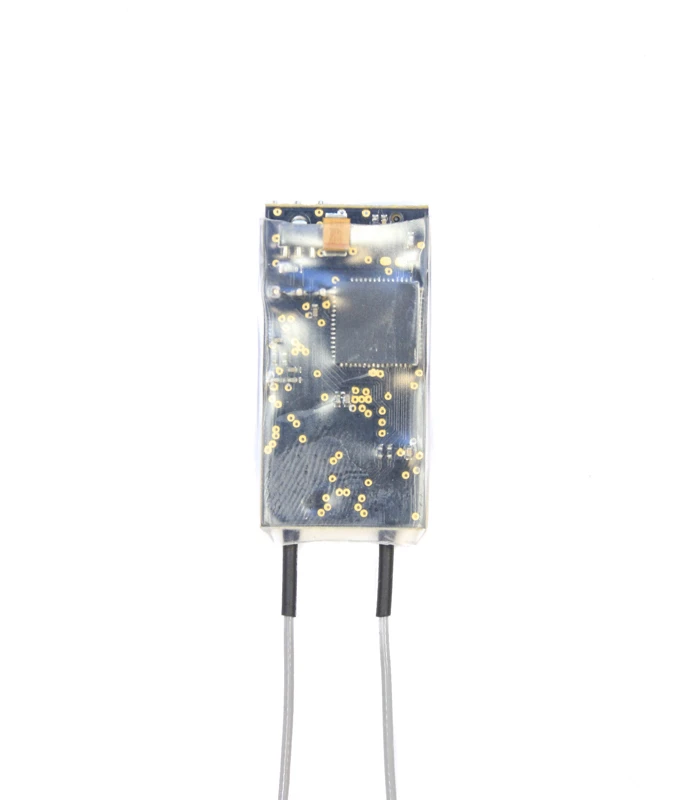

Tarot Micro 2.4Ghz 8CH Futaba FHSS Compatible SBUS Receiver​

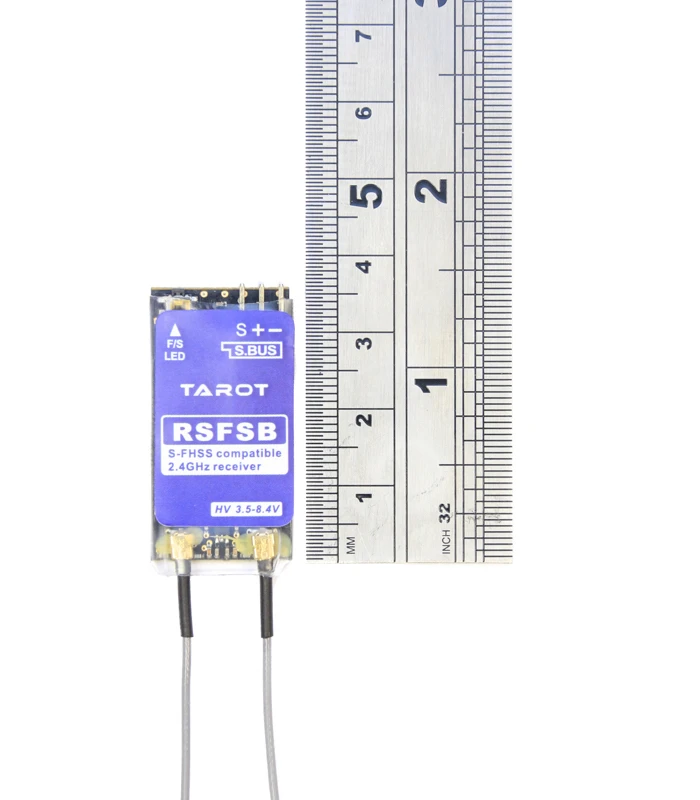

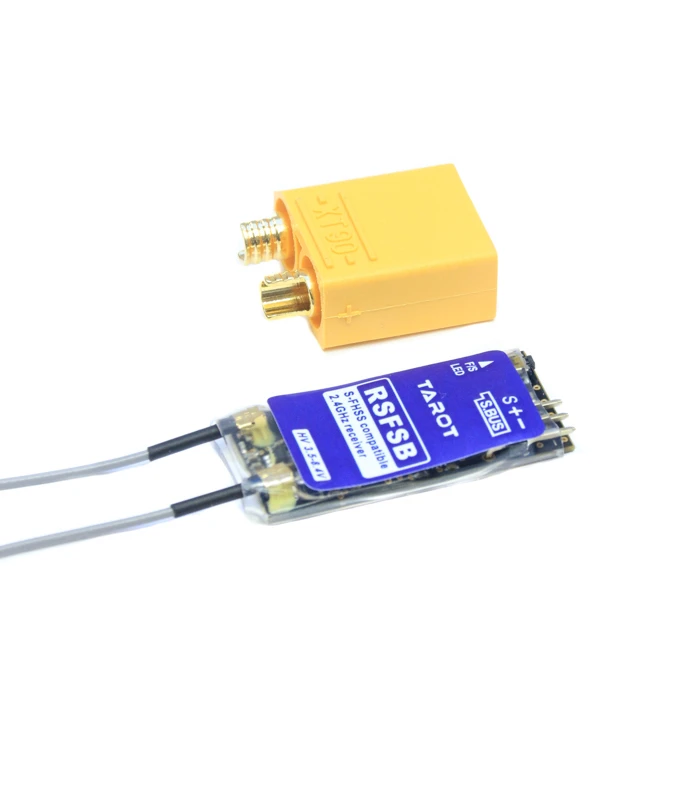

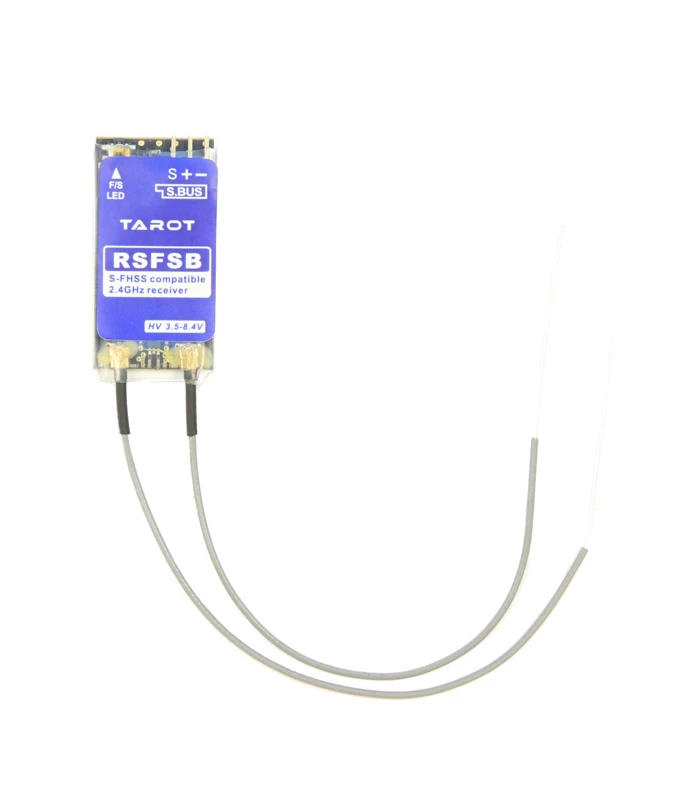

This is a 2.4Ghz 8-Channel receiver with S.Bus port and compatible with Futaba S-FHSS and FHSS protocol, so you can bind it with your Futaba T6J / T8J / T10J / T14SG / T18SZ / 18MZ transmitter. It’s very small and light (4.5g) making it ideally suited to FPV mini quad racers like the Tarot 130. Despite it’s tiny size, its still a full range receiver, boasting diversity antennas. Its has an SBUS output which is compatible with the Naze32Rev.6 and new F3 flight controllers like the SP F3.

Compatibility:

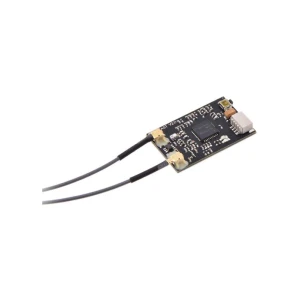

The Rx is compatible with 2.4Ghz S-FHSS / FHSS radios, like the Futaba 6J 8J 10J T14SG T18SZ / 18MZ. 16 Channel FASST version available here.

Binding with a transmitter:

1: Transmitter signals is S-FHSS/FHSS mode

2: Turn on the receiver, the LED on the receiver should be red light

3: Turn on the transmitter, the LED on the receiver will be green light and flash

4: Press and hold the link switch about 3 seconds, the LED on the receiver will change to solid green, it indicates the binding is completed and successful
