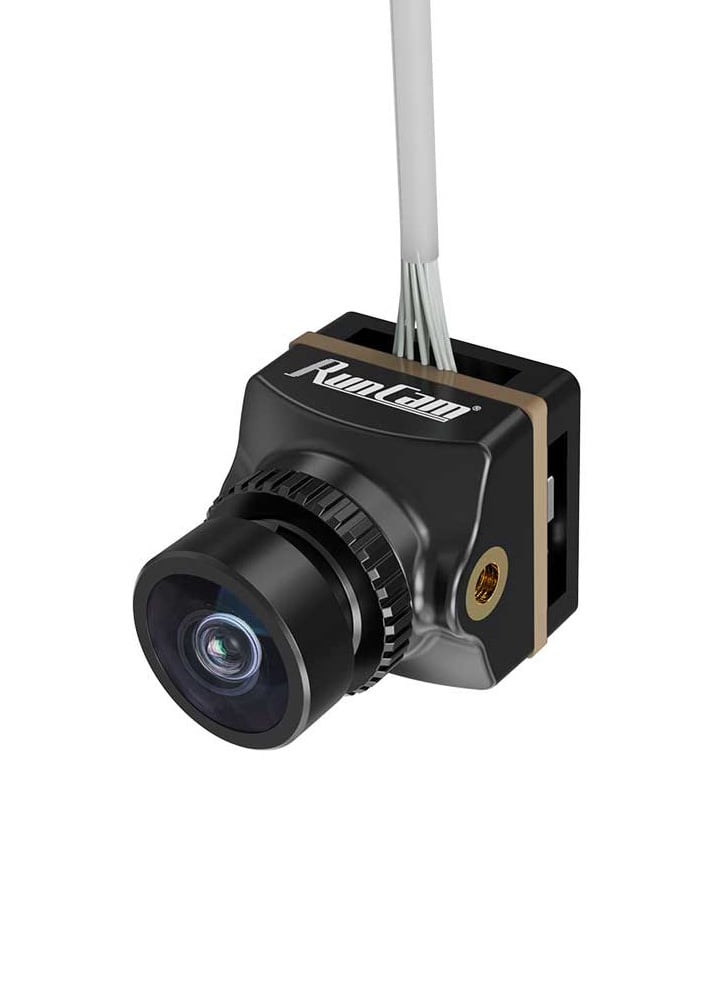

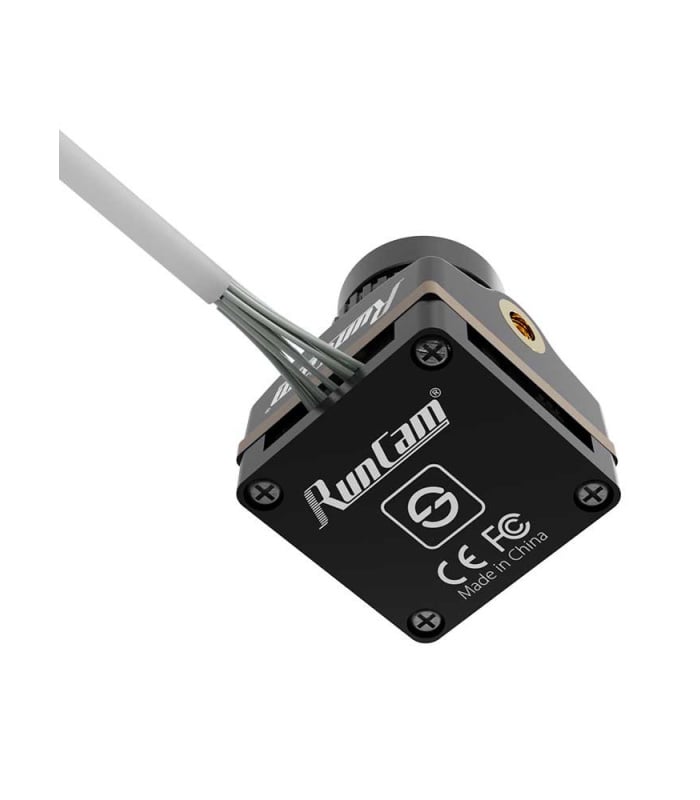

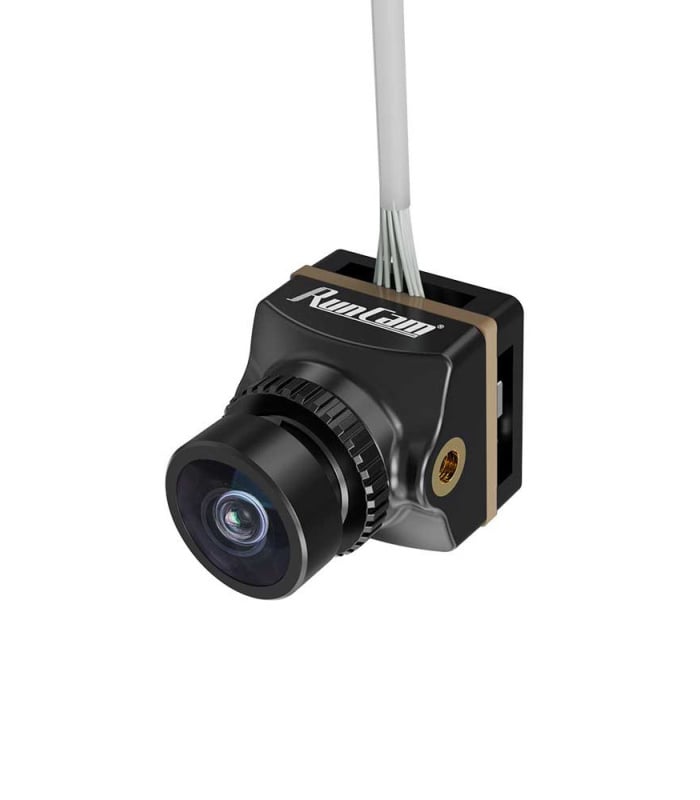

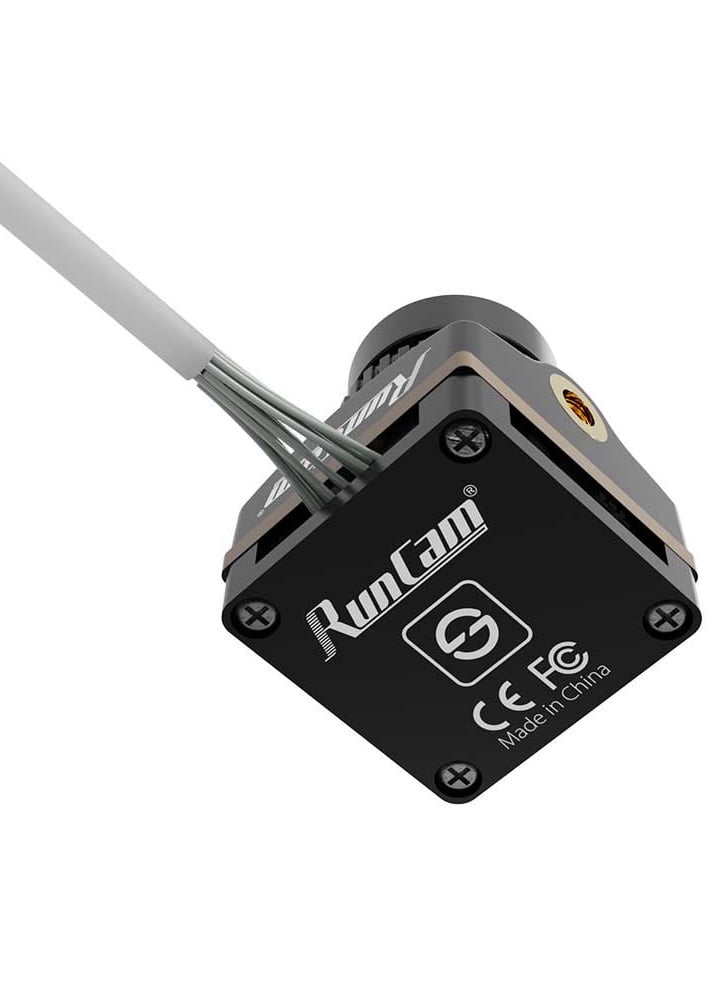

RunCam Split 4 FPV Camera with 4K High Definition DVR (V3)
Price range: £89.99 through £94.99 Inc. VAT
This camera is designed to give you the best of both worlds, low latency FPV and glorious 4K video recording.
This is the latest version of the RunCam Split 2-in-1 FPV and HD recording camera. The Split 4 combines a low-latency FPV camera with 4K 30fps onboard recording, eliminating the need for a separate action camera. Whether you’re flying a micro drone and want to capture UHD footage or building a lightweight freestyle or racing quad, the Split 4 delivers high-quality video without the extra weight of a GoPro.
The Split 4 also features manual shutter speed adjustment, making it easier to use ND filters for smoother, more cinematic footage. UART control allows you to start and stop recording or navigate the camera’s OSD menu directly from your radio, providing convenient in-flight control.

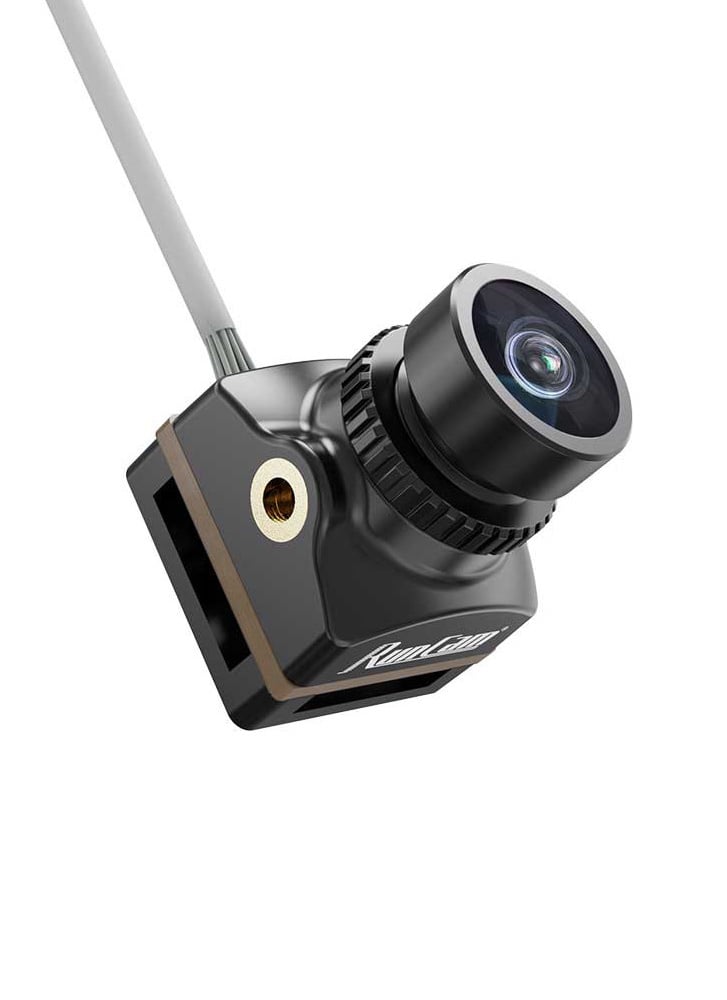

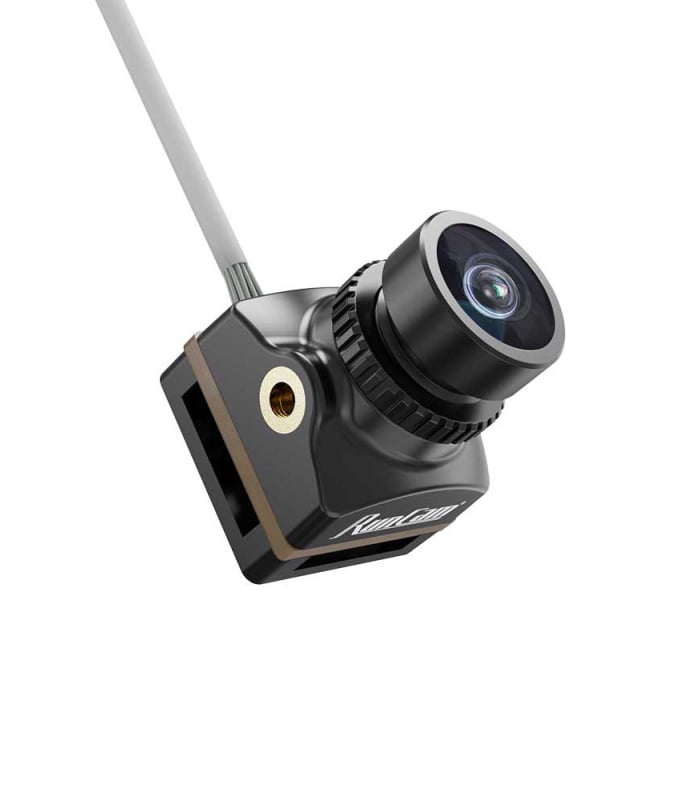

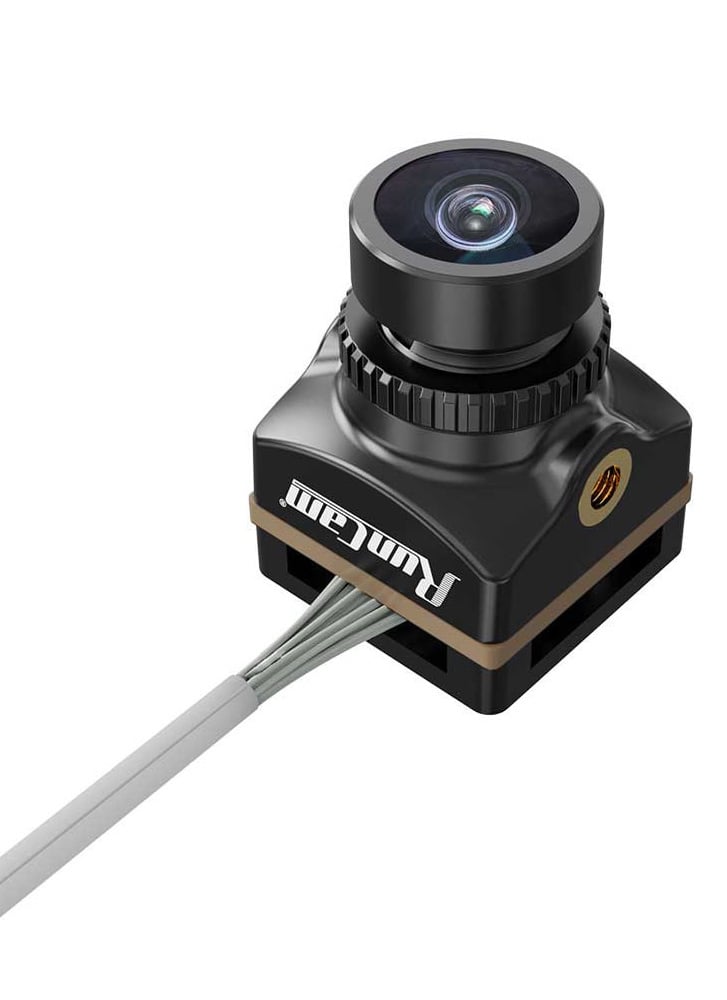

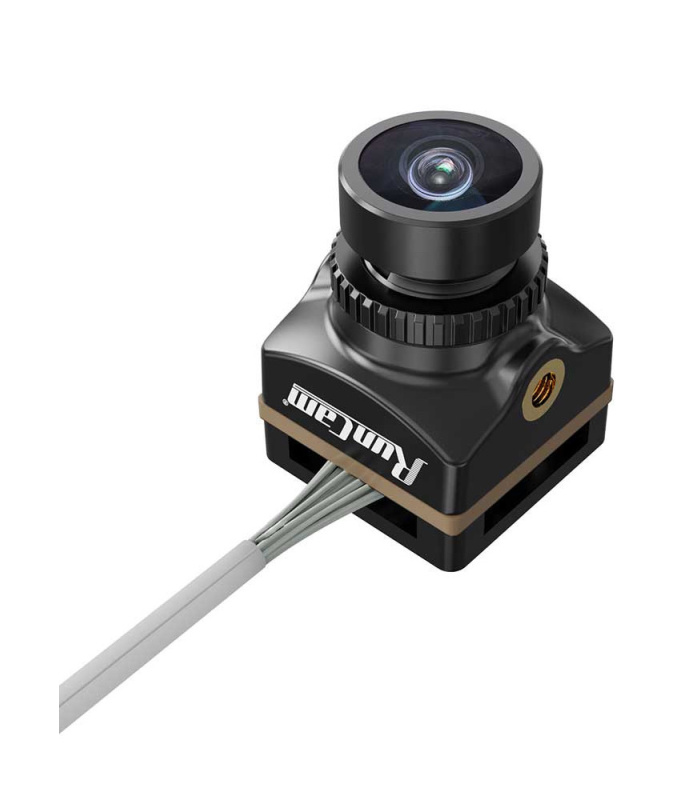

The camera is available with either an 80mm or 200mm camera ribbon cable, making it suitable for a wider range of frame layouts.
Features:
- 4K 30fps / 2.7K 60fps HD Recording & FPV Camera
- Low latency FPV output (approximately 55ms)
- Super WDR image processing
- Simultaneous HD recording and FPV output
- Switchable 16:9 and 4:3 FPV aspect ratio
- Manual shutter speed adjustment
- Power-off protection for recorded video files
- UART camera control
- Replaceable lens
- Wide input voltage (5-20V)
- Available with 80mm or 200mm camera ribbon cable

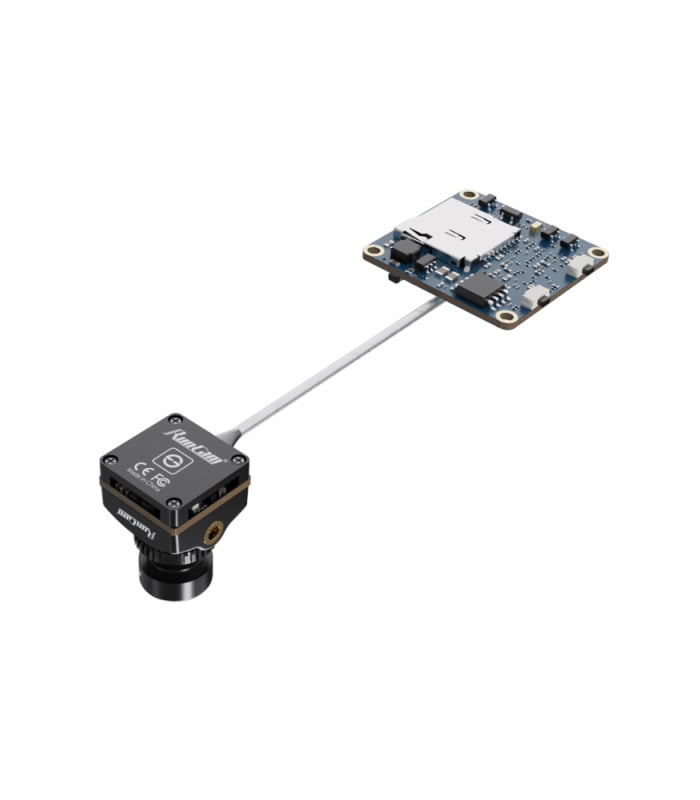

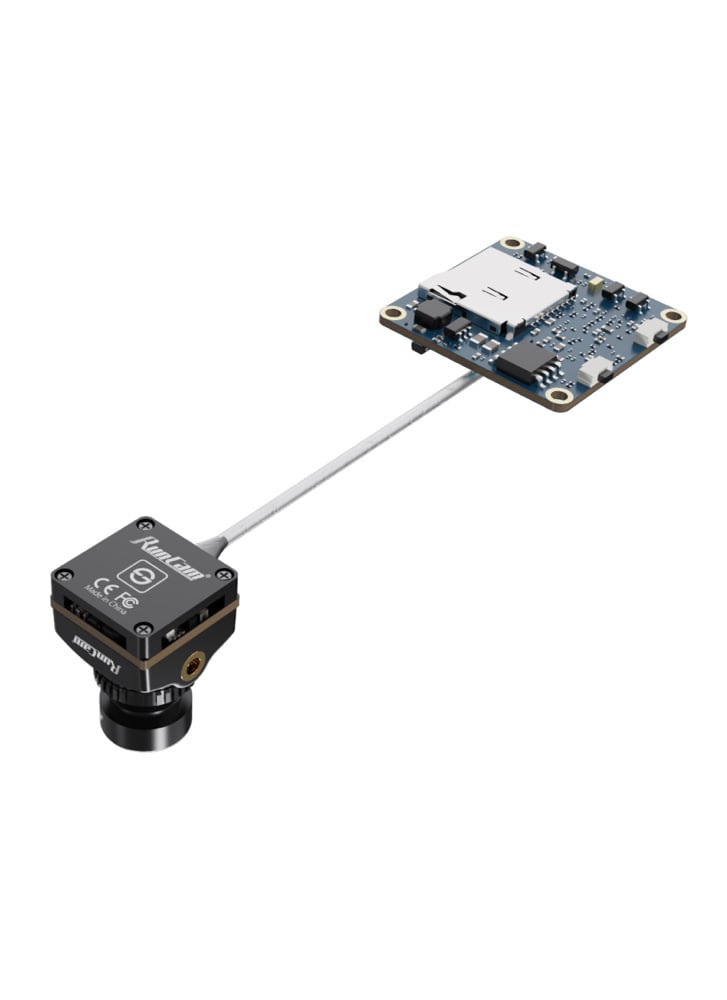

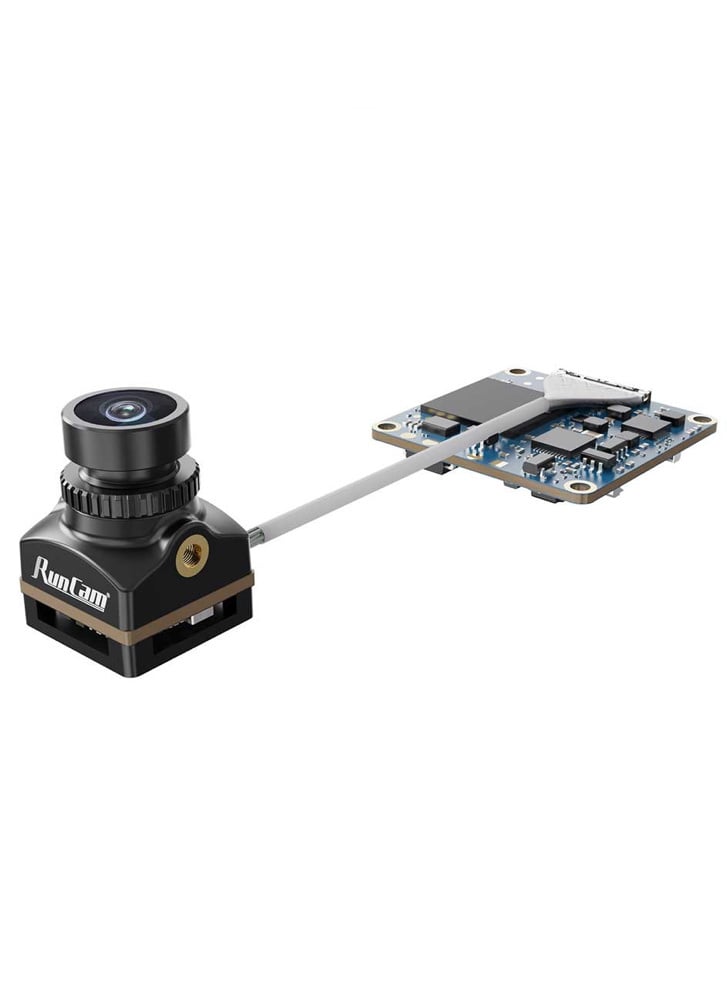

For those unfamiliar with the RunCam Split series, it combines an FPV camera and an HD recording camera into a single unit. Instead of carrying both a dedicated FPV camera and a separate action camera, the Split 4 does both jobs at once. It records crisp 4K footage while simultaneously providing a low-latency FPV feed to your goggles, reducing weight, simplifying your build, and helping maximise flight performance.
- Image Sensor: SONY 13MP
- Field of View (FOV): 140°
- Video Resolution: 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@60fps
- Video File Format: MP4
- NTSC/PAL Switchable
- 16:9 and 4:3 Aspect Ratio Switchable (FPV Output)
- UART Interface
- Max Micro SD Card Supported: 128GB
- U3 microSD card recommended for 2.7K@60fps and 2.7K@50fps recording (U1 or above for other recording modes)
- Micro SD cards should be formatted as exFAT
- Wide Input Voltage: 5V to 20V DC (regulated supply only – do not connect directly to the flight battery)
- Lens Module Size: 14 × 14mm
- Mounting Holes: 25.5 × 25.5mm
- PCB Size: 29 × 29mm
- Working Current: Up to 450mA at 5V (2.25W)
- Weight: 10.2g
Included:
- 1x Runcam Split 4 FPV Camera
- 1x 14 to 19 Bracket
- 1x 3PIN 1.25 JST Silicone Cable
- 1x Set of M2 Screws
- 1x Manual
Questions and answers of the customers
-
Does this have the built in gyro, I believe the V2 has it, but cant see it in the description at all. Thanks
-
Q Does this have the built in gyro, I believe the V2 has it, but cant see it in the description at ...... Read more answer nowA
Hi, we've checked with RunCam, the answer is yes. "Yes, SPLIT 4 25V2 supports the gyroflow with the gyro date, the same as Thumb Pro."
