Foxeer CC1551 10x Zoom 700TVL Sony CCD FPV Camera – PWM Control
£119.90 Inc. VAT
This camera offers a 10X optical zoom, controllable via PWM signal.
Only 2 left in stock|Next shipping: 07/10/2026
A compact long-range zoom camera designed for FPV, UAV, surveillance and ground-based monitoring applications, featuring a Sony CCD sensor, 10x optical zoom and remote PWM control.

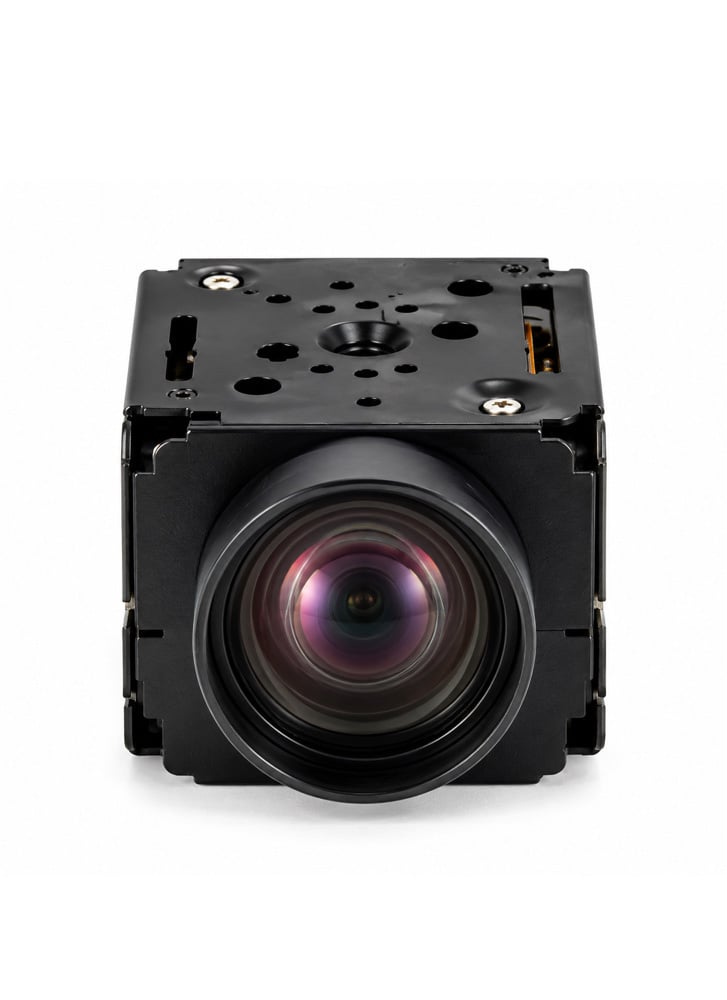

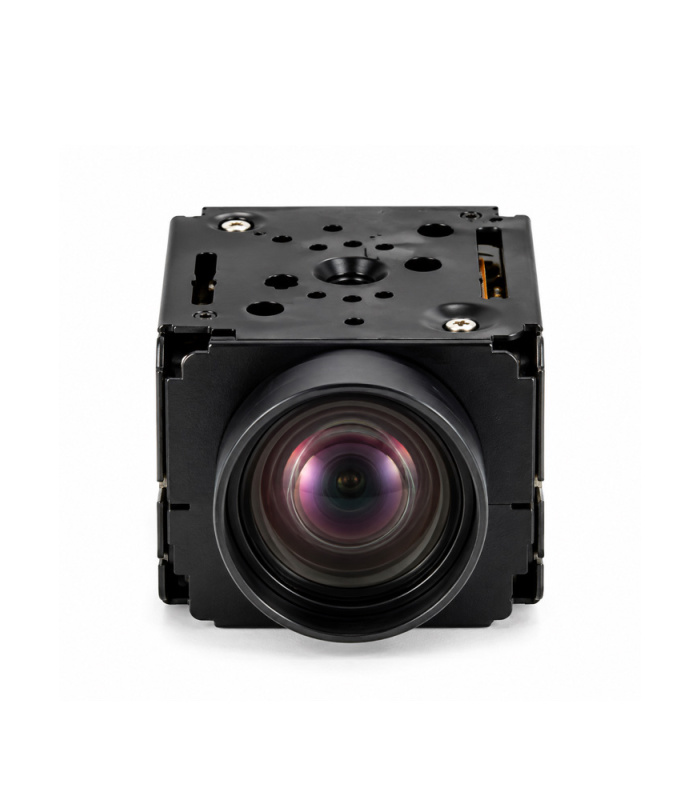

The Foxeer CC1551 delivers a clear 700TVL analogue video output, with its 10x optical zoom and 3.9–38mm focal range allowing distant subjects to be viewed in greater detail without relying on digital enlargement. Auto focus helps maintain a sharp image as the zoom level changes, while zoom can be controlled remotely using a PWM signal from an RC receiver or compatible ground controller.
Built around a 1/3″ Sony CCD sensor, the camera offers good performance across varying lighting conditions. Wide Dynamic Range (WDR), digital noise reduction, automatic gain control and automatic white balance help maintain a usable image, while low-light sensitivity extends down to 0.01 Lux in colour and 0.001 Lux in black and white mode.
For RC installations, the PWM control input can be connected to a spare PWM receiver channel and assigned to a suitable transmitter control, allowing the camera’s optical zoom to be operated remotely during use.

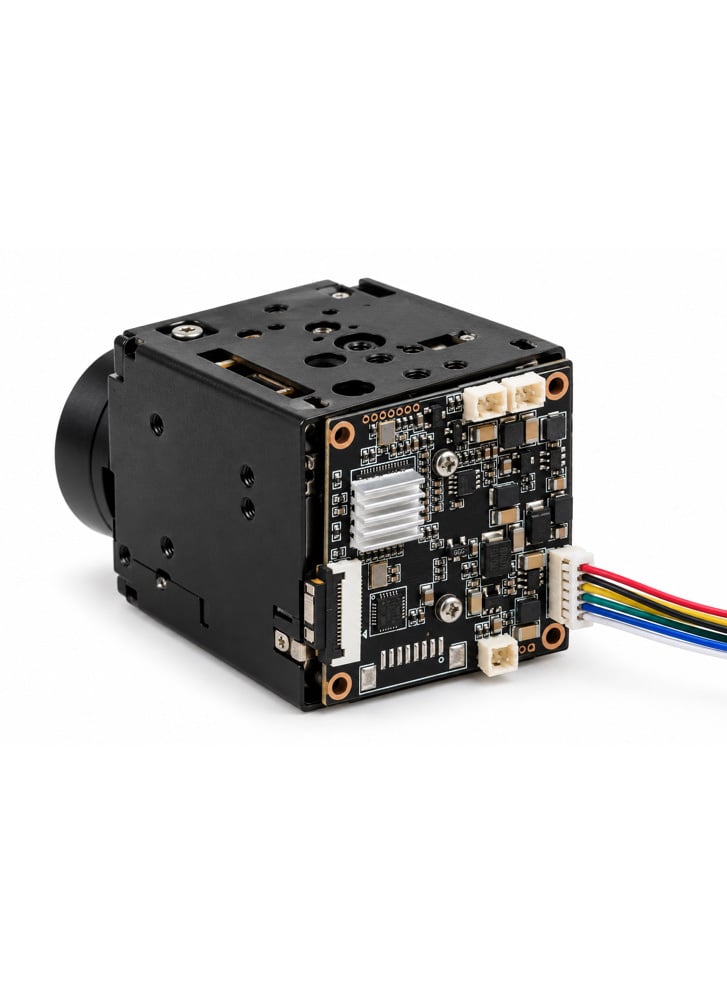

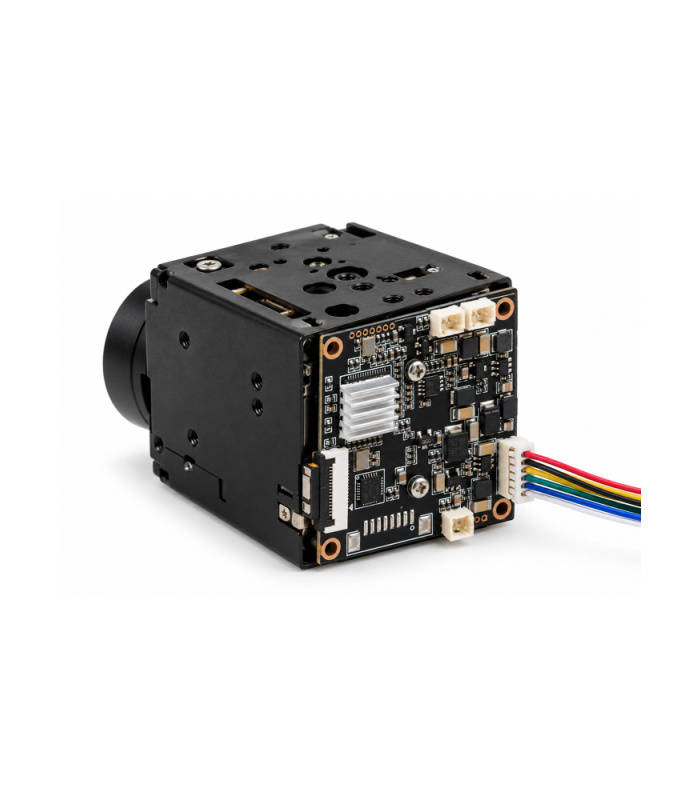

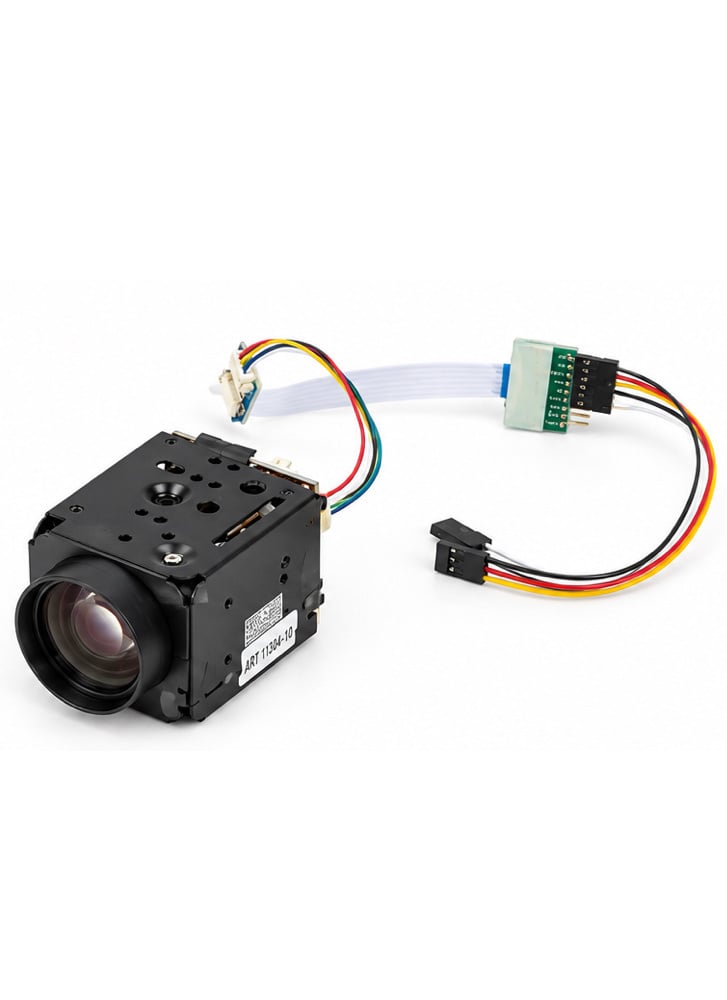

The camera outputs standard PAL analogue video and is supplied with its interface electronics and connection cables for integration into FPV and remote monitoring systems.
Important – Power Supply: This camera requires a regulated 12V DC input. Do not connect it directly to a battery or power source that exceeds 12V. If powering from a higher-voltage LiPo, use a suitable 12V regulator/BEC. Always check the supply voltage and polarity before connecting the camera.
Connections: Yellow = Video Output, Red = 12V Input, Black = GND, White = PWM Control Signal.
Please note: The PWM control input requires a receiver output operating in PWM mode. This camera outputs standard analogue video and is designed for analogue FPV/video systems; it is not directly compatible with digital HD FPV systems.
- Model: Foxeer CC1551
- Image Sensor: 1/3″ Sony CCD
- Resolution: 700TVL
- Effective Pixels: 976(H) × 596(V)
- Video System: PAL
- Video Output: Analogue, 1.0Vp-p / 75Ω
- Optical Zoom: 10x
- Focal Length: 3.9–38mm
- Digital Zoom: No
- Focus: Auto focus
- Zoom Control: PWM / ground controller
- WDR: Yes
- Digital Noise Reduction: Yes
- Frame Accumulation: Yes
- Sync System: Internal
- Gain Control: Auto
- White Balance: Auto
- Iris: Auto
- Minimum Illumination: 0.01 Lux (Colour) / 0.001 Lux (B&W)
- S/N Ratio: >60dB (Enhanced)
- Electronic Shutter: 1/50–1/10,000 sec
- Power Supply: Regulated 12V DC
- Current Consumption: 90–120mA
- Operating Temperature: 0–70°C
- Dimensions: 65 × 35 × 40mm
- Weight: 116g
- Includes: Camera with interface electronics and connection cables
The principal technical specifications are confirmed by the supplied CC1543/CC1551 manual, with the 3.9–38mm focal length corresponding to the 10x CC1551 version.
