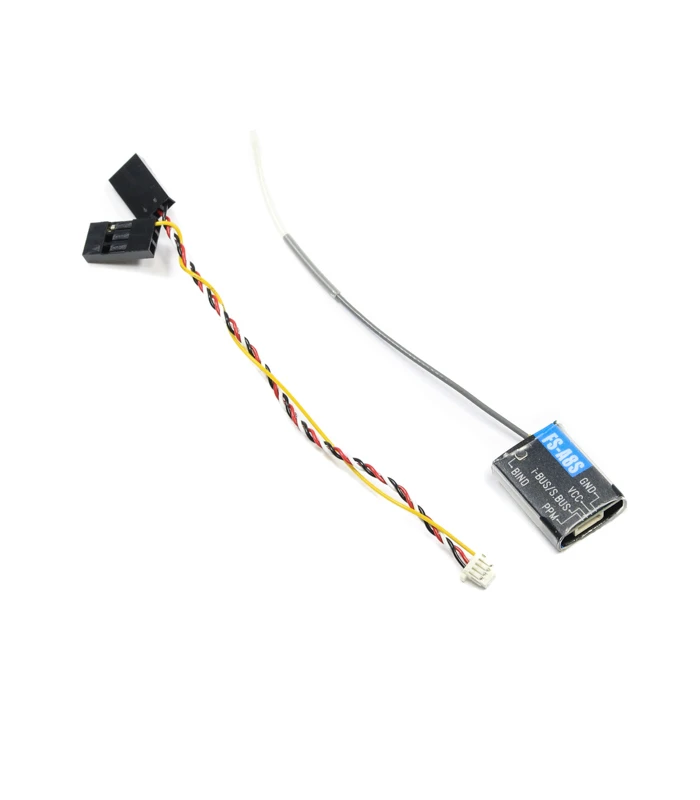

FlySky FS-A8S 2.4Ghz Mini Rx with iBUS PPM SBUS Output

£13.50 Inc. VAT

The FS-A8S was designed for micro drones and other RC models where space is at a premium.

Only 1 left in stock

0 People watching this product now!
SKU: RX-FS-A8S Categories: , , Tags: , , ,
Description

In the world of racing drones the requirements are for small and lightweight components. The FS-A8S receiver fits these requirements superbly, being only 20x14x5.3mm and weighingย 1.2g.

The FS-A8S is built for use in microย drones and is a 1-way receiver (no telemetry). It uses the extremely stable AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, supports standard PPM output (8CH) and has i-BUS / SBUS support for up to 18 channels.ย The advantage of PPM/SBUS over traditional PWM channels is that you only need to use one signal wire, rather than one for each PWM channel.

Because of its micro size, it’s ideally suited to micro quadsย like theย Tarot 130ย racing drone.

Compatibility:

The Rx is compatible with 2.4Ghzย AFHDS 2Aย radios, like the FlySkyย FS-i6 / ย FS-i6s / FS-i6x. AFHDS not supported.

Features:

  • Reliable, interference free 2.4GHz AFHDS 2A signal operation
  • Ultra light, compact design
  • iBUS PPM SBUS Output
Specification
  • Channels:ย 8 (PPM), 18 (i-BUS)
  • Frequency range:ย 2.408-2.475GHz
  • Band width:ย 500KHz
  • Band number:ย 135
  • RX Sensitivity:ย -92 dBm
  • 2.4GHz system:ย AFHDS 2A
  • Modulation type:ย GFSK
  • Low Voltage alarm:ย None
  • DSC port:ย PPM/i-BUS/S.BUS
  • Antenna length:ย 26mm (Not including brass contacts)
  • Input power:ย 4.0-8.4V
  • No ground interference (Transmitting and receiving 1 m from the ground):ย >300m
  • Working current:ย 40mA
  • Channel delay:ย <15mS

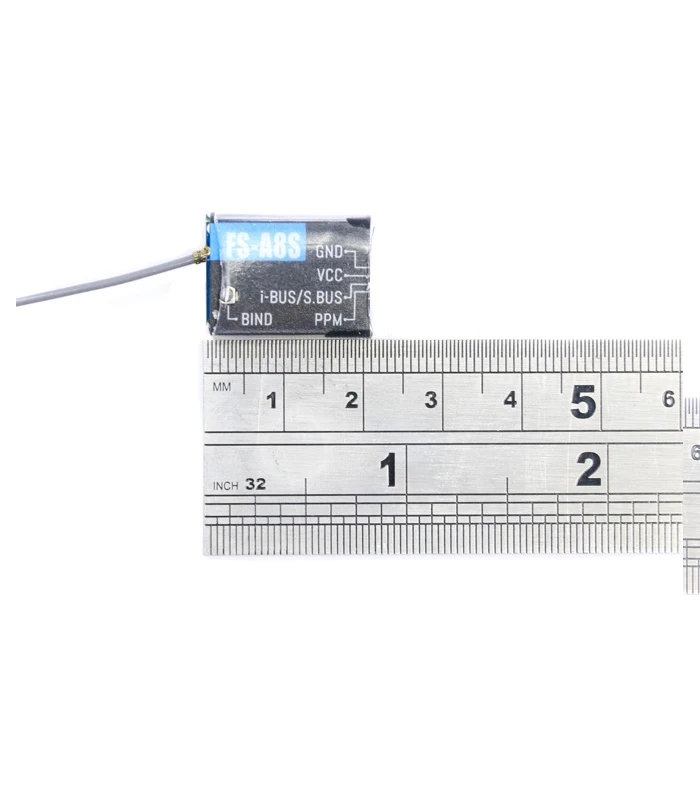

  • Size:ย 20x14x5.3mm
  • Weight:ย 1.2g

Note: This item doesn’t support failsafe.

Included:

  • 1 x FS-A8S 2.4G 8CH Mini Receiver
Downloads
Manual (pdf, 669KB)
