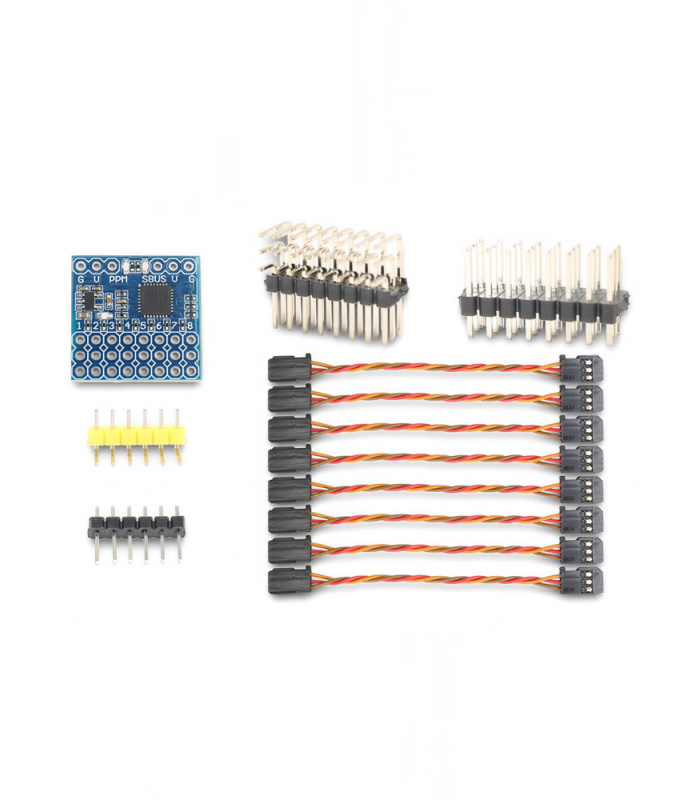

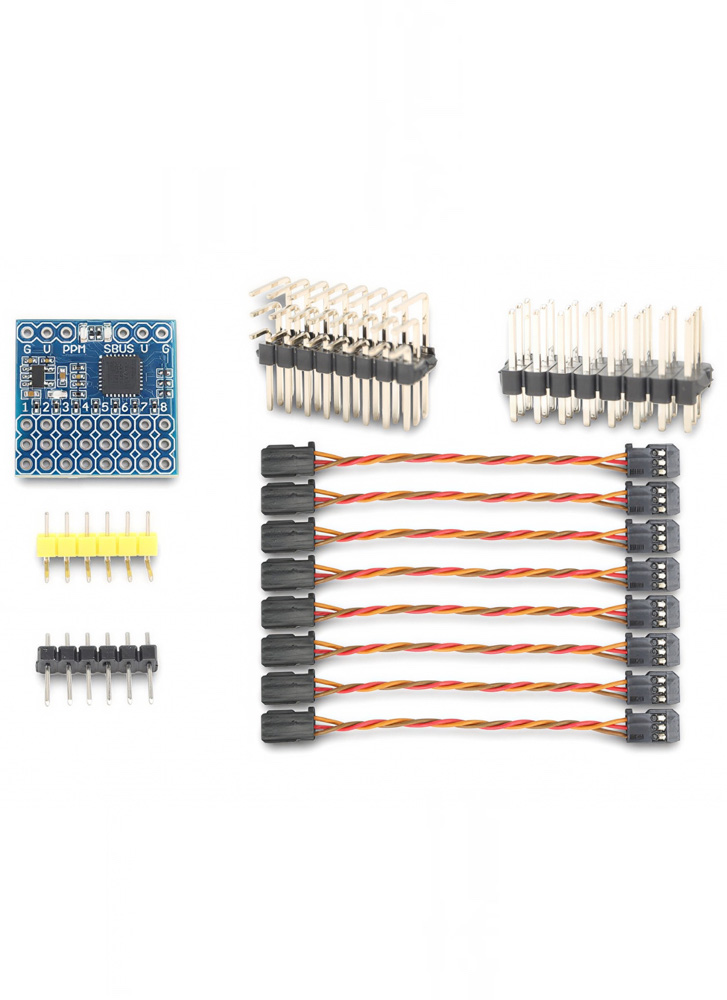

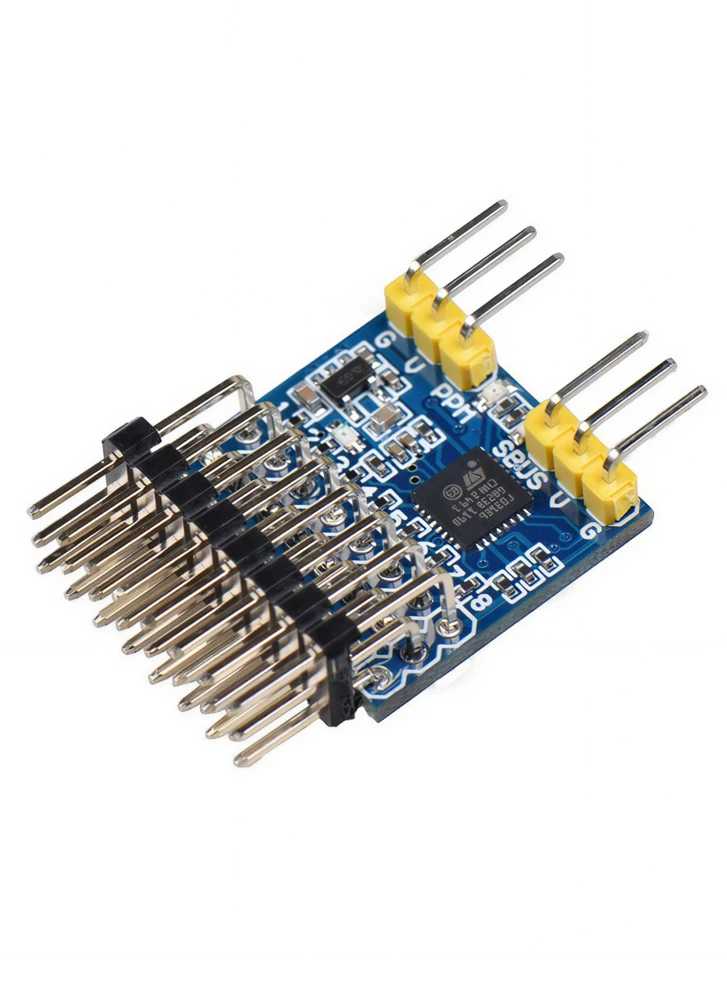

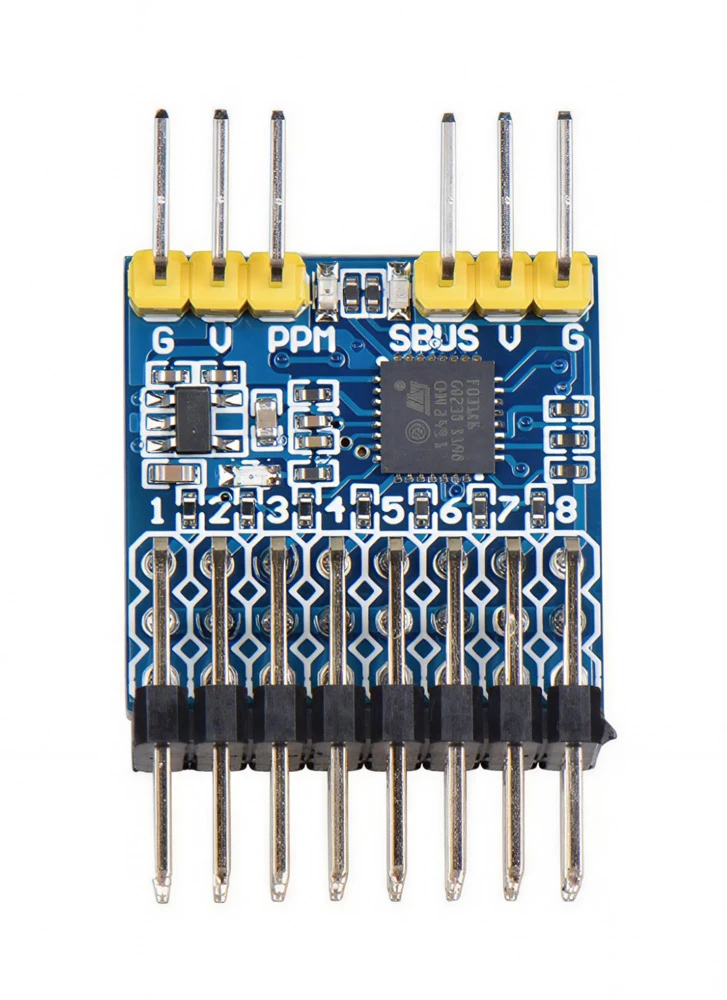

8 Channel PWM PPM SBUS Signal Converter

This 8CH signal converter will allow you to convert between SBUS, PPM and PWM signals. The input signal is automatically recognized and switches signal in the right direction.

Wiring Instructions:

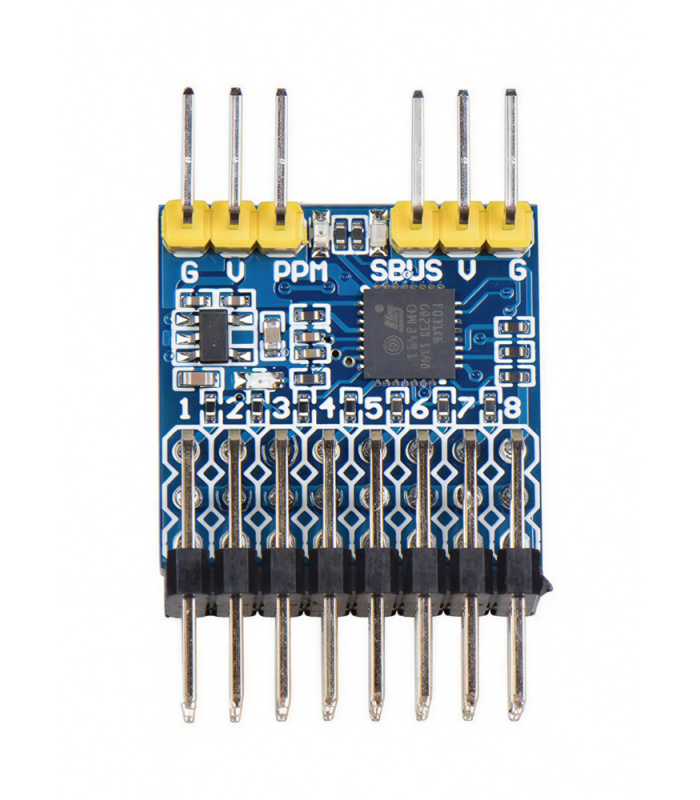

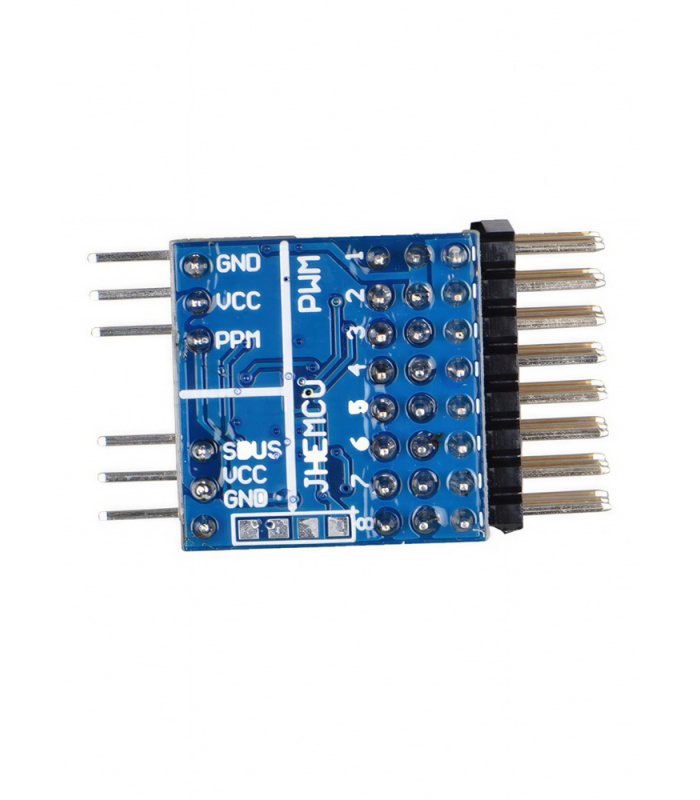

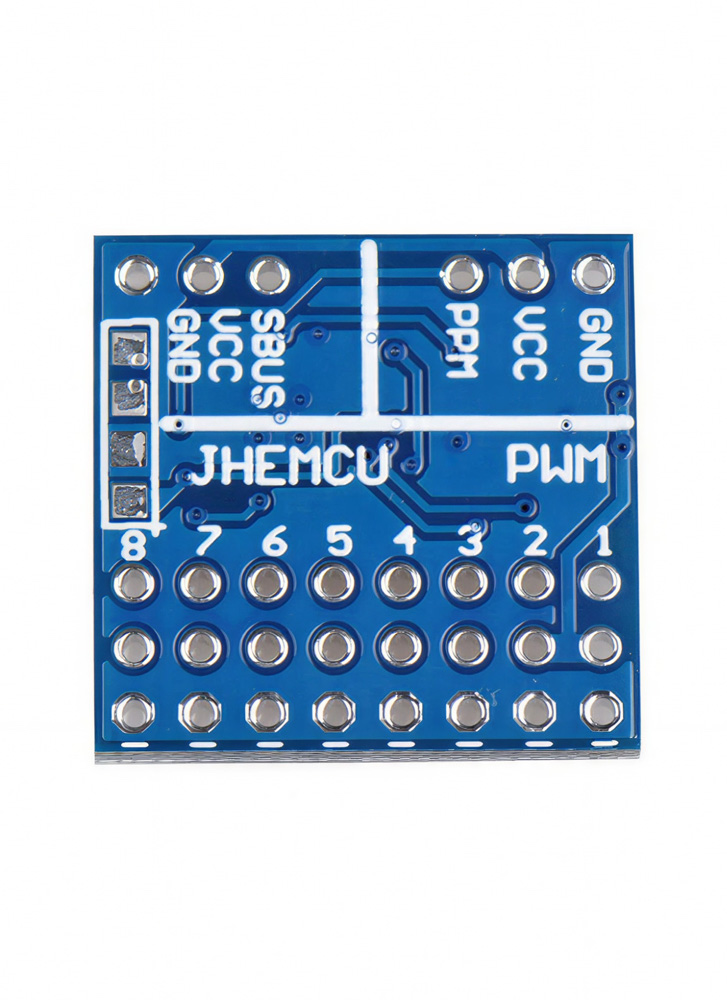

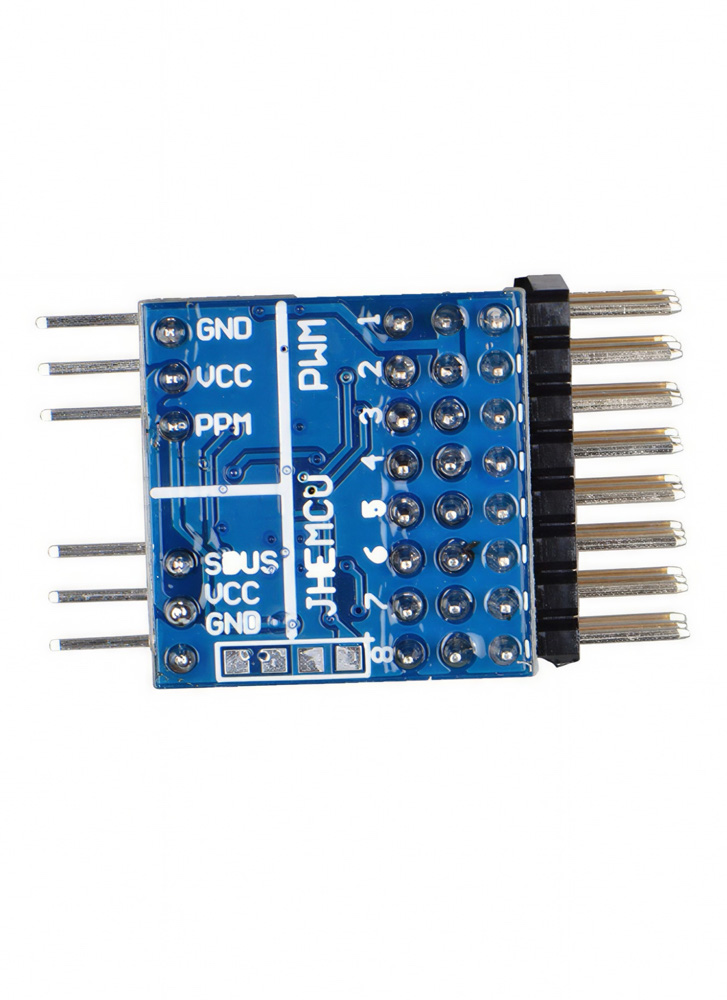

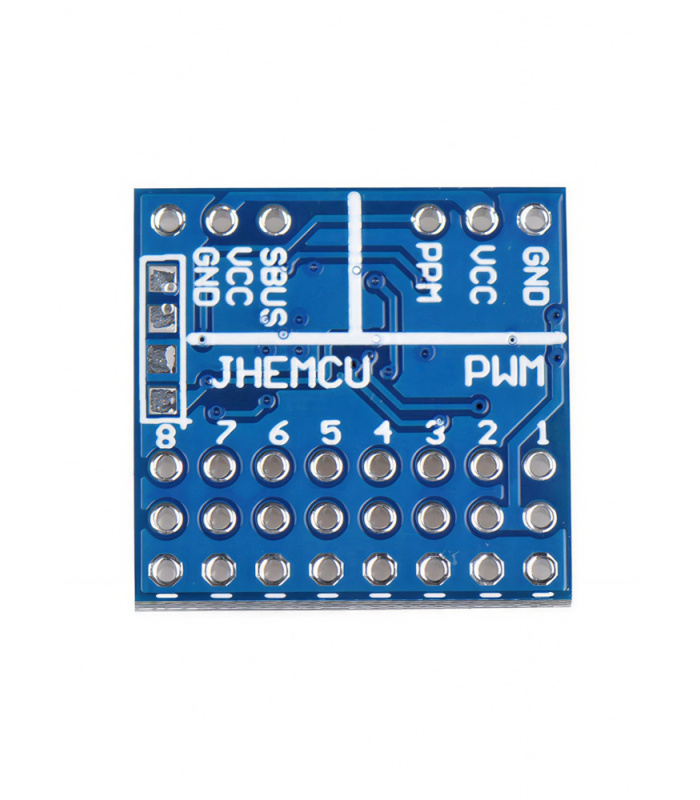

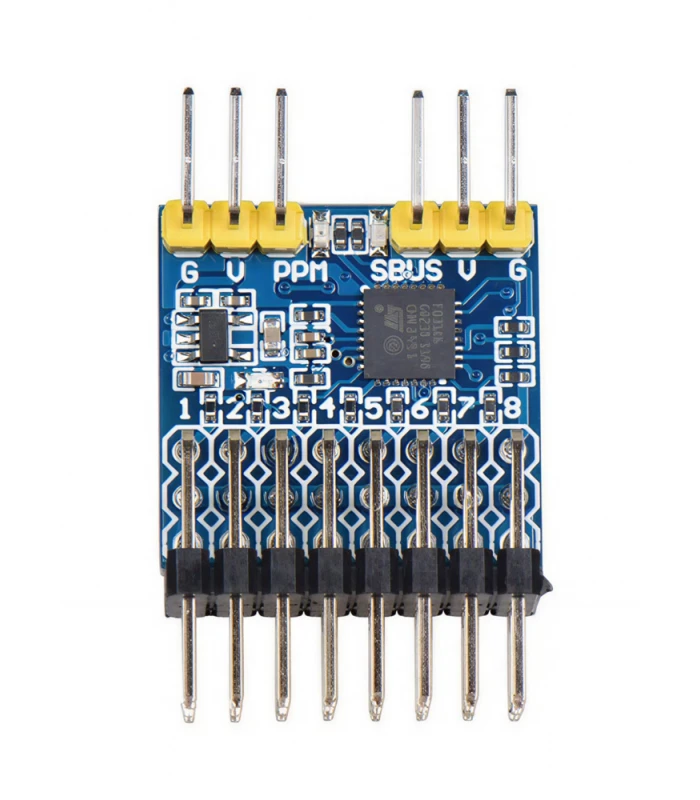

• Channels 1-8: Use for PWM signal input or output channel;
• Channel 9: Use for PPM, SBUS input or PPM output;
• Channel 10: use for SBUS or PPM output

The input signal is automatically recognized without manual switching:

1. When the PWM signal is input to any one or several channels in the 1 – 8  Channel,  Channel 9 will output the PPM signal and Channel 10 will output the SBUS signal (indicator will flash 1)
2. When Channel 9 is input PPM signal, Channels 1-8 will output PWM signal, Channel 10 will output SBUS signal (indicator light flash 2)
3. When Channel 9 is input SBUS signal, Channels 1-8 will output PWM signal, Channel 10 will output PPM signal (indicator light flash 3)​

UPDATE: The latest version of this product now supports 16 channels (selectable between 1-8 and 9-16). By default when fed an input SBUS signal, it will output channels 9-16 (the RED LED D2 illuminates) – this is usueful if you already have an 8CH receiver and need a further 8 PWM channels. To switch the output channels to 1-8, power up the device with the button held, like binding a receiver (LED turns off). Two of these converters can be used together to turn a 16CH SBUS micro or nano receiver into a 16-channel PWM receiver, ready to connect directly with servos and other PWM devices.
