HappyModel Speki+ DSM2/DSMX Compatible 2.4GHz Receiver

£18.60 Inc. VAT

Spektrum DSM2/DSMX 2.4GHz compatible micro receiver.

Out of stock

Notify me when item is back in stock.

0 People watching this product now!

Description

A Spektrum DSM2/DSMX 2.4GHz compatible RC RX from HappyModel with BetaFlight RSSI OSD compatibility. The receiver benefits from a power amplifier to improve signal sensitivity and therefore range.

Setup Advice:

Connect the SRXL to a free TX port (not RX) connection on your FC and enable Serial_rx or this UART port. If you connect to TX1 then you should enable serial_rx for UART1.
Telemetry output should be enabled in Betaflight
In BetaFlight, set the receiver mode to Serial-based receiver and Serial Receiver Provider to SPEKTRUM2048/SRXL
Set AUX 8 for the RSSI Channel

Specification

Support protocol: DSM2/DSMX
Output Signal configuration: SRXL (Set Spektrum2048/SRXL for the serial receiver provider)
Antenna connector: I-PEX MHF3
Antenna length: 70mm
Input voltage: 3.6v~13v
Input current: 100ma
Channels: Max12ch(usually channel 12 is used for RSSI)
Telemetry output:
For the radio transmitter which come with Opentx and equipped with DSM2/DSMX module, the RSSI display as the value of Hold from the radio screen. And the input voltage is display as the value of A2 .
Sensitivity: -101dBm
Return transmission power: 18dBm
Dimension: 20×12.4x5mm
Weight: 1.2g

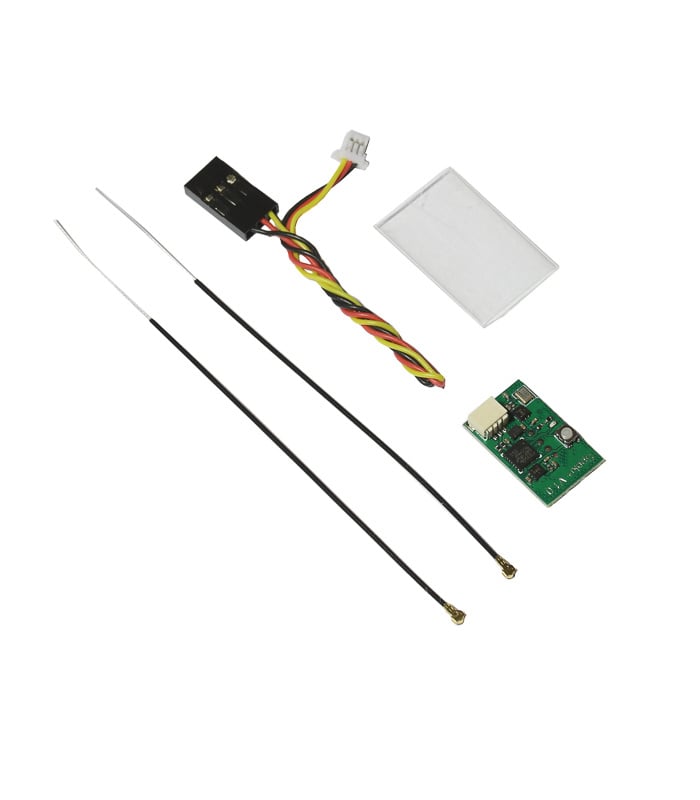

Included

1x Speki+ 12CH SBUS DSM2/DSMX 2.4GHz Micro RC Receiver
