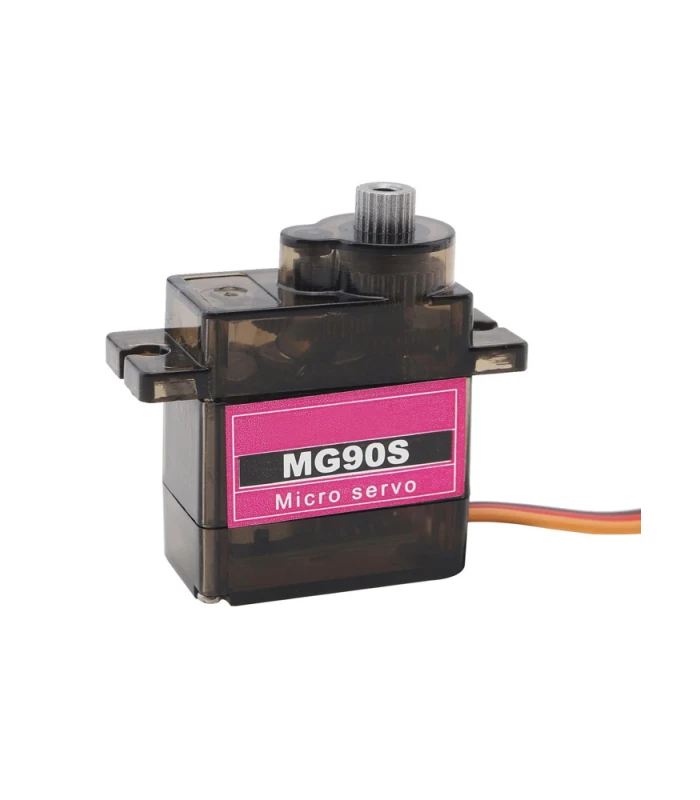

MG90S Metal-Gear Micro Servo 9G - 90° / 180° / 360°

MG90S Metal-Gear Micro Servo 9G - 90° / 180° / 360° - Image 3

MG90S Metal-Gear Micro Servo 9G - 90° / 180° / 360° - Image 4

MG90S Metal-Gear Micro Servo 9G - 90° / 180° / 360° - Image 5

MG90S Metal-Gear Micro Servo 9G – 90° / 180° / 360°

Price range: £4.50 through £5.50 Inc. VAT

Tough metal-gear micro servo with 90°, 180°, or 360° options for precise or continuous motion control.

Angular Range

Clear

Add to compare

0 People watching this product now!

SKU: N/A Categories: Servos, Planes & Wings, Plane Electronics, Spare Parts Tags: Micro Servo, Servo, Spare Part

Description

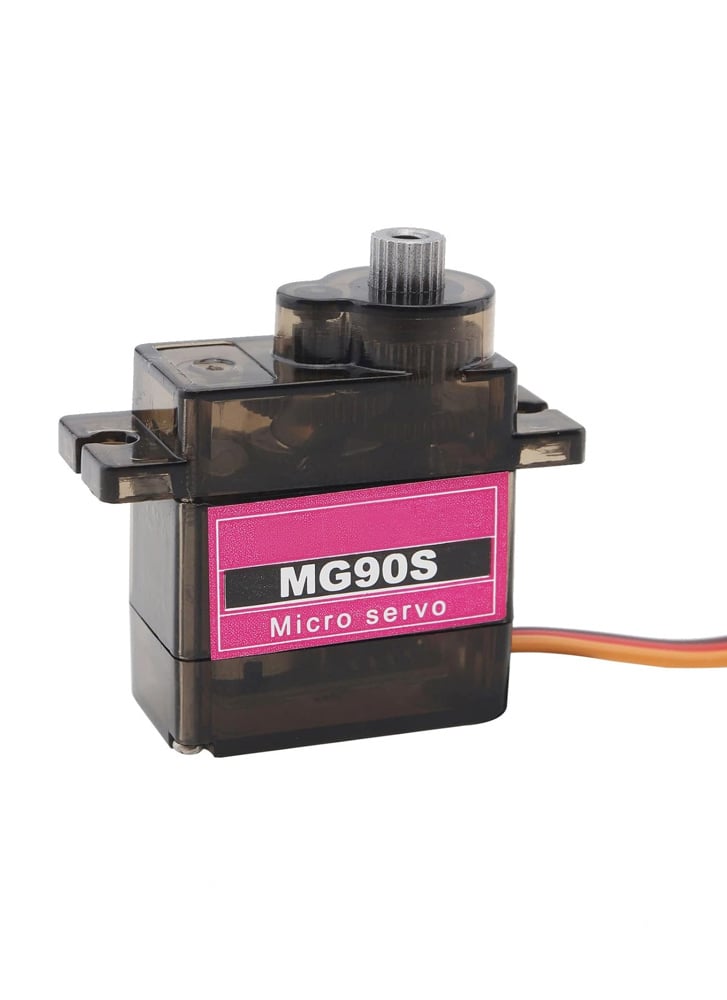

The MG90S is a compact, high-performance micro servo featuring durable metal gears for increased strength and longevity. Popular in robotics, RC models, and DIY electronics, it offers a significant upgrade over plastic-geared alternatives like the SG90.

Available in 90°, 180°, and 360° versions, the MG90S gives you flexibility depending on your control needs:

90° and 180° Versions: Precise positional control for arms, linkages, and steering mechanisms.
360° Version (Continuous Rotation): Ideal for drive wheels or winches. This version does not support angle positioning but responds to standard PWM signals for directional speed control.

For the 360° model:

1500μs PWM = Stop
>1550μs = Clockwise rotation, speed increases up to 2000μs
<1450μs = Counterclockwise rotation, speed increases down to 1000μs

Metal gears ensure reliable operation under load, making the MG90S a trusted choice for demanding applications in a small form factor.

Specification

Operating Voltage: 4.8V – 6V
Torque: 1.8 kg/cm at 4.8V / 2.2 kg/cm at 6V
Operating Speed : 0.11 seconds / 60 degrees
Current Consumption:
- In motion: 50-80mA
- In holding: 5-10mA
- During blocking: 800 mA
Gear material: Metal
Housing material: plastic
Servo type: Analog
Angular Range: 0° to 90° / 0° to 180° / 0° to 360° (PWM controlled)
Pulse Width: 1ms (0°), 1.5ms (90°), 2ms (180°) / 1000us (CCW), 1500us (stop), 2000us (CW)
Weight: ~13.4g

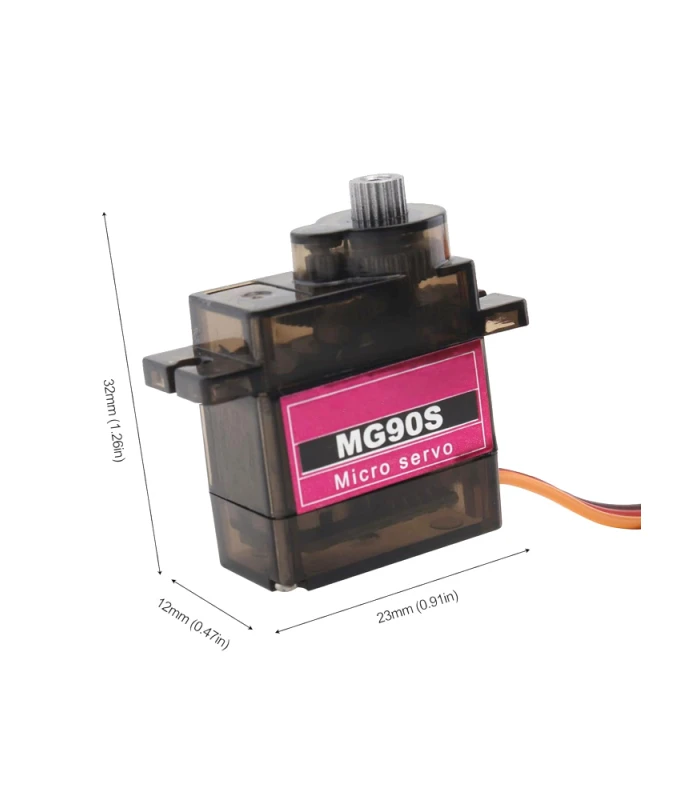

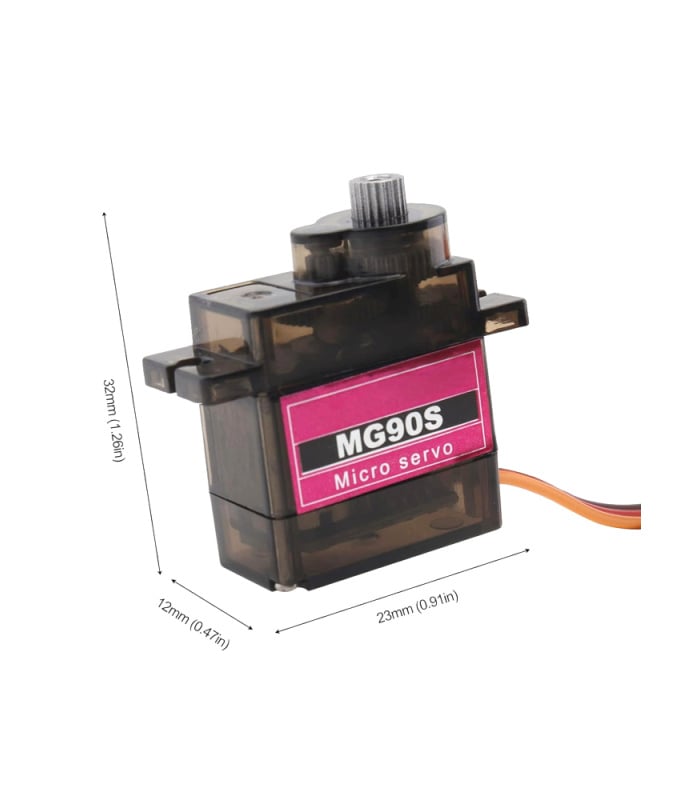

Size: 22.8mm x 12.2mm x 31mme

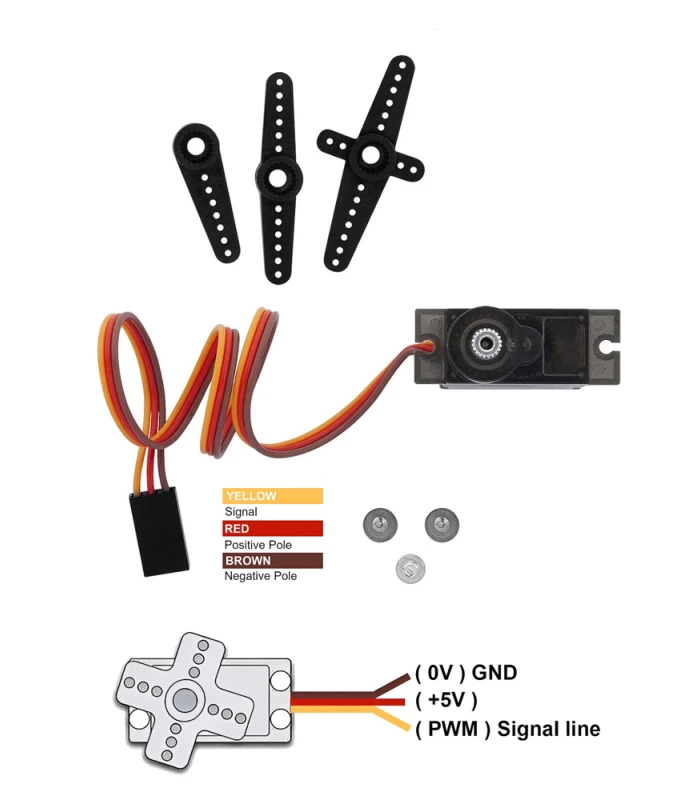

Servo cable: JR, 25cm

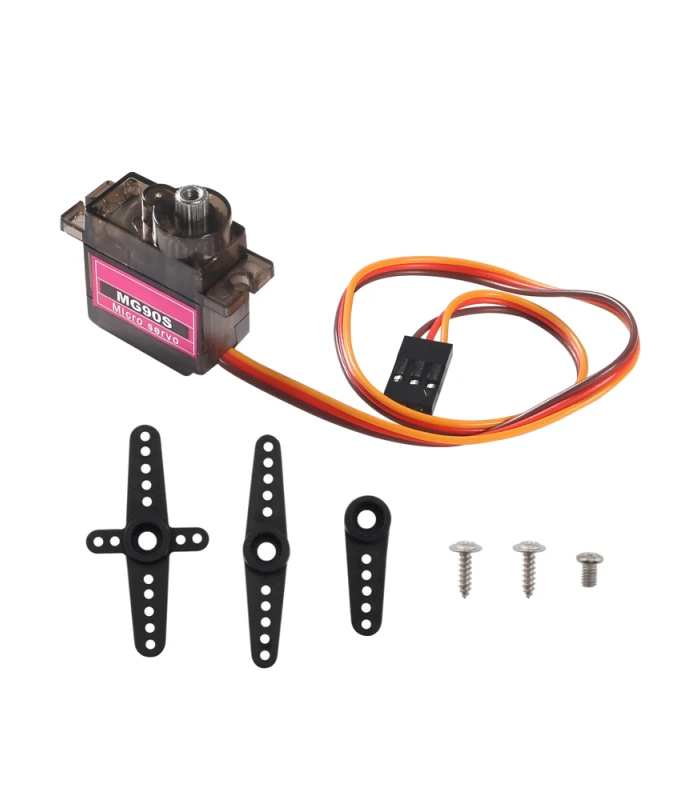

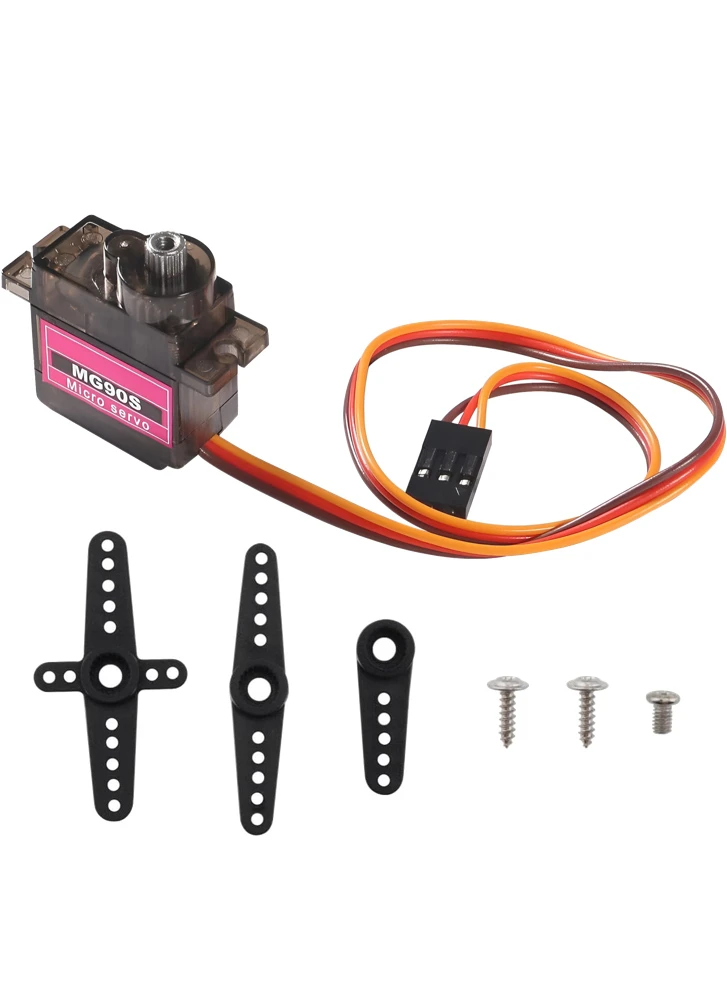

Included:

1x 9g Metal Gear Servo
3 servo horns
Mounting screws

Downloads

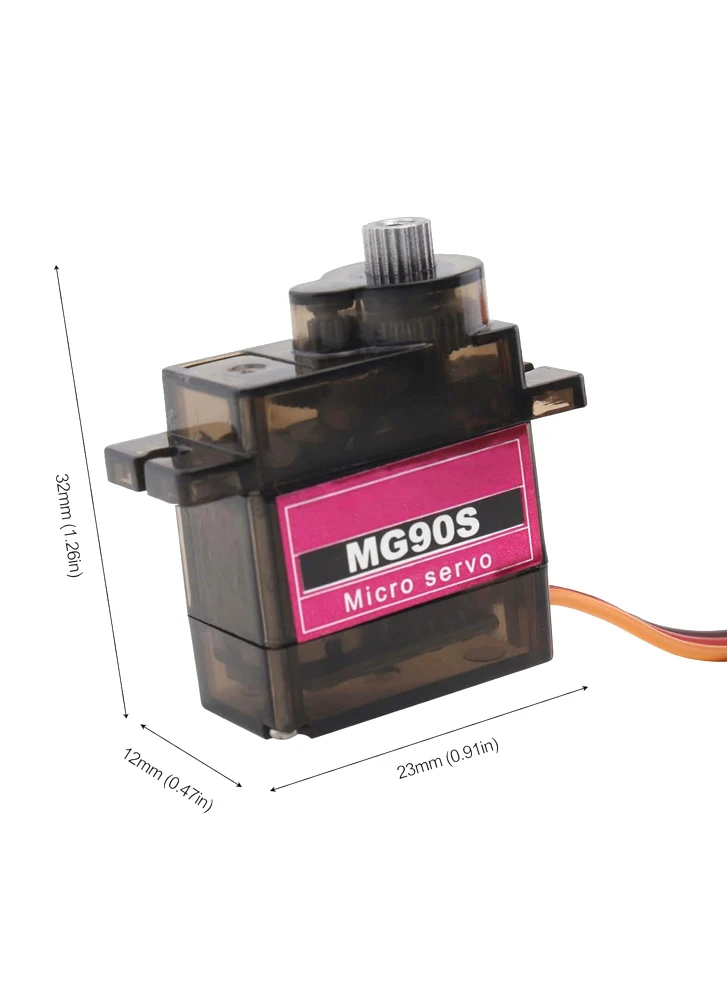

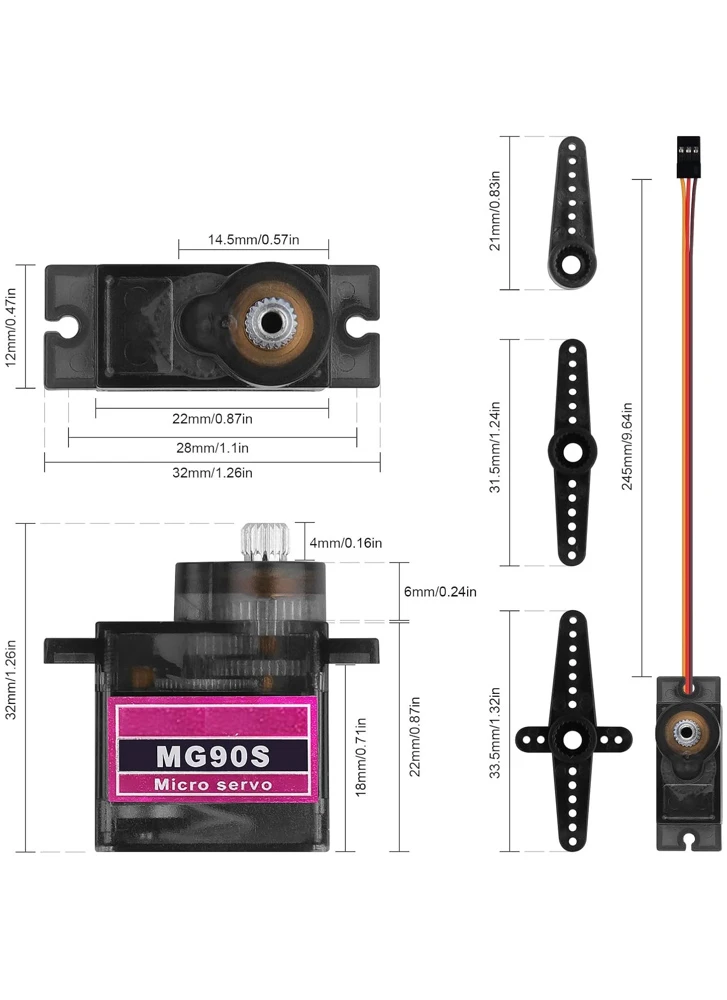

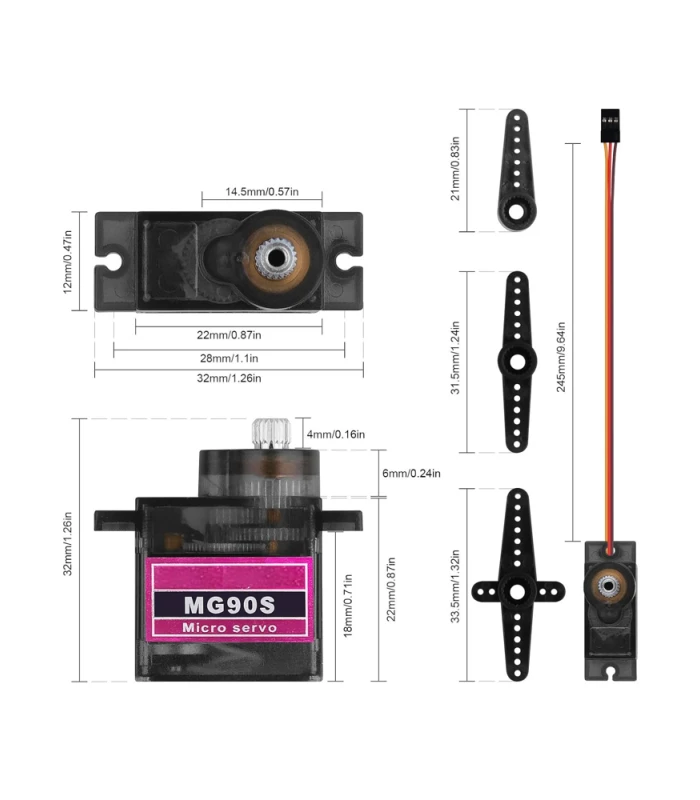

Dimensions (jpg, 86KB)

Download
