Drone PWM Electronic Payload Release / Thrower

(2 customer reviews)

£49.00 Inc. VAT

This electronicย payload release mechanism can handle up to 20KG loads.

In stock

0 People watching this product now!
SKU: DIY-PAYLD-TL2962 Categories: , , , Tags: , , ,
Description

Important Customer Notice: This product is exclusively available for purchase by businesses and educational institutions. Weโ€™re unable to fulfill orders from individual buyers โ€” thank you for your understanding.

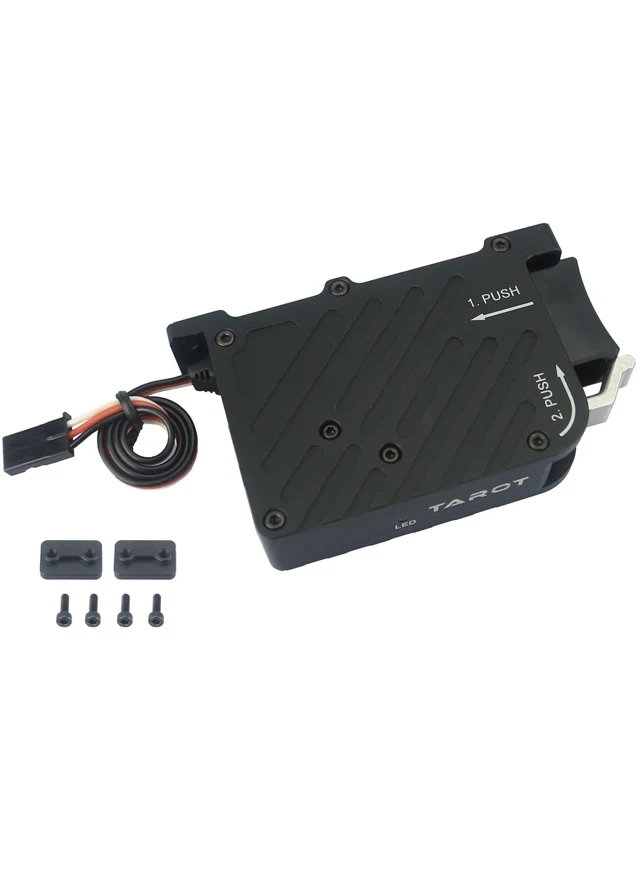

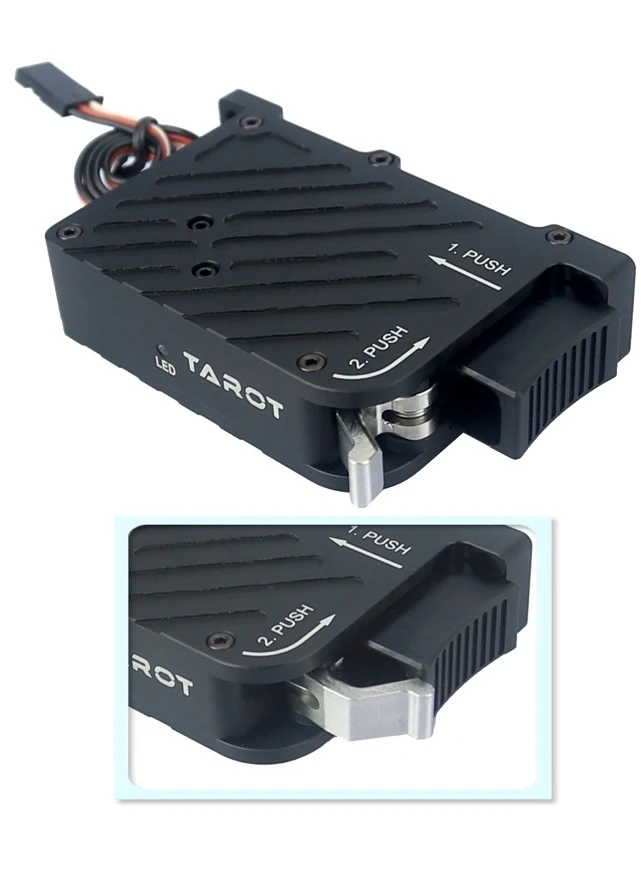

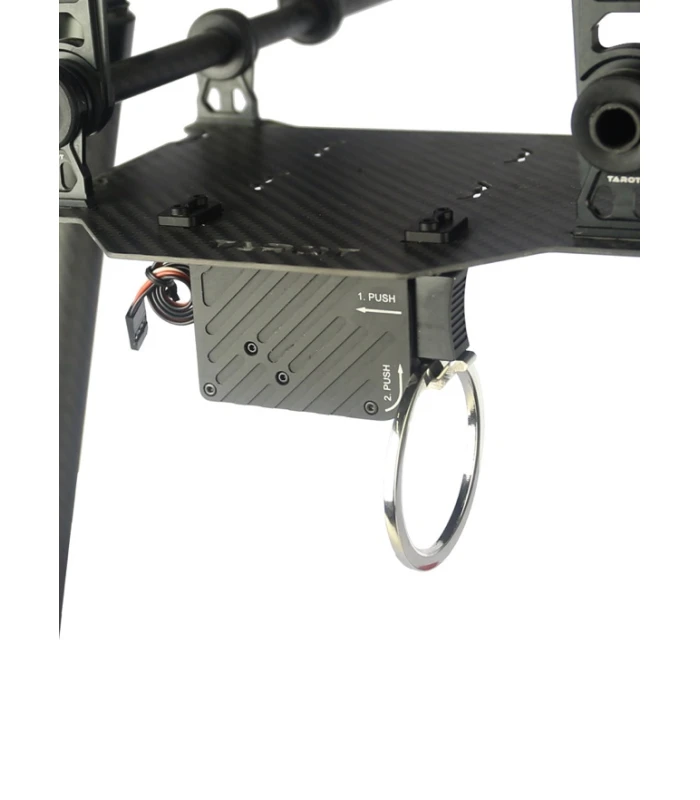

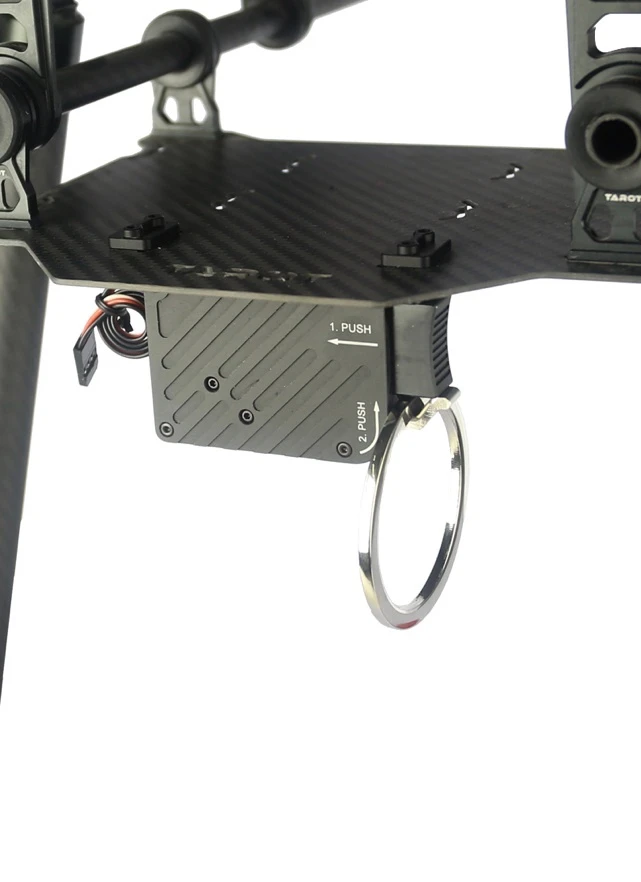

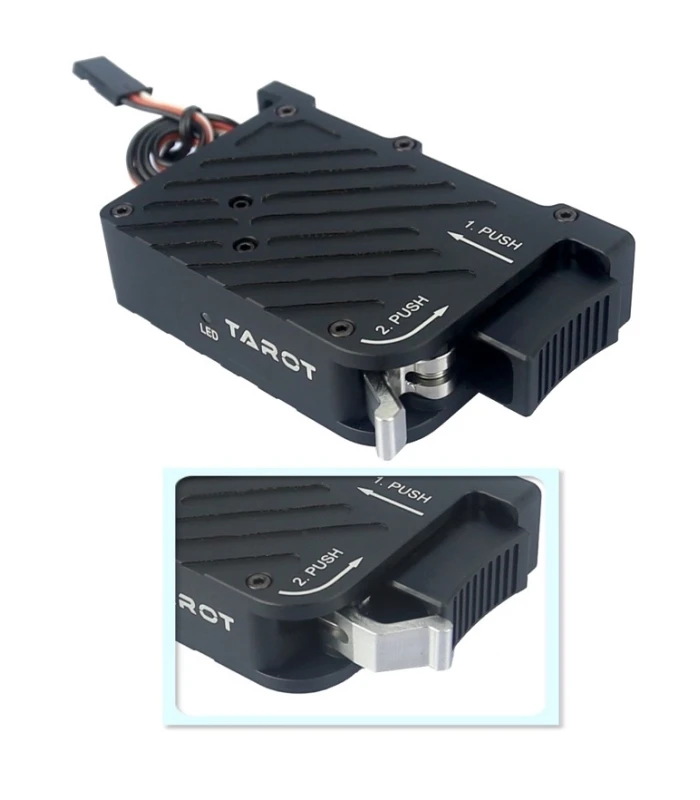

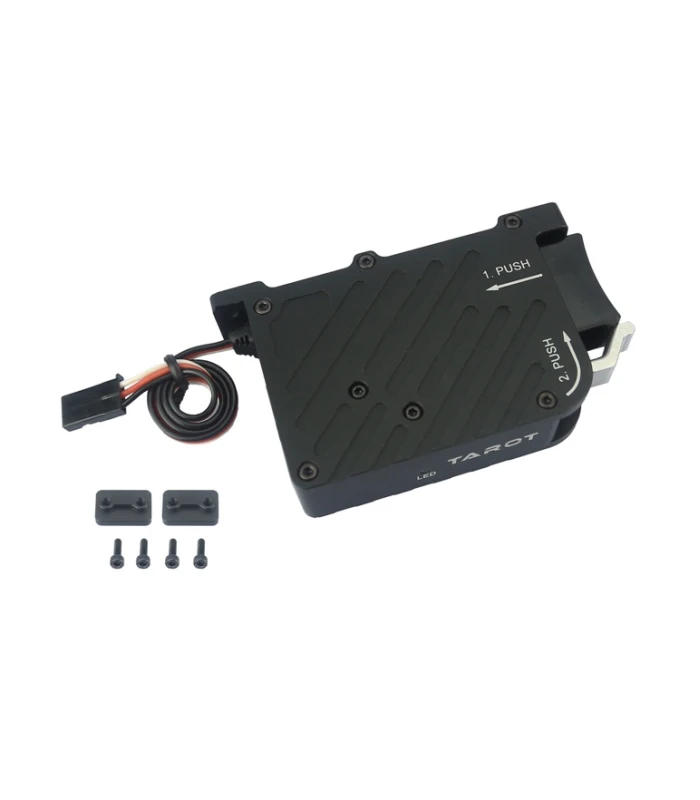

An effectiveย electronicย payload release mechanism from Tarot. Its recommendย use is forย up to 20KG loads, but Tarot have tested it for 40KG and found it to be effective. The thrower device is controlled via a PWM signal. After operating, the device is simply reset by pushing the side button and lifting the release level.

Multiple units could be operated at the same time if connected to the sameย PWM output viaย Y leads.ย Alternatively units could be independently operated by being connected to different PWM channels.

TL2962

TL2962 Size

Notes on LED indicator:ย
1: PWM signal input value 0-59%: The red LED is always on/no device action.
2: PWM signal input value reaches 60-100%:ย The LED green light flashes once / the device drop switch is turned on once; the LED light stays on green after the drop is over.
3: LED red light flashes (2 times/second) when no PWM signal input is detected by the device.

Specification
  • Weight: 91.5g
  • Size: 78.5mmx48mmx18mm
Q&A

Questions and answers of the customers

    At what voltage does the thrower operate? And at what PWM frequency?
  1. 0 votes
    Q At what voltage does the thrower operate? And at what PWM frequency? answer now
    A Hi, it operates on 5 volts. Sorry we don't have the specification for PWM frequency, however it works with PWM radio receivers or PWM servo servo testers (if the mechanism doesn't trigger, you will just need to increase the channel range).

Reviews (2)
5
2 reviews
2
0
0
0
0

2 reviews for Drone PWM Electronic Payload Release / Thrower

Clear filters
  1. Verified owner steve (verified owner)

    I bought this for an addition to a clients octocopter. I’ve previously used the lighter duty TAROT version but this time needed something for a much heavier payload.
    It works a treat although it is a bit more fiddly to load up the cargo, but having said that you don’t need to have the transmitter to do it so for fleet operations a better solution.
    Solidly built, I expect it to last a long time

    Of course FlyingTechs usual speedy service, received it next day ๐Ÿ‘

  2. Verified owner steve (verified owner)

    I bought this for an addition to a clients octocopter. I’ve previously used the lighter duty TAROT version but this time needed something for a much heavier payload.
    It works a treat although it is a bit more fiddly to load up the cargo, but having said that you don’t need to have the transmitter to do it so for fleet operations a better solution.
    Solidly built, I expect it to last a long time

    The usual fast service, received it next day ๐Ÿ‘
