Name: ISDT BattGO BG-8S Smart Battery Checker Receiver Signal Tester - Flying Tech
Brand: ISDT
SKU: LIPO-BATTGO
Price: 34.90 GBP
Availability: InStock

Description

The ISDT BG-8S Smart Battery Checker is a new style of multipurpose battery checker. It is specifically designed for hobbyists of remote control products. It comes with lots of great features to help check your batteries, receiver signals and even has a USB output that allows you to charge your phone or other devices. The Battery Checker has a 2.4” display that can be seen in sunlight and has an easy to use menu system to show all functions and data.

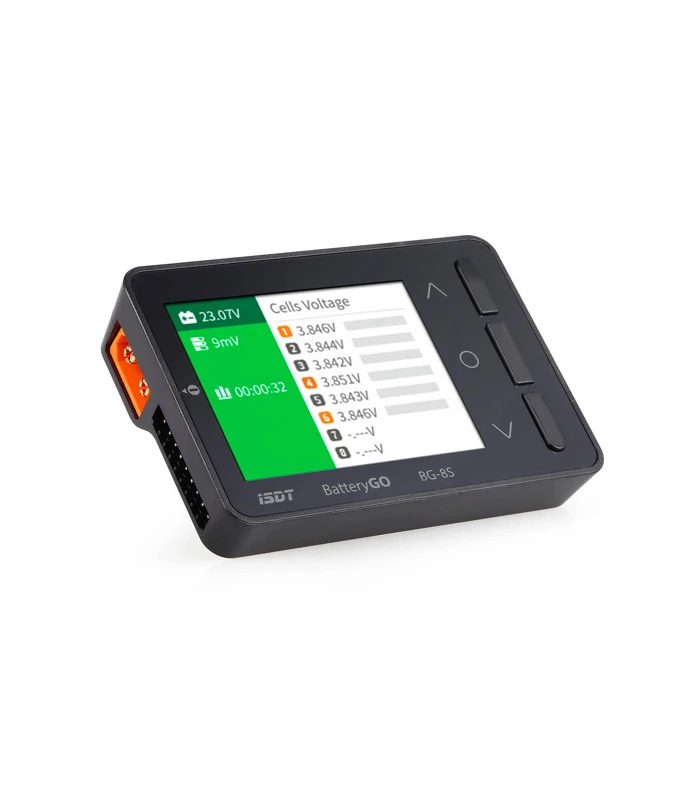

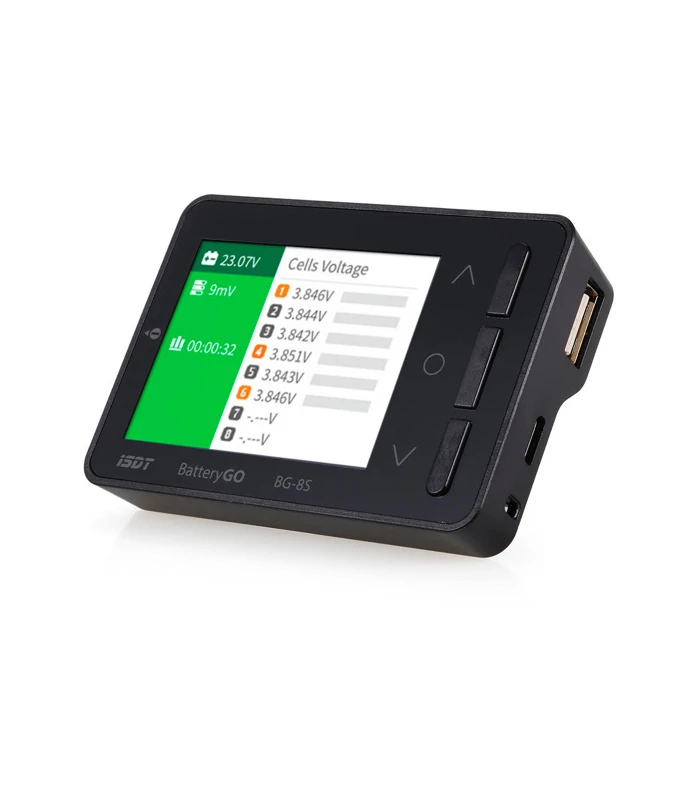

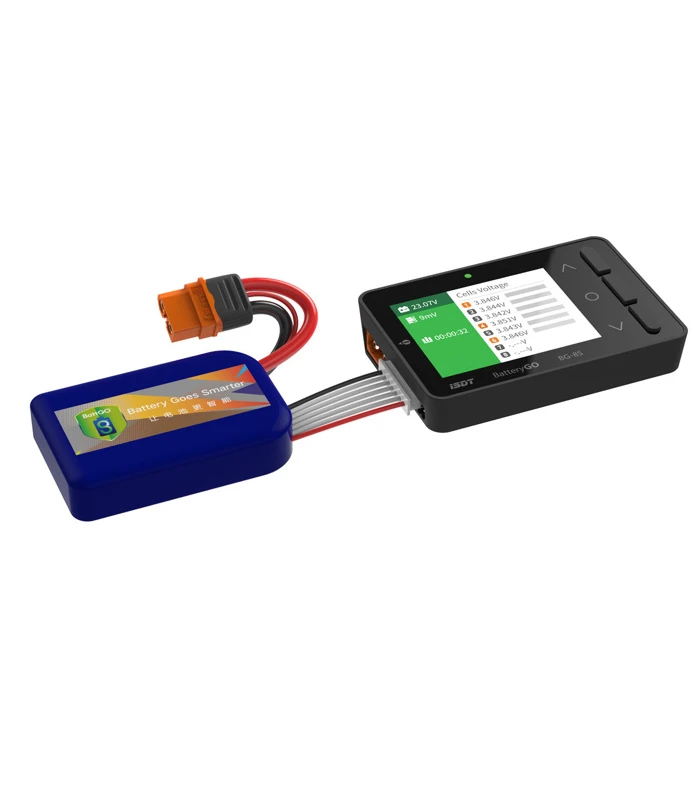

In addition to checking the cell voltages of your battery, there is an advanced balancing algorithm to ensure every cell is well balanced. Most batteries types are supported such as LiHv, LiPo, Lilon, LiFe, NiMh/Cd.

If you want to charge up your USB devices (phones, tablets, etc) you only have to connect up a battery to the XT-60 and the BG-8S can become your power bank for mobile devices.

The BG-8S also tests receiver signals and currently supports multiple protocol analysis including PWM, PPM&S.BUS with more to come.

Features:

Battery voltage check – supports 1S to 8S batteries (0.8V to 4.8V per cell)
LiPo Battery Cell Balancing
5V USB Charger for cameras, phones & tablets etc

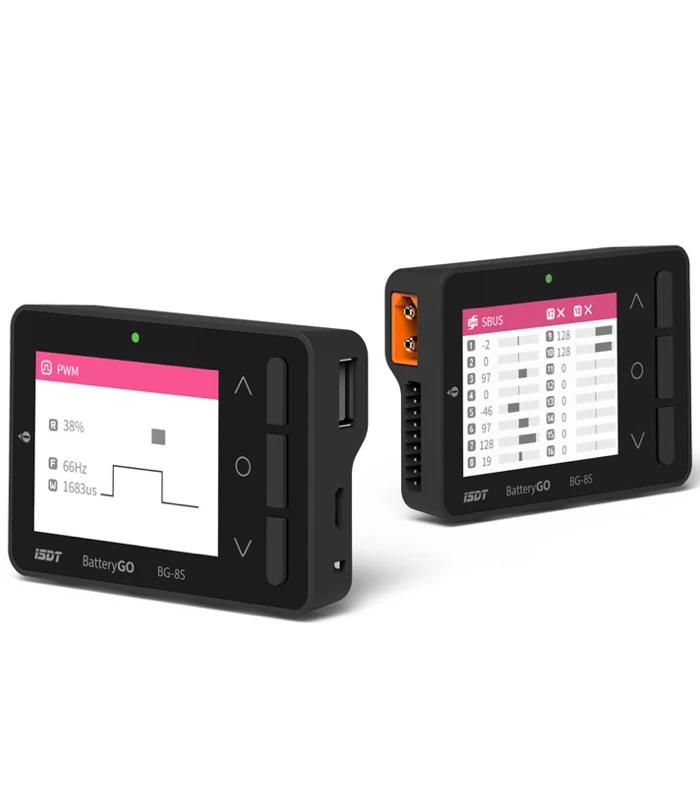

Receiver signal test and protocol analysis: PWM, PPM, SBUS, gives you the value of each channel
Upgrade via USB port
Supports “BattGo” Technology
Multi language support

Specification

Working voltage: 5.0V – 36V
Input voltage 1s: 0.8V – 15V
Input voltage 2-8S: 0.8V – 4.8V
Battery cells: 1-8S
Voltage measurement accuracy: ±0.005V @ 4.2V
Balancing cells accuracy: <0.005V
Support USB charging: Q2.0/C3.0, BC1.2, Maximum output 12V/2A
Support smart battery: Charging and discharging setting, read battery info and usage history
Supported Batt. Type: LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S) / Lilon (1-8S) / NiMH/Cd(1-10S)
Display: 2.4” 320×240 260,000 color IPS LCD
Dimension: 80x55x19mm
Weight: 59g
Operating Temperature: 0-40℃
Working Humidity: 10%-90%RH (noncondensing)
Storage Temperature: -20-60℃
Storage Humidity: 5%-90%RH (noncondensing)

Included:

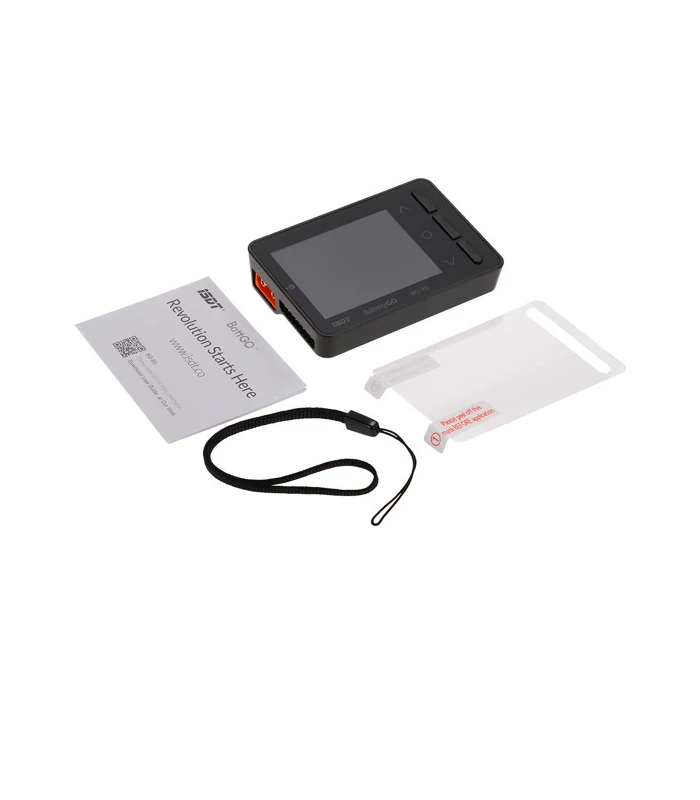

1x ISDT BG-8S Battery Checker

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

A LiPo alarm / tester is a must have piece of equipment for any flight box. LiPo batteries require careful management to maximise their life; they can be charged up to 4.20V and discharged down to 3.0V per cell. Any lower or higher in voltage and the cell will almost certainly be irreversibly damaged (reduced capacity or total inability to accept a charge). Furthermore, a damaged cell may become unstable which can be very dangerous (increased fire risk). A LiPo alarm / voltage tester is therefore an essential piece of kit to monitor the status of your individual cells and avoid damaging them.

Most pilots who fly without a telemetry feed use a LiPo Alarm on board their craft to alert them as to when it’s time to land – it’s recommended to set your alarm to 3.6V to give you enough time to land safely.
