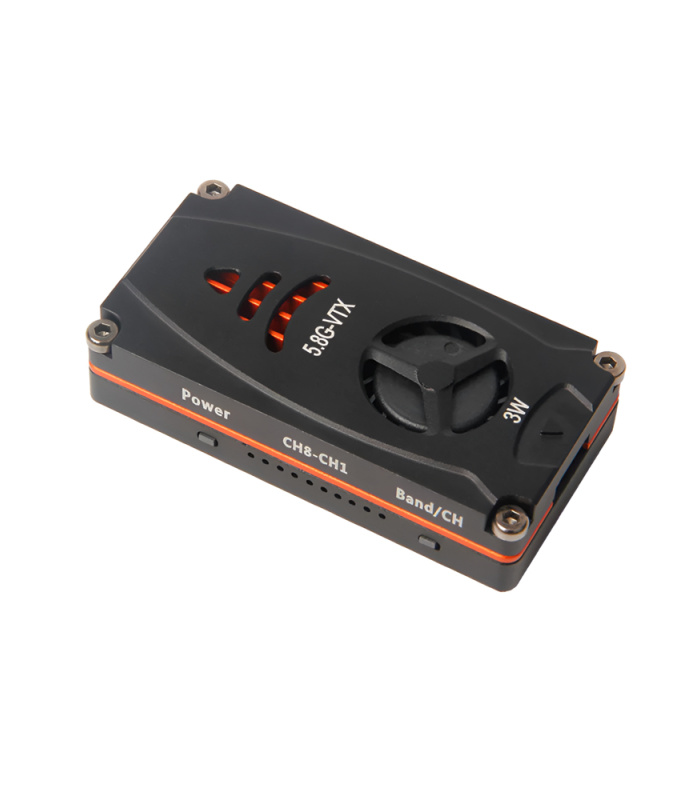

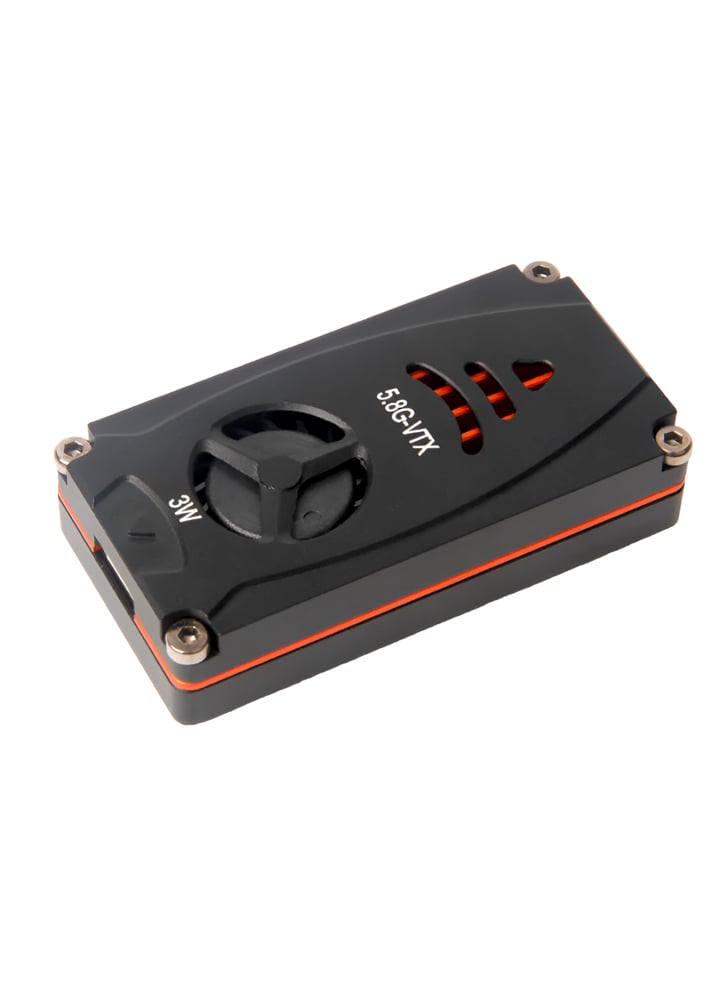

Holybro’s latest Atlatl VTX – updated with two button for easier setup and clear LED indicators.

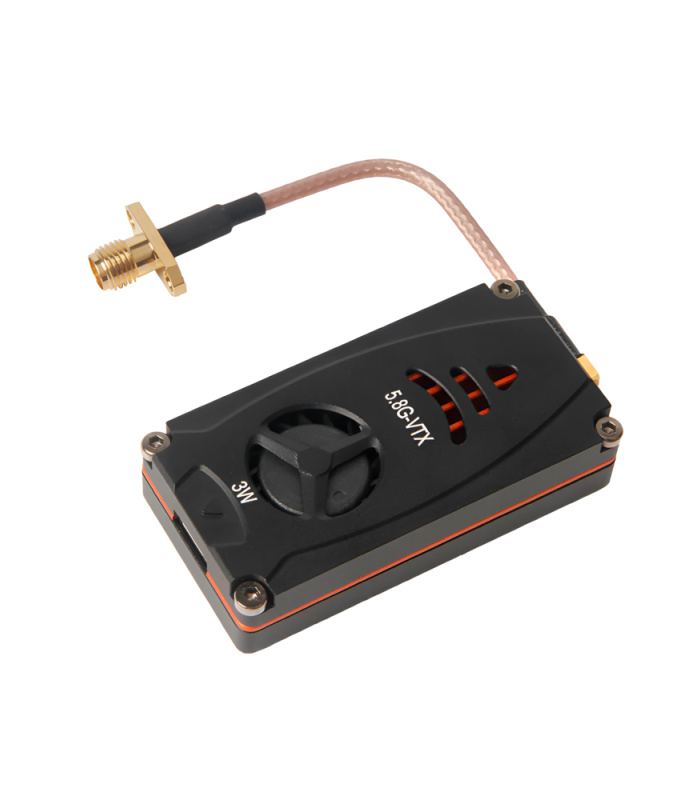

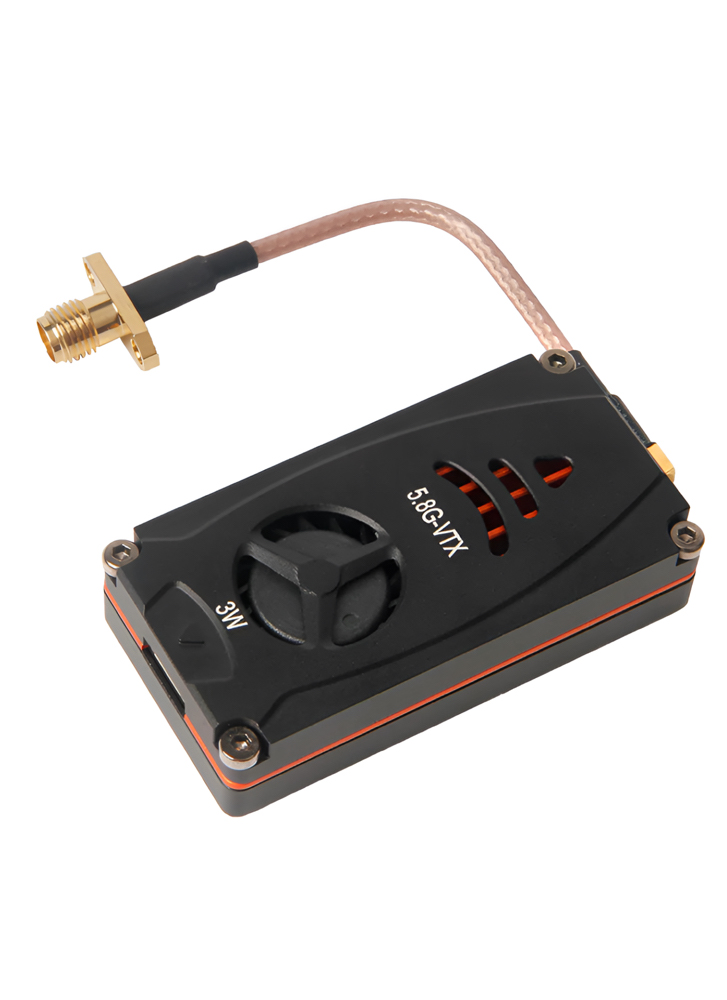

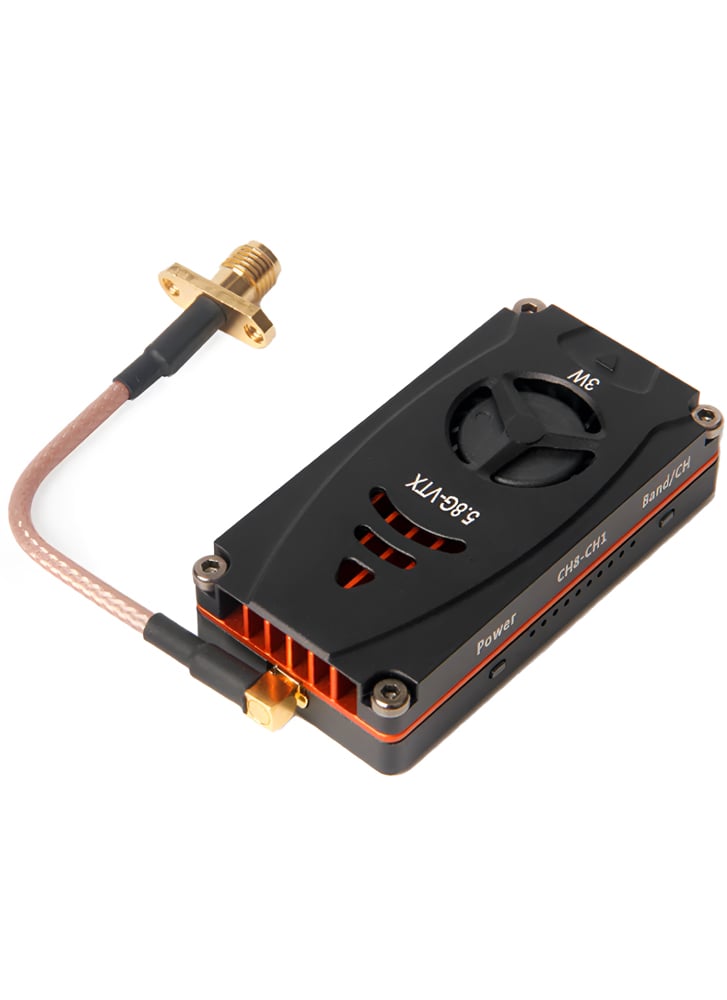

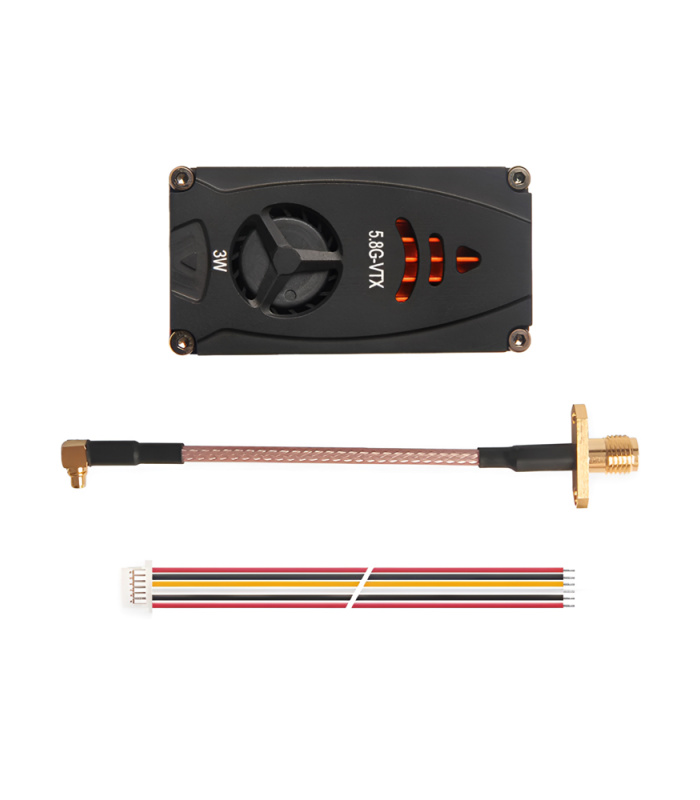

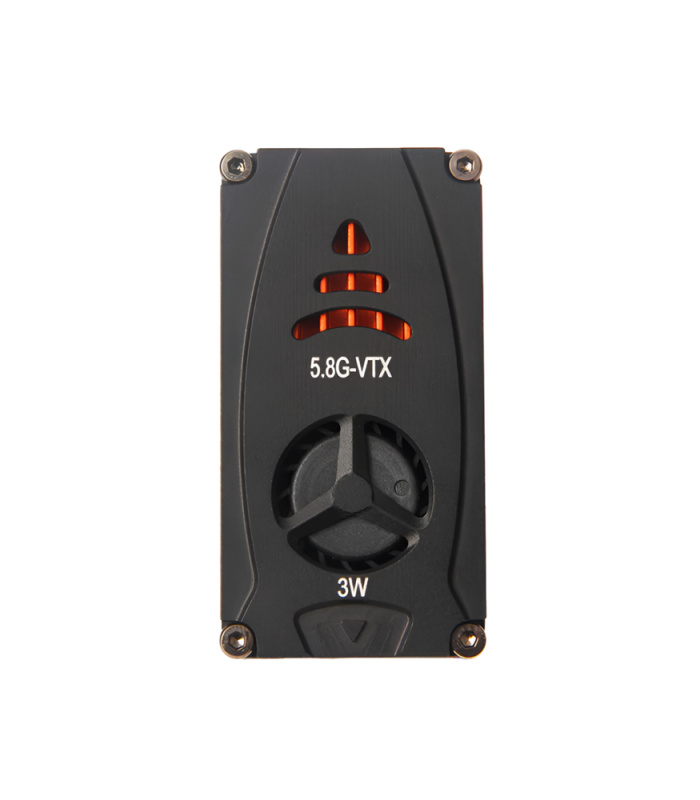

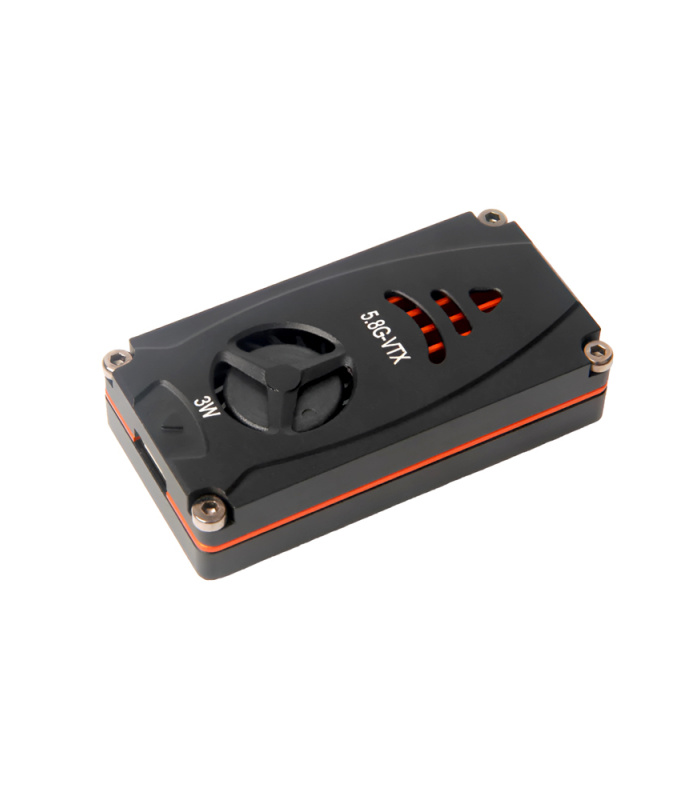

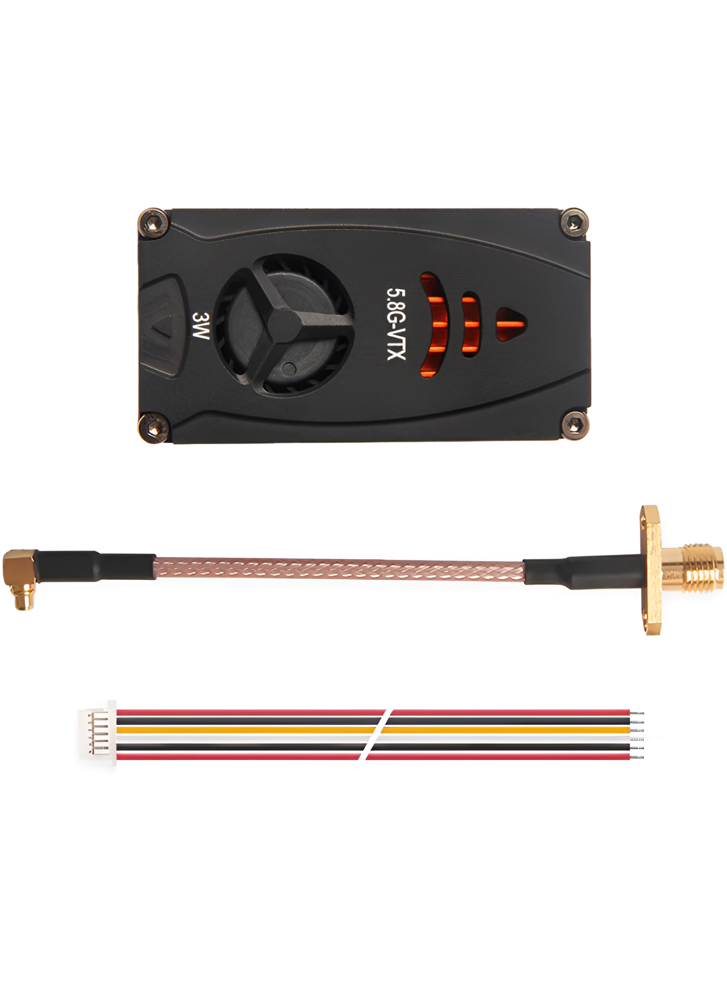

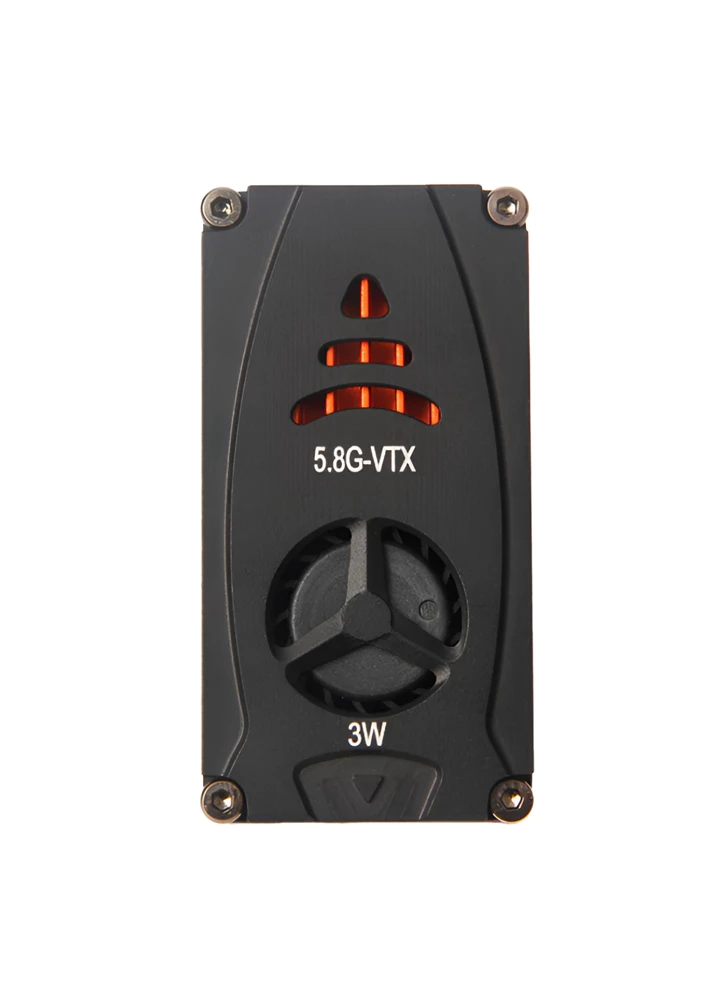

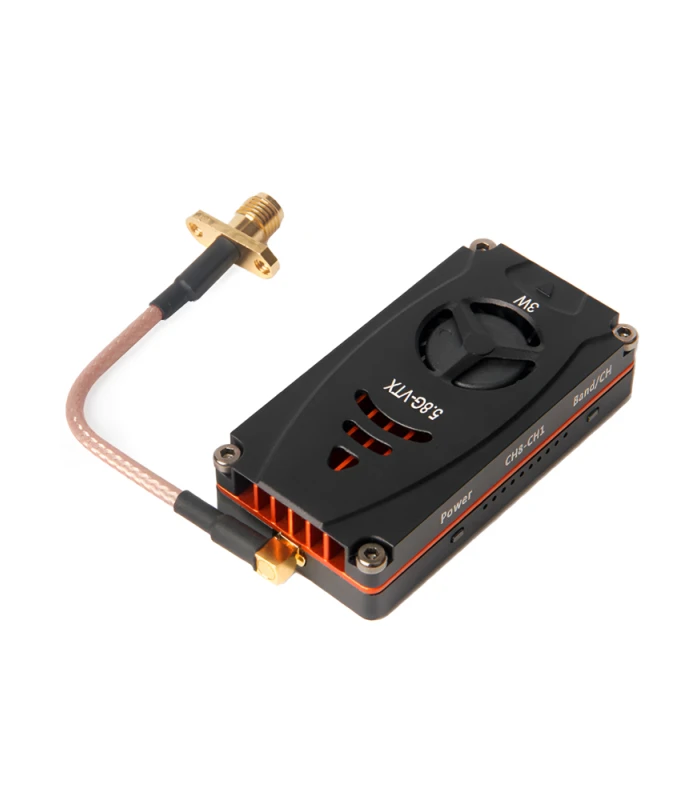

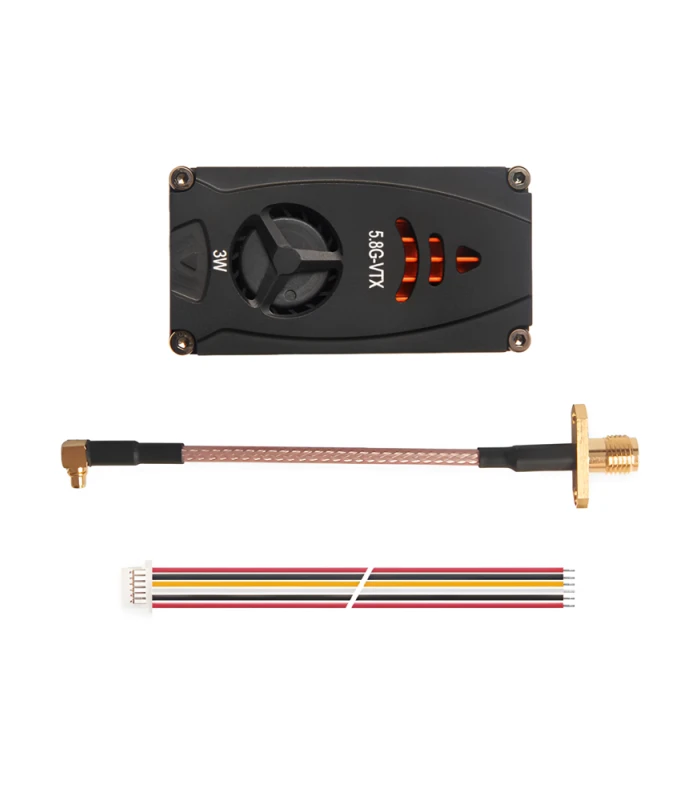

This video transmitter offers a variable power supply, from 25mW (UK legal limit) up to 3W. Running at 3W generates a lot heat, so the VTX incorporates a built-in fan. It also has Pit Mode so that you can power up your VTX to change settings without knocking other pilots out of the air. There is also IRC Tramp which allows you to control your VTX via your flight controller to change channel and transmitting power remotely from your RC. The Atlatl Pro VTX comes with a durable MMCX connector and also with a pigtail SMA converter.
WARNING: MAKE SURE TO INSTALL ANTENNA BEFOREย TURNING ON THIS VIDEO TRANSMITTER

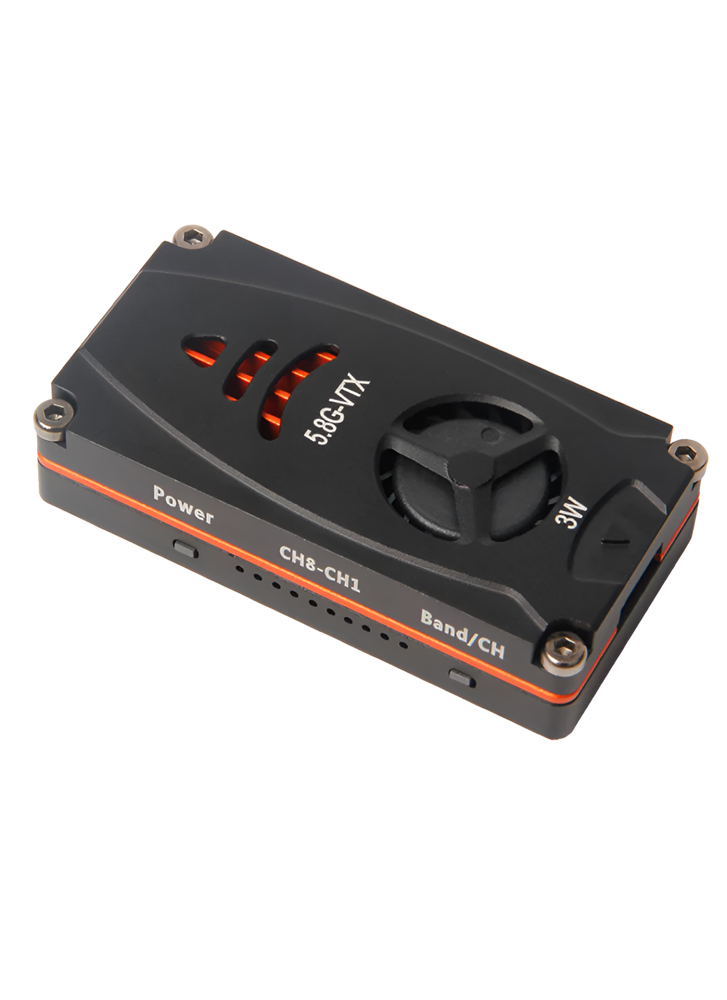

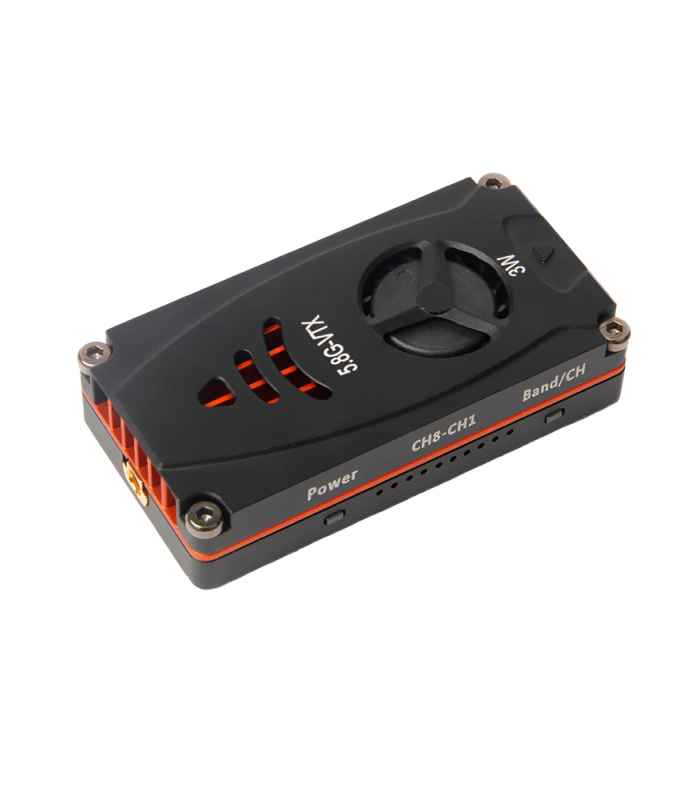

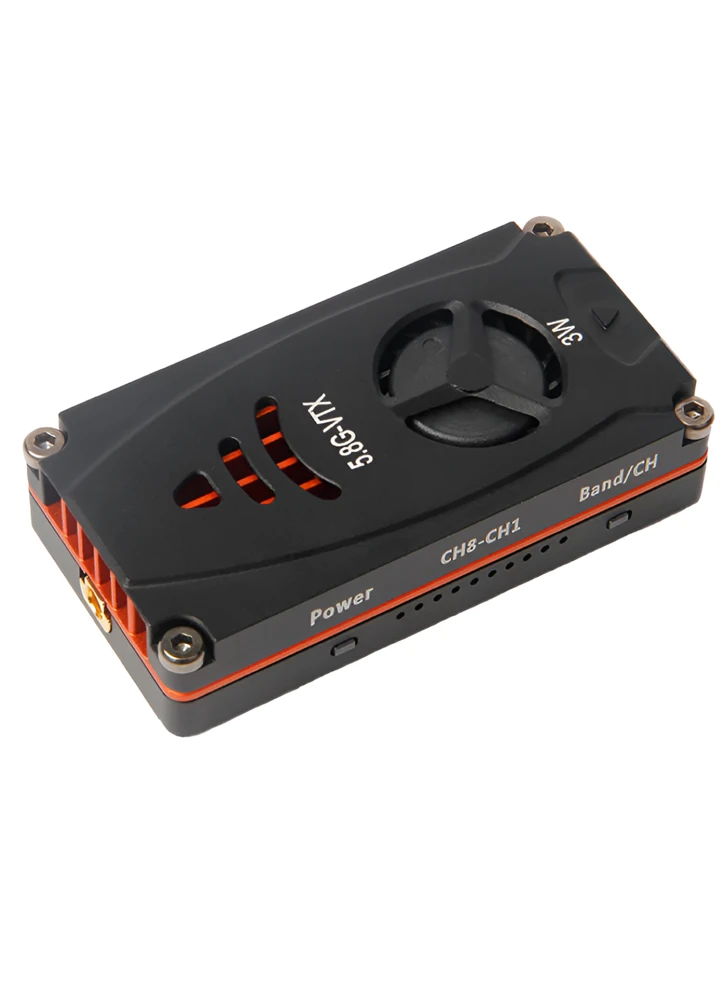

Indicator Light Description
- Power light (Green)
- Blink once per sequence – 25mW
- 2 per sequence – 400mW
- 3 per sequence – 600mW
- 4 per sequence – 1.6W
- 5 per sequence – 3W
- Frequency indicator light (Blue)
- Binary indicator. No lights means CH1, all lights means CH7
- Frequency band lights (Red)
- Blink once per sequence – Band A
- 2 per sequence – Band B
- 3 per sequence – Band E
- 4 per sequence – Band F
- 5 per sequence – Band R
- 6 per sequence – Band L
- 7 per sequence – Band X

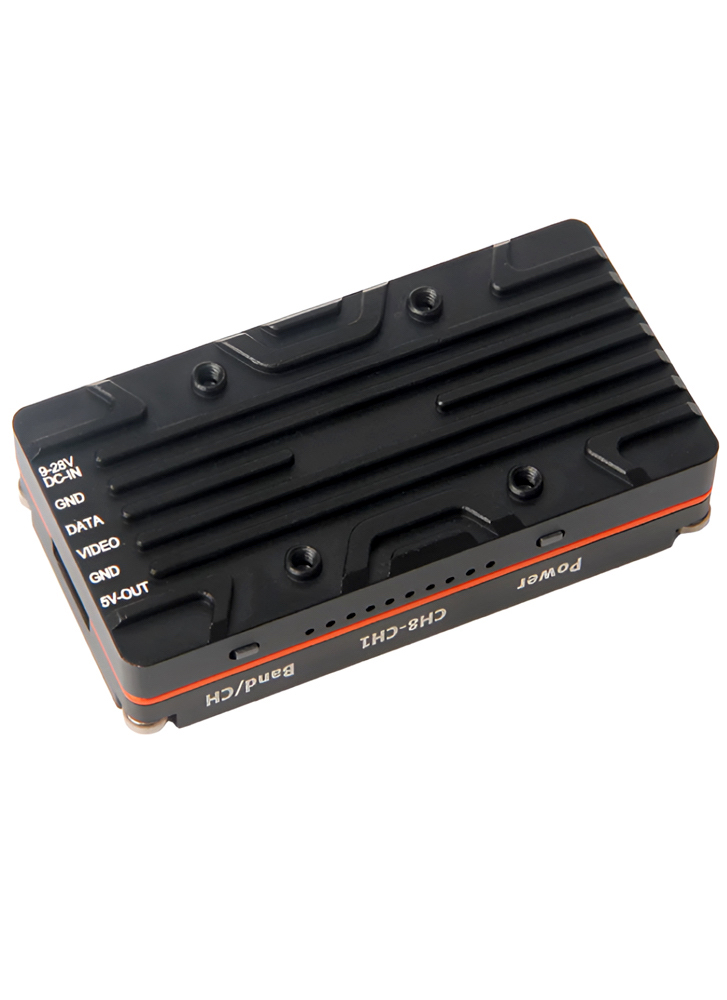

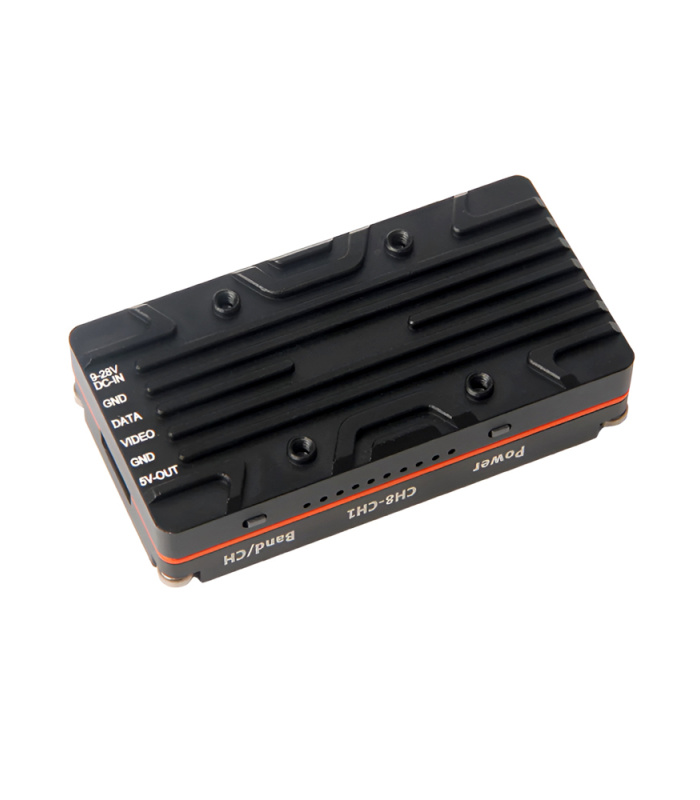

Function Button Operation Instructions
- To switch frequencyย – Short press the button to switch channel.
- To switch the frequency bandย – Press and hold the button for 2 seconds to enter band changing mode. Short press the button to change the frequency band once enter the band changing mode.
- To switch power – Short press the button to switch the power level. Green LED blinking times for each blinking sequence indicate the power level. Long press 2 seconds to enable PIT mode – green light stays on.
- Once the configuration is finished, wait 8 seconds for it to save the settings.
Frequency Table
| A |
B |
E |
F |
R |
L |
X |
| 5865 |
5733 |
5705 |
5740 |
5658 |
5362 |
4990 |
| 5845 |
5752 |
5685 |
5760 |
5695 |
5399 |
5020 |
| 5825 |
5771 |
5665 |
5780 |
5732 |
5436 |
5050 |
| 5805 |
5790 |
5645 |
5800 |
5769 |
5473 |
5080 |
| 5785 |
5809 |
5885 |
5820 |
5806 |
5510 |
5110 |
| 5765 |
5828 |
5905 |
5840 |
5843 |
5547 |
5140 |
| 5745 |
5847 |
5925 |
5860 |
5880 |
5584 |
5170 |
| 5725 |
5866 |
5945 |
5880 |
5917 |
5621 |
5200 |
