CRSF ELRS to 8CH PWM Converter V2
£12.50 Inc. VAT
Direct 8-channel PWM output for ELRS—no flight controller required.
In stock|Next shipping: 16/03/2026

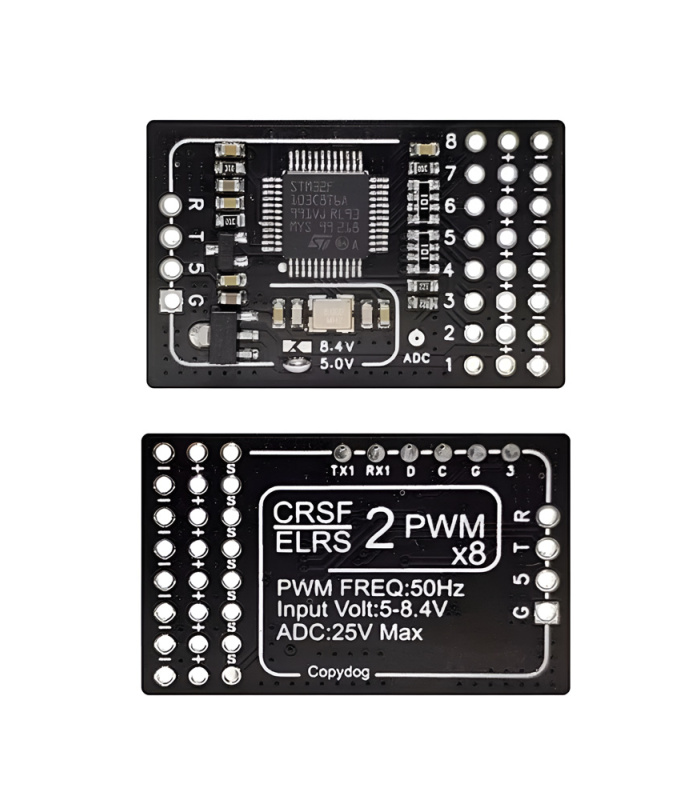

The ELRS PWM 8 Channel Converter Board V2 gives you a clean, reliable way to get PWM outputs from your ExpressLRS receiver. It supports up to 8 channels and works with all ELRS receivers running ELRS 3.0 or newer, across all supported bands including 2.4 GHz, 868 MHz, 915 MHz, and 433 MHz.
This board is ideal for fixed-wing aircraft, traditional RC builds, or any setup where you want to drive servos, retracts, or lights directly from an ELRS system. Each channel outputs a standard 50 Hz PWM signal by default. It’s a simple, lightweight solution that removes the need for a flight controller when all you need is rock-solid PWM.
If you’re running ELRS and want a direct, no-fuss way to control servos or other PWM devices, this board gets it done with minimal wiring and maximum reliability.

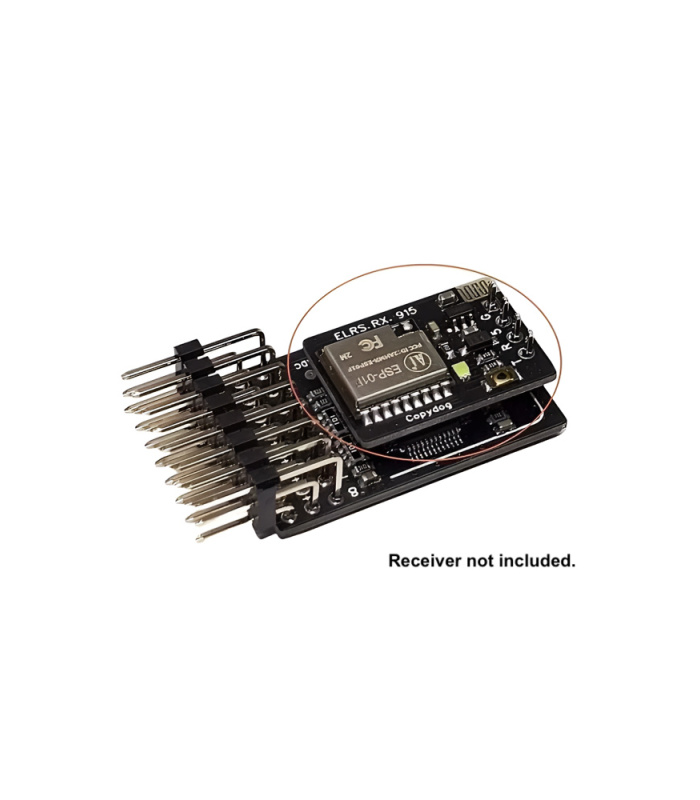

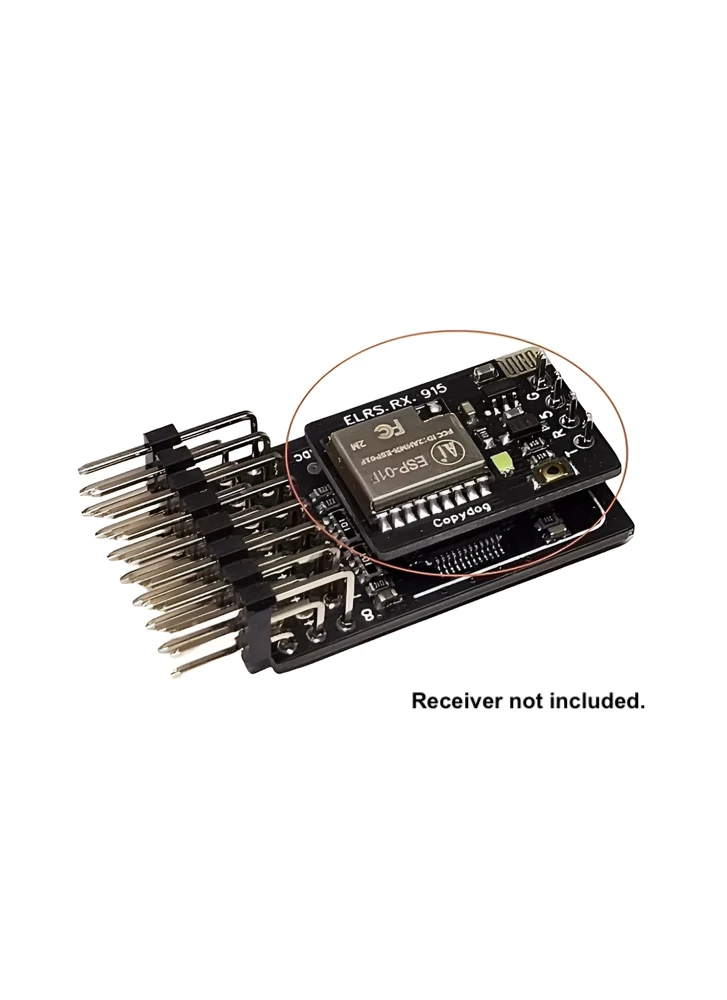

Please note, this listing is just for the converter and doesn’t include a receiver as pictured in the images below. Header pins come unsoldered.

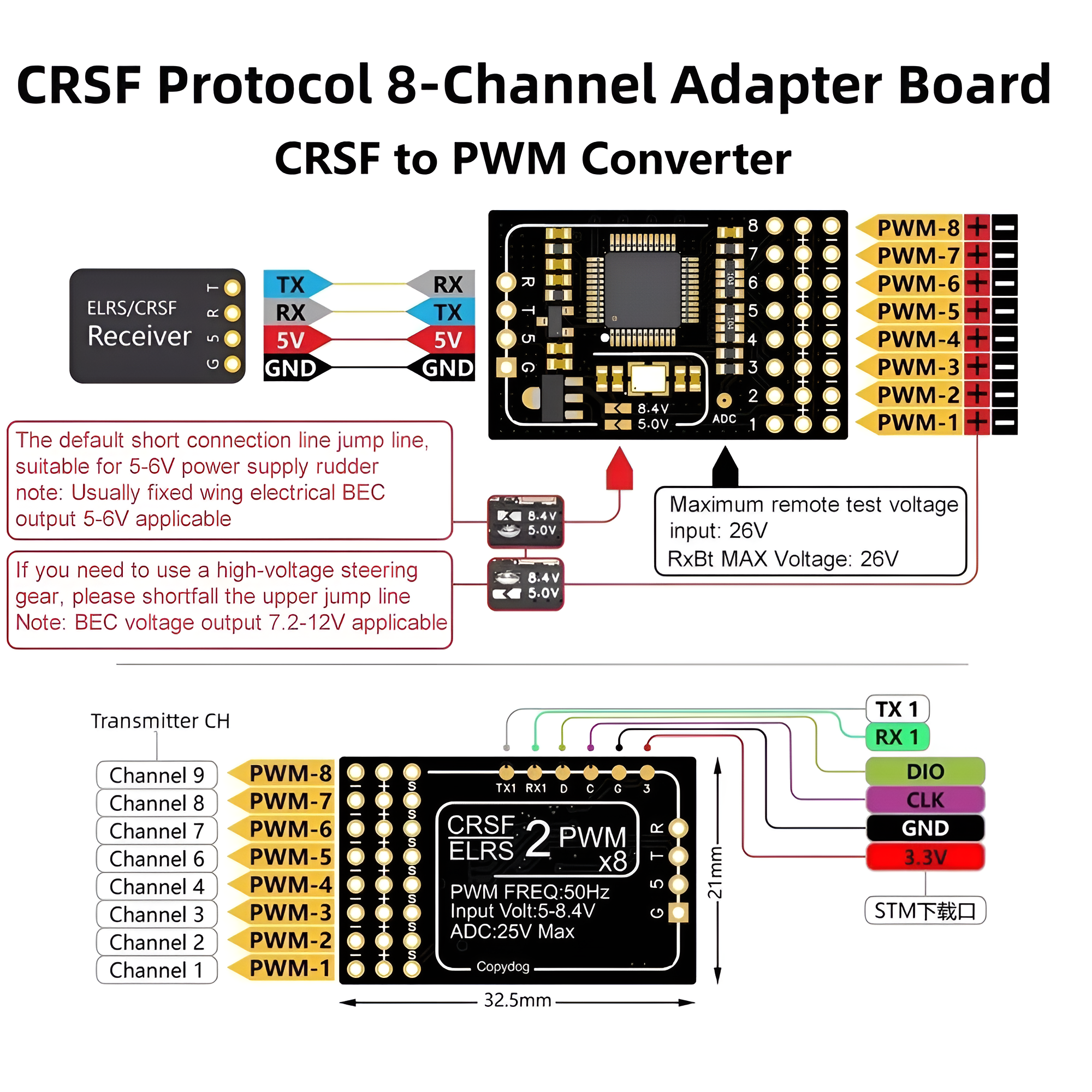

- Compatible with CRSF protocol receiver only
- Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
- 8x PWM outputs
- PWM frequency (50Hz)
- 1x UART
- Rated voltage: 26V (6S) Max
- 33mm x 21mm, 4.3g
Included:
- 1X Converter Board
- 2X 3X8 Pin
- 1X 4Pin
Receiver Not Included
