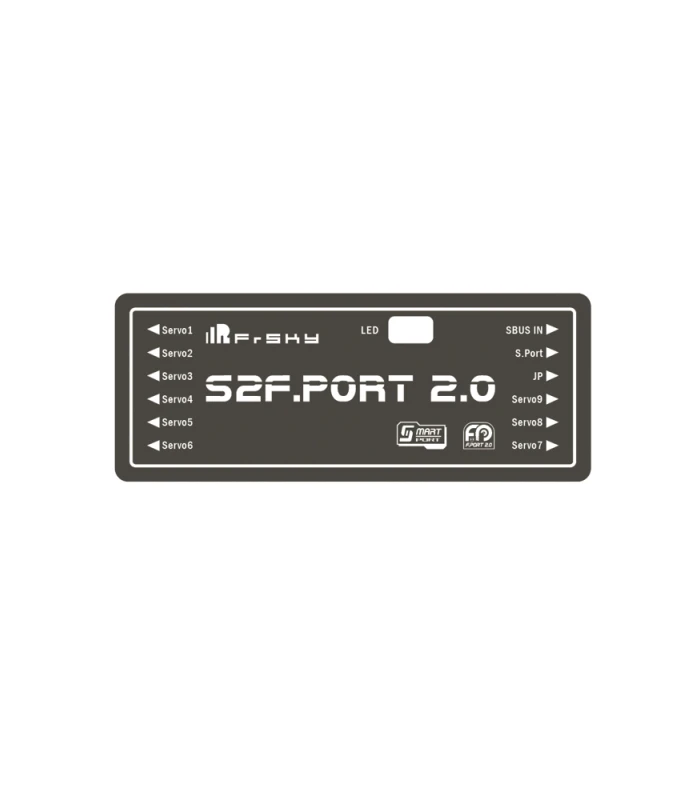

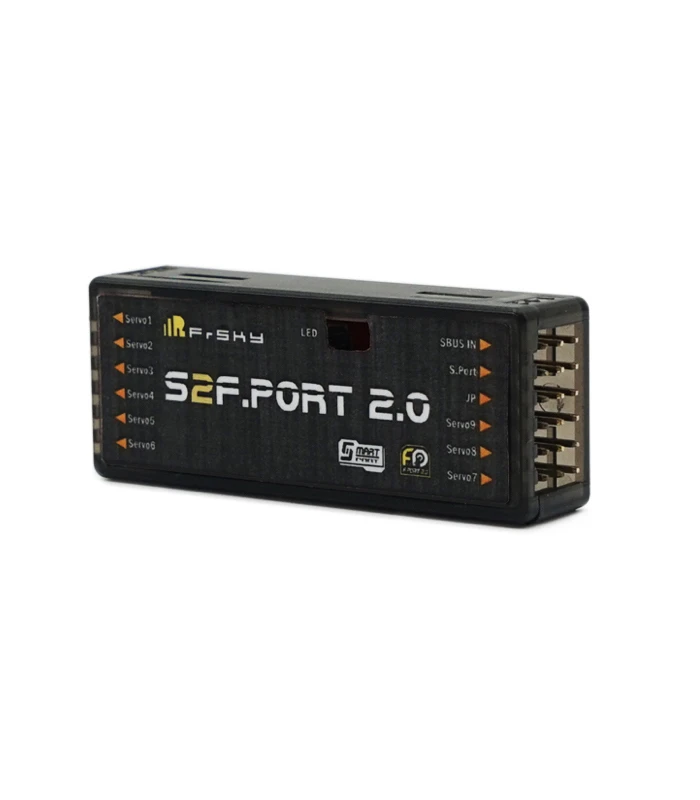

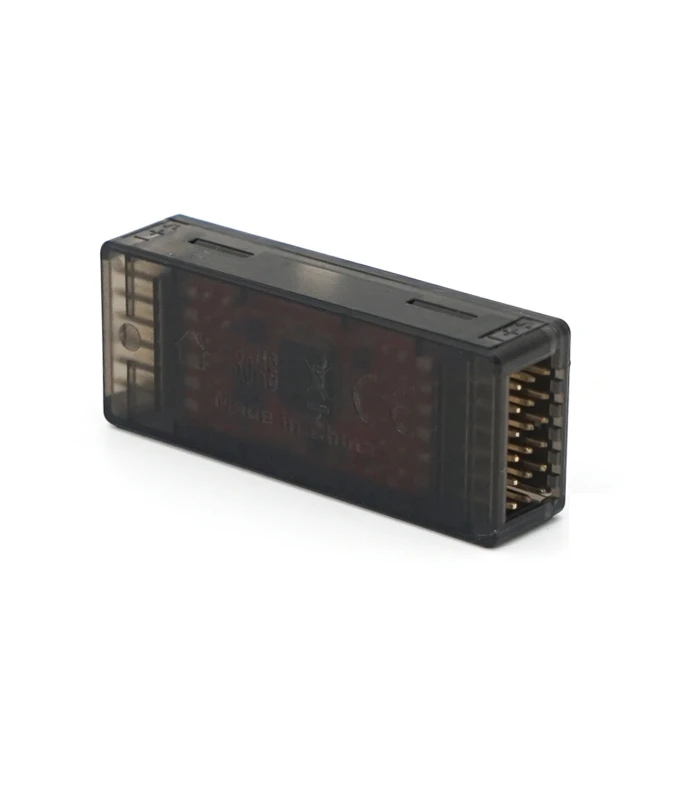

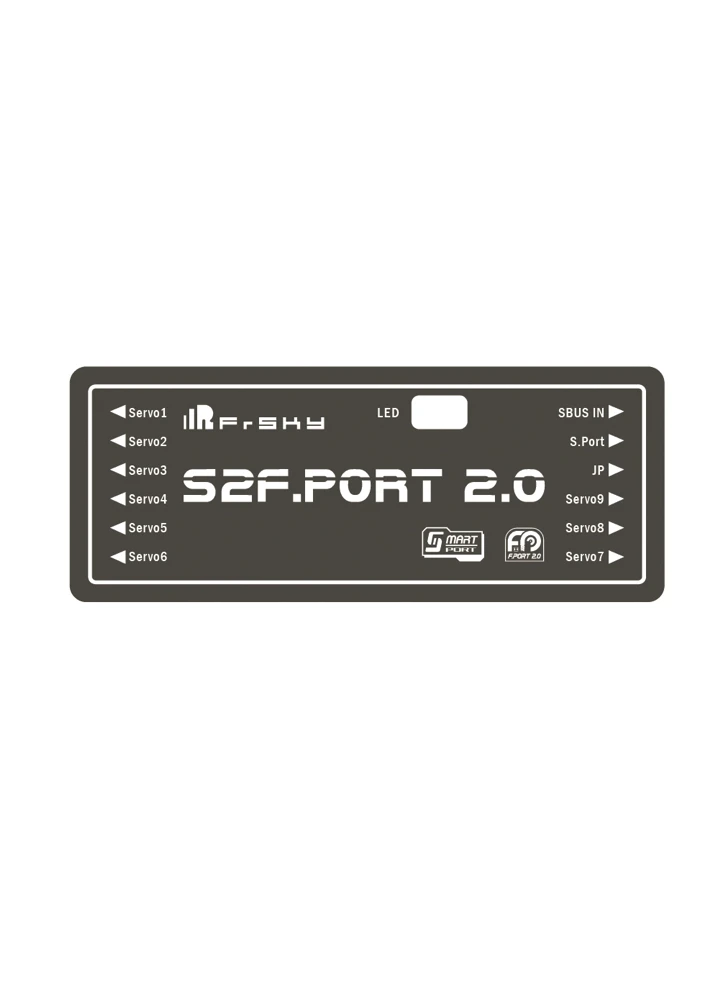

FrSky S2F.PORT 2.0 Protocol Converter

The S2F.PORT 2.0 is a protocol converter that can be used to integrate both S.Port and SBUS signals, and translate into multiple F.Port 2.0 signal outputs for controlling up to 8 F.Port 2.0 capable servos simultaneously. By pairing it with an SBUS and S.Port capable receiver, the telemetry feature (current, voltage, etc.) of the connected Xact servos now provides feedback to the radio thanks to the F.Port 2.0 protocol. Another convenient power feature is all the channels, including S.PORT and SBUS channels, can be powered by powering either servo channel when JP port is short-circuited.

Features:

• Supports signal conversion between SBUS & S.Port and F.Port 2.0
• Enable F.Port 2.0 features on the compatible devices
• Supports connecting up to 8 servos simultaneously

What is F.Port 2.0:

The F.Port 2.0 protocol is the upgraded protocol from 1.0 version which integrates SBUS and S.Port into one line. This new protocol enables one Host device to communicate on one line with several Slave accessories. All connected devices by ACCESS receiver (Host) can be configured wirelessly to the ACCESS radio base on this protocol. More info here.
