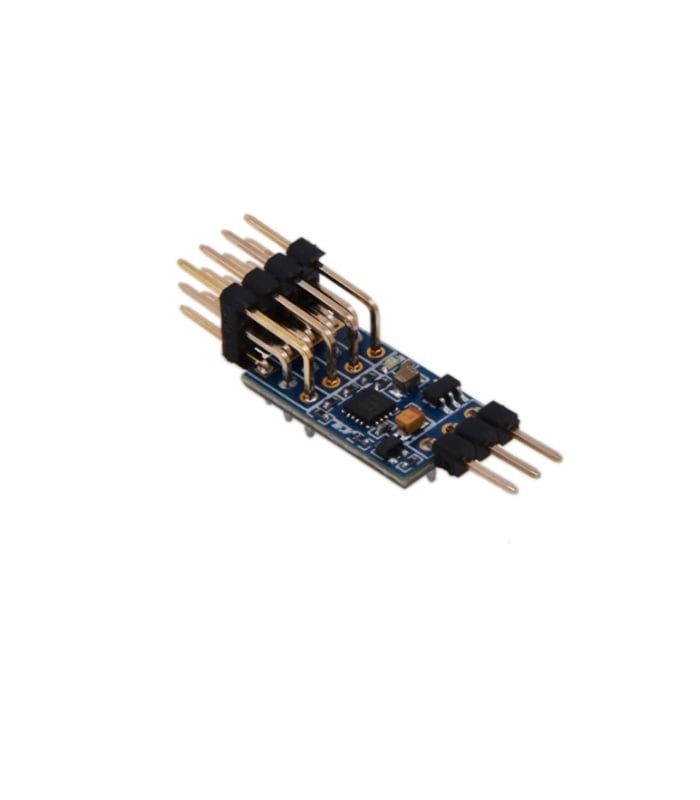

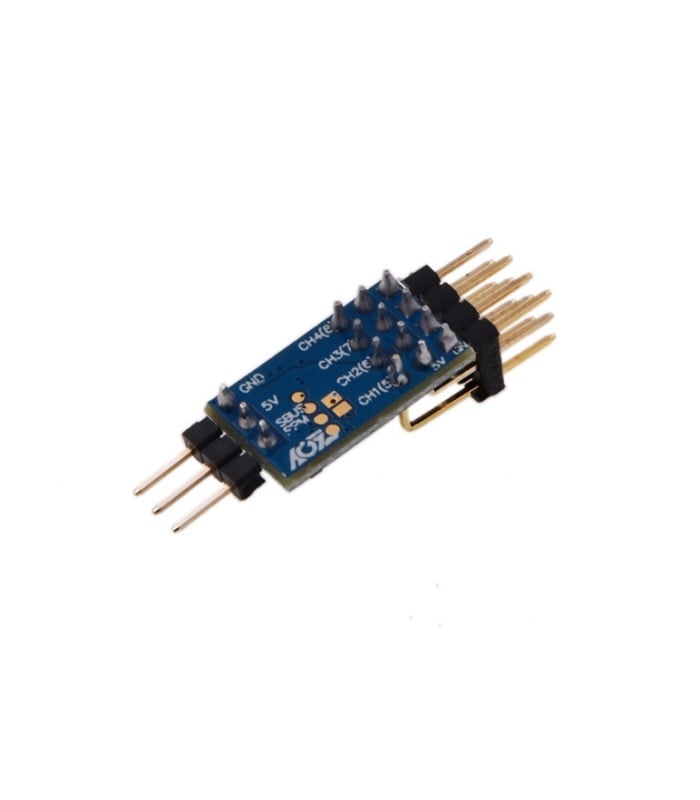

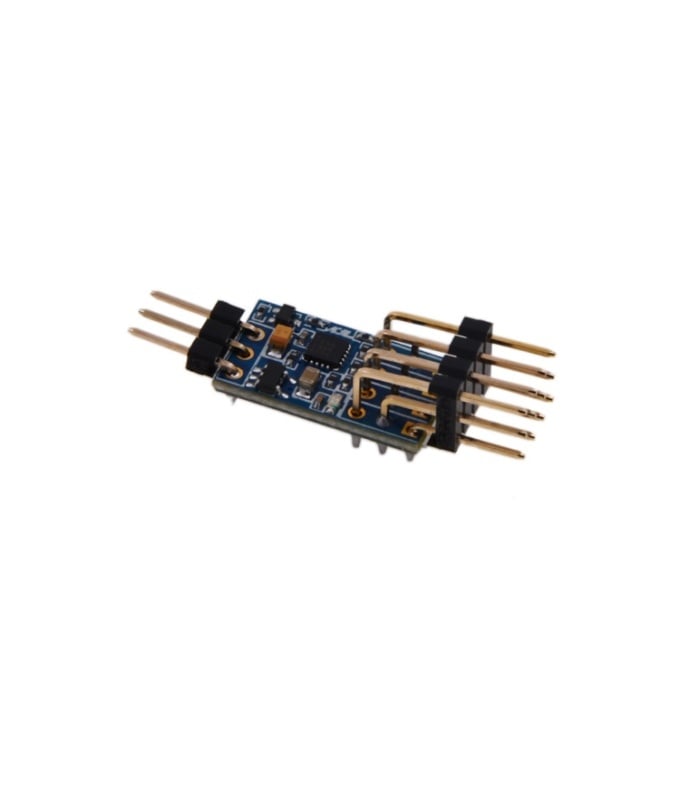

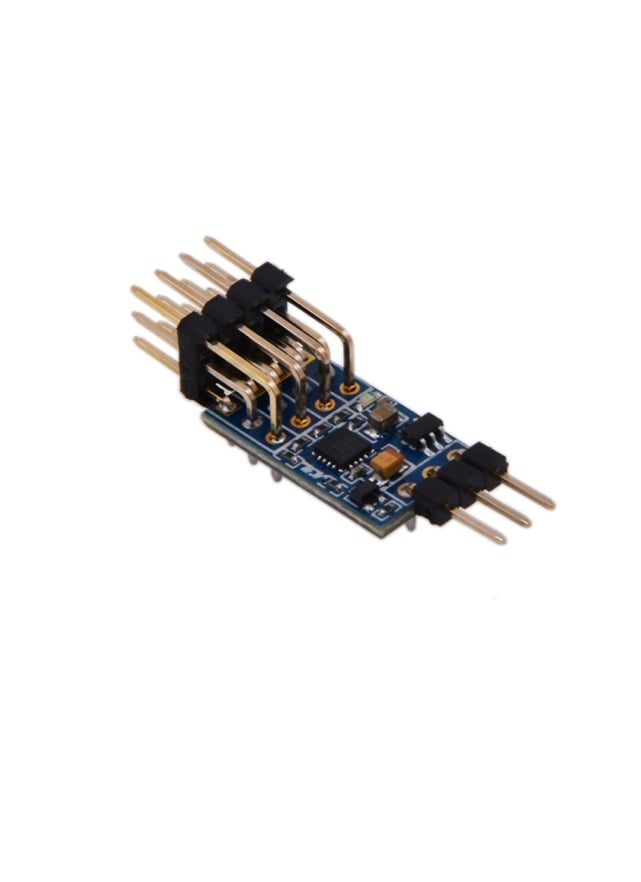

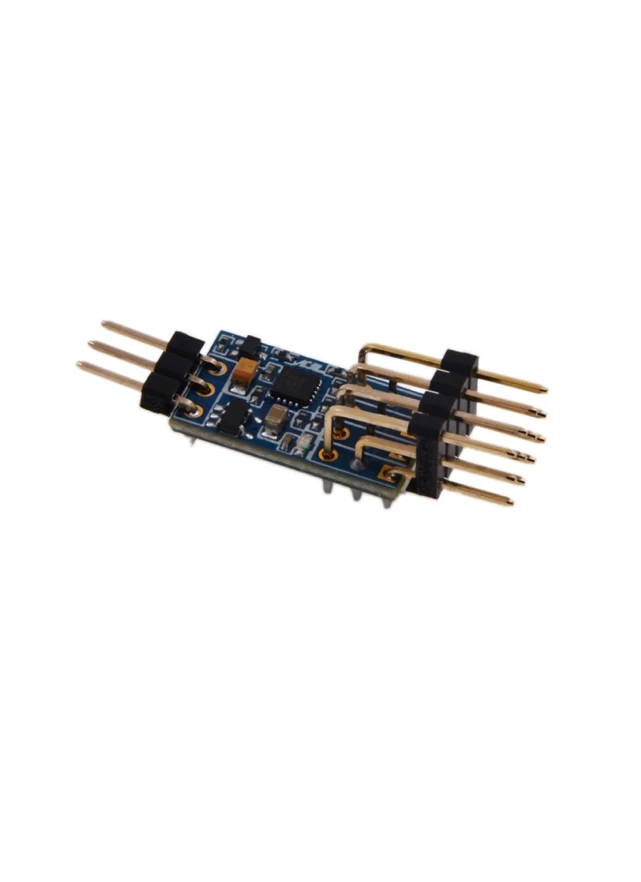

Mini 8CH PWM PPM SBUS Signal Converter Decoder

£13.50 Inc. VAT

A compact 8CH SBUS, PPM, PWM signal converter.

In stock

0 People watching this product now!

Description

This signal converter will allow you to convert between SBUS / PPM input into PWM signals. The input signal type is automatically recognised.

One usual application is converting from an SBUS output into four traditional PWM channels. This allows you to use standard analog or digital servos with your SBUS compatible receiver, eliminating the need for using pricey SBUS specific servos. It also lets you expand compatible receivers with four extra PWM channels. For example, you can connect it to the SBUS output of the FrSky X8R receiver to get four extra channels. By default the converter is set to output CH1 – CH4, if you require CH5 – CH8 join the solder jumper labeled ‘select’. To output CH1 – CH8, join two converters with a Y cable and use the solder jumper on the second board.

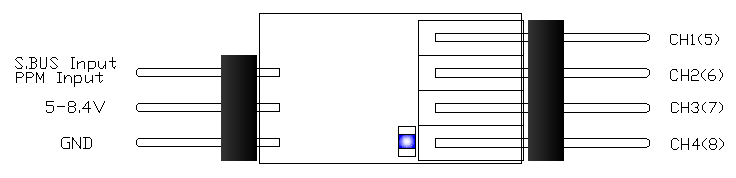

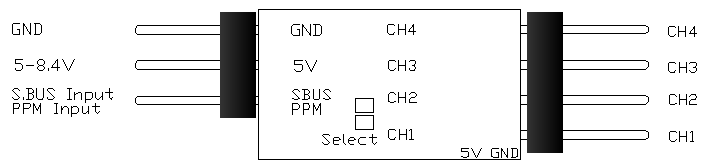

SC01 B SC01 B SC01 A

Specification

Model: SC01
Input voltage: 5-8.4V
Current: 15MA
Dimensions: 11×36.5×10.5mm
Weight: 2.3 grams

Included:

Mini 8CH PWM PPM SBUS Signal Converter
