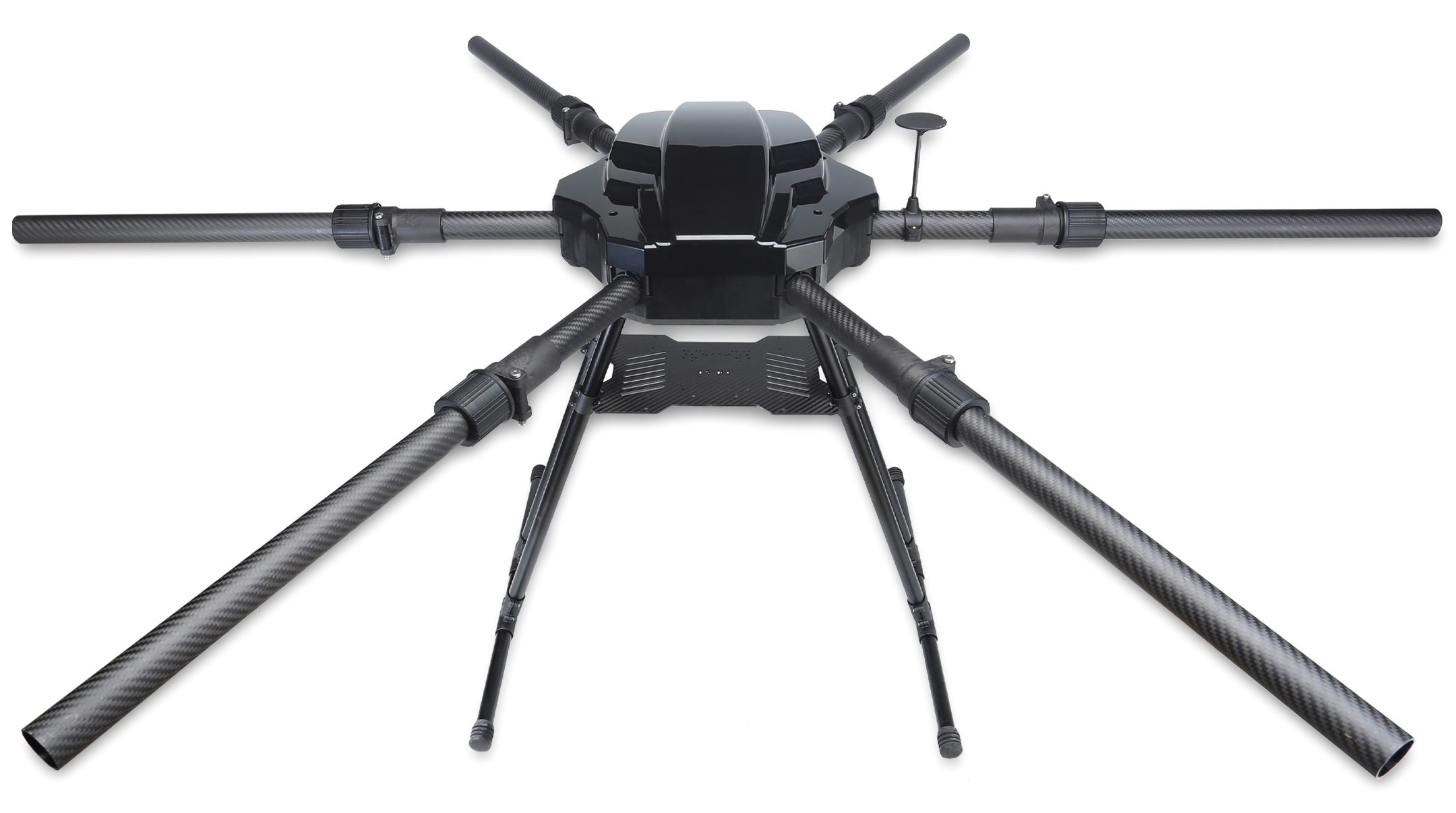

Tarot Multirotor Frame 1600mm Lateral Folding Hexacopter – TL16H00
£429.90 Inc. VAT
Professional 1600mm folding hexacopter frame with integrated power distribution, compact transport design, and support for long-endurance industrial UAV builds.
Only 1 left in stock|Next shipping: 25/05/2026

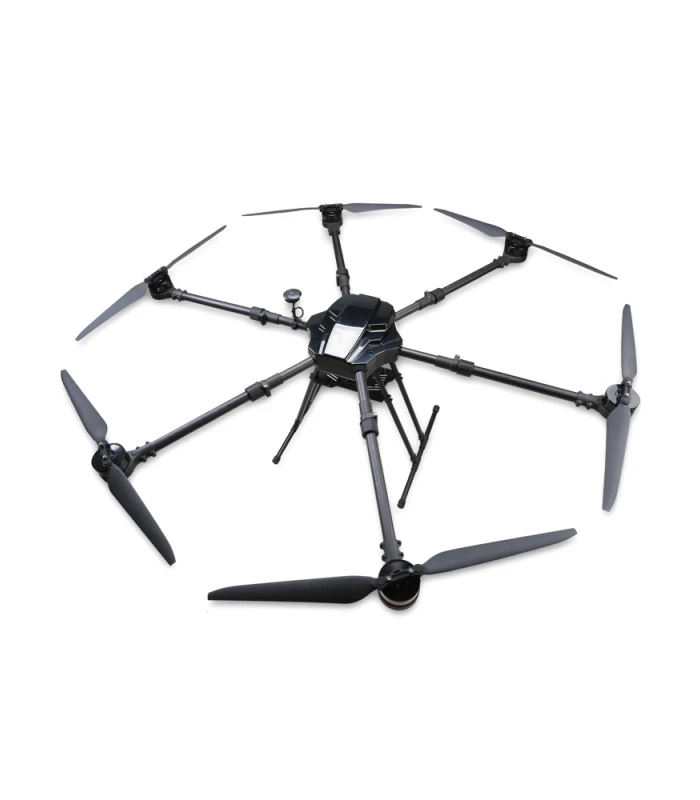

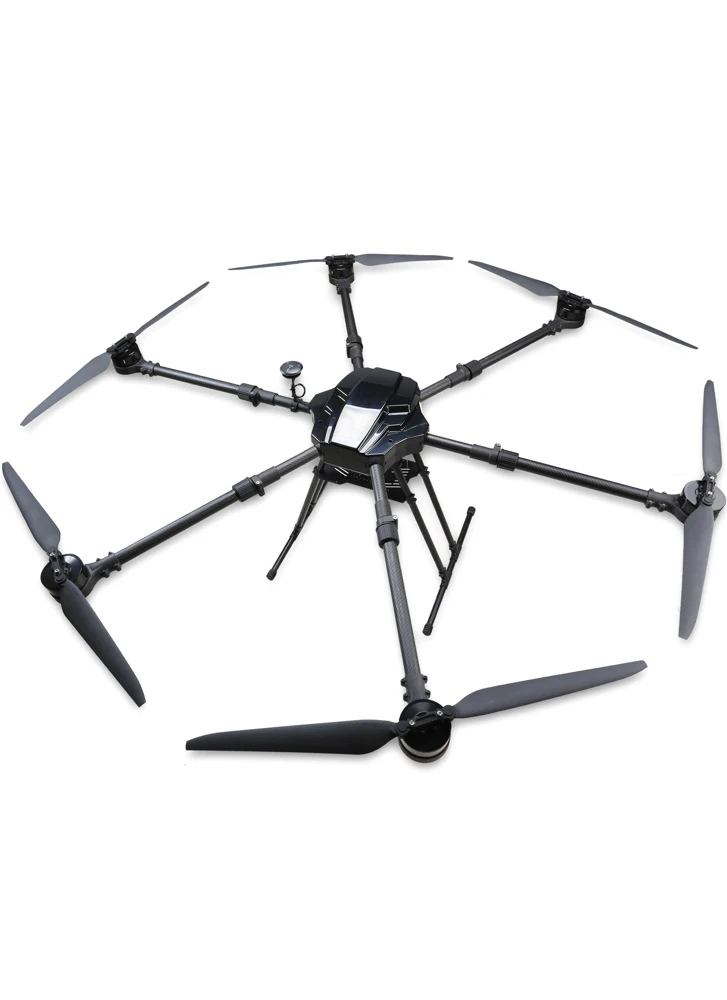

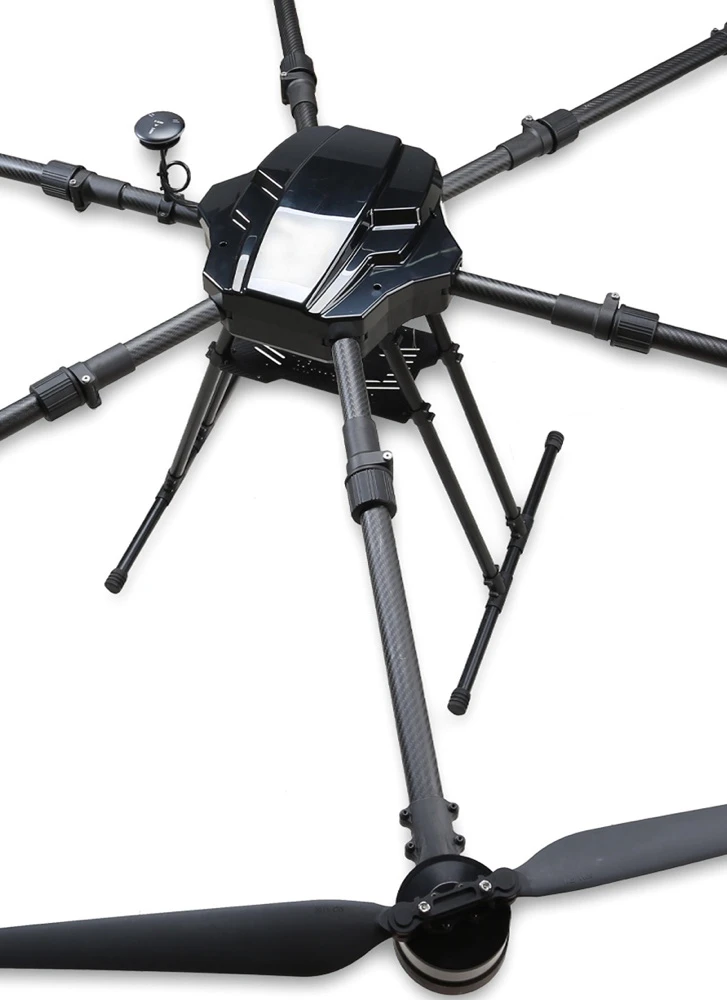

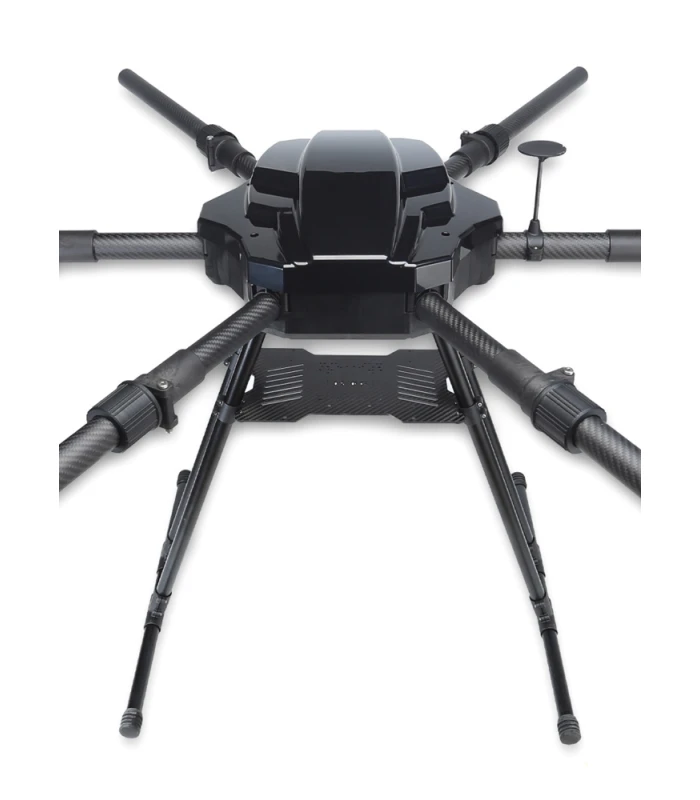

The Tarot TL16H00 is a professional large-format folding hexacopter frame designed for industrial UAV builds that require high payload capacity, efficient transport, and fast field deployment. With a 1600mm wheelbase and integrated folding structure, the TL16H00 offers a strong yet practical platform for inspection, mapping, monitoring, and long-endurance aerial operations.

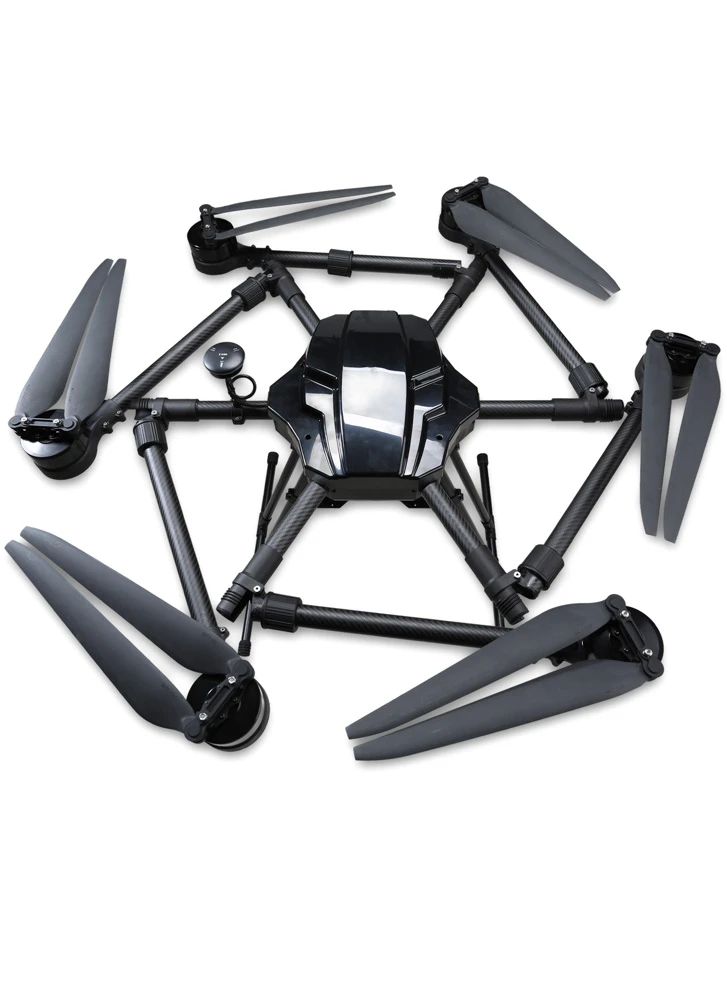

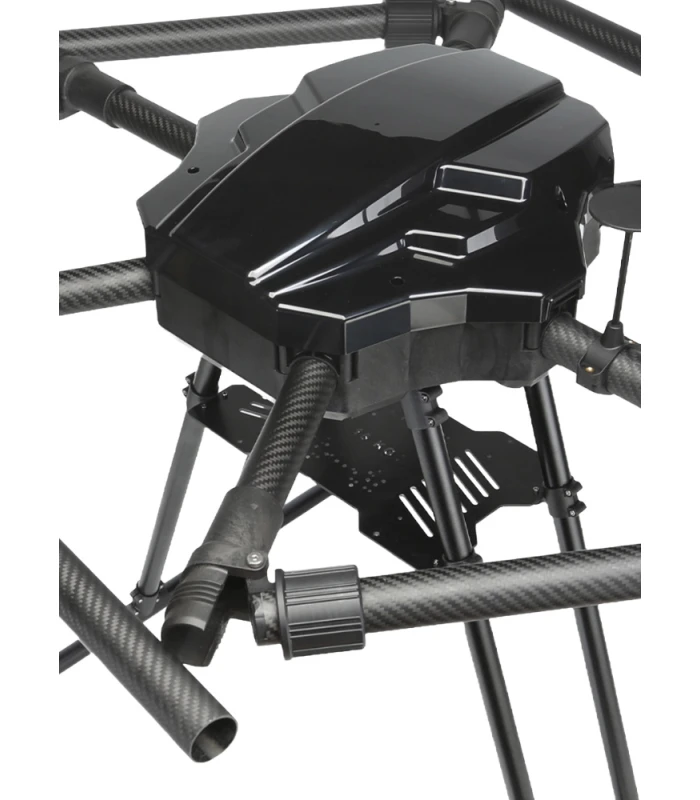

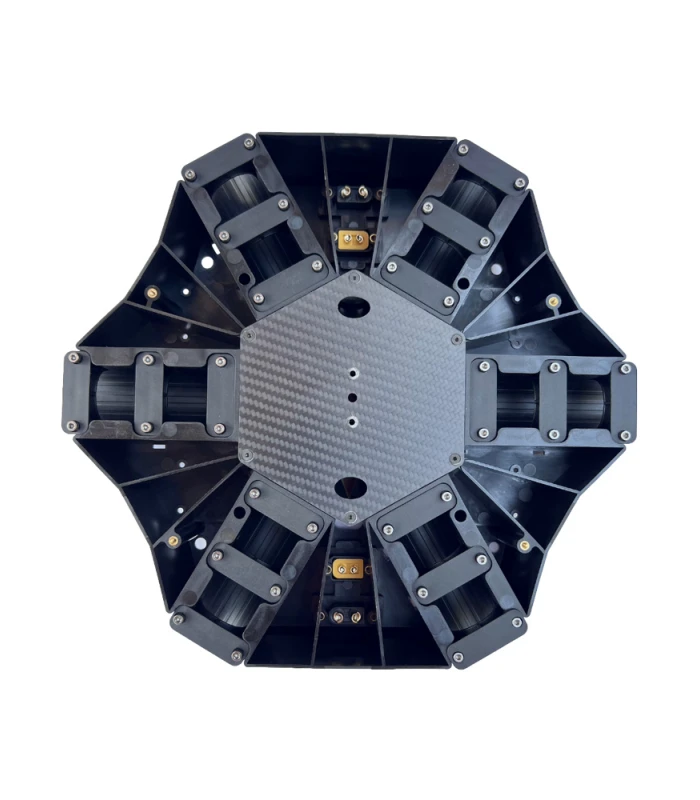

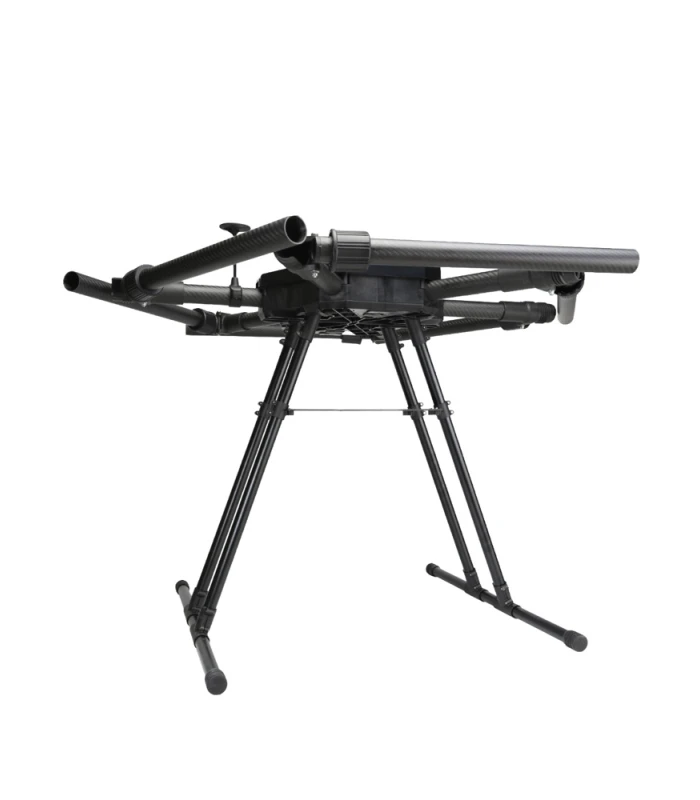

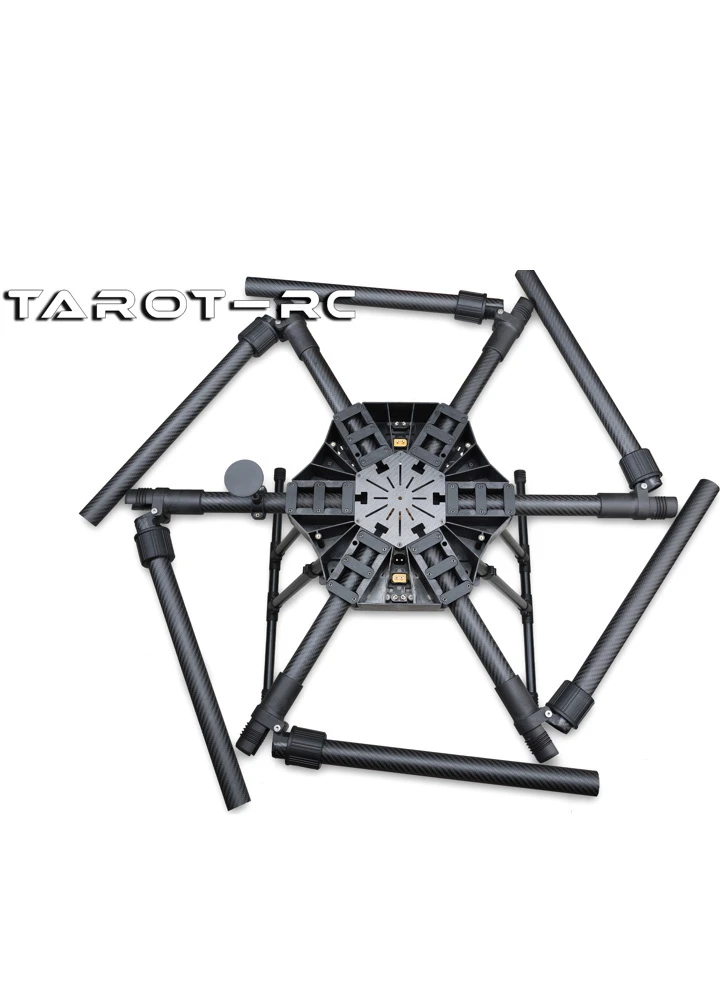

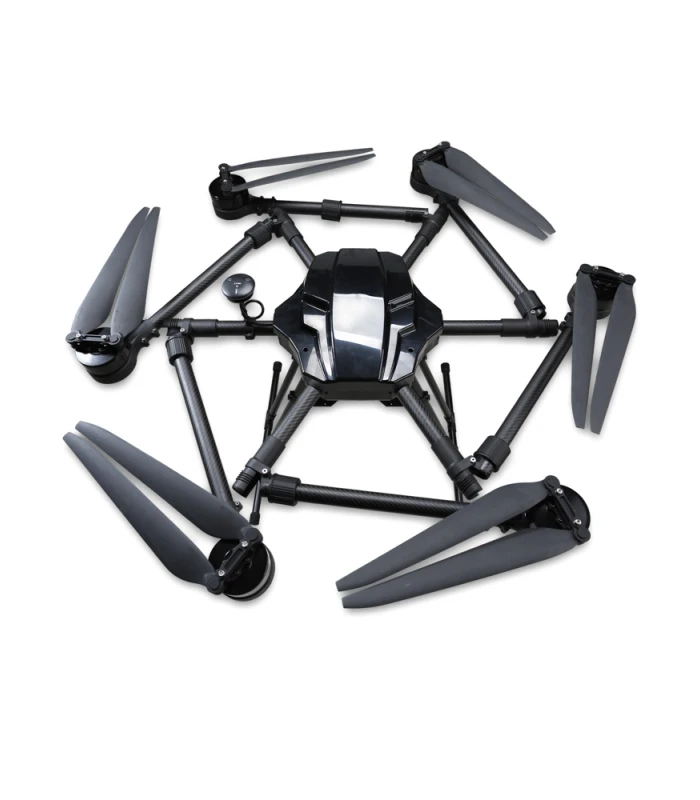

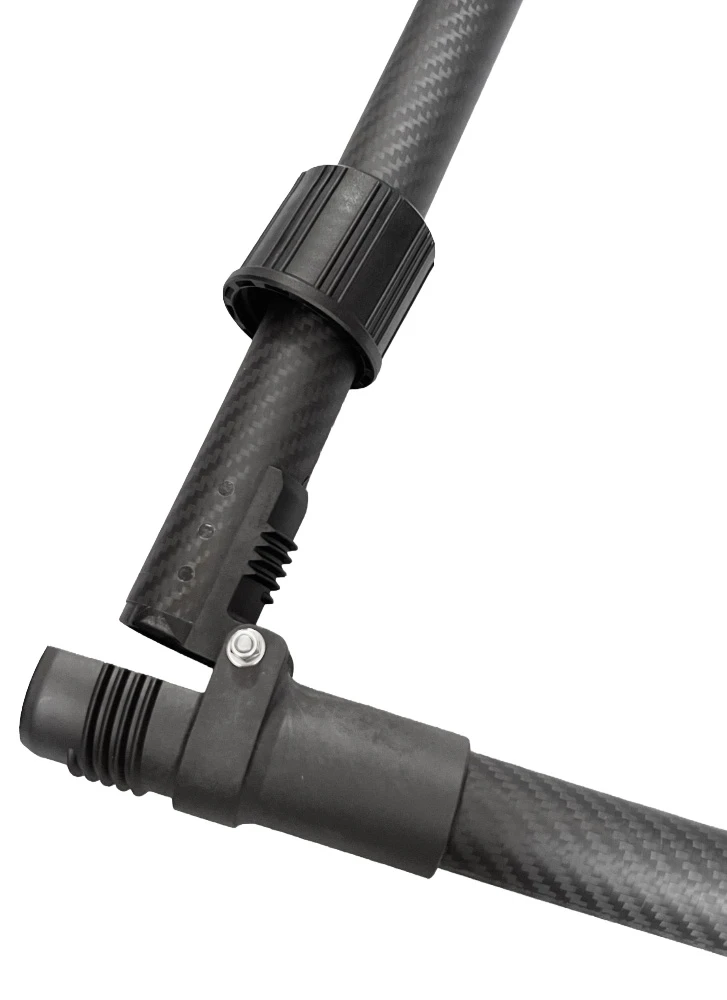

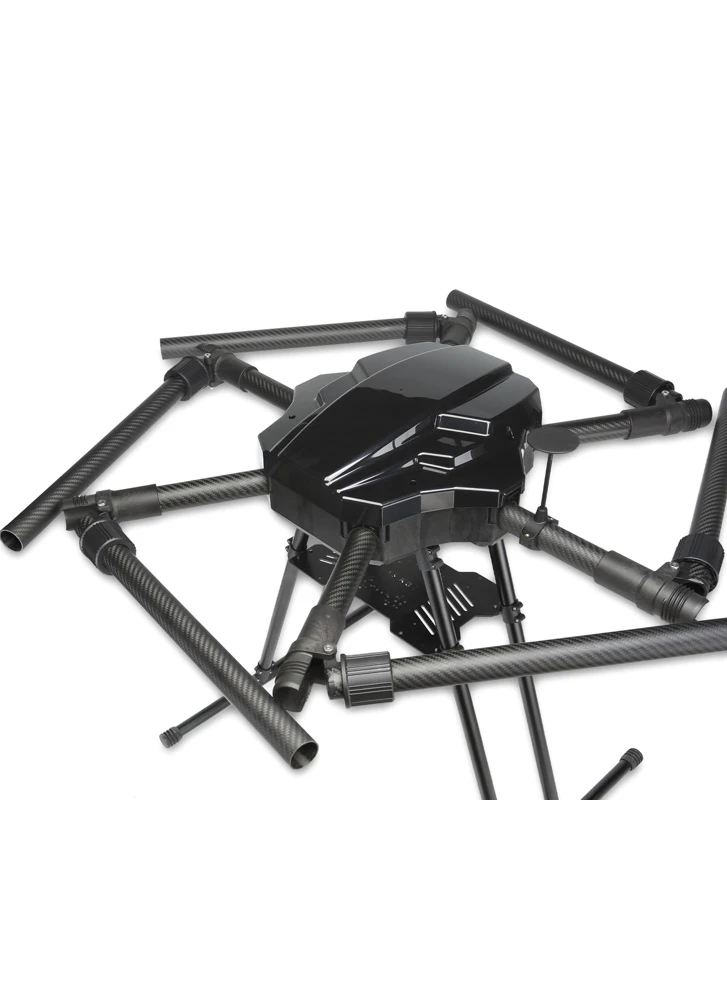

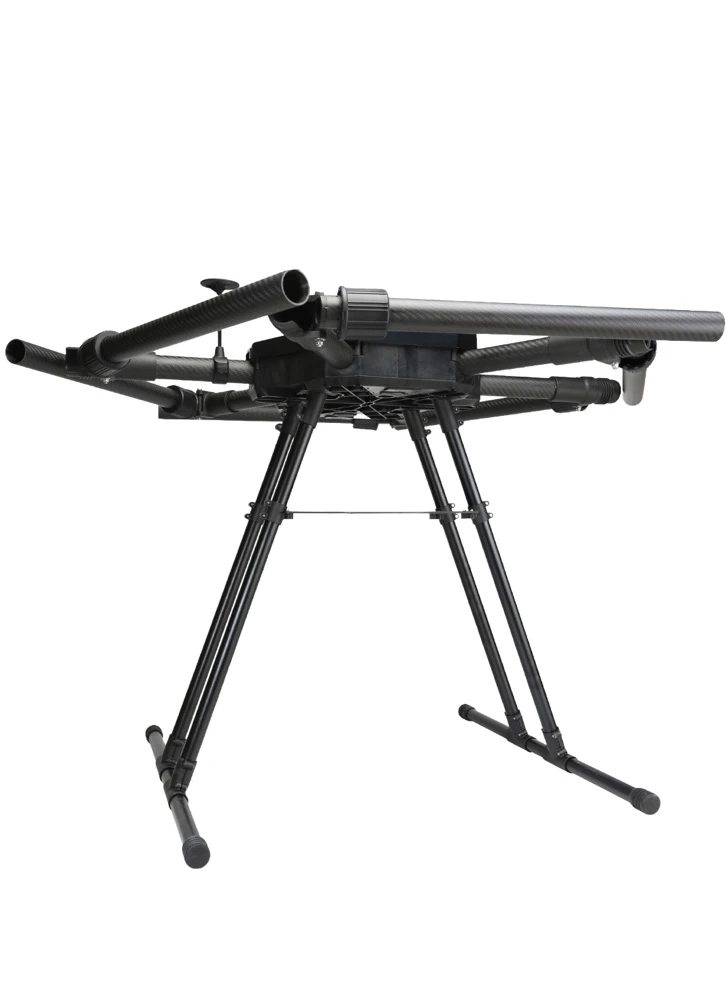

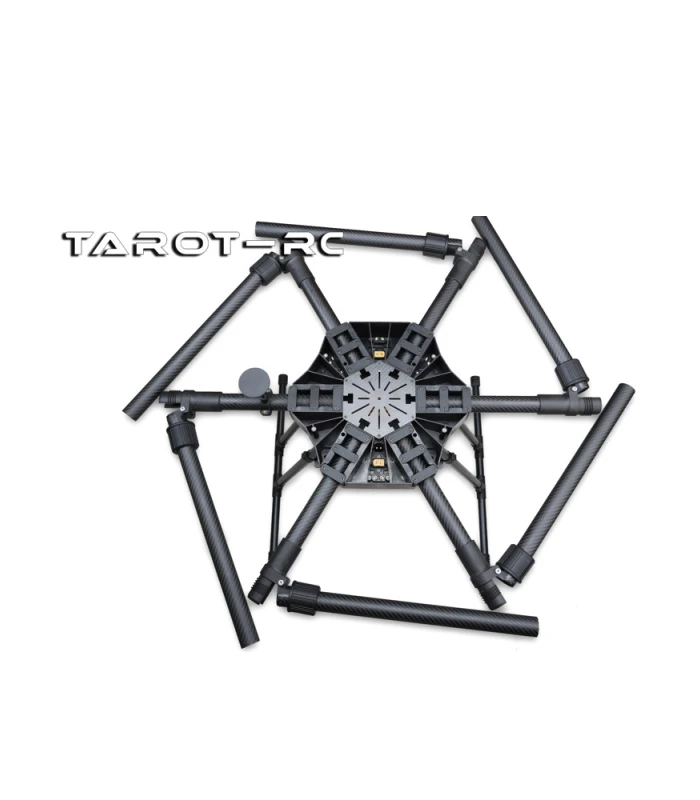

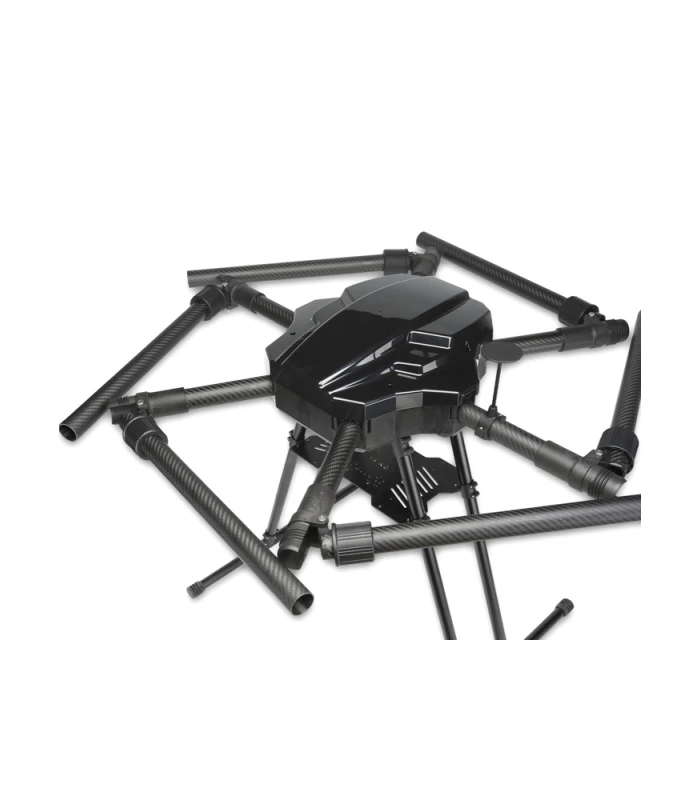

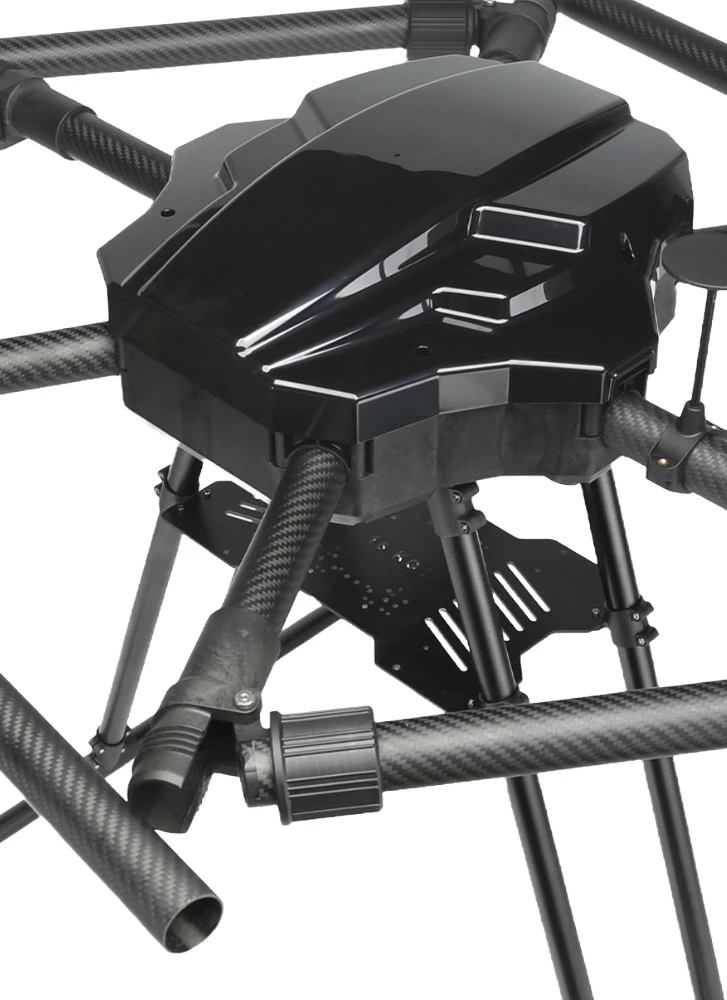

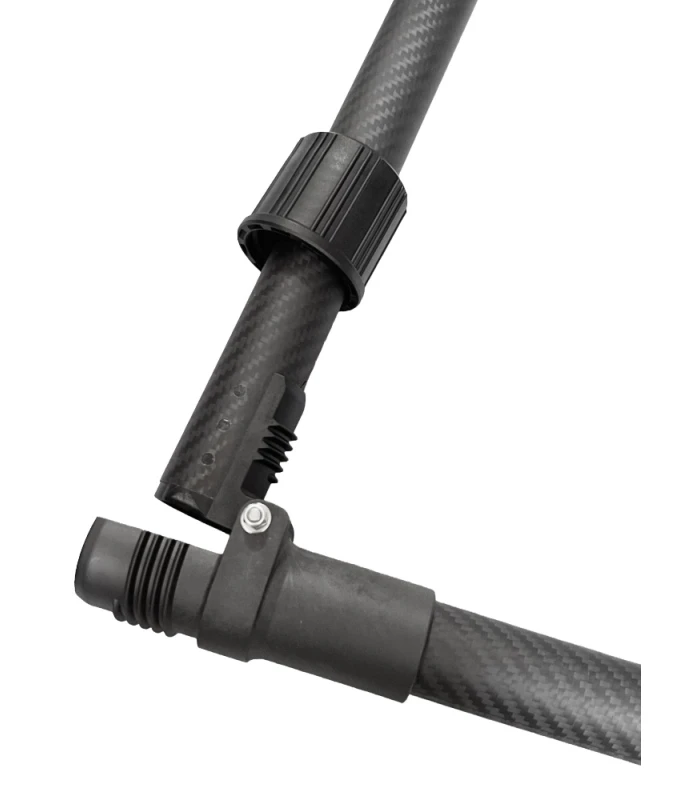

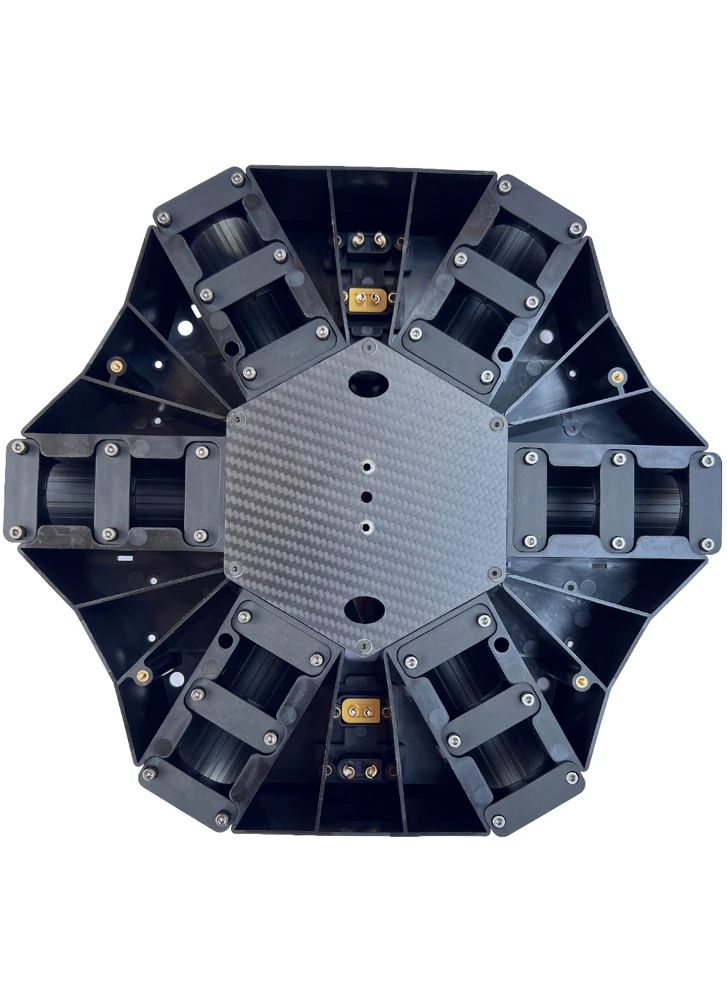

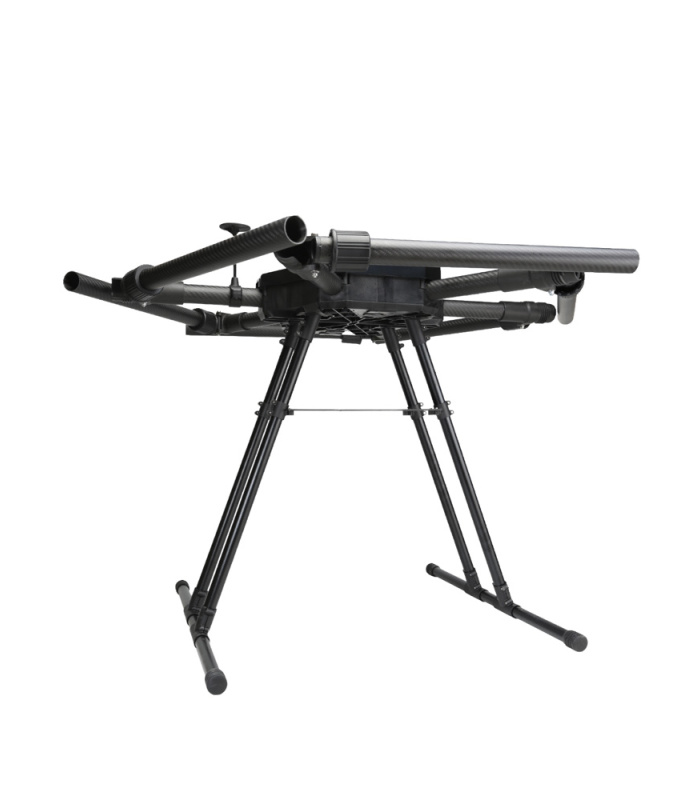

Its wrap-around lateral folding design allows all six arms to fold inward using a quick locking mechanism, reducing transport size to just 995 × 1051mm while maintaining a deployed span of 2373mm. The integrated one-piece body is moulded from composite material with 30% carbon fibre content to provide excellent rigidity and durability without excessive weight.

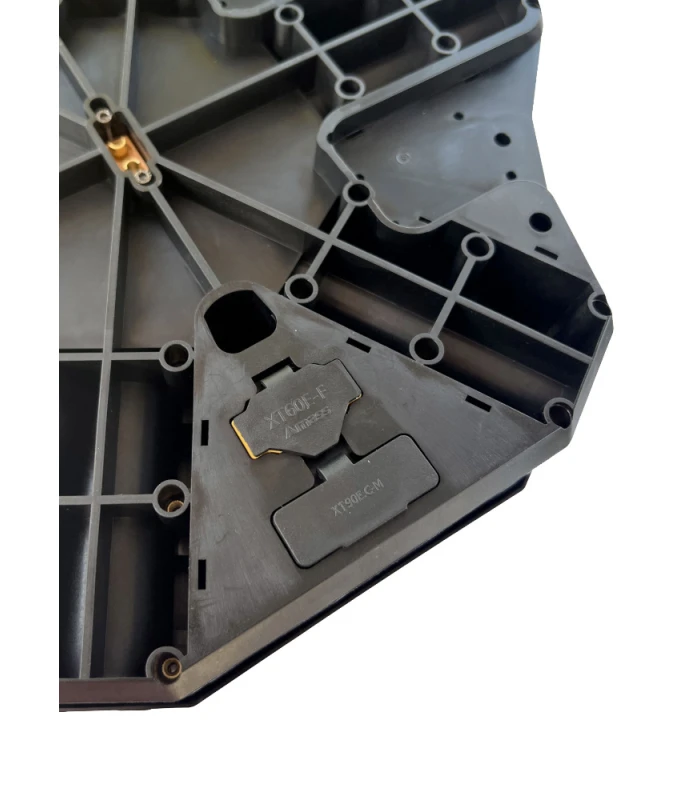

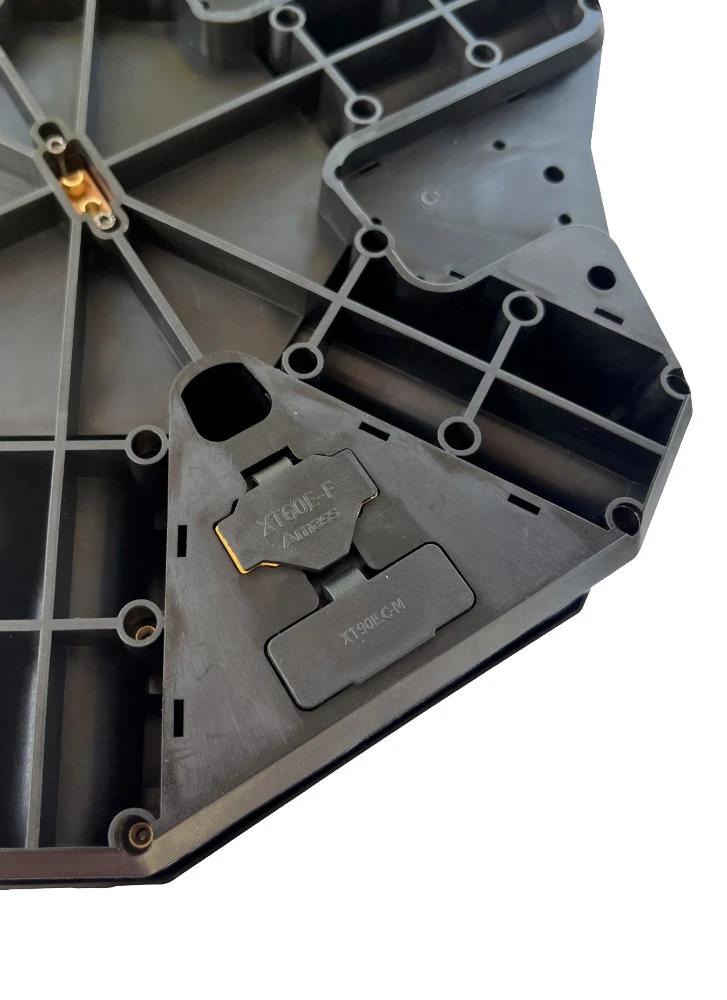

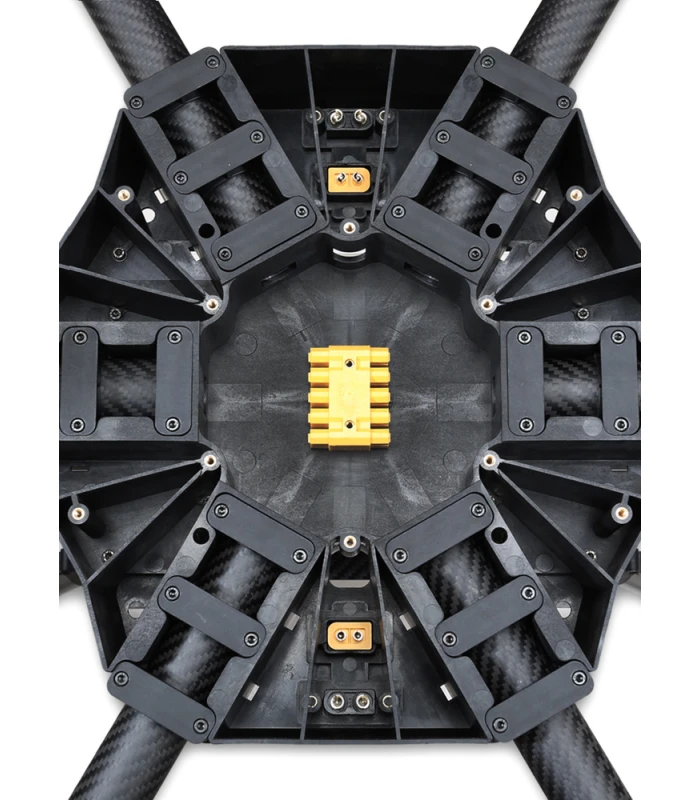

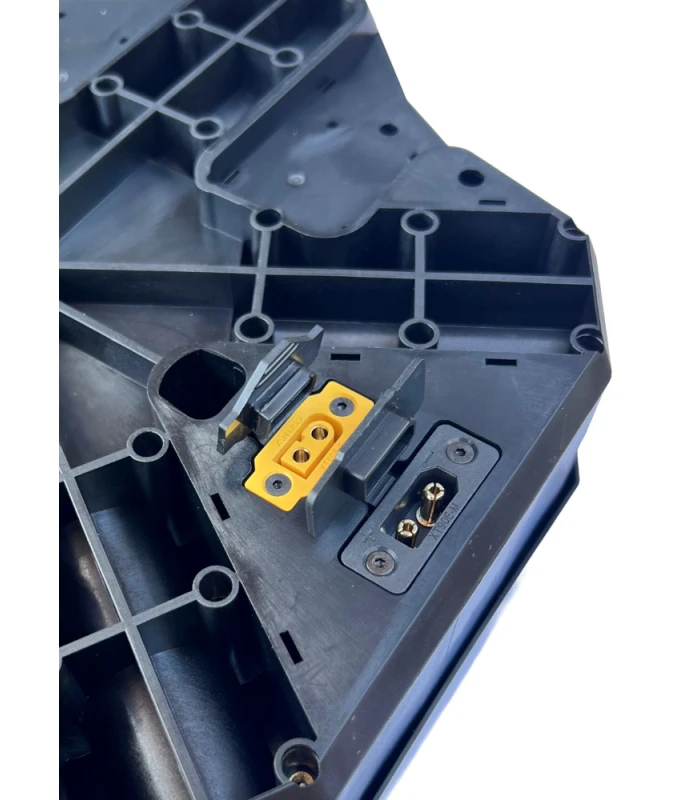

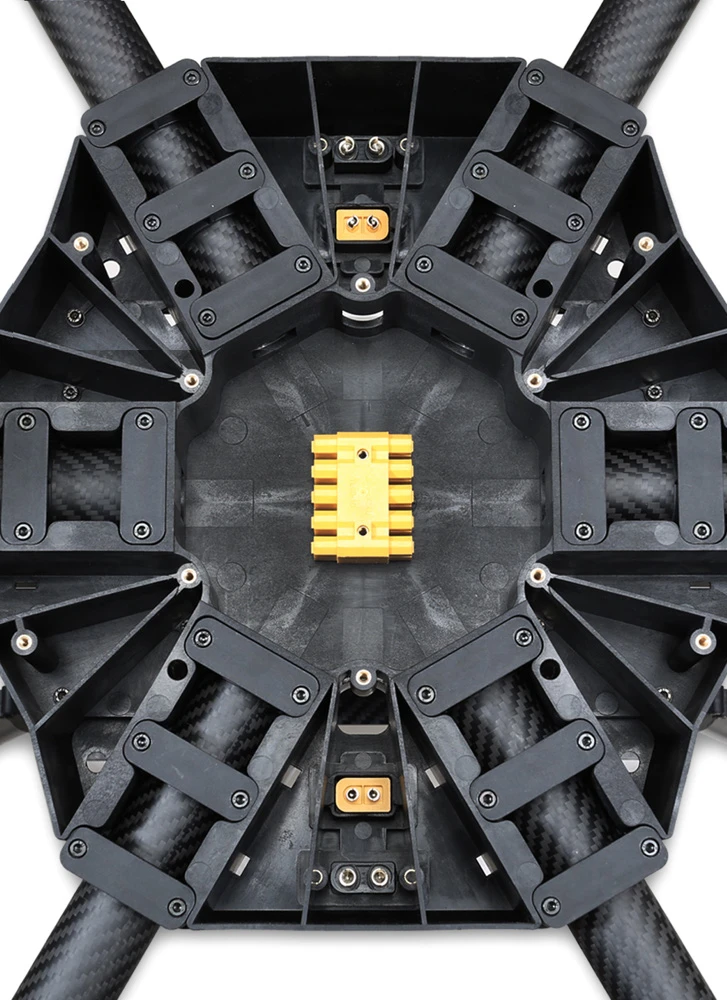

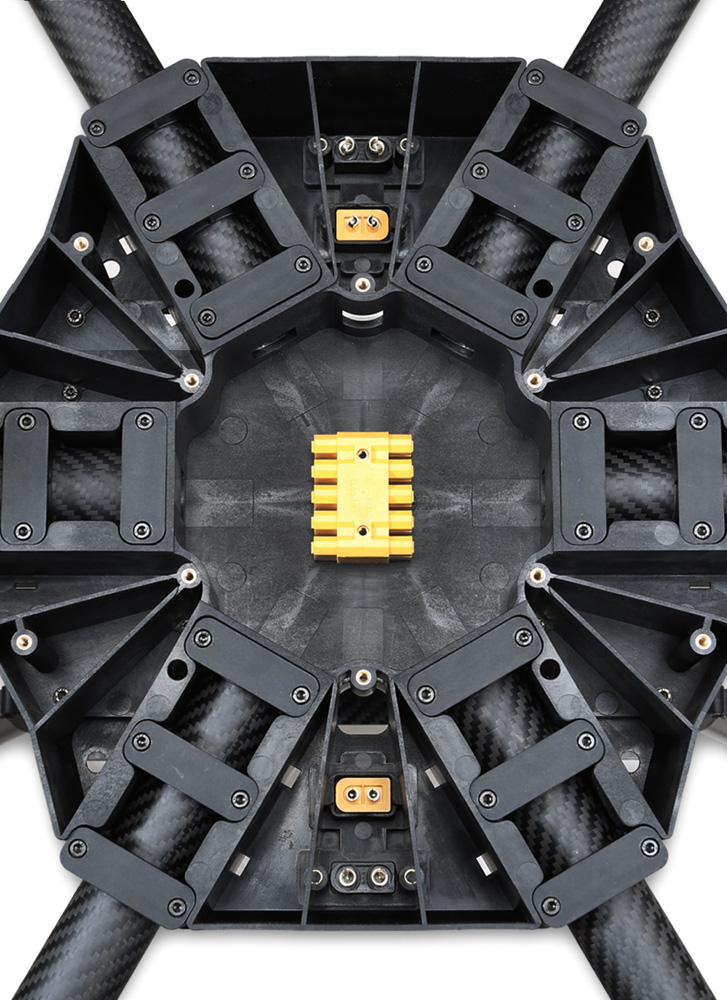

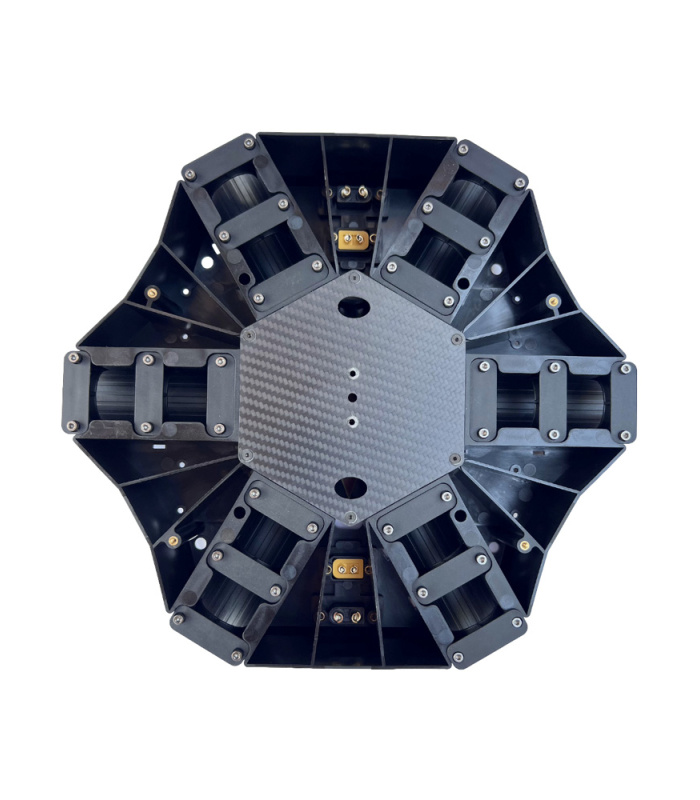

Inside the enclosed centre section, Tarot integrates the TL60-10H high-current power distribution system, simplifying installation and supporting mainstream flight controllers. Dual XT90 battery inputs and dual XT60 outputs provide flexible power configuration options for large battery setups.
Designed around medium and heavy-lift applications, the TL16H00 supports battery configurations up to 12S and take-off weights up to 15.4kg. When paired with the recommended Tarot power system and dual 6S 22000mAh batteries, test flights achieved endurance of up to 46 minutes under controlled conditions.
Ideal for aerial surveying, infrastructure inspection, remote sensing, monitoring, search operations, agricultural applications, and other professional UAV missions.
Features:
- Large 1600mm wheelbase hexacopter frame
- Compact lateral folding design for transport and storage
- One-piece composite body with 30% carbon fibre content
- Integrated TL60-10H high-current power distribution system

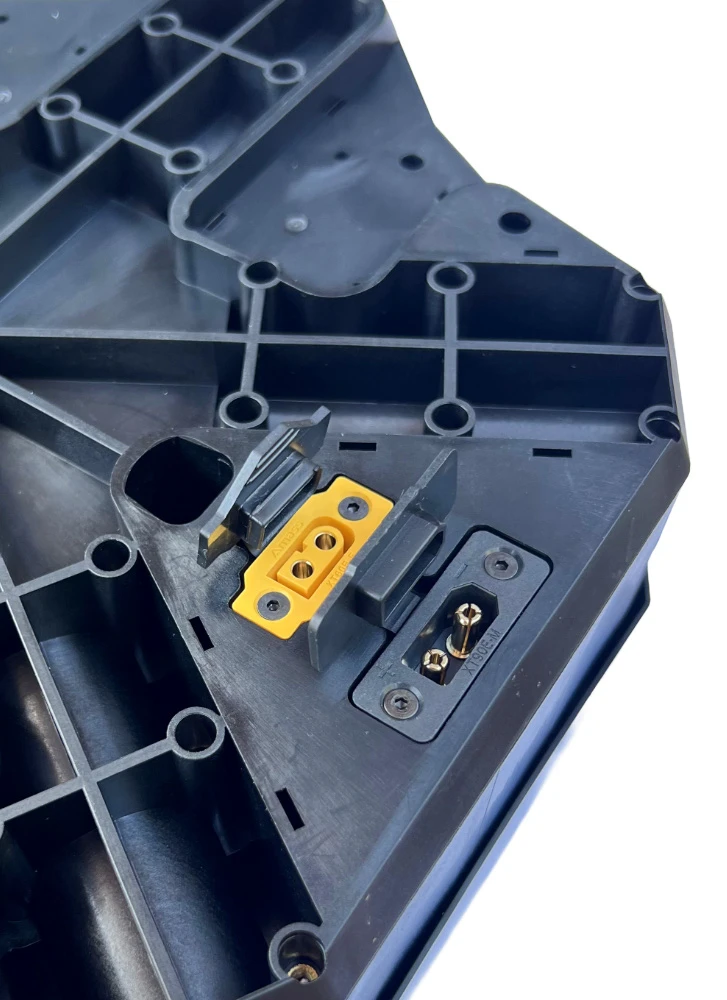

- Dual XT90 battery inputs and dual XT60 outputs
- Compatible with mainstream multirotor flight controllers
- Supports 12S 30Ah ×1 or dual 6S 22–30Ah battery configurations
- Designed for up to 15.4kg take-off weight
- Fast field deployment with integrated folding mechanism
Note:
Motor mounts are not included and must be purchased separately. The TL16H00 frame is designed to accept 30mm motor mounts. For a compatible option, we recommend the Tarot TL1813 Ultra Lightweight Plastic Motor Mount (30mm).
This is the frame Kit only, electronics are not included.

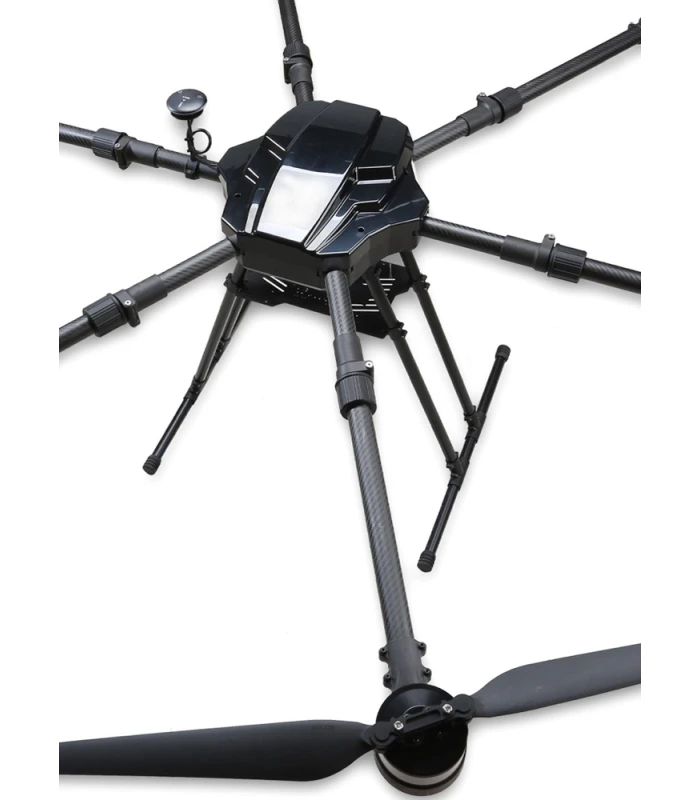

Recommended Configuration:
- Motor Mount: TL1813
- Motor: Tarot 12S/8120/95KV
- ESC: Sequre SQESC 12100 Brushless 100A ESC
- Props: 30 inch Folding Propeller TL100D38
- Takeoff weight: 15.4KG (with electronics and battery)
- Model: TL16H00
- Type: Integrated Folding Hexacopter Frame
- Wheelbase: 1600mm
- Empty Frame Weight: 2.34kg
- Empty Aircraft Weight (with motors/ESC/props): 10.3kg
- Max Take-Off Weight: 15.4kg

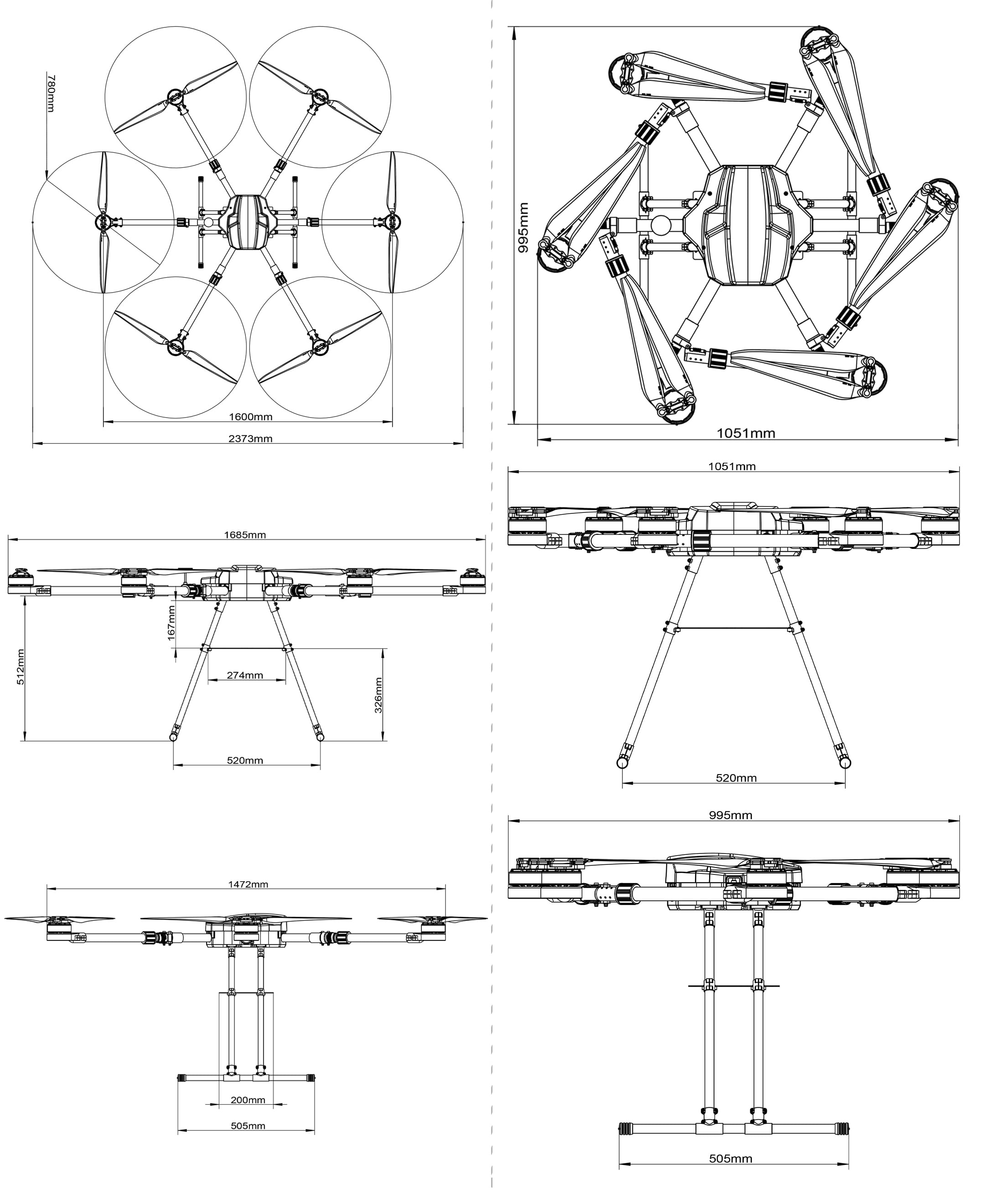

- Folded Size: 995 × 1051mm
- Deployed Width: 2373mm
- Frame Height: 512mm
- Centre Plate Size: 315 × 293mm
- Arm Tube Diameter: 30mm
- Landing Gear Tube Diameter: 20mm
- Recommended Wind Resistance: Up to Force 6
