Matek Digital AirSpeed Sensor ASPD-AUAV (UAVCAN)
£97.90 Inc. VAT
High-precision digital airspeed sensor using the AUAV-L30D element, supporting UAVCAN, I²C and MSP with a wide 400 km/h measurement range.
In stock|Next shipping: 09/03/2026
High-precision digital airspeed sensor with UAVCAN support and wide 400 km/h measurement range.

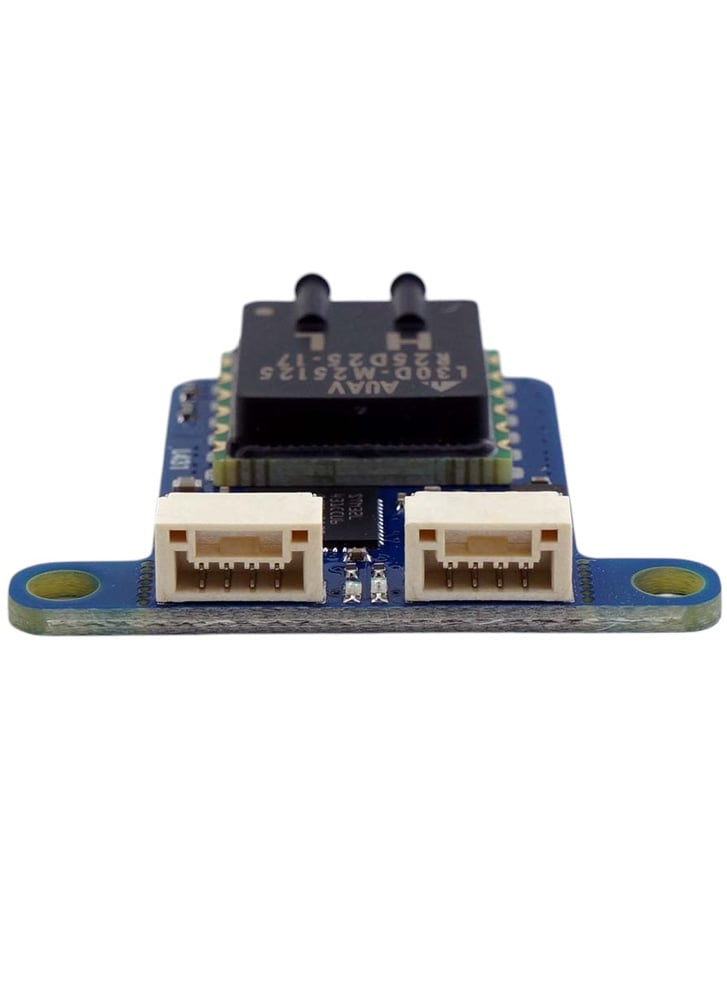

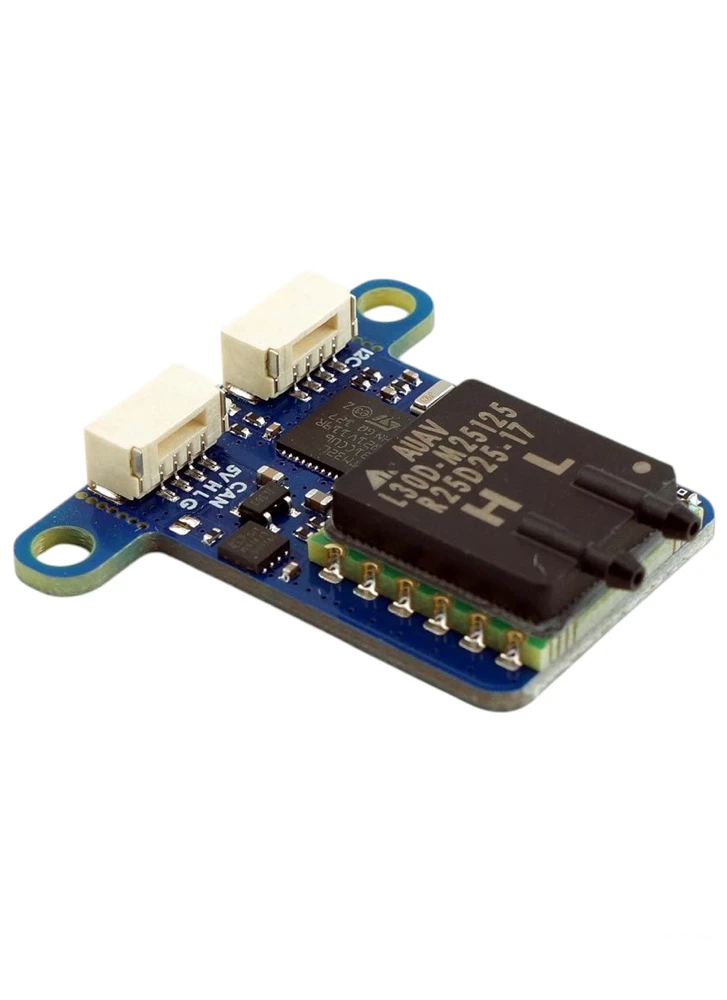

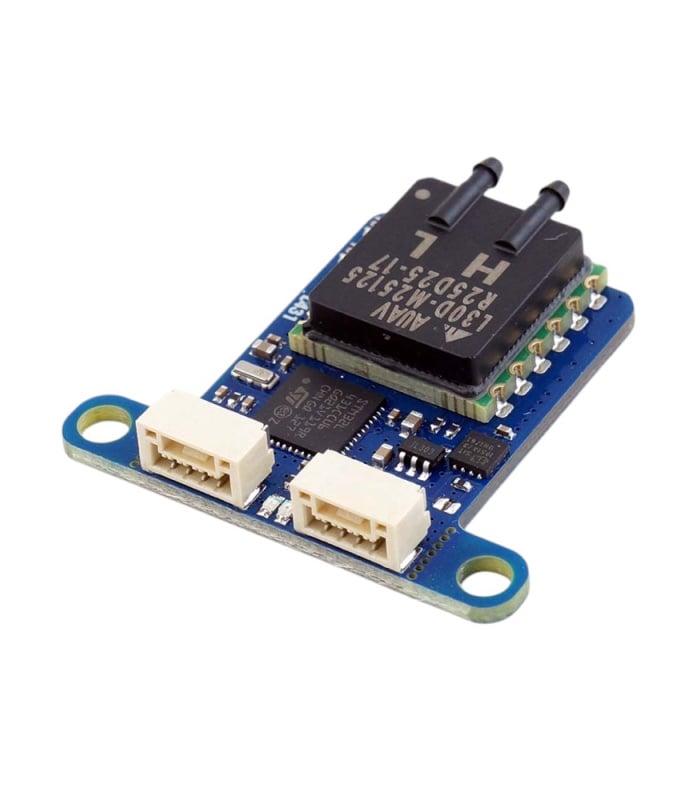

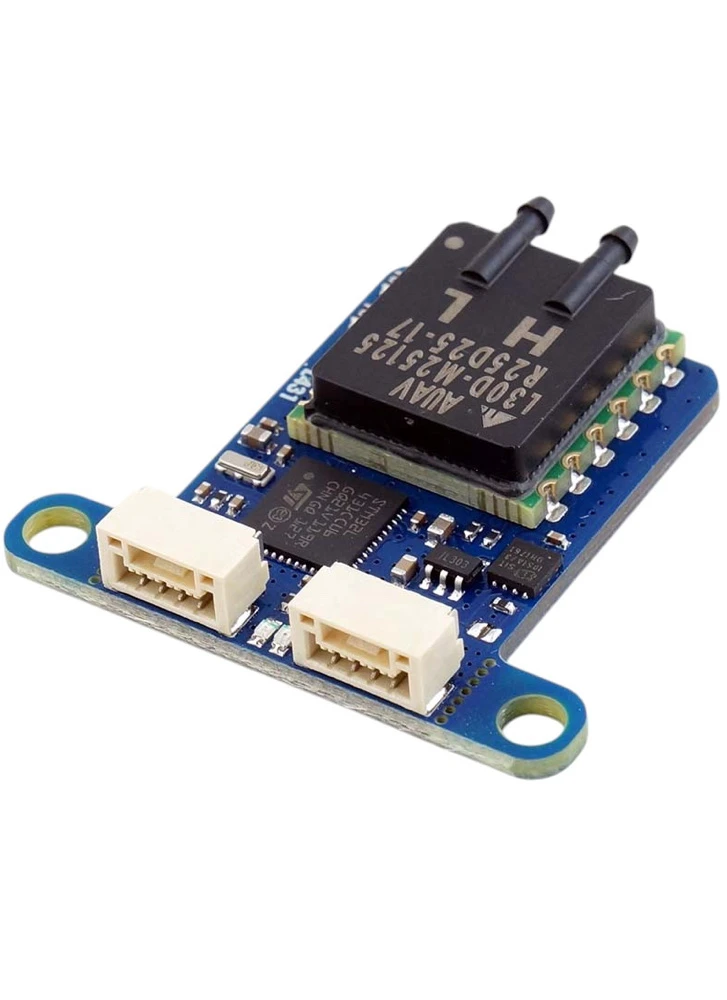

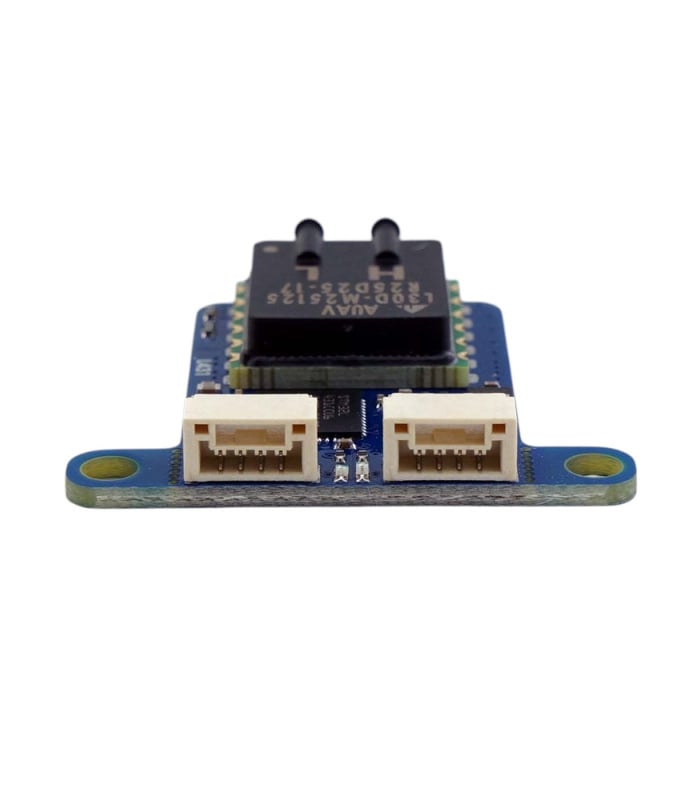

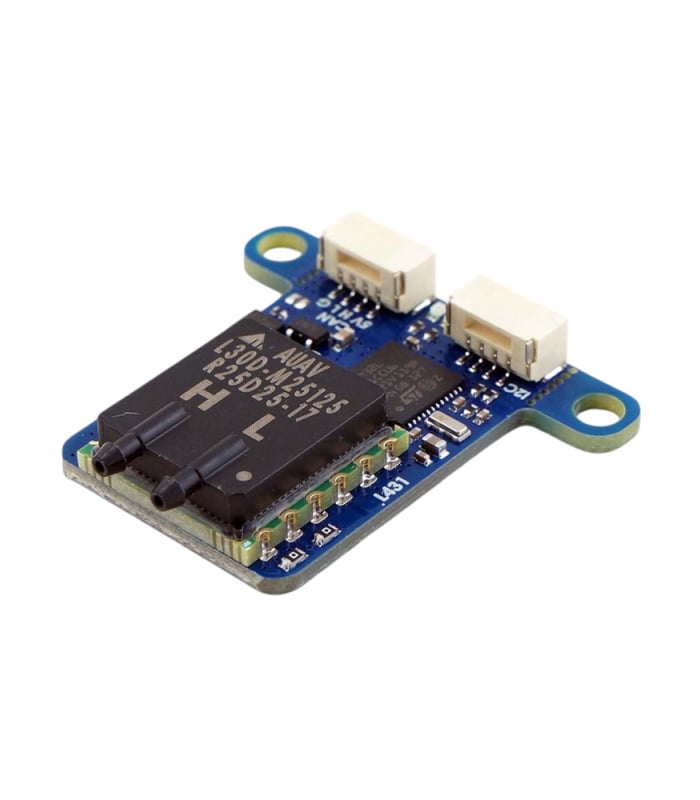

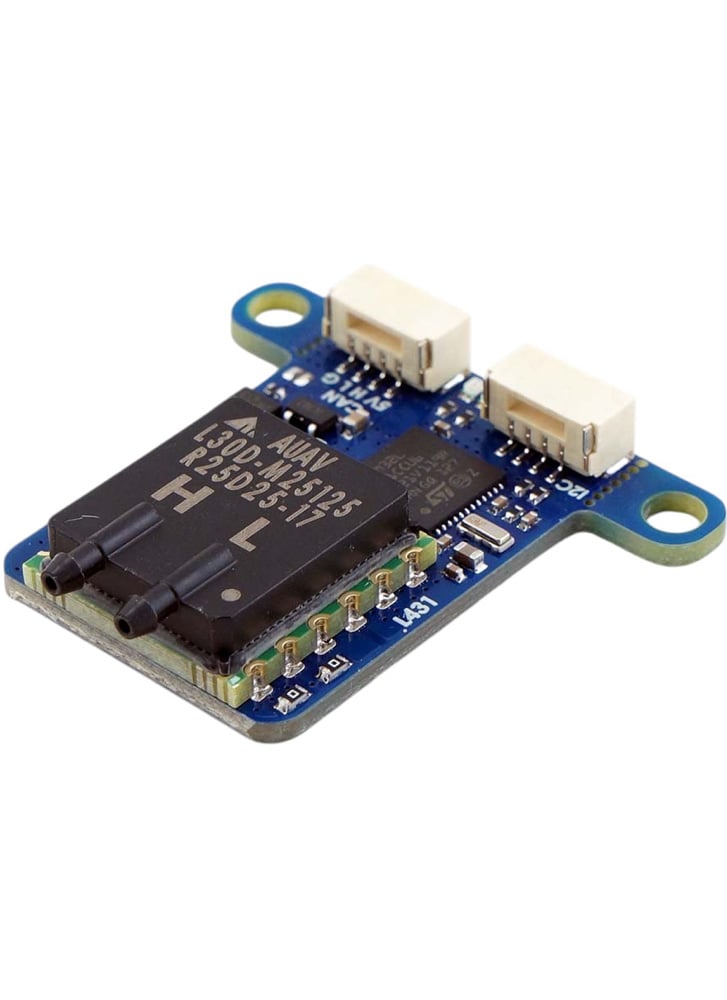

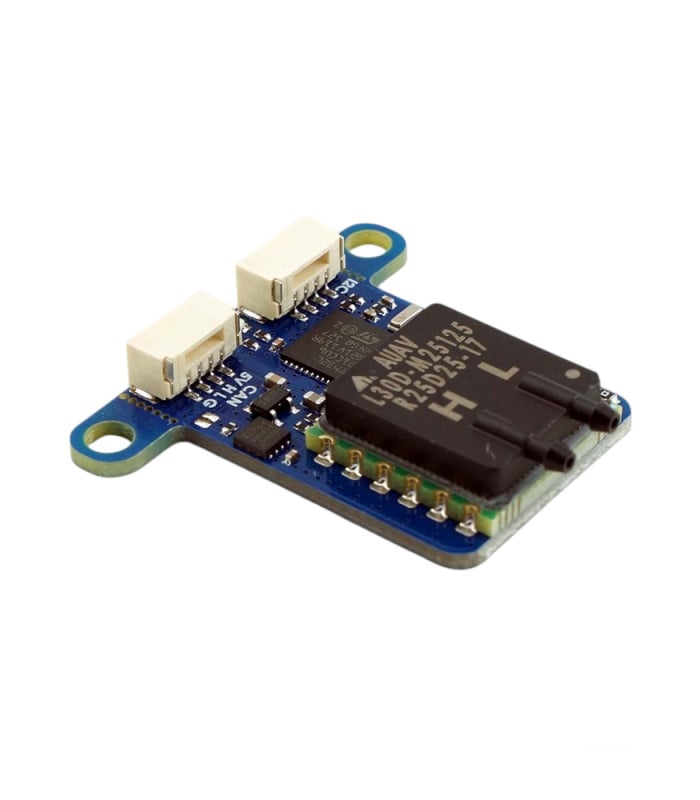

The Matek ASPD-AUAV Digital Airspeed Sensor is designed for fixed-wing UAV and RC aircraft requiring accurate and reliable airspeed data. Based on the AUAV-L30D differential pressure sensor, it offers improved still-air offset performance and a wider measurement range compared with many traditional airspeed sensors.
The sensor supports UAVCAN (DroneCAN), I²C, and MSP interfaces, allowing flexible integration with modern flight controllers and autopilot systems. UAVCAN connectivity provides robust digital communication and simplified wiring for aircraft using CAN-based avionics networks.
With a maximum airspeed measurement of up to 400 km/h, the ASPD-AUAV is well suited for fast fixed-wing platforms, VTOL aircraft, and long-range UAVs. Despite its capability, the sensor remains lightweight and efficient, drawing only around 26 mA and weighing approximately 5 g.
Compact and easy to integrate, the ASPD-AUAV provides precise airflow data that can improve flight efficiency, autopilot performance, and stall protection.
Features
- Dual interface support (DroneCAN/CAN + I2C) for flexible wiring and system compatibility
- Based on the AUAV-L30D differential pressure sensor for high precision and minimal drift
- Wide speed measurement range up to 400km/h (≈111 m/s) covering fast fixed-wing and UAV builds
- Low power consumption (~26mA) and compact form factor (36×32×7.3mm) make it suited to light aircraft
- Compatible with ArduPilot as AP_Periph peripheral node for telemetry and flight-data logging
- Input voltage range of 4.5V–5.5V simplifies power supply integration

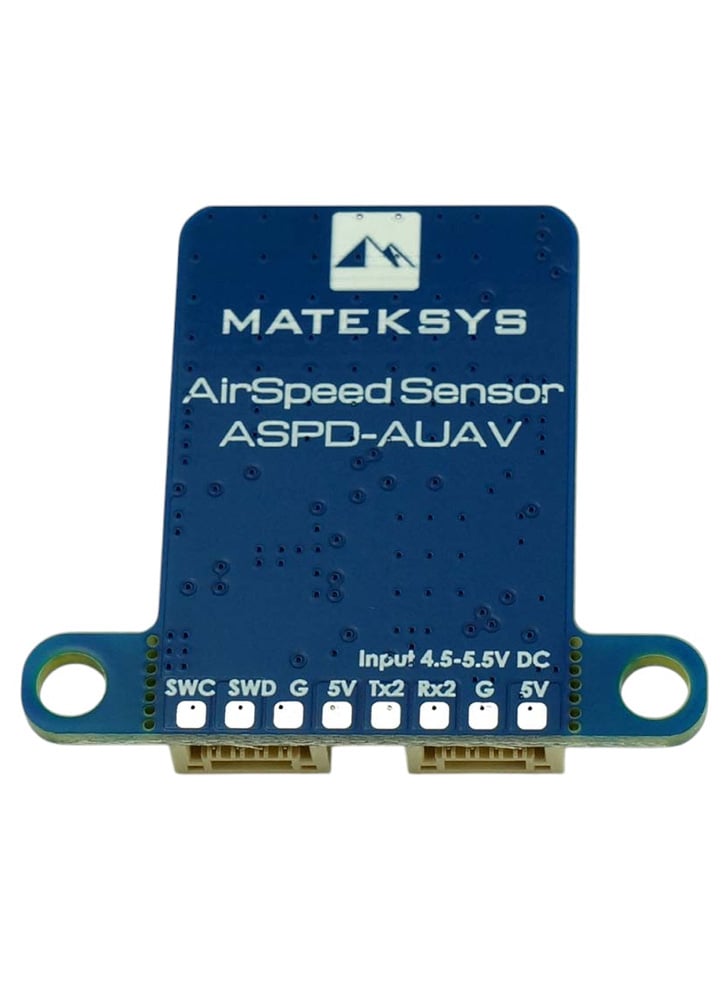

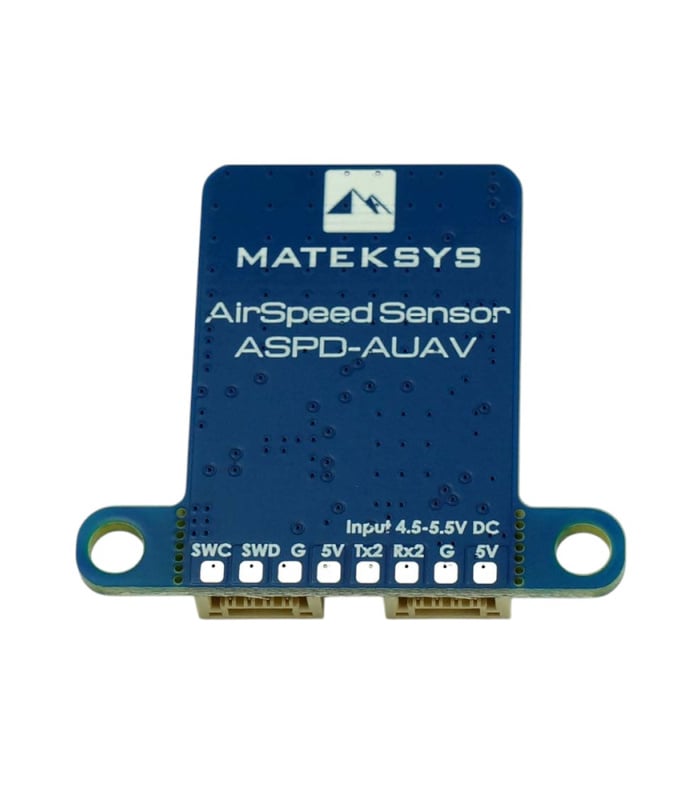

Interfaces:
- CAN JST-GH connector, DroneCAN Protocol
- I2C JST-GH connector, AUAV-L30D I2C mode
- TX2, MSP protocol

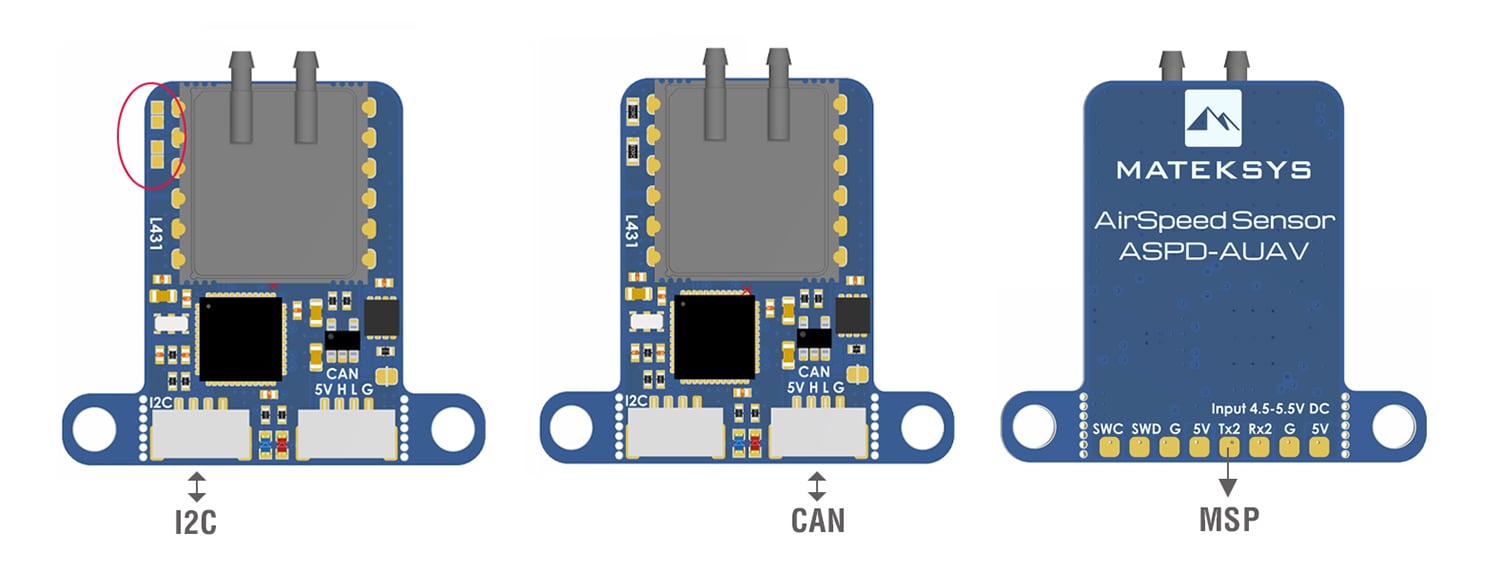

Wiring and AP Parameters
| CAN | or | I2C | or | UART | |||
| ASPD-AUAV | FC | ASPD-DUAV | FC | ASPD-DUAV | FC | ||
| 5V CANH CANL G |
4.5-5.5V CAN High CAN Low GND |
5V SCL SDA G |
4.5-5.5V SCL SDA GND |
5V G TX2 |
4.5-5.5V GND spare UART_RX |
||
| ARSPD*_USE ARSPD*_TYPE |
1 8 (UAVCAN) |
ARSPD*_USE ARSPD*_TYPE |
1 19 (AUAV-30in) |
ARSPD*_USE ARSPD*_TYPE |
1 14 (MSP) |
||
| SERIAL*_BAUD SERIAL*_PROTOCOL |
115 (115200) 32 (MSP) |
||||||
AP_Periph & DroneCAN protocol
- Firmware https://firmware.ardupilot.org/AP_Periph/latest/MatekL431-AUAV/
- AP_Periph https://github.com/ArduPilot/ardupilot/blob/master/Tools/AP_Periph/README.md
- DroneCAN protocol https://dronecan.github.io/
Tips
- CAN Baro is enabled by default, If you don’t use the Baro integrated in AUAV, set “BARO_ENABLE = 0” in “Mission Planner->Initial Setup->Optional Hardware->UAVCAN->MAVlink CANx -> Menu Parameters”
- ArduPilot has removed AUAV I2C support by default on flight controller with 1MB flash MCU(such as F405, F745 series).
AUAV vs. DLVR

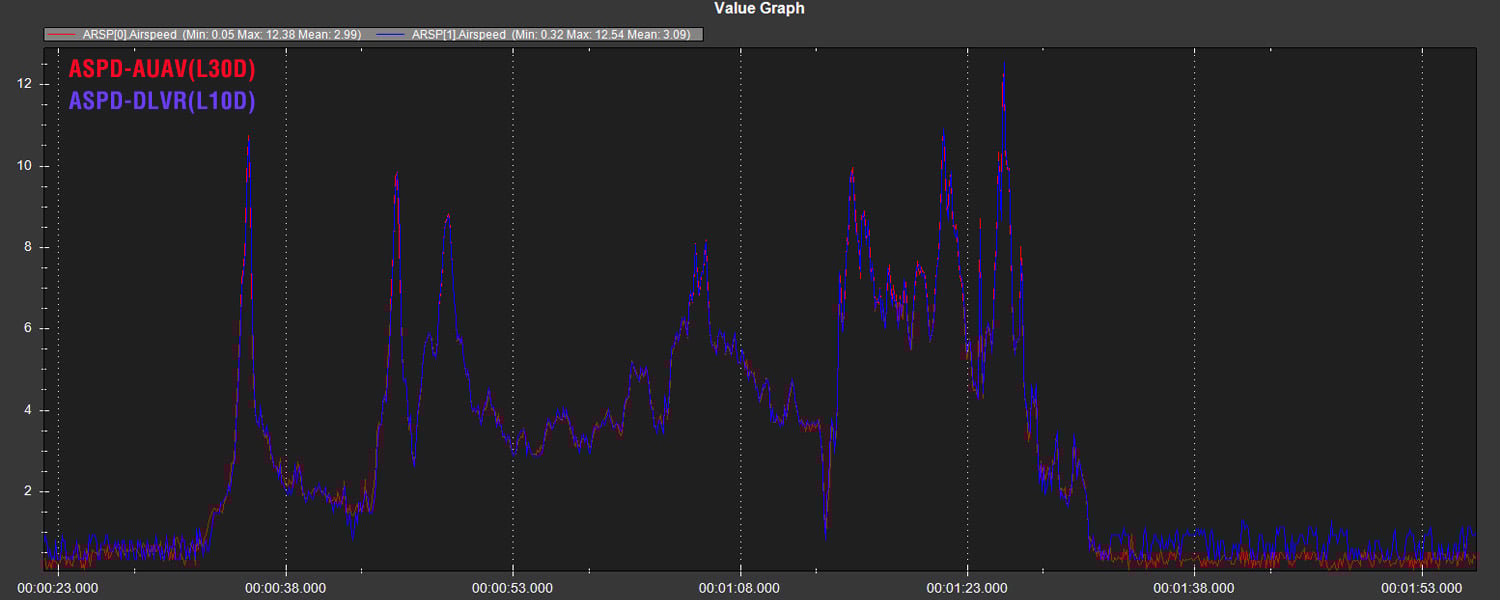

Example log comparison of the AUAV-L30D and DLVR sensors, showing the AUAV providing a cleaner zero-airspeed baseline and wider measurable speed range.
Speed range 400km/h vs 227km/h
- Model: Matek Digital Airspeed Sensor ASPD-AUAV
- Input voltage: 4.5V–5.5V
- Power consumption: ~26mA
- Speed range: 400 km/h (≈111 m/s)
- Operating temperature range: -30°C to +85°C
- Dimensions: 36×32×7.3mm
- Weight: ~5g
- Interfaces: DroneCAN (JST-GH), I²C, UART (MSP)
Included:

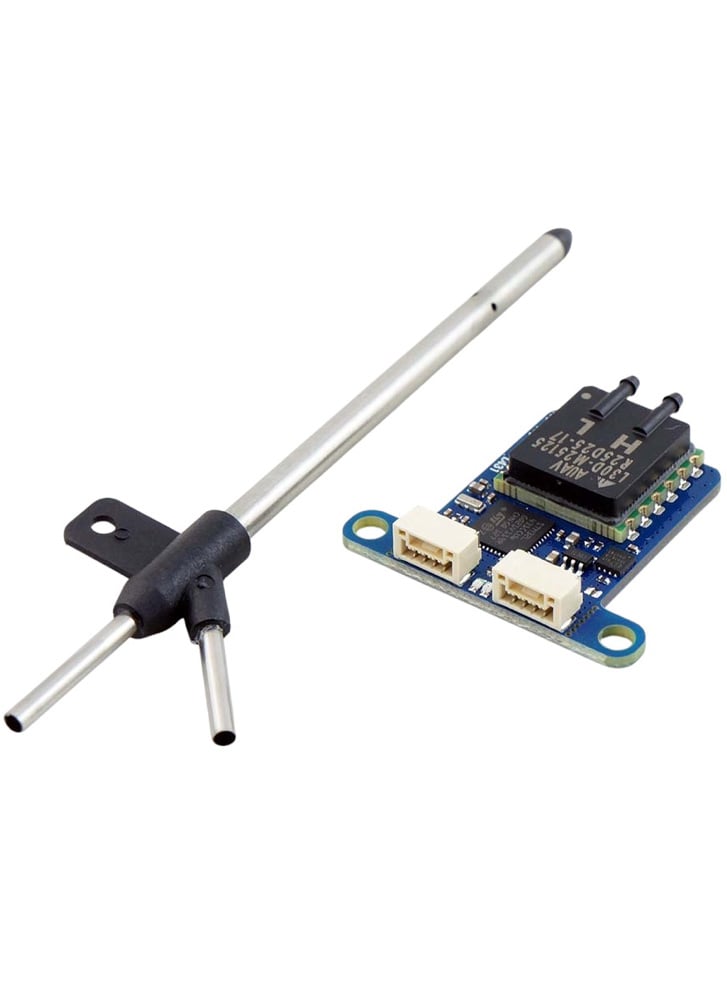

- 1x ASPD-AUAV Sensor

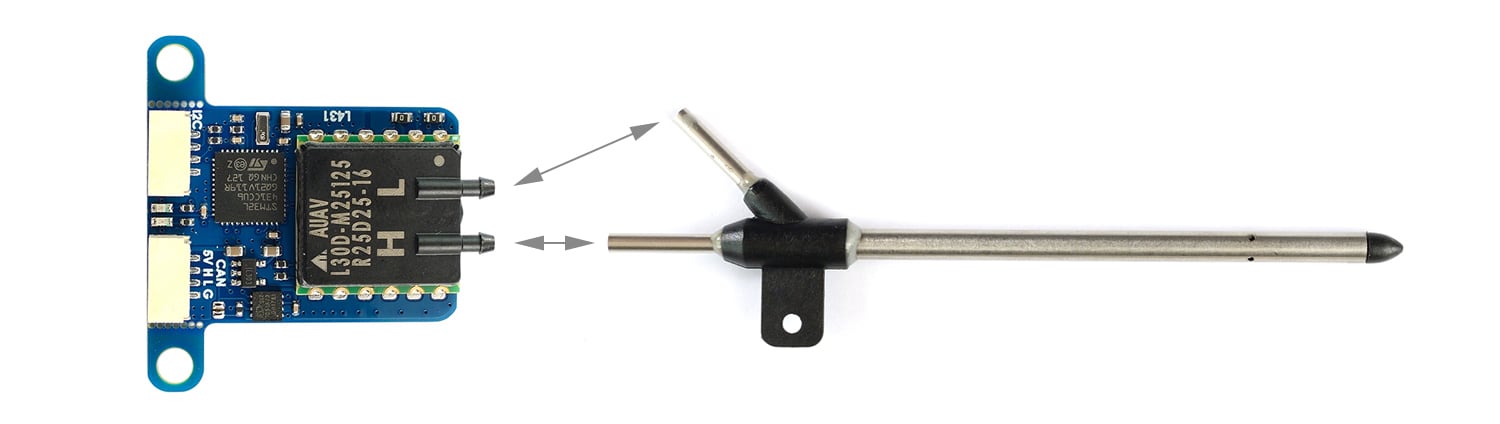

- 1x Pitot tube
- 2x 20cm connecting cable
- 1x 40cm silicone tubing
