Foxeer Reaper Extreme 3W 80CH VTX

Name: Foxeer Reaper Extreme 3W 80CH VTX - Flying Tech
Brand: Foxeer
SKU: FPV-TX-FOXREPEX3W
Price: 68.90 GBP
Availability: InStock

£68.90 Inc. VAT

This VTX has a built in fan for active cooling, making it a good choice for ground-based FPV rovers and boats.

Only 1 left in stock

Add to compare

0 People watching this product now!

SKU: FPV-TX-FOXREPEX3W Categories: FPV Video Transmitters (VTXs), FPV, Analog FPV, Long Range FPV Tags: 20x20, FPV, High Power VTX, Long range, Reaper, Video Transmitter, VTX

Description

Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

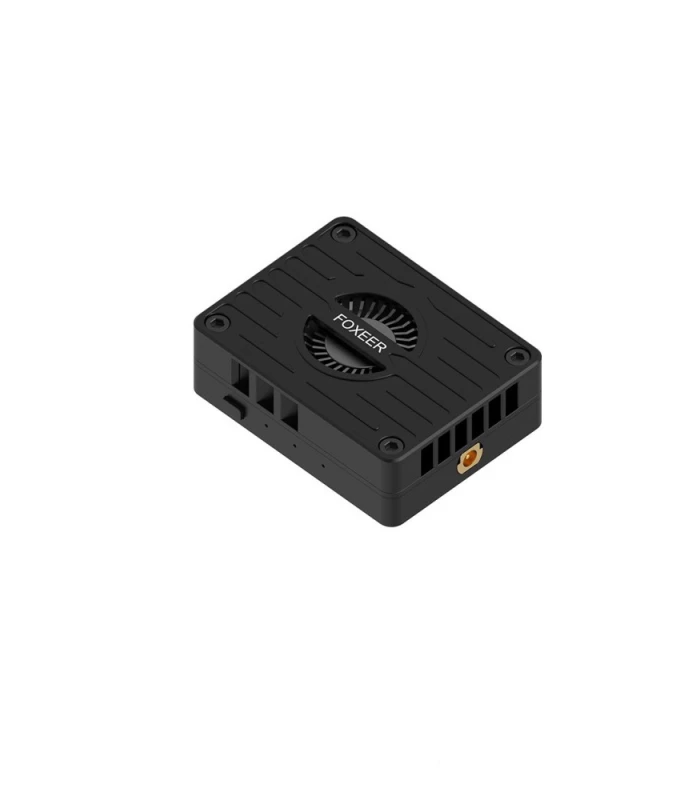

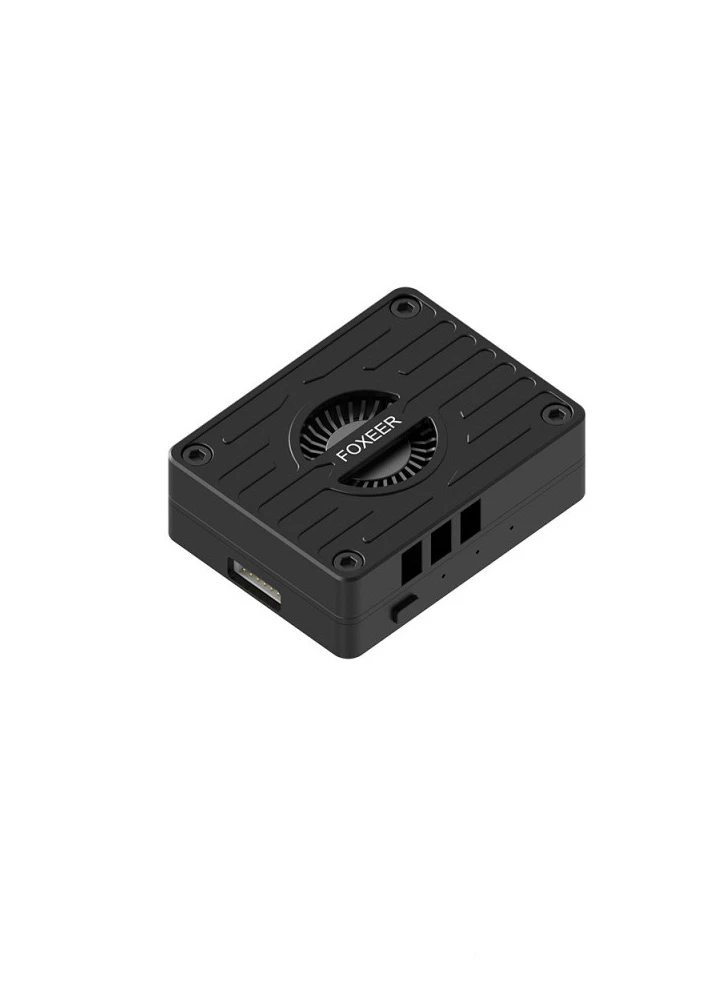

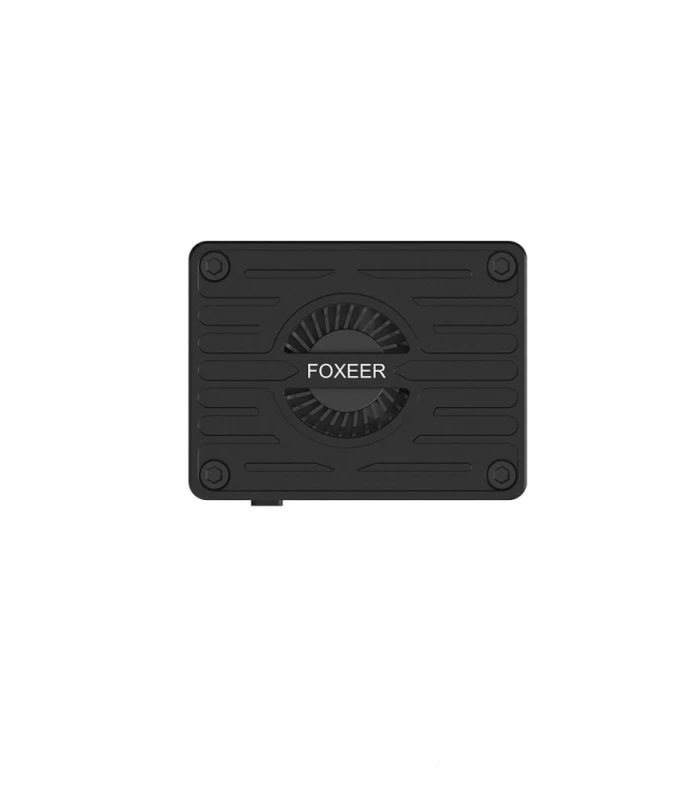

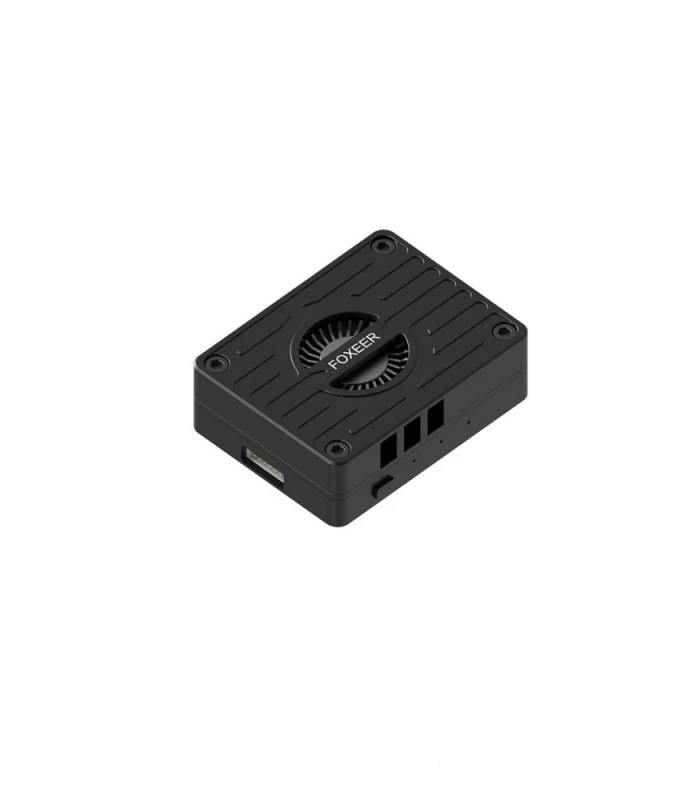

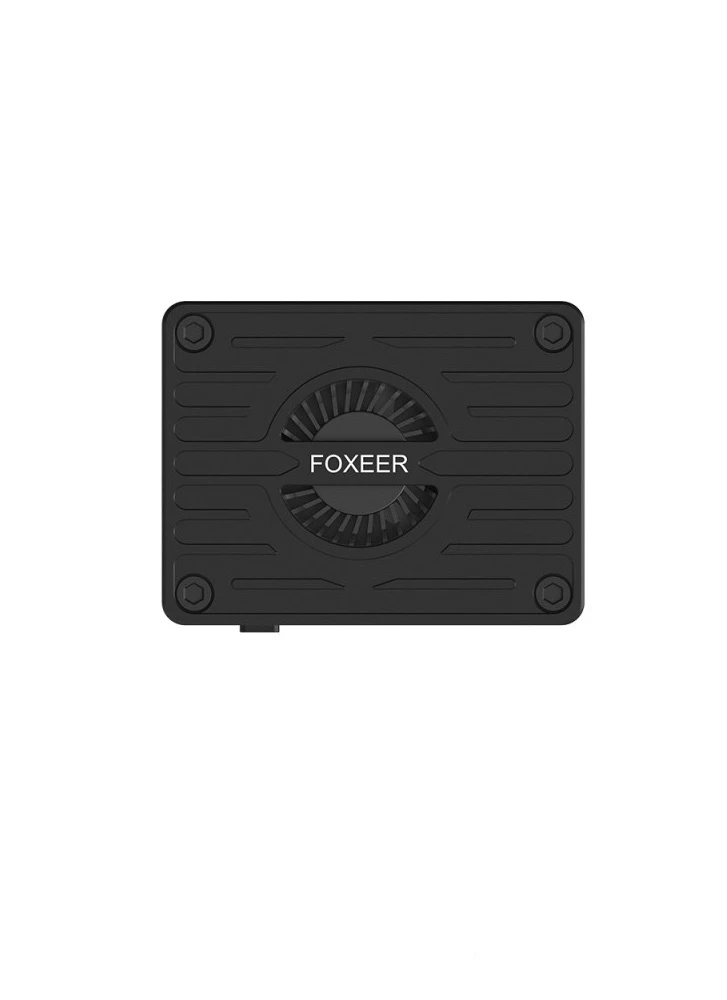

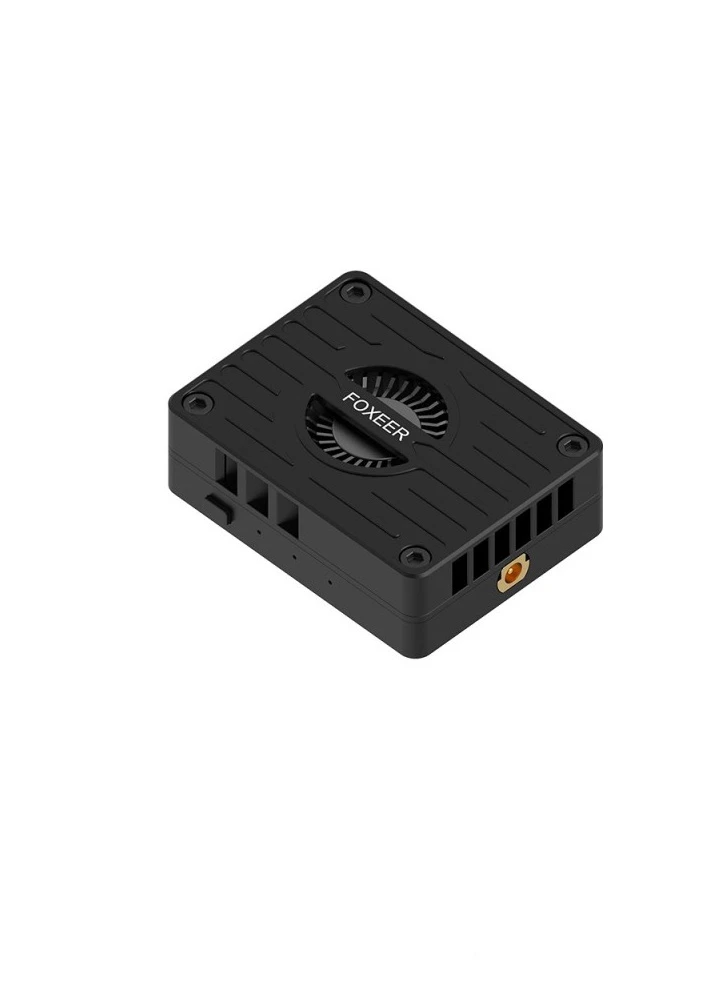

Extremely powerful video transmitter with a power of no less than 3W. The power output is adjustable with the following options 25mW/200mW/500mW/1.5W/3W. In addition it has a choice of 80 channels on 4.9G~6G frequencies, this includes 5.8GHz. The VTX comes encased in a heat dissipating shell with internal fan to drive active cooling. The VTX has an input voltage of 9 to 36V and an output voltage of 5V.

A VTX with extreme power for ultra long range flying!

Must Pair with Good Antennas to Avoid Self-Oscillation to Kill VTx

All Forbidden Frequency and Power Are Locked by Default

Note: If tramp cable is connected, the button control will not work. BetaFlight only can accept 64 channels at most, so need to remove 2 bands before input to BetaFlight.

Specification

Input Voltage: 9~36V
Output Voltage: 5V
Channels: 80
Power: Pit / 25mW / 500mW / 1.5W / 3W
Weight: 15.2g
Size: 38×29.2×11.5mm
Consumption: 1.4A / 10V

Downloads

Manual (pdf, 466KB)

Download

Videos

Q&A

Questions and answers of the customers

Where exactly are the 20x20 mounting holes on this vtx because there doesn't seem to be any on the images

0 votes

Q Where exactly are the 20x20 mounting holes on this vtx because there doesn't seem to be any on th...... Read more answer now

A
Hi, thanks for your question. This VTX doesn't have 20x20 mounts, sorry for the listing error. We do sell other VTXs with 20x20 mounting - HERE.
