FlySky FS-X6B 2.4Ghz AFHDS 18CH PWM iBUS PPM Receiver & Telemetry

£18.00 Inc. VAT

The FS-X6B offers 6 PWM channels, 8 channels using PPM, 18 channels using i-BUS, alongside aย builtย inย voltage sensor.

In stock

0 People watching this product now!
SKU: RX-FS-X6B-10CH Categories: , , Tags: , , , , , ,
Description

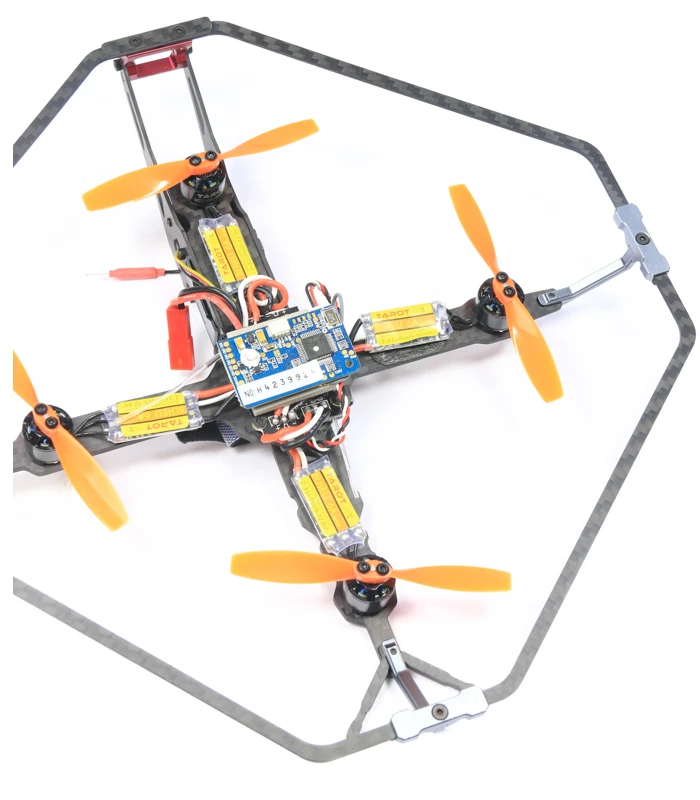

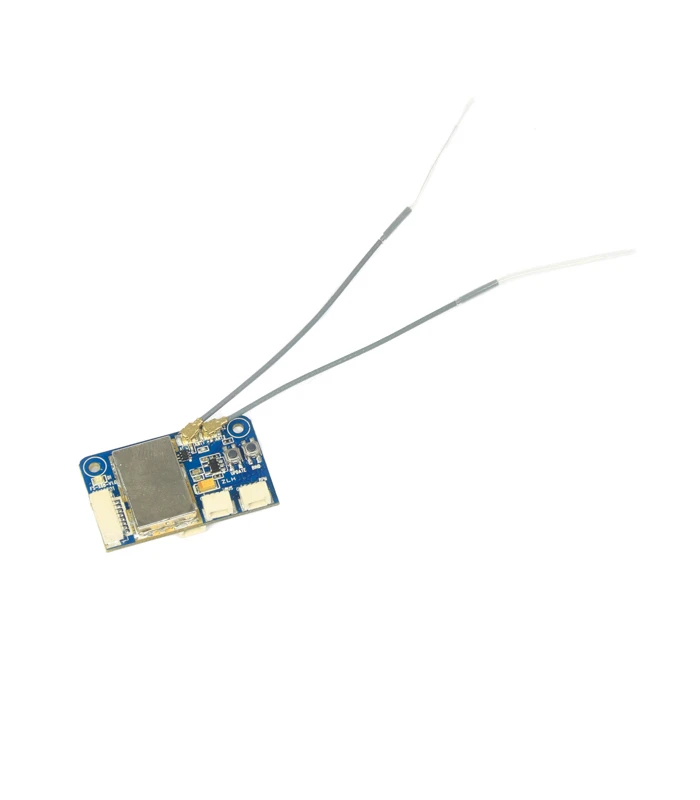

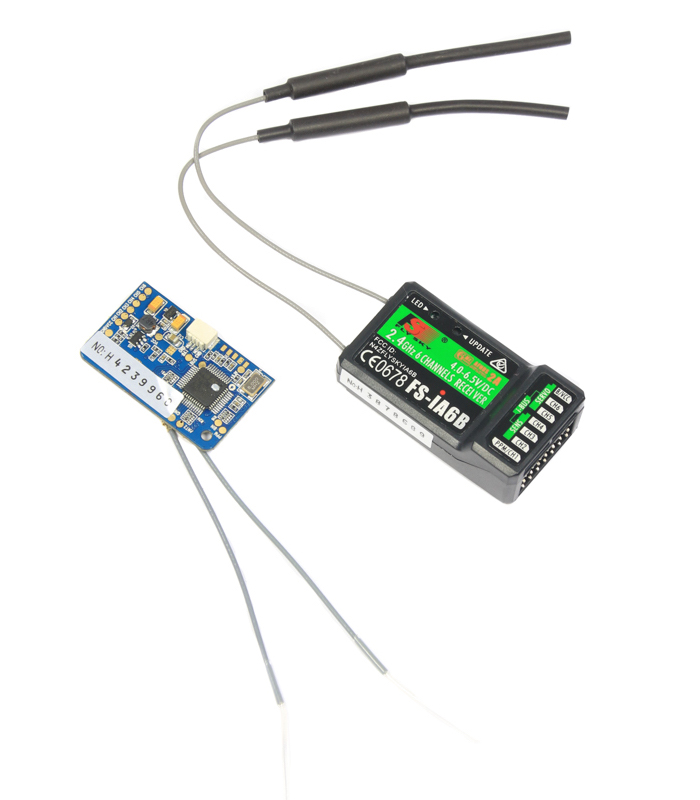

The FS-X6B is FlySky’s latest AFHDS receiver, and it’s been designed with multirotors in mind. It’s their most compact and lightest receiver to date and yet boasts even more features than the FS-iA6B. Like the FS-iA6B the FS-X6B uses the AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, which provides a very reliable interference free operation. The Rx features 6 PWM channels, 8 PPM channels and i-BUS support for up to 18 channels alongside aย reliable voltage sensorย builtย in (1-4S,ย 0 – 18volts). The advantage of PPM / i-BUS over traditional PWM channels is that you only need to use one signal wire, rather than one for each PWM channel – hence for PPM i-BUS compatible flight controllers such as the Naze32, the wiring is greatly simplified.

The receiver’s excellent range (reported at well over 1km) is thanks to its dual diversity antennae which give the X6B excellent reception and interference rejection capability. For best results, makes sure the antennas are set at a 90 degree angle from each other.

Features:

  • Reliable, interference free 2.4GHz AFHDS 2A signal operation
  • SBUS and IBUS/PPM support
  • Very compact, lightweight design
  • Dual antennas for reliable, interference free operation
  • Connection ports for use with optional telemetry sensors

Compatible Radios:

  • Flysky i4 i4X
  • Flysky /ย Turnigyย i6 i6X
  • Flyskyย FS-i8
  • Flysky / Turnigyย i10
  • (All AFHDS 2A Transmitters)
Specification
  • Channels: S.Bus 18ย Channels, PPM 8 Channels, PWM 6 Channels
  • RF range:ย 2.4055ย ~ 2.475 GHz
  • RF channel:ย 140
  • RXย sensitivity:ย -105dBm
  • 2.4GHz system:ย AFHDS 2A
  • Modulation type:ย GFSK
  • Power input:ย 4.5V – 6.5 V DC
  • Antenna length: 100mm x 2

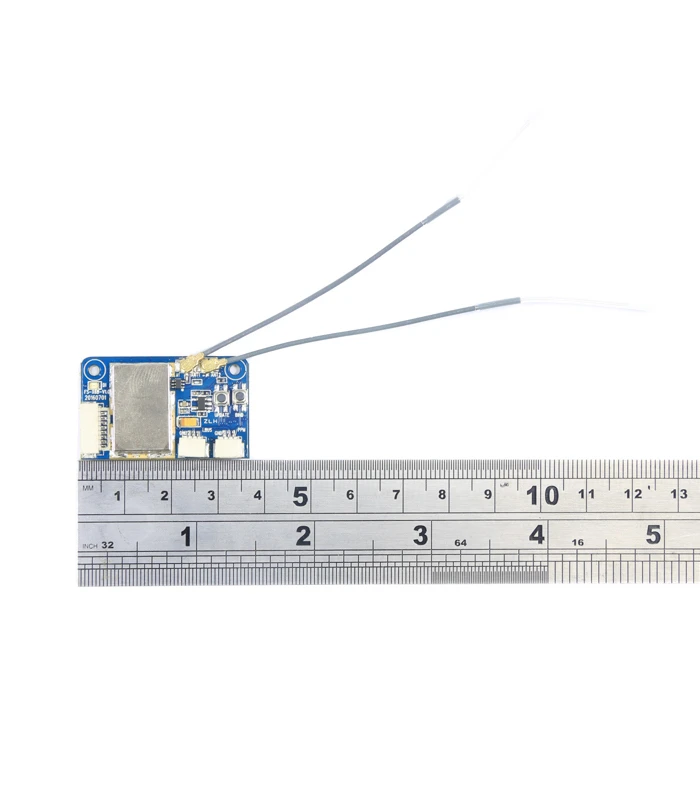

  • Size: 36ย x 22ย x 8ย mm
  • Weight:ย 5g
  • Certificate:ย CE0678, FCC, RCM
  • i-Bus port:ย Yes
  • Data acquisition port:ย Yes
  • PPM Common port: Yes
  • Independent Port: Yes

โ€‹โ€‹Included:

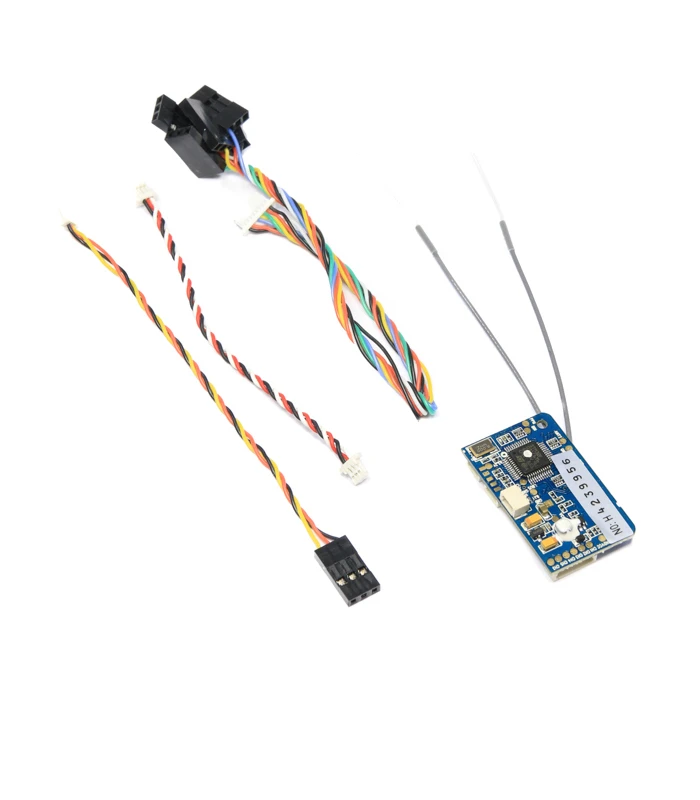

  • 1x FlySkyย FS-X6Bย Rx
  • Cables
Downloads

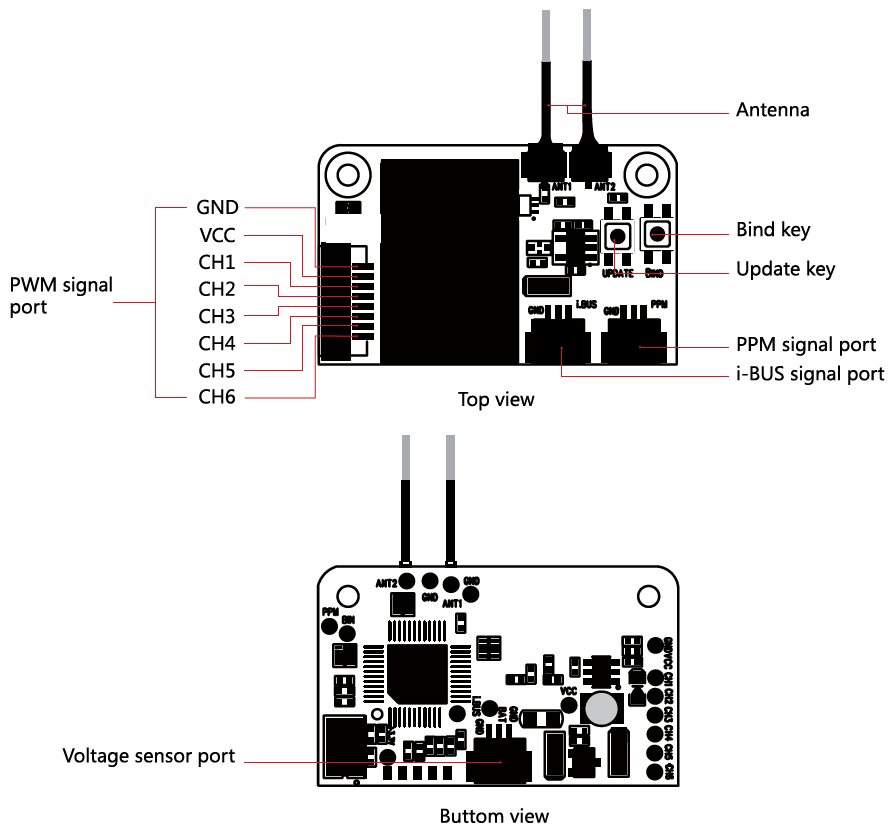

Connections (png, 63KB)
Manual (pdf, 785KB)
