FlySky FS-SR8C 2.4Ghz 8CH ANT-Protocol Micro Receiver PWM SBUS

£18.70 Inc. VAT

FS-SR8C is a mini 8CH Rx compatible with ANT-Protocol Flysky radios.

In stock

0 People watching this product now!
SKU: RX-FS-SR8C Categories: , Tags: , , , , ,
Description

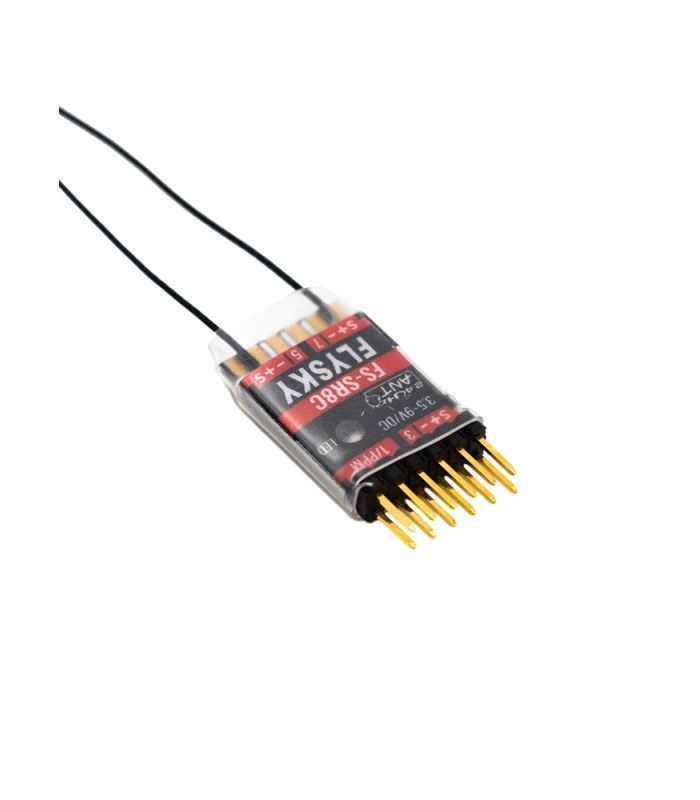

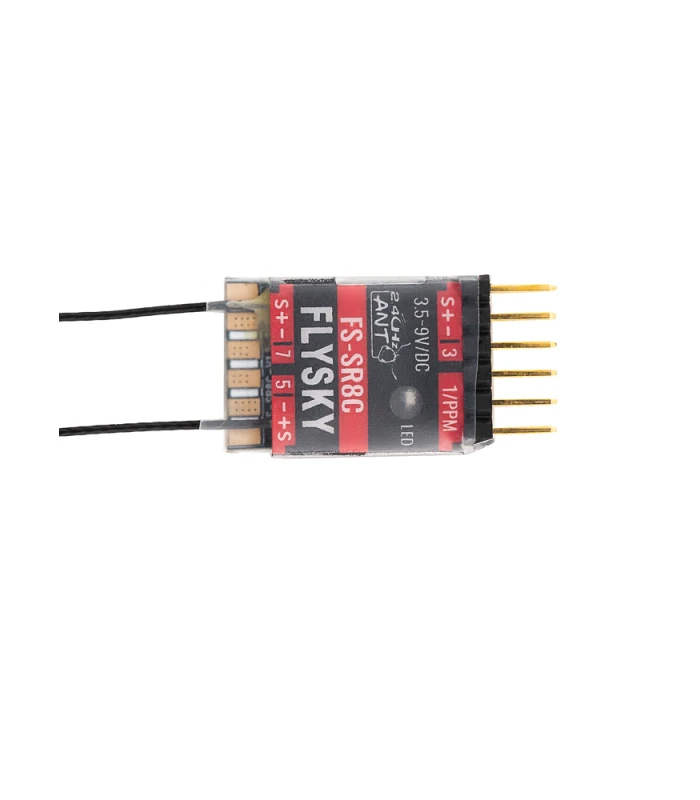

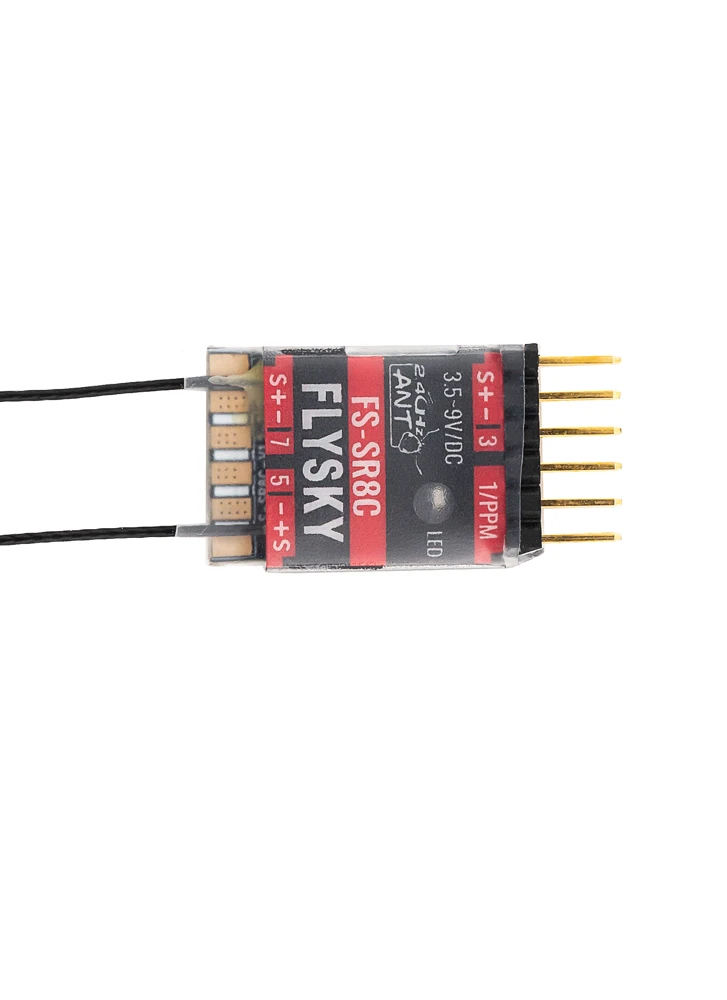

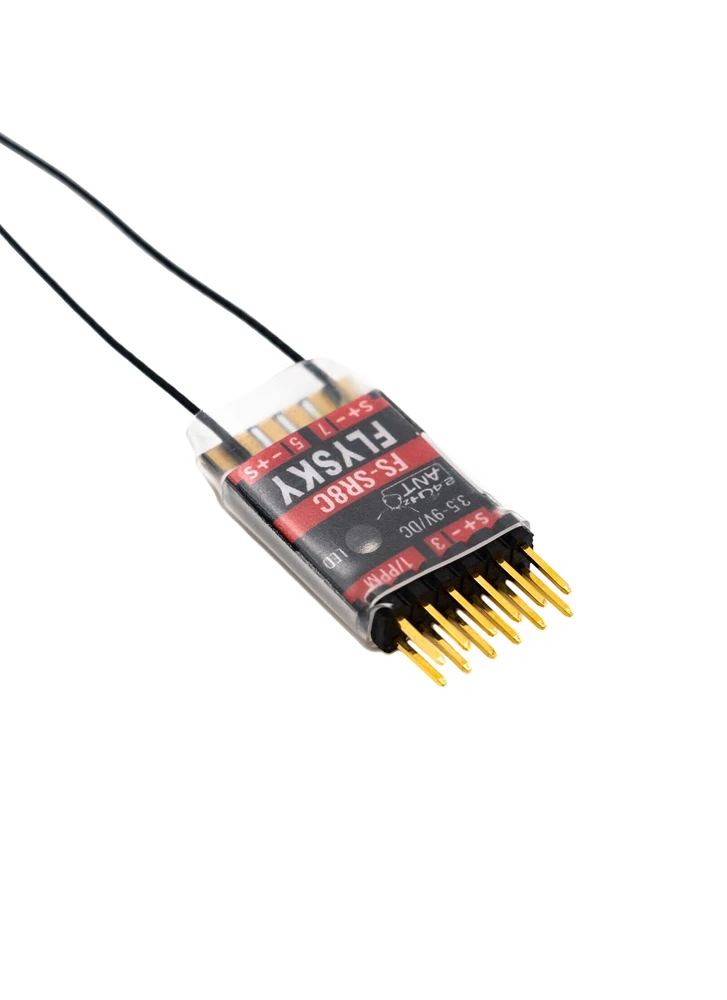

The FS-SR8C is a mini receiver supported by all ANT-capable Flysky transmitters. It has 8 channels that output via PWM/PPM/i-BUS and S.BUS signals. The receiver supports bidirectional transmissions with transfer-back function.

Specification
  • PWM Channels: 8
  • RF: 2.4GHz ISM
  • Maximum Power: < 20dBm (e.i.r.p.) ๏ผˆEU๏ผ‰
  • 2.4G Protocol: ANT
  • Antenna: Two antennas (ipex4)
  • Distance: > 800m (Air distance without interference)
  • Input Power: 3.5~9V/DC
  • Working Current: 70mA(5V)
  • Data Output: PWM/PPM/i-BUS/S.BUS
  • Online Update: Yes
  • Temperature Range: -10โ„ƒ ~ +60โ„ƒ
  • Humidity Range: 20% ~ 95%
  • Dimensions: 22x15x3mm (Excluding pins and antennas)
  • Weight: 1g (Excluding pins and antennas), 2g (Including 4*3 pins and two antennas)
  • Compatible Transmitters: Adapts transmitters with ANT protocol, such as FS-ST8
  • Certifications: CE, FCC ID: 2A2UNSR8C00

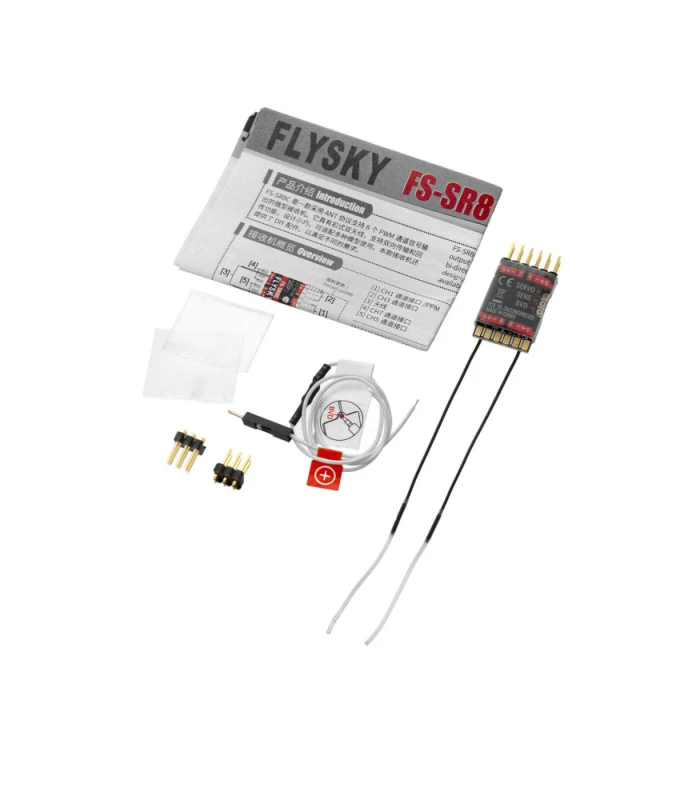

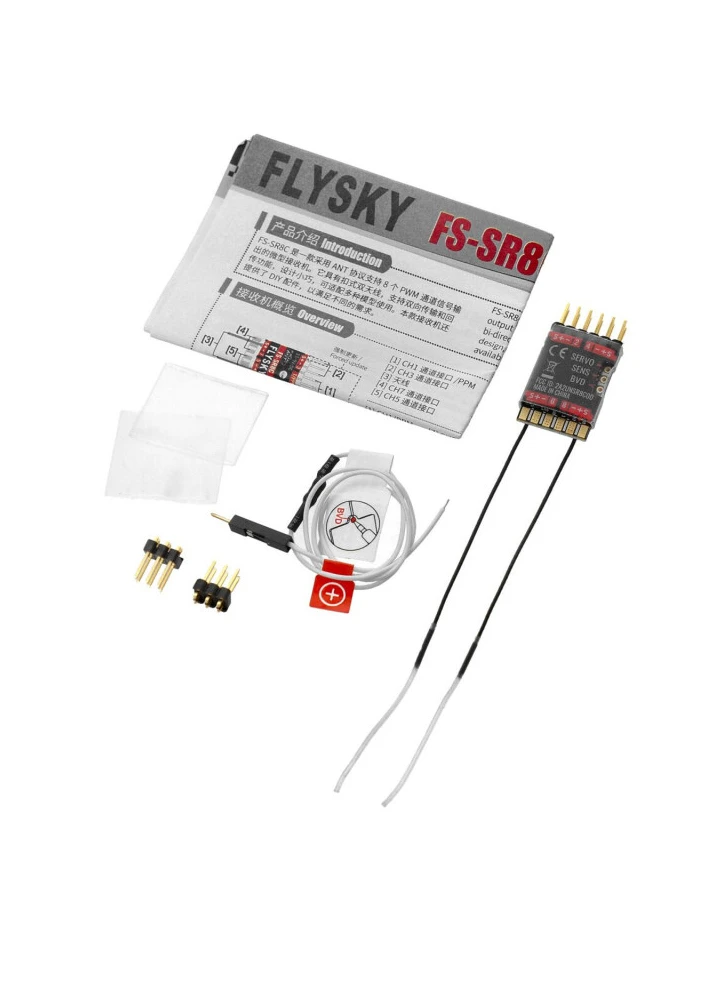

Included:

  • 1xย Flysky FS-SR8C 2.4GHz 8CH ANT Protocol RC Mini Receiver
Downloads
Manual (pdf, 521KB)
Q&A

Questions and answers of the customers

    Hi I am using an FS-SR8 and getting intermitent signal loss issues at quite short ranges. Is the FS-SR8C likely to offer any improvement.
  1. 0 votes
    Q Hi I am using an FS-SR8 and getting intermitent signal loss issues at quite short ranges. Is the ...... Read more answer now
    A

    Both the FS-SR8 and FS-SR8C are classed as โ€˜Full Rangeโ€™ receivers so their range should be comparable to each other. I would advise double checking the voltage to the receiver is correct and make sure the antennas arenโ€™t being shielded.
