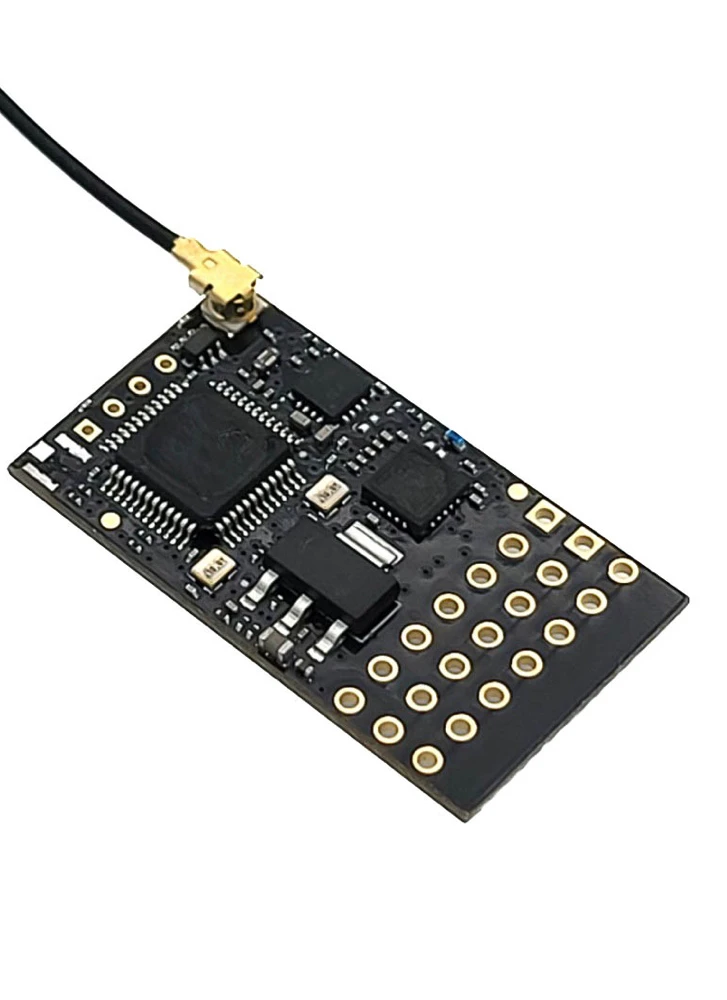

Lemon Rx 6-CH No Pin PWM Receiver DSMX / DSM2 (LM0080N)

£14.99 Inc. VAT

This Rx comes without PWM header pins, to save weight and remain compact.

In stock

0 People watching this product now!
SKU: RX-PWM-LM0080N Categories: , Tags: , , , , ,
Description

The LM0080N is a 6 channel Lemon RX receiver. It comes without PWM headpins, allowing you to direct solder to this RX to save weight and to suit installations where space is limited.

Itย is compatible with DSMX and also backward compatibleย with DSM2ย transmitters.

The receiverย weighs in at only 2.3g and it’s barely bigger than a postage stamp.

Unlike some other Spektrum compatible products,ย Lemon Rx products aren’t inferior to Spektrum productsย in terms of performance or reliability.

LM0080N Wiring

Failsafe

Bind receiver and current channel values will be saved. Failsafe will be activated when no signal is received for 2 seconds. All channels will be positioned to failsafe default. For this reason, it is recommended that the throttle should be at 0% while all other sticks are centred during binding.

1S LiPo Application

The minimum recommended safe supply voltage is 3.5V

NOTE: The battery must be capable of maintaining that voltage while delivering the required maximum load current to the receiver and servos. In some cases you MAY be able to operate at a lower voltage (for example a well discharged 1S LiPo cell) but you must test it in practice to be sure.

Specification
  • Dimension and Weight:ย 17.4mm(W) x 31.5mm(L), 2.3 grams including extened antenna
  • Recommended voltage range:ย 3.5V to 8.5V (2S LiPo capable)
  • Technology:ย DSMP with GEN2 SDR stack (DSMX / DSM2 compatibility)

Included:

  • 1xย Lemon Rxย LM0081ย (PWMย Diversityย Receiver)
  • 1x Bind Plug
  • 1xย Adhesive Mounting Pad
Downloads
Wiring Pinouts (jpeg, 121KB)
