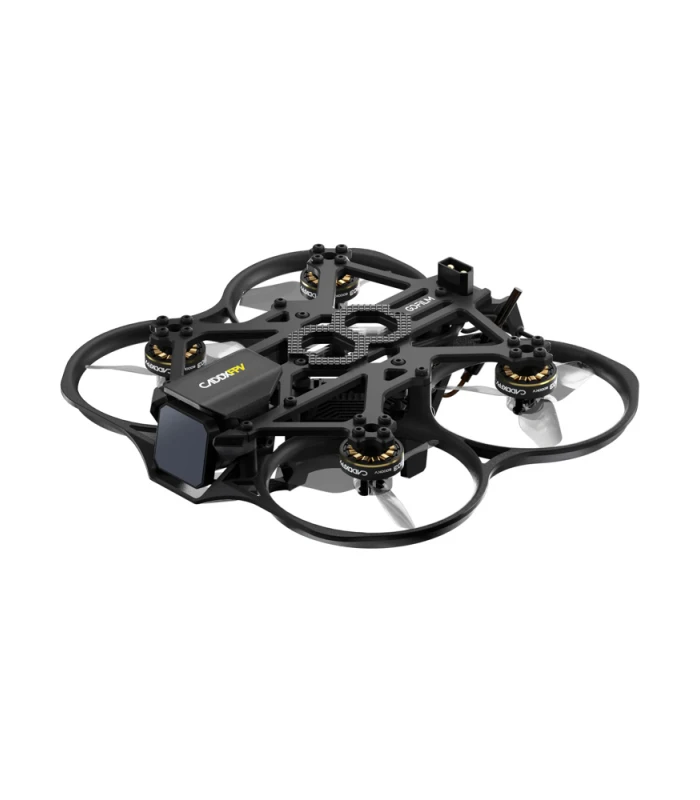

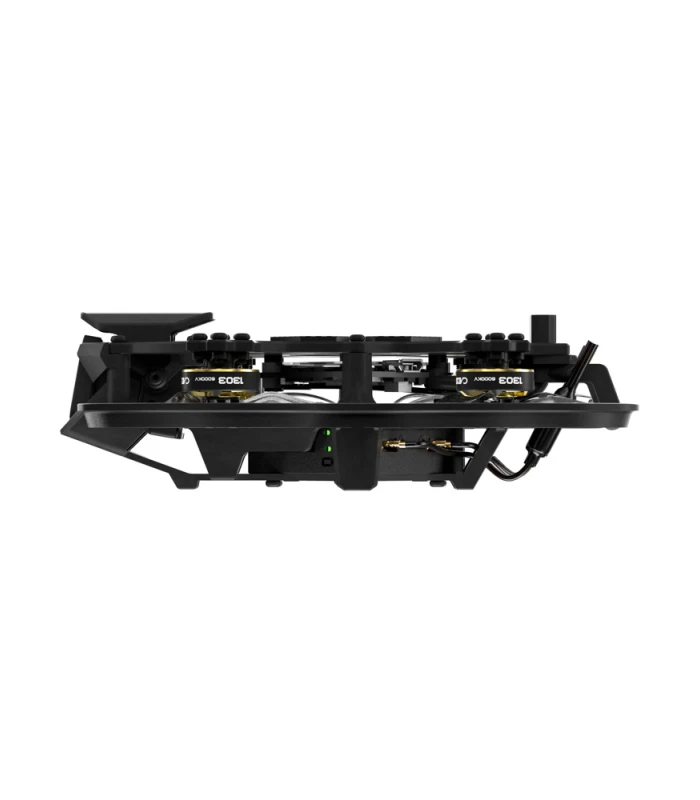

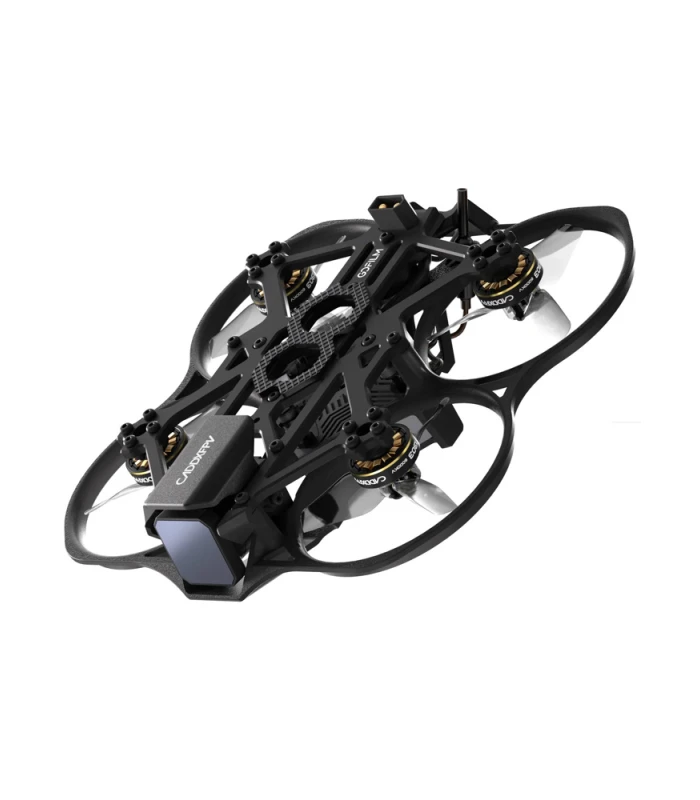

Caddx GoFilm 20 Cinewhoop BNF HD w/ Walksnail Moonlight – ELRS 2.4GHz
£379.00 Inc. VAT
The GoFilm 20 is small sub-250g 4K cinewhoop, compatible with Walksnail FPV.
Only 1 left in stock|Next shipping: 16/03/2026

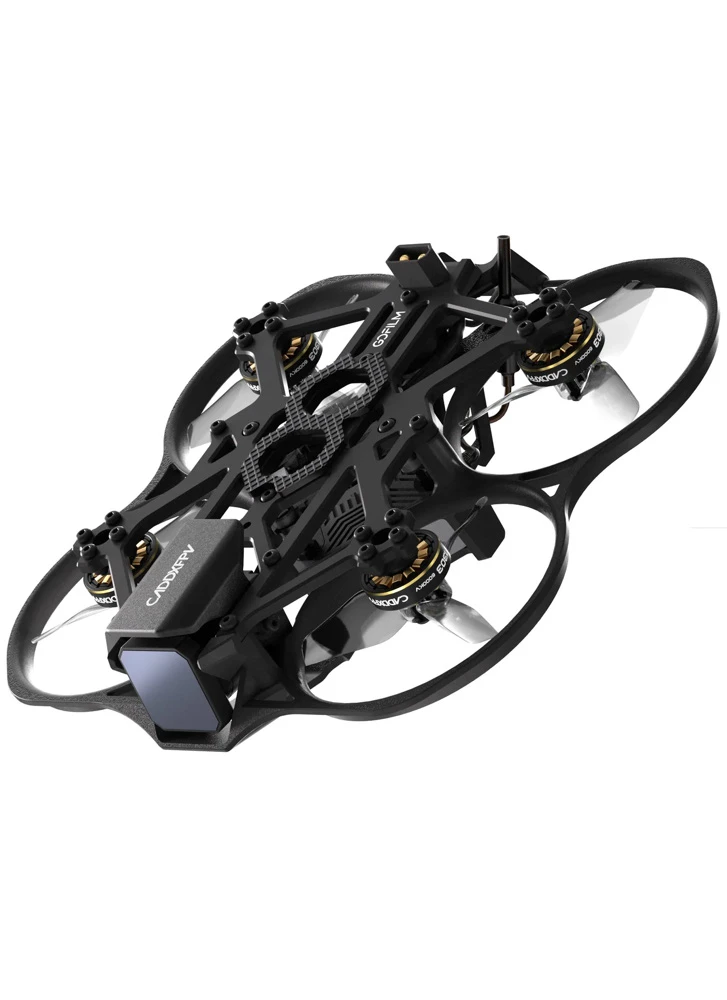

The first Cinewhoop from CADDXFPV is here. The GoFilm 20 offers a credible alternative to a DJI drone for those looking to record dynamic cinematic footage!
With a wheelbase of just 94mm and protective prop ducts, the compact GoFilm 20 drone can venture just about anywhere. Flyable indoors and outside, through tight gaps and closely packed environments. Unlike giant cinematic drones of old, this mini marvel is super agile, relatively quiet and easy to travel with. Plus, its low weigh (around 120grams), qualifies it for being regulation-friendly in the sub250 class.

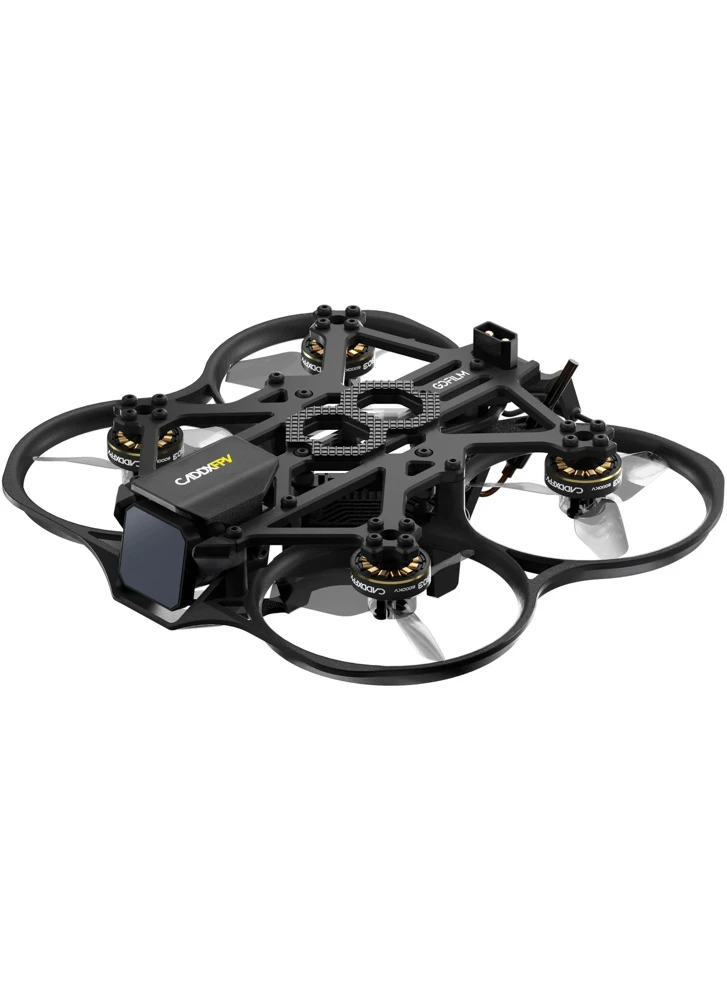

At the heart of the GoFilm20 is the Walksnail Moonlight camera system, which offers 4K 60fps recording and support for Gyroflow stabilisation. With a 160° field of view, you have everything in sight and can capture breathtaking footage with this little drone.
The GoFilm 20 drone comes fully assembled. To get going, you’ll just need to bind it to your radio controller (ELRS compatible) and video receiver (Walksnail Avatar HD Goggles X / Avatar VRX). It doesn’t come with a battery, it supports 2-4S LiPo using a XT30 battery plus. We recommend a 4S 650mAh LiPo – this will provide a flight time averaging 5 minutes.
Recommended Accessories:
- Battery: 4S 650mAh (compatible with 2-4S LiPo)
- Props: HQprop T2×2×3
- Goggle: Walksnail Avatar HD Goggles X / Avatar VRX
Spare Parts:
- Flight control: CADDXF4_AIO_ELRS
- Motor: 1303 6000KV
- Camera: Moonlight Kit
- Frame Kit
VTX PARAMETERS
- Recording resolution: 4K@30/60fps; 2.7K@30/60fps; 1080p@100/60fps; 720p@60fps
- Transmitter Power (EIRP): FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
- I/O Interface: JST1.04(power cable); JST0.86(USB)；microSD Card Slot; IPEX-1
- VTX Installation hole: 20×20mm/25×25mm (M2)
- Communication Frequency: 5.725-5.850 GHz
- Firmware name: AvatarMoonlight_Sky_X.X.X
- Memory card type: U3 microSD, Max 256G
- Power consumption: 12V@1.4A, 8V@2.2A
- Camera size: 19.6mm×19mm×24mm
- VTX size: 15.3mm×34.5mm×34.5mm
- Weight: 38.5g (Antenna not included)
- Wide Power Input: 7.4V-25.2V
- Latency: Average delay 22ms
- Video format: MP4 (H.264)
- Shutter: Rolling shutter
- Sensor: Starlight sensor
- Max Mbps: 150Mbps
- Model: Moonlight Kit
- Built-in EIS: Support
- Gyro flow: Support
- OSD: Canvas mode
- 3D DNR: Support
- Antenna: 2 (IPEX)
- ISO: 100-25600
- FOV: Max 160°
- Aperture: F2.1
GOFILM 20 PARAMETERS
- Flight time: 4S 650mAh & about 5.5 minutes
- Propeller: HQprop T2×2×3
- FC: CADDXF4_AIO_ELRS
- Battery interface: XT30
- Size: 133×123×39mm
- Motor: 1303 6000KV
- Receiver: ELRS 2.4G
- VTX: Moonlight Kit
- Wheelbase: 94mm
- Model: Gofilm 20

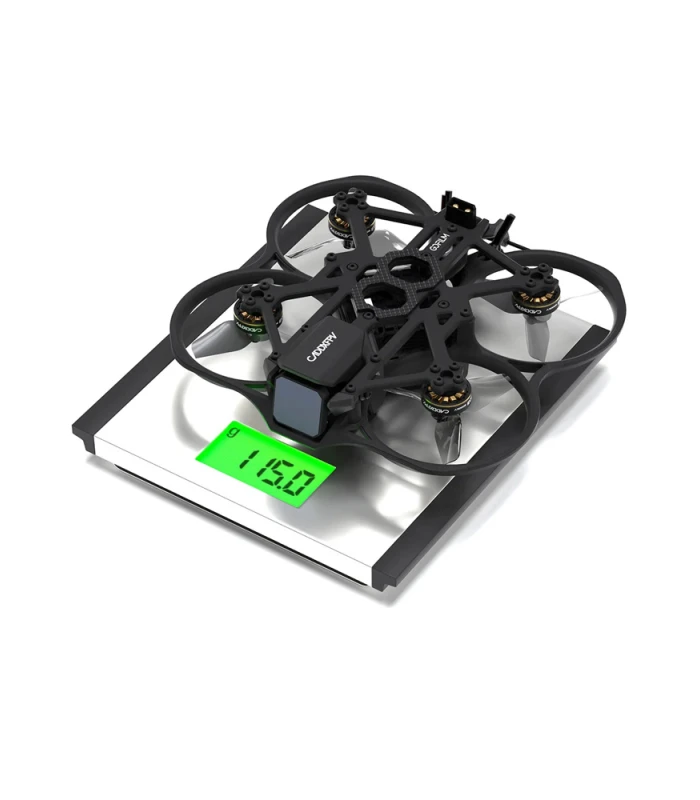

- Weight: 115±5g
FC PARAMETERS
- Mounting hole Distance: 25.5×25.5mm
- Firmware target: CADDXF4_AIO_ELRS
- ExpressLRS receiver: ELRS V3.0 UART
- Support Power: 2~4S Lipo/Lihv
- GYRO and IMU: ICM42688
- MCU: STM32F405RGT6
- Barometer: BMP280
- ESC: 20A 4-IN-1
- Blackbox: 8MBp
Includes
- 1x Caddx Gofilm 20 Cinewhoop BNF HD w/ Walksnail Moonlight – ELRS 2.4GHz
- 1x Micro USB data cable
- 1x Instructional Manual
- 1x 180mm strap
- 1x Hardware Kit
- 1x Paddles
