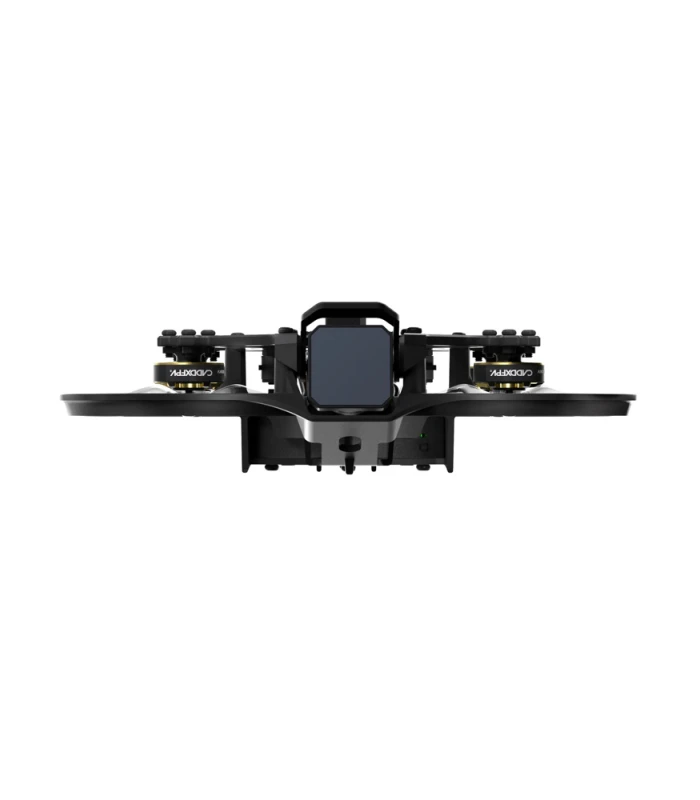

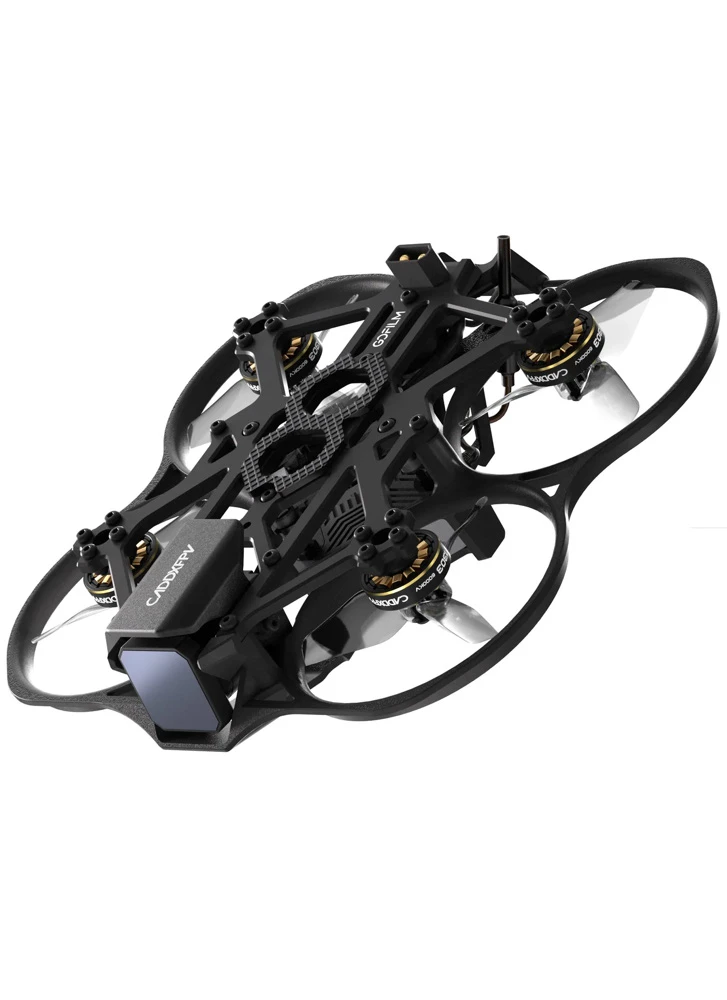

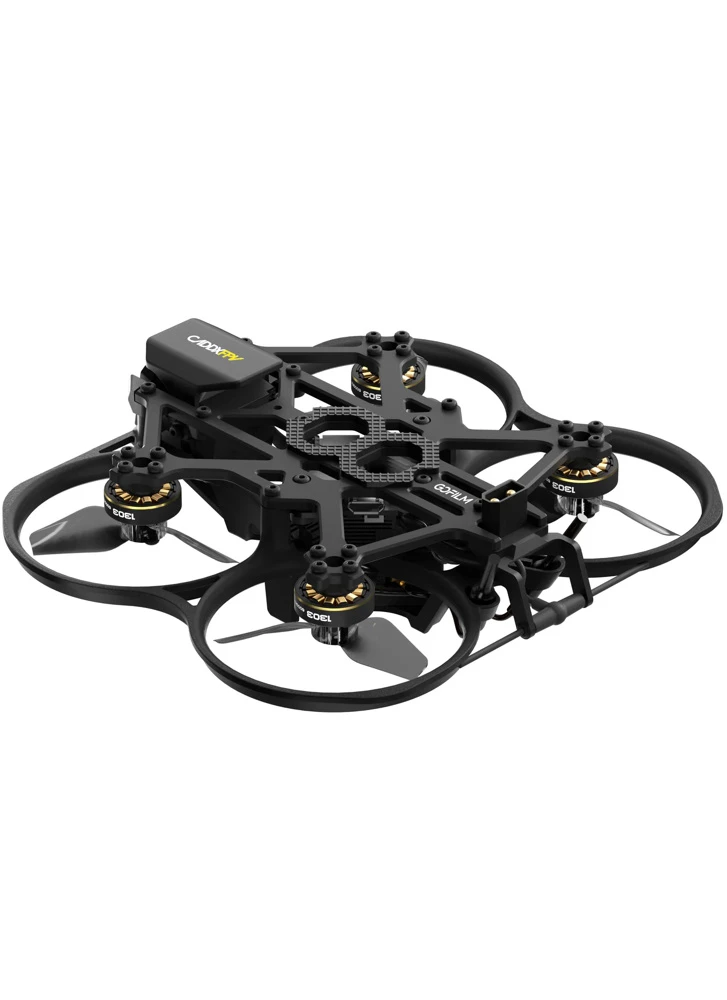

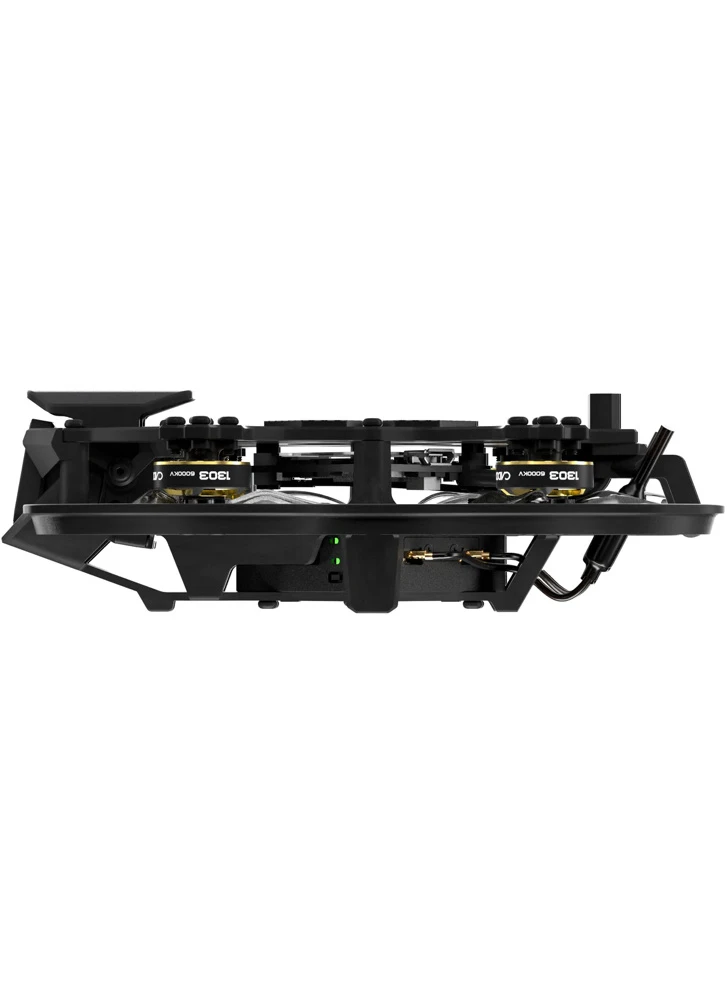

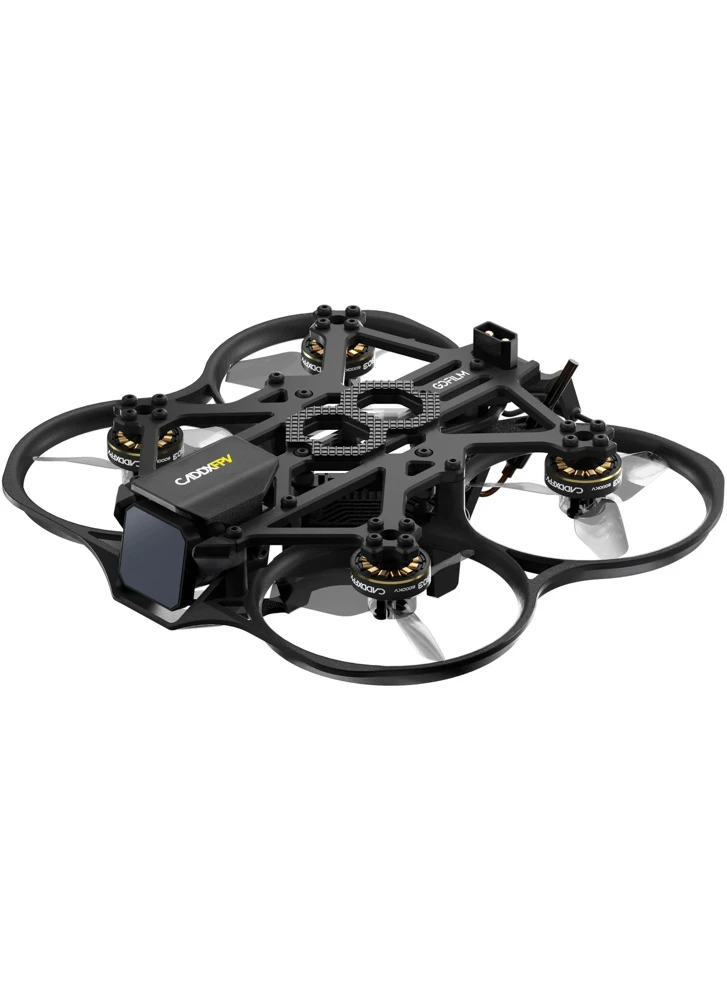

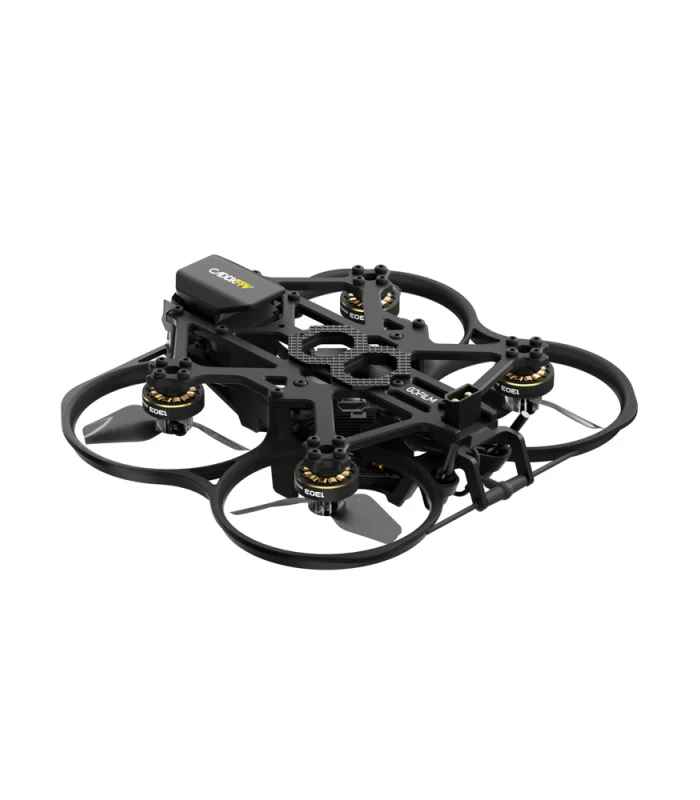

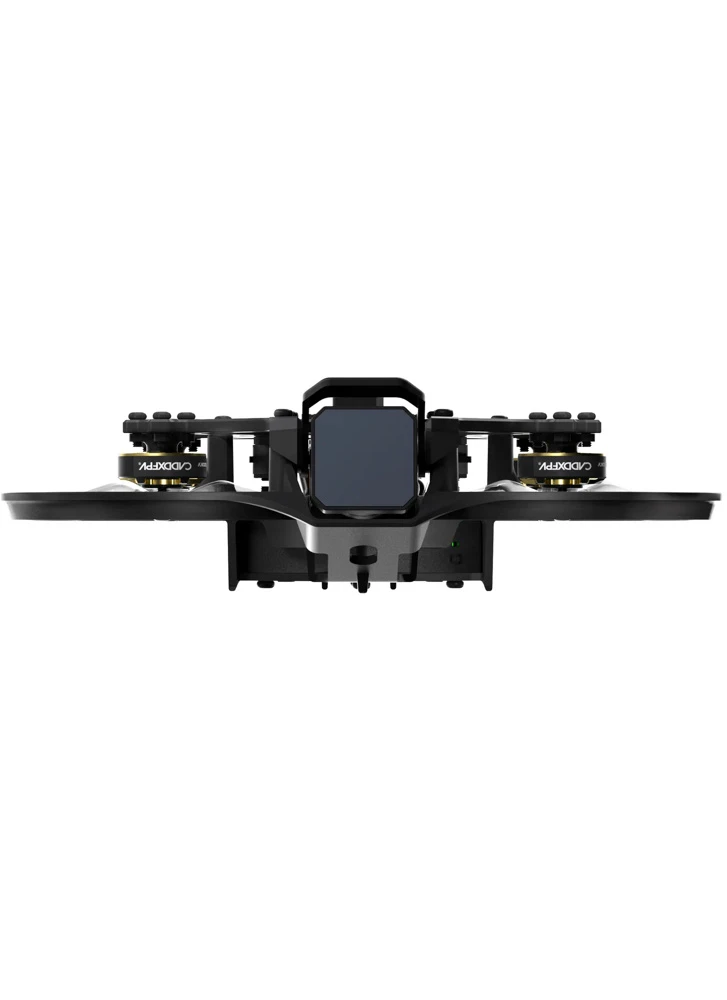

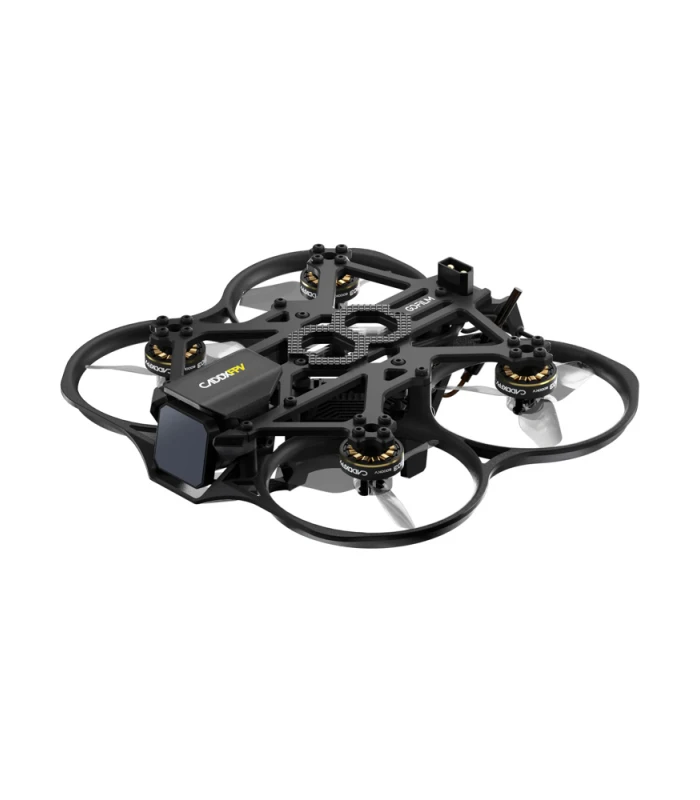

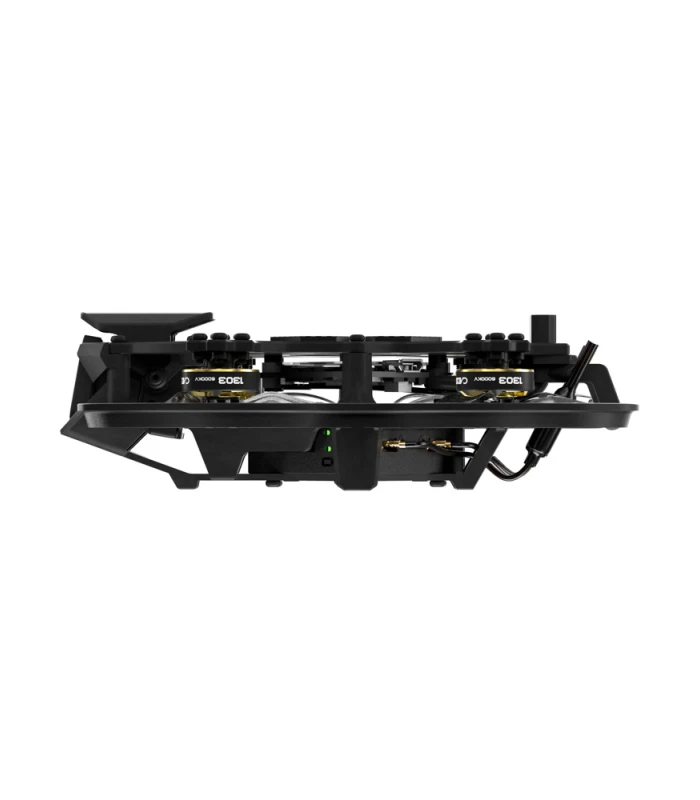

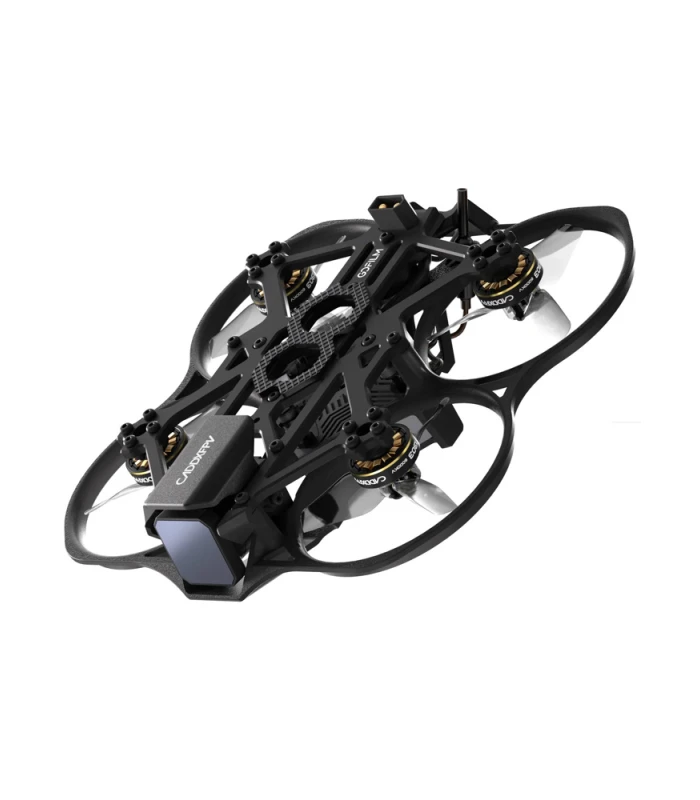

Caddx GoFilm 20 Cinewhoop BNF HD w/ Walksnail Moonlight – ELRS 2.4GHz

Name: Caddx GoFilm 20 Cinewhoop BNF HD w/ Walksnail Moonlight - ELRS 2.4GHz - Flying Tech
Brand: CaddxFPV
SKU: BNF-C0CA-FP010
Price: 379.00 GBP
Availability: InStock

£379.00 Inc. VAT

The GoFilm 20 is small sub-250g 4K cinewhoop, compatible with Walksnail FPV.

Only 1 left in stock

Add to compare

0 People watching this product now!

SKU: BNF-C0CA-FP010 Categories: Almost Ready To Fly (ARF), Walksnail, HD FPV Drones, Pre-built Drones & Kits Tags: CineWhoop, Drone, Gofilm 20, RTF, Walksnail FPV

Description

The first Cinewhoop from CADDXFPV is here. The GoFilm 20 offers a credible alternative to a DJI drone for those looking to record dynamic cinematic footage!

With a wheelbase of just 94mm and protective prop ducts, the compact GoFilm 20 drone can venture just about anywhere. Flyable indoors and outside, through tight gaps and closely packed environments. Unlike giant cinematic drones of old, this mini marvel is super agile, relatively quiet and easy to travel with. Plus, its low weigh (around 120grams), qualifies it for being regulation-friendly in the sub250 class.

At the heart of the GoFilm20 is the Walksnail Moonlight camera system, which offers 4K 60fps recording and support for Gyroflow stabilisation. With a 160° field of view, you have everything in sight and can capture breathtaking footage with this little drone.

The GoFilm 20 drone comes fully assembled. To get going, you’ll just need to bind it to your radio controller (ELRS compatible) and video receiver (Walksnail Avatar HD Goggles X / Avatar VRX). It doesn’t come with a battery, it supports 2-4S LiPo using a XT30 battery plus. We recommend a 4S 650mAh LiPo – this will provide a flight time averaging 5 minutes.

Recommended Accessories:

Battery: 4S 650mAh (compatible with 2-4S LiPo)
Props: HQprop T2×2×3
Goggle: Walksnail Avatar HD Goggles X / Avatar VRX

Spare Parts:

Flight control: CADDXF4_AIO_ELRS
Motor: 1303 6000KV
Camera: Moonlight Kit
Frame Kit

Specification

VTX PARAMETERS

Recording resolution: 4K@30/60fps; 2.7K@30/60fps; 1080p@100/60fps; 720p@60fps
Transmitter Power (EIRP): FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
I/O Interface: JST1.04(power cable); JST0.86(USB)；microSD Card Slot; IPEX-1
VTX Installation hole: 20×20mm/25×25mm (M2)
Communication Frequency: 5.725-5.850 GHz
Firmware name: AvatarMoonlight_Sky_X.X.X
Memory card type: U3 microSD, Max 256G
Power consumption: 12V@1.4A, 8V@2.2A
Camera size: 19.6mm×19mm×24mm
VTX size: 15.3mm×34.5mm×34.5mm
Weight: 38.5g (Antenna not included)
Wide Power Input: 7.4V-25.2V
Latency: Average delay 22ms
Video format: MP4 (H.264)
Shutter: Rolling shutter
Sensor: Starlight sensor
Max Mbps: 150Mbps
Model: Moonlight Kit
Built-in EIS: Support
Gyro flow: Support
OSD: Canvas mode
3D DNR: Support
Antenna: 2 (IPEX)
ISO: 100-25600
FOV: Max 160°
Aperture: F2.1

GOFILM 20 PARAMETERS

Flight time: 4S 650mAh & about 5.5 minutes
Propeller: HQprop T2×2×3
FC: CADDXF4_AIO_ELRS
Battery interface: XT30
Size: 133×123×39mm
Motor: 1303 6000KV
Receiver: ELRS 2.4G
VTX: Moonlight Kit
Wheelbase: 94mm
Model: Gofilm 20

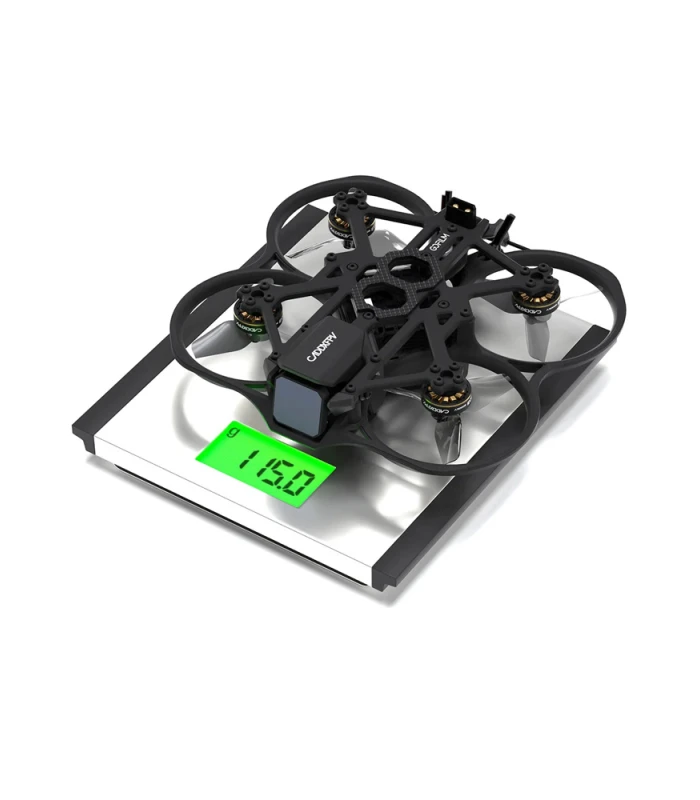

Weight: 115±5g

FC PARAMETERS

Mounting hole Distance: 25.5×25.5mm
Firmware target: CADDXF4_AIO_ELRS
ExpressLRS receiver: ELRS V3.0 UART
Support Power: 2~4S Lipo/Lihv
GYRO and IMU: ICM42688
MCU: STM32F405RGT6
Barometer: BMP280
ESC: 20A 4-IN-1
Blackbox: 8MBp

Includes

1x Caddx Gofilm 20 Cinewhoop BNF HD w/ Walksnail Moonlight – ELRS 2.4GHz
1x Micro USB data cable
1x Instructional Manual
1x 180mm strap
1x Hardware Kit
1x Paddles
